BONNET 2 GROUP - CK22M-T760A

Kioti TRACTOR | CK Series | CK20

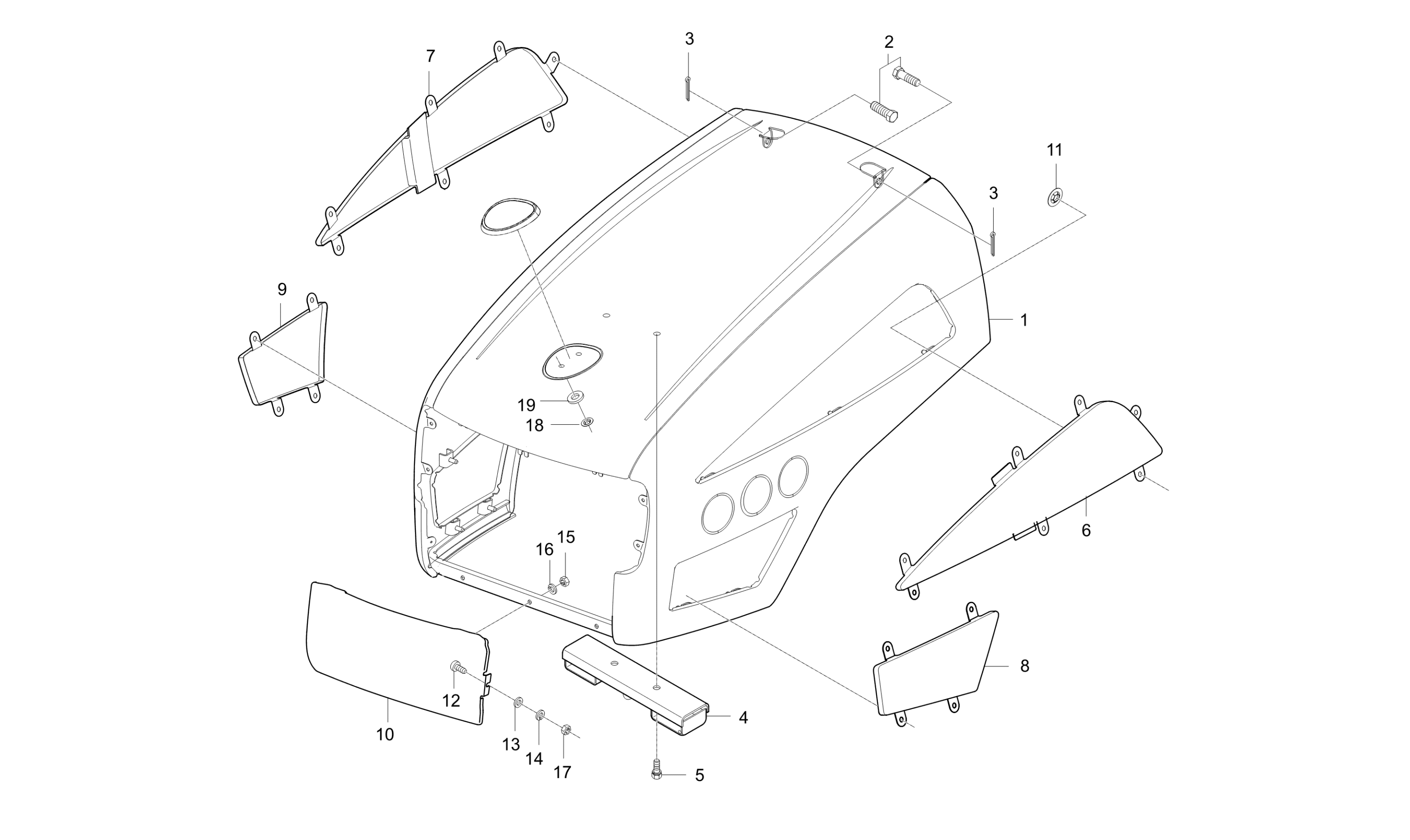

Diagram for BONNET 2 GROUP - CK22M-T760A
  • 1

    ASSY BONNET obs v

    • Part No. T2350-50704
    • 1 shown on diagram
    $1,499.99
  • 2

    BOLT BONNET

    • Part No. T2350-50632
    • * multiple options for #2
    • 2 shown on diagram
    $6.49
  • 2

    BOLT, BONNET

    • Part No. T2350-50633
    • Compatibility Interchngable
    • Applied Dates 2013-05-01 and up
    • * multiple options for #2
    • 2 shown on diagram
    $3.49
  • 3

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 2 shown on diagram
    $0.56
  • 4

    BRACKET, BONNET LATCH dnr v

    • Part No. T2380-50611
    • Applied Dates 2007-06-01 to 2008-10-23
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 4

    HOLDER, BONNET obs v

    • Part No. T2380-50611ED
    • Compatibility No interchange
    • * multiple options for #4
    • 1 shown on diagram
    $22.99
  • 5

    Bolt With Washer, M10 P1.50 x 20mm

    • Part No. 01123-51020
    • M10*P1.5
    • 2 shown on diagram
    $2.99
  • 6

    PUNCHING METAL-1 LH

    • Part No. T2350-50753
    • Applied Dates 2004-12-16 and up
    • Serial No. E 00001 and up
    • * multiple options for #6
    • 1 shown on diagram
    $134.99
  • 6

    USE T2350-50753 v

    • Part No. T2350-50753BB
    • Compatibility No interchange
    • * multiple options for #6
    • 1 shown on diagram
    $134.99
  • 7

    PUNCHING METAL-2 RH

    • Part No. T2350-50763
    • Applied Dates 2004-12-16 and up
    • Serial No. E 00001 and up
    • * multiple options for #7
    • 1 shown on diagram
    $114.99
  • 7

    USE T2350-50763 v

    • Part No. T2350-50763BB
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $114.99
  • 8

    PUNCHING METAL 3

    • Part No. T2350-50772
    • T0.8
    • * multiple options for #8
    • 1 shown on diagram
    $49.99
  • 8

    USE T2350-50772 v

    • Part No. T2350-50772BB
    • Compatibility No interchange
    • * multiple options for #8
    • 1 shown on diagram
    $49.99
  • 9

    Punching-Metal 4 (T2350-50782)

    • Part No. T2350-50782
    • T0.8
    • * multiple options for #9
    • 1 shown on diagram
    $55.99
  • 9

    USE T2350-50782 v

    • Part No. T2350-50782BB
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $55.99
  • 10

    PUNCHING METAL-5 v

    • Part No. T2350-50793
    • Applied Dates 2004-12-16 and up
    • Serial No. E 00001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $96.99
  • 10

    NET, 5 v

    • Part No. T2350-50793BB
    • Compatibility No interchange
    • * multiple options for #10
    • 1 shown on diagram
    $119.99
  • 11 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 22 shown on diagram
    $1.39
  • 12

    Screw

    • Part No. 03054-50516
    • 2 shown on diagram
    $0.56
  • 13

    Flat Washer M5

    • Part No. 04013-50050
    • 2 shown on diagram
    $0.67
  • 14 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • M5
    • 2 shown on diagram
    $0.55
  • 15

    NUT v

    • Part No. 02114-50050
    • 2 shown on diagram
    $0.50
  • 16 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 3 shown on diagram
    $0.61
  • 17

    NUT, Replaced by 02014-50060

    • Part No. 02114-50060
    • 3 shown on diagram
    $0.00
  • 18 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 2 shown on diagram
    $1.39
  • 19 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • 2 shown on diagram
    $1.19
