BONNET 3 GROUP - CK22-T770A

Kioti TRACTOR | CK Series | CK20

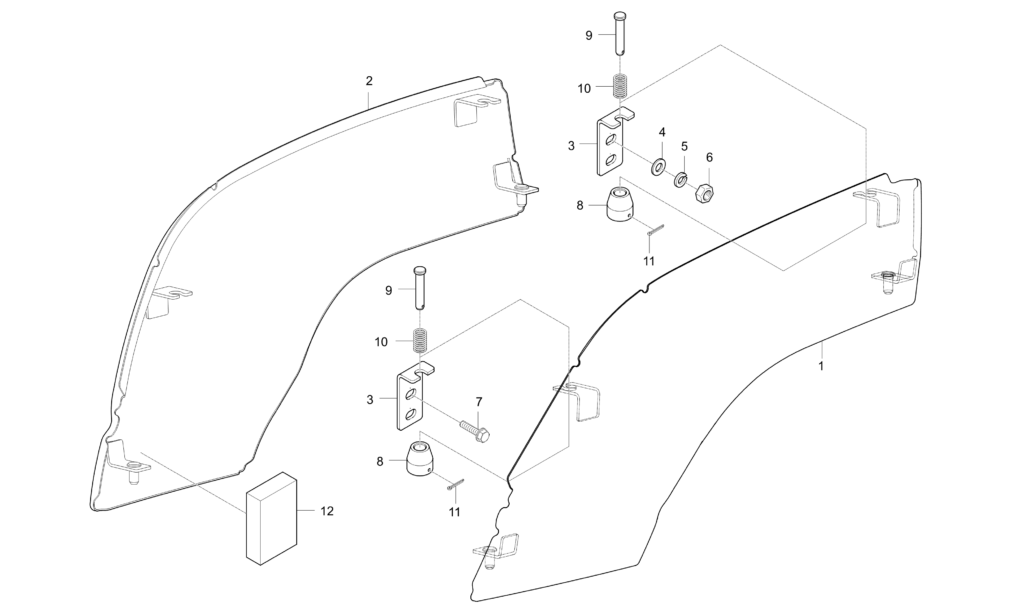

Diagram for BONNET 3 GROUP - CK22-T770A
  • 1

    COVER- SIDE LH v

    • Part No. T2350-50821
    • * multiple options for #1
    • 1 shown on diagram
    $314.99
  • 1

    COVER SIDE LH

    • Part No. T2350-50821BB
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $314.99
  • 2

    COVER SIDE RH V

    • Part No. T2350-50831
    • * multiple options for #2
    • 1 shown on diagram
    $264.99
  • 2

    COVER,SIDE(RH) obs

    • Part No. T2350-50831BB
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $279.99
  • 3

    PLATE,SIDE COVER

    • Part No. T2350-50841
    • 4 shown on diagram
    $11.99
  • 4 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 4 shown on diagram
    $0.61
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $0.79
  • 6 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 4 shown on diagram
    $0.67
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 8

    SPACER

    • Part No. T2350-50851
    • DIA14
    • 4 shown on diagram
    $5.49
  • 9 Pin, Joint M6x35mm

    Pin, Joint M6x35mm

    • Part No. 05122-50635
    • DIA6XL35
    • 4 shown on diagram
    $2.49
  • 10

    SPRING

    • Part No. T2350-50871
    • DIA0.8
    • 4 shown on diagram
    $3.49
  • 11

    PIN,SPLIT

    • Part No. 05511-51620
    • DIA1.4XL20
    • 4 shown on diagram
    $0.50
  • 12

    SPONGE

    • Part No. T2350-50391
    • T25
    • 2 shown on diagram
    $9.99
