LIGHT GROUP - CK20M-T900A

Kioti TRACTOR | CK Series | CK20HS

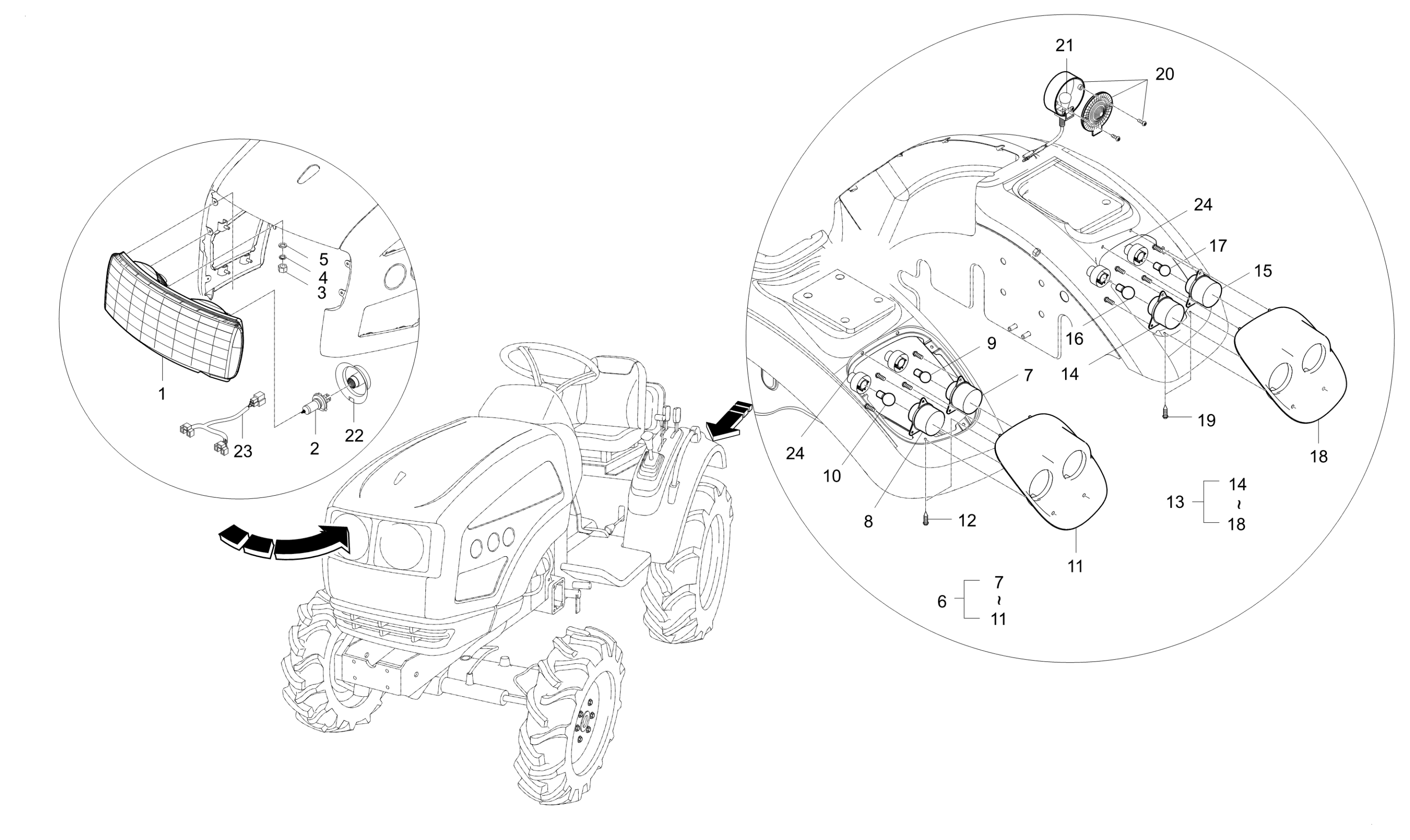

Diagram for LIGHT GROUP - CK20M-T900A
  • 1

    ASS Y HEAD LAMP V

    • Part No. T2350-69511
    • 1 shown on diagram
    $414.99

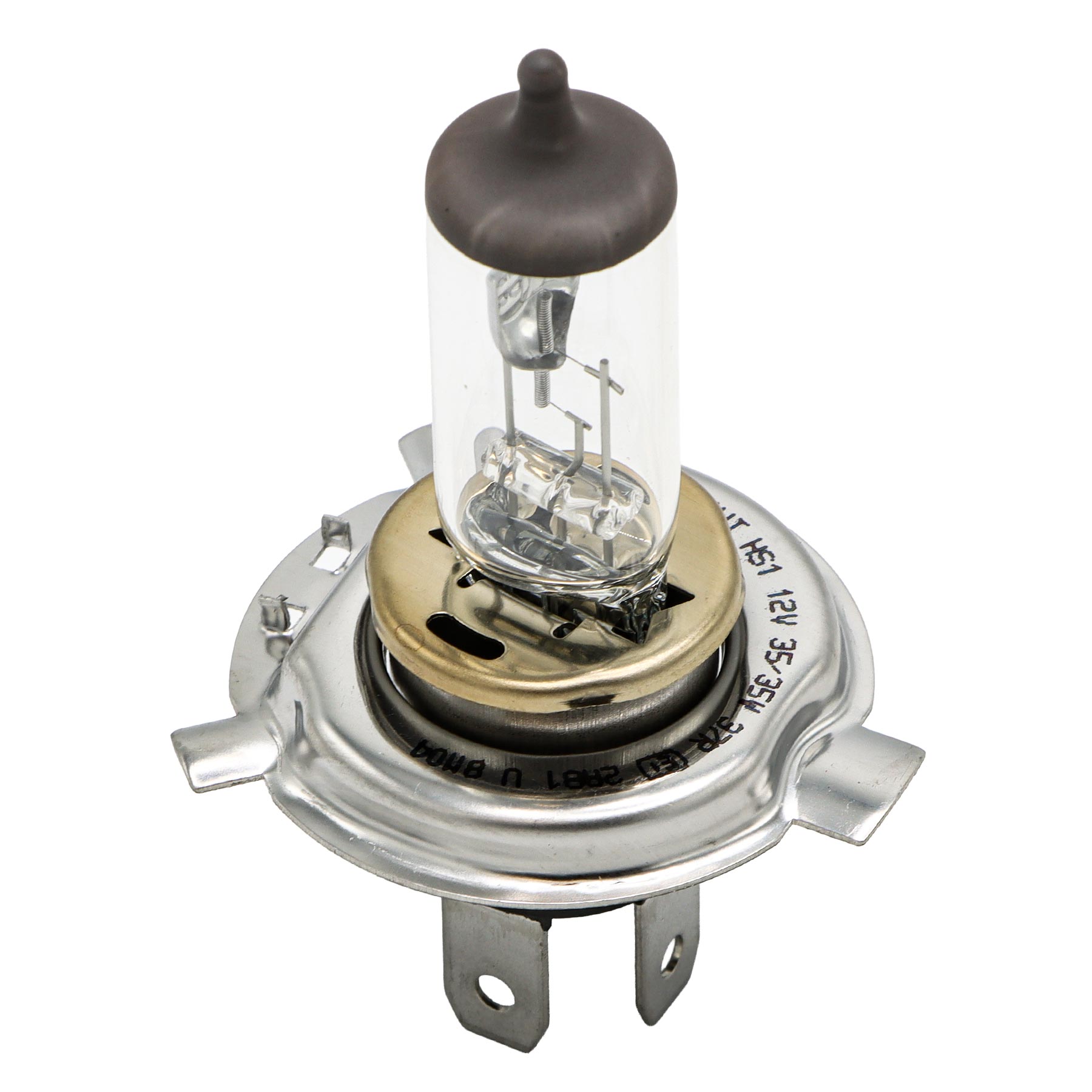

  • 2 BULB 12V35-35W

    BULB 12V35-35W

    • Part No. T4620-69241
    • 12V35W/35W(H4)
    • 2 shown on diagram
    $46.99
  • 3

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 5 shown on diagram
    $0.61
  • 4

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 5 shown on diagram
    $0.55
  • 5

    Flat Washer M4

    • Part No. 04012-50040
    • 5 shown on diagram
    $1.89
  • 6

    REAR COMBINATION LAMP(L)

    • Part No. T2350-69613
    • Applied Dates 2003-01-29 to 2003-03-14
    • * multiple options for #6
    • 1 shown on diagram
    $82.99
  • 6

    REAR COMBINATION LAMP

    • Part No. T2350-69614
    • Compatibility New repl old
    • Applied Dates 2003-03-15 and up
    • * multiple options for #6
    • 1 shown on diagram
    $139.99
  • 7

    STOP LAMP

    • Part No. T2305-69651
    • 1 shown on diagram
    $53.99
  • 8

    REAR TAIL LAMP

    • Part No. T2305-69661
    • 1 shown on diagram
    $43.99
  • 9

    BULB 12V P21W 1156

    • Part No. T2611-79011
    • 1 shown on diagram
    $6.49

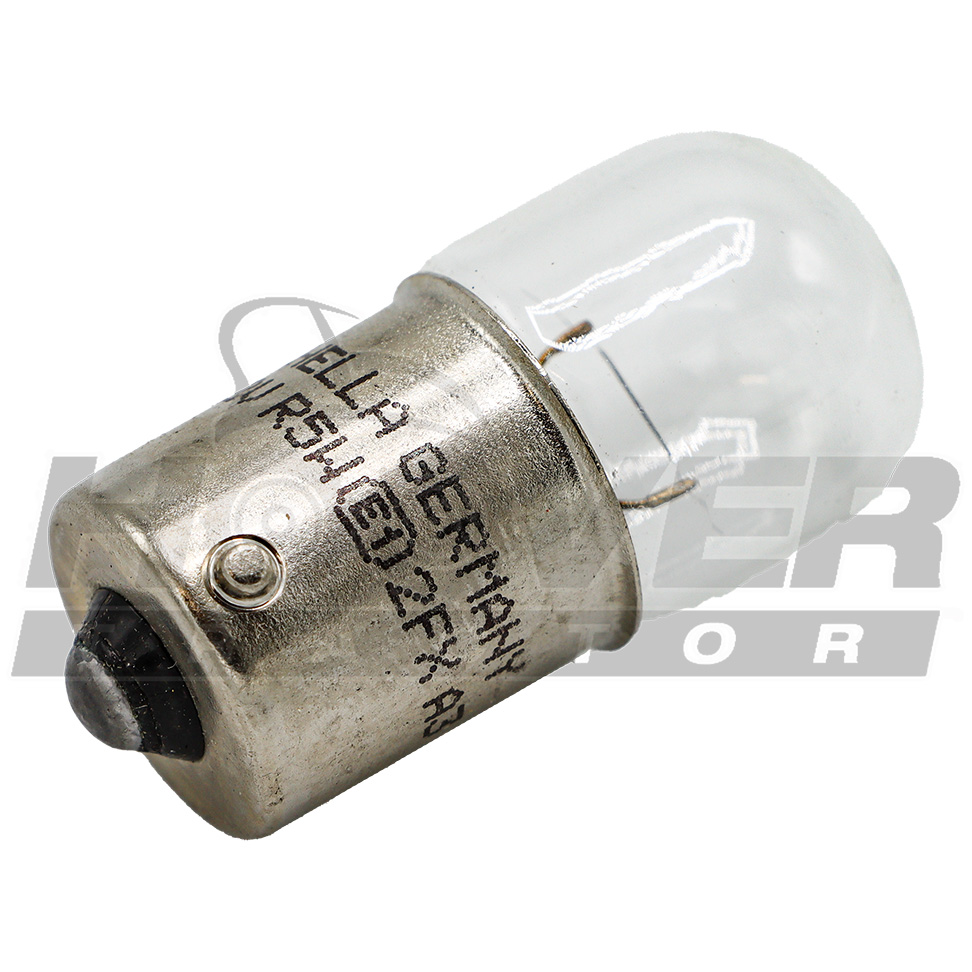

  • 10 BULB

    BULB

    • Part No. T2611-79031
    • 1 shown on diagram
    $16.99
  • 11

    REAR LAMP HOUSING LH v

    • Part No. T2350-95114
    • Applied Dates 2003-03-25 to 2003-03-26
    • Serial No. Up to HS3000350
    • * multiple options for #11
    • 1 shown on diagram
    $37.99
  • 11

    ASSY REAR LAMP LH

    • Part No. T2350-95114BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #11
    • 1 shown on diagram
    $37.99
  • 12 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • Applied Dates 2007-03-06 to 2008-07-08
    • M4X16
    • 2 shown on diagram
    $0.79
  • 13

    REAR COMBINATION LAMP(R)

    • Part No. T2350-69623
    • Applied Dates 2003-01-29 to 2003-03-14
    • * multiple options for #13
    • 1 shown on diagram
    $82.99
  • 13

    REAR COMBINATION LAMP

    • Part No. T2350-69624
    • Compatibility New repl old
    • Applied Dates 2003-03-15 and up
    • * multiple options for #13
    • 1 shown on diagram
    $154.99
  • 14

    STOP LAMP

    • Part No. T2305-69651
    • 1 shown on diagram
    $53.99
  • 15

    REAR TAIL LAMP

    • Part No. T2305-69661
    • 1 shown on diagram
    $43.99
  • 16

    BULB 12V P21W 1156

    • Part No. T2611-79011
    • 1 shown on diagram
    $6.49
  • 17 BULB

    BULB

    • Part No. T2611-79031
    • 1 shown on diagram
    $16.99
  • 18

    Rear Lamp Housing (RH), Replaced by T2350-95124BB

    • Part No. T2350-95124
    • Applied Dates 2003-03-25 to 2003-03-26
    • Serial No. Up to HS3000350
    • * multiple options for #18
    • 1 shown on diagram
    $0.00
  • 18

    Rear Lamp Ass’y (RH)

    • Part No. T2350-95124BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #18
    • 1 shown on diagram
    $39.99
  • 19 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • Applied Dates 2007-03-06 to 2008-06-17
    • M4X16
    • 2 shown on diagram
    $0.79
  • 20

    LAMP, TURN SIGNAL v

    • Part No. K2400-46211
    • Applied Dates Up to 2003-04-30
    • * multiple options for #20
    • 2 shown on diagram
    $29.99
  • 20 Turn Signal Lamp (K2400-46212)

    Turn Signal Lamp (K2400-46212)

    • Part No. K2400-46212
    • Compatibility New repl old
    • Applied Dates 2003-05-01 and up
    • * multiple options for #20
    • 2 shown on diagram
    $44.99
  • 21

    BULB(12V 21W) v

    • Part No. T4240-33692
    • 2 shown on diagram
    $5.49
  • 22

    COVER, DUST

    • Part No. T2350-69511001
    • 2 shown on diagram
    $5.99
  • 23

    Connection Wire (T2350-69531)

    • Part No. T2350-69531
    • 1 shown on diagram
    $21.99
  • 24

    WIRE,REAR

    • Part No. T2350-69691
    • 2 shown on diagram
    $26.99
