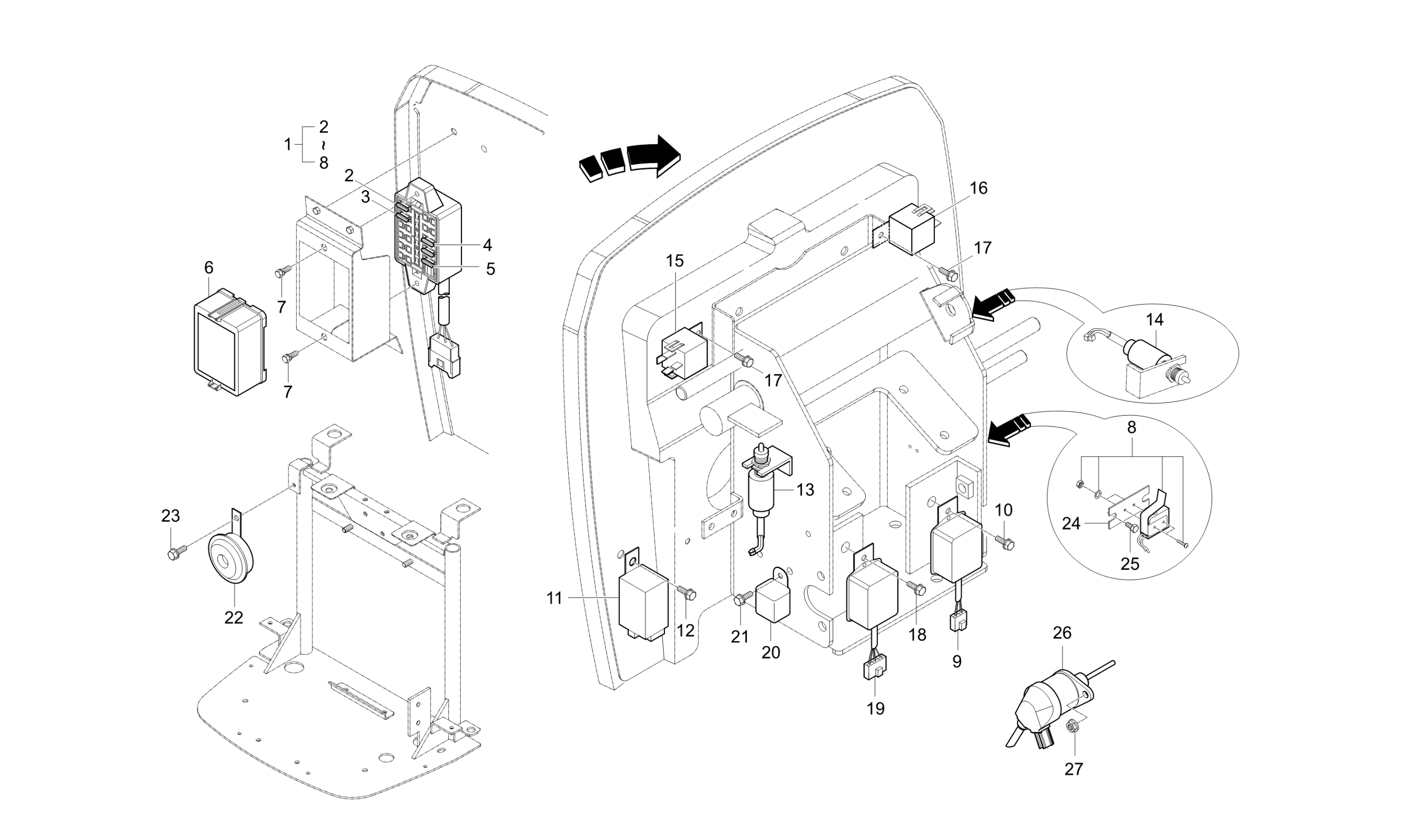

ELECTRICITY SYSTEM 2 GROUP - CK22M-T880A
Kioti TRACTOR | CK Series | CK20HS
-
ASSY FUSE BOX
- Part No. T2380-69901
- Applied Dates Up to 2007-10-01
- 1 shown on diagram
$68.99 -
FUSE 25A
- Part No. 36919-5666-1
- Applied Dates Up to 2007-10-01
- 2 shown on diagram
$2.99 -
FUSE, 15A
- Part No. 35820-7556-1
- Applied Dates Up to 2007-10-01
- 2 shown on diagram
$2.99 -
FUSE, 5A
- Part No. T2185-33651
- Applied Dates Up to 2007-10-01
- 2 shown on diagram
$1.49 -
FUSE, 10A
- Part No. T4260-33631
- Applied Dates Up to 2007-10-01
- 6 shown on diagram
$2.99 -
COVER v
- Part No. 52300-4166-4
- Applied Dates Up to 2007-10-01
- 1 shown on diagram
$26.99 -
BOLT, WASHER
- Part No. 01023-50620
- Applied Dates Up to 2007-10-01
- M6XP1.0
- 2 shown on diagram
$1.39 -
MICRO SWITCH, Replaced by T2198-68811
- Part No. 44512-6881-3
- Applied Dates Up to 2007-05-30
- Serial No. VS3000001 to HS3000270
- * multiple options for #8
- 1 shown on diagram
$0.00 -
MICRO SWITCH v
- Part No. T4930-68811
- Compatibility Interchngable
- Applied Dates 2007-05-31 to 2007-10-24
- * multiple options for #8
- 1 shown on diagram
$56.99 -
MICRO SWITCH N/C
- Part No. T2198-68811
- Compatibility Call for compat
- Applied Dates 2008-07-11 and up
- Serial No. HS3000271 and up
- DC30V 3A
- * multiple options for #8
- 1 shown on diagram
$64.99 -

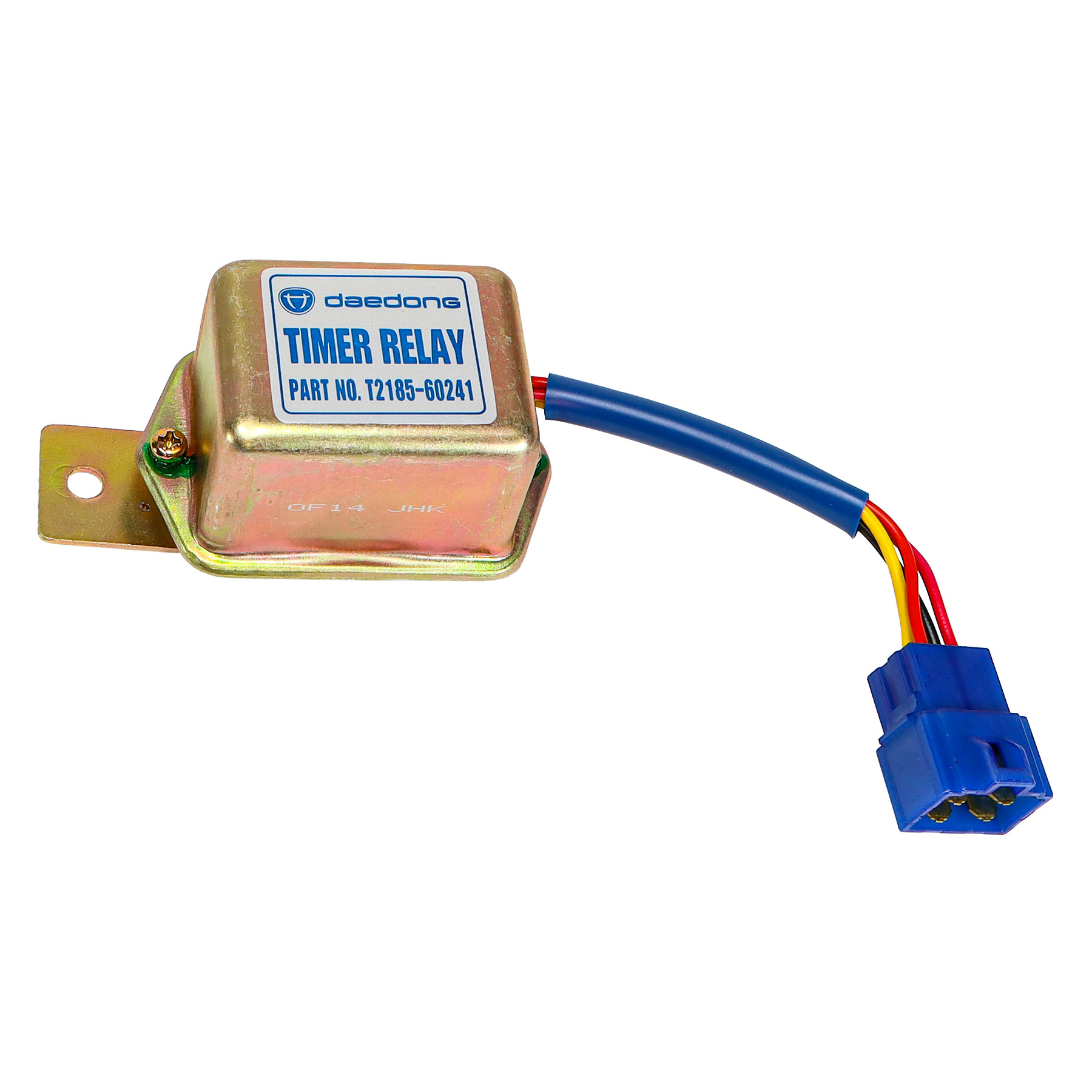

RELAY,TIMER V, Replaced by T2185-60242
- Part No. T2185-60241
- 1 shown on diagram
$84.99 -
BOLT, WASHER v
- Part No. 01023-50612
- M6XP1.0
- 1 shown on diagram
$1.09 -
UNIT, FLASHER V
- Part No. T4240-31052
- Applied Dates Up to 2007-04-16
- Serial No. VS3000001 to GS3000080
- * multiple options for #11
- 1 shown on diagram
$47.99 -
FLASHER UNIT v
- Part No. T4121-31051
- Compatibility Interchngable
- Applied Dates 2007-04-17 to 2007-07-06
- Serial No. GS3000081 to HS3000090
- * multiple options for #11
- 1 shown on diagram
$21.99 -
UNIT, FLASHER V
- Part No. T2380-31051
- Compatibility No interchange
- Applied Dates 2007-07-07 to 2010-11-06
- Serial No. HS3000091 to KS3000591
- * multiple options for #11
- 1 shown on diagram
$22.99 -
Flasher Unit Replaced by T2380-31053
- Part No. T2380-31052
- Compatibility Interchngable
- Applied Dates 2010-11-07 and up
- Serial No. KS3000592 and up
- * multiple options for #11
- 1 shown on diagram
$49.99 -
FLASHER UNIT , SENSOR v
- Part No. T2380-31053
- Compatibility Interchngable
- * multiple options for #11
- 1 shown on diagram
$49.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- M6XP1.0
- 1 shown on diagram
$1.89 -
SWITCH, SAFETY STARTE
- Part No. T4520-75481
- 1 shown on diagram
$53.99 -
ASSY STOP SWITCH
- Part No. T4520-41821
- 1 shown on diagram
$58.99 -
GLOW RELAY V, Replaced by T4180-69951
- Part No. C5510-43102
- Applied Dates Up to 2007-05-29
- Serial No. Up to GS3000140
- * multiple options for #15
- 1 shown on diagram
$0.00 -
RELAY V, Replaced by T4180-69951
- Part No. T2198-69951
- Compatibility New repl old
- Applied Dates 2007-07-31 to 2008-08-31
- Serial No. GS3000141 to HS3000270
- 70A (epoxy)
- * multiple options for #15
- 1 shown on diagram
$0.00 -
RELAY v, Replaced by T5535-69961
- Part No. T2368-69951
- Compatibility Interchngable
- Applied Dates 2008-06-16 to 2009-03-29
- Serial No. HS3000271 to JS3000160
- 12V 70A
- * multiple options for #15
- 1 shown on diagram
$0.00 -
RELAY 4P 70A, Replaced by T5535-69951
- Part No. T4180-69951
- Compatibility Interchngable
- Applied Dates 2009-12-01 to 2015-01-31
- Serial No. JS3000381 and up
- 12V 70A
- * multiple options for #15
- 1 shown on diagram
$0.00 -
70 Amp (4) Pin Relay (T5535-69951)
- Part No. T5535-69951
- Compatibility Interchngable
- Applied Dates 2015-02-01 and up
- Serial No. RS3000001 and up
- * multiple options for #15
- 1 shown on diagram
$29.99 -
Relay 5p V, Replaced By T5535-69961
- Part No. T2185-69971
- Applied Dates 2009-05-16 to 2008-08-31
- Serial No. JS3000161 to HS3000270
- * multiple options for #16
- 1 shown on diagram
$0.00 -
RELAY(5P) v, Replaced by T5535-69961
- Part No. T2368-69961
- Compatibility Interchngable
- Applied Dates 2008-06-16 to 2009-03-29
- Serial No. HS3000271 to JS3000160
- 12V 40A
- * multiple options for #16
- 1 shown on diagram
$0.00 -
Relay 5p V, Replaced By T5535-69961
- Part No. T2185-69971
- Compatibility Interchngable
- * multiple options for #16
- 1 shown on diagram
$0.00 -
RELAY 5P, Replaced by T5535-69961
- Part No. T4180-69961
- Compatibility Interchngable
- Applied Dates 2009-11-02 to 2014-10-31
- Serial No. JS3000291 and up
- * multiple options for #16
- 1 shown on diagram
$0.00 -
Relay, 5P, 30A 40A, with bracket
- Part No. T5535-69961
- Compatibility Interchngable
- Applied Dates 2014-11-01 and up
- Serial No. PS3000001 and up
- Bracket
- * multiple options for #16
- 1 shown on diagram
$19.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- M6XP1.0
- 2 shown on diagram
$1.89 -
BOLT, WASHER
- Part No. 01023-50616
- M6XP1.0
- 1 shown on diagram
$1.19 -

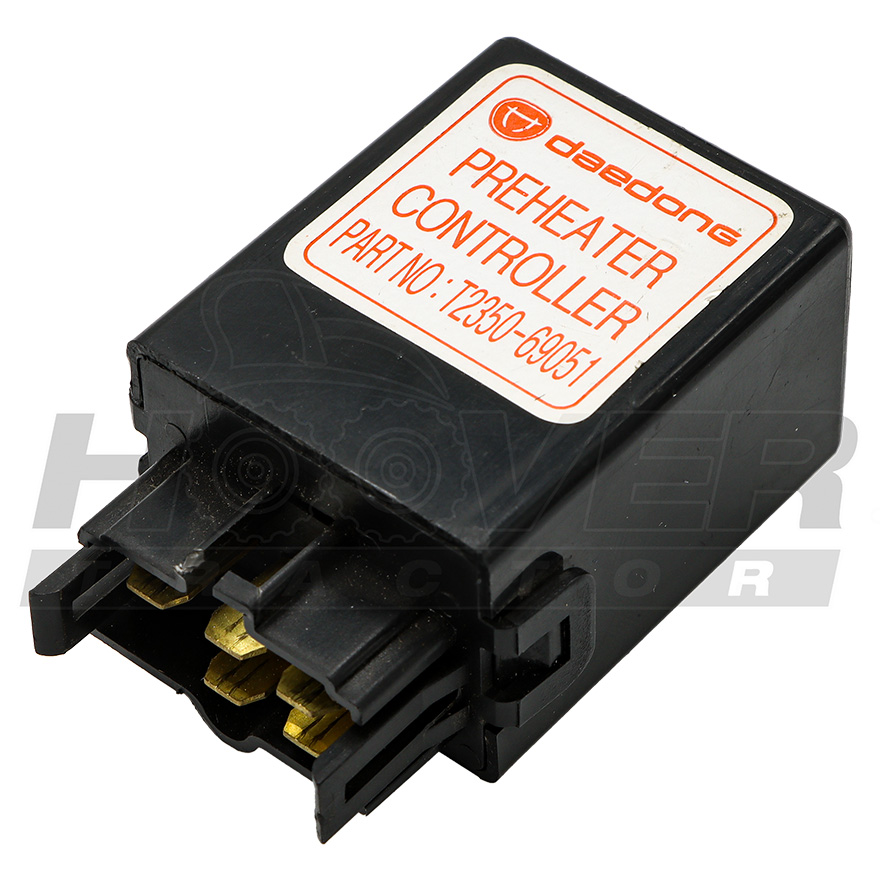

PREHEATER,CONTROLLER
- Part No. T2350-69051
- Applied Dates Up to 2007-03-05
- Serial No. VS3000001 and up
- * multiple options for #19
- 1 shown on diagram
$79.99 -

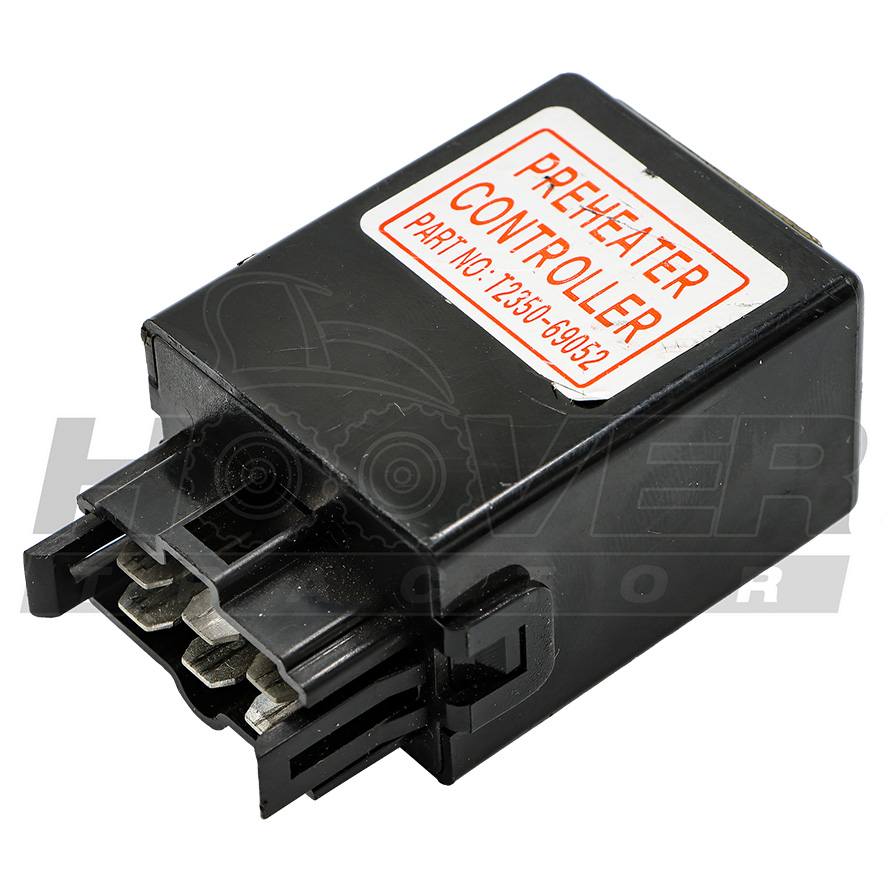

PREHEATER,CONTROLLER
- Part No. T2350-69052
- Compatibility New repl old
- Applied Dates 2007-03-06 to 2008-03-23
- Serial No. GS3000001 to HS3000270
- * multiple options for #19
- 1 shown on diagram
$119.99 -
PREHEATER,CONTROLLER
- Part No. T2380-69051
- Compatibility No interchange
- Applied Dates 2008-03-24 to 2009-05-24
- Serial No. HS3000271 to JS3000230
- * multiple options for #19
- 1 shown on diagram
$69.99 -

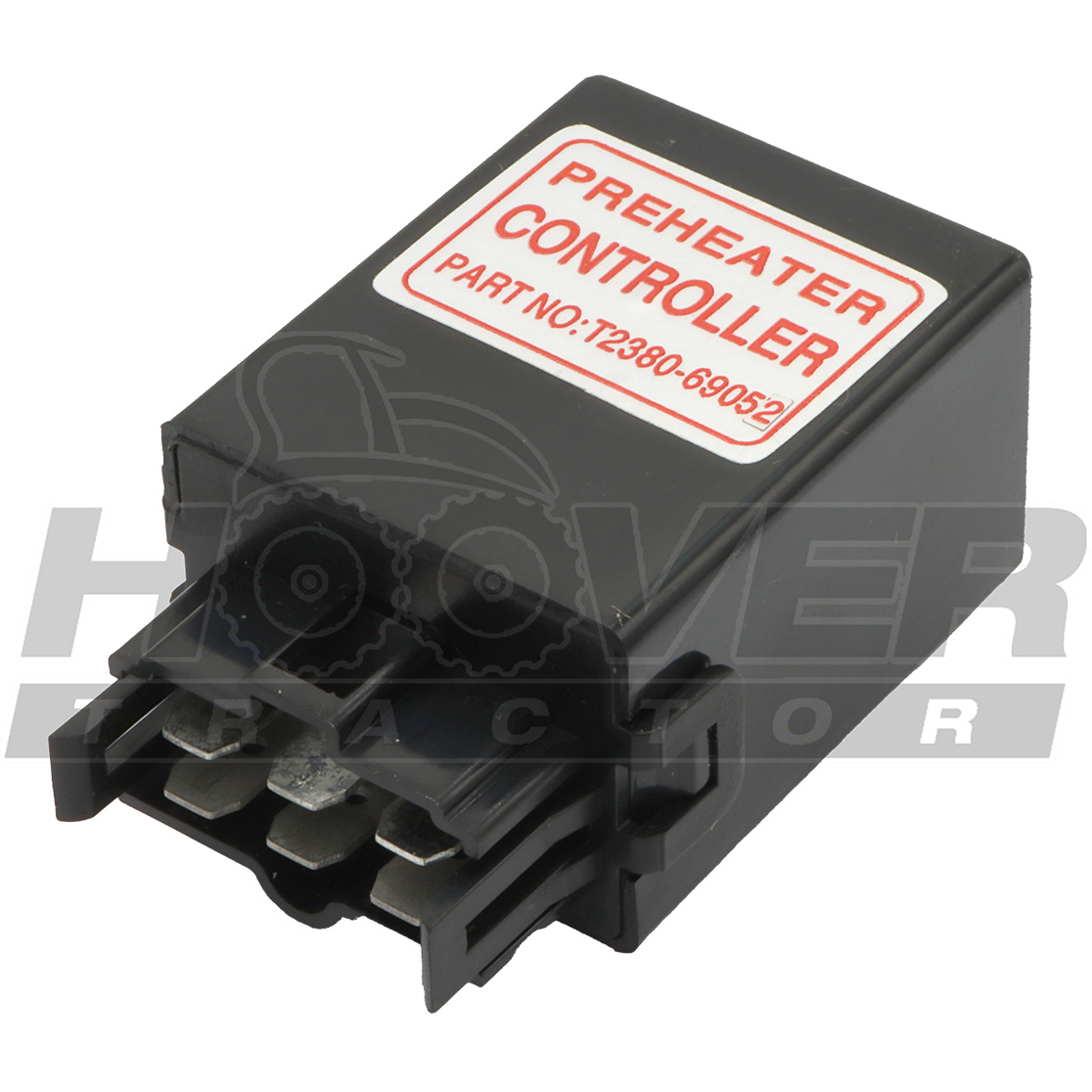

PREHEATER,CONTROLLER
- Part No. T2380-69052
- Compatibility New repl old
- Applied Dates 2009-08-01 and up
- Serial No. JS3000231 and up
- * multiple options for #19
- 1 shown on diagram
$109.99 -
Relay 5p V, Replaced By T5535-69961
- Part No. T2185-69971
- Compatibility Interchngable
- * multiple options for #20
- 1 shown on diagram
$0.00 -
RELAY 5P, Replaced by T5535-69961
- Part No. T4180-69961
- Compatibility Interchngable
- * multiple options for #20
- 1 shown on diagram
$0.00 -
Relay, 5P, 30A 40A, with bracket
- Part No. T5535-69961
- Compatibility Interchngable
- Bracket
- * multiple options for #20
- 1 shown on diagram
$19.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- M6XP1.0
- 1 shown on diagram
$1.89 -

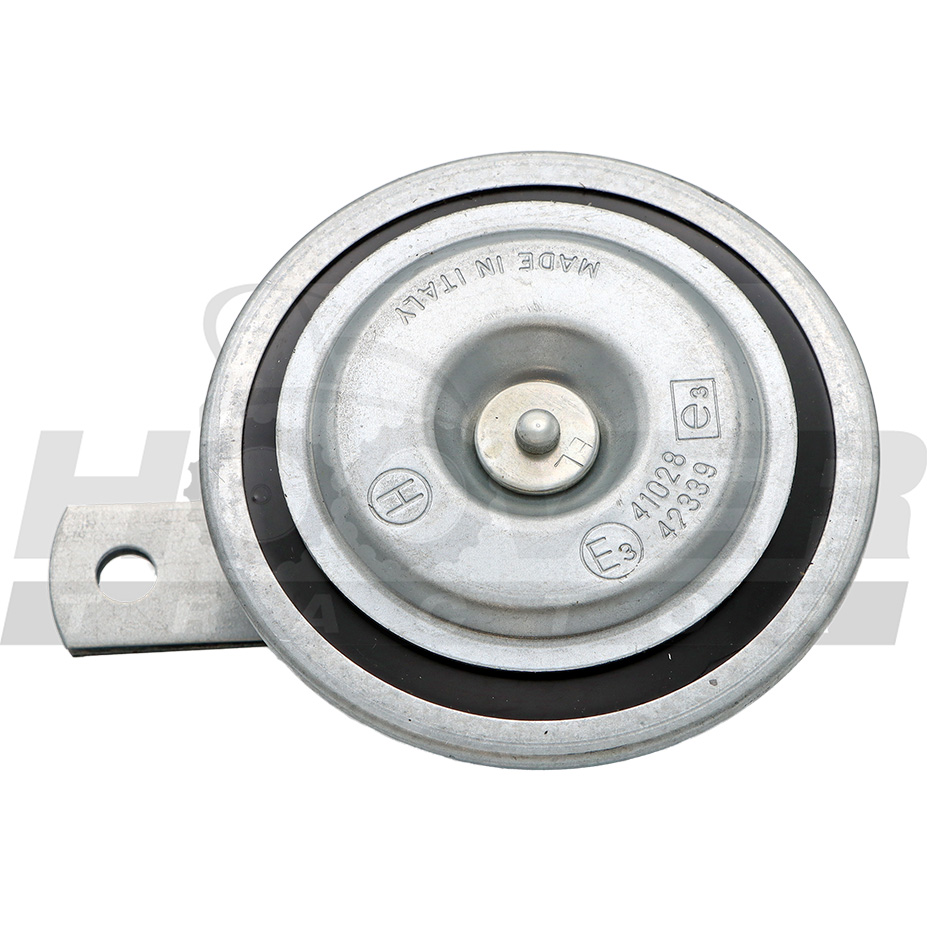

HORN V
- Part No. T2611-75951
- Applied Dates Up to 2010-10-02
- Serial No. Up to KS3000491
- * multiple options for #22
- 1 shown on diagram
$139.99 -
ASSY HORN
- Part No. T4144-75951
- Compatibility New repl old
- Applied Dates 2010-10-03 to 2011-05-28
- Serial No. KS3000492 to LS3000150
- * multiple options for #22
- 1 shown on diagram
$0.00 -
ASSY HORN
- Part No. T4144-75952
- Compatibility Interchngable
- Applied Dates 2011-05-29 and up
- Serial No. LS3000151 and up
- 70 pi, 420 Hz, 110
- * multiple options for #22
- 1 shown on diagram
$52.99 -
WASHER BOLT
- Part No. 01025-50614
- M6*P1.0
- 1 shown on diagram
$1.89 -
PLATE
- Part No. T2350-55291
- Applied Dates Up to 2008-05-08
- Serial No. Up to GS3000080
- T1.2
- * multiple options for #24
- 1 shown on diagram
$1.39 -
PLATE, SENSOR HOLDER
- Part No. T2350-55292
- Compatibility New repl old
- T1.2
- * multiple options for #24
- 1 shown on diagram
$2.49 -
BOLT, WASHER v
- Part No. 01023-50612
- M6XP1.0
- 2 shown on diagram
$1.09 -
ASSY SOLENOID dnr v, Replaced by E6820-60012
- Part No. E6850-60011
- Applied Dates 2007-03-06 to 2007-10-21
- Serial No. GS3000001 to HS3000145
- * multiple options for #26
- 1 shown on diagram
$0.00 -
SOLENOID, ENGINE STOP, Replaced by E6820-60012
- Part No. E6850-60012
- Compatibility Call for compat
- Applied Dates 2007-10-22 to 2011-05-31
- Serial No. HS3000146 to LS3000150
- * multiple options for #26
- 1 shown on diagram
$0.00 -
NUT, FLANGE
- Part No. 02761-50060
- Applied Dates 2007-03-06 and up
- M6XP1.0
- 2 shown on diagram
$0.67
