ELECTRICITY SYSTEM 3 GROUP - CK22M-T890A

Kioti TRACTOR | CK Series | CK20HS

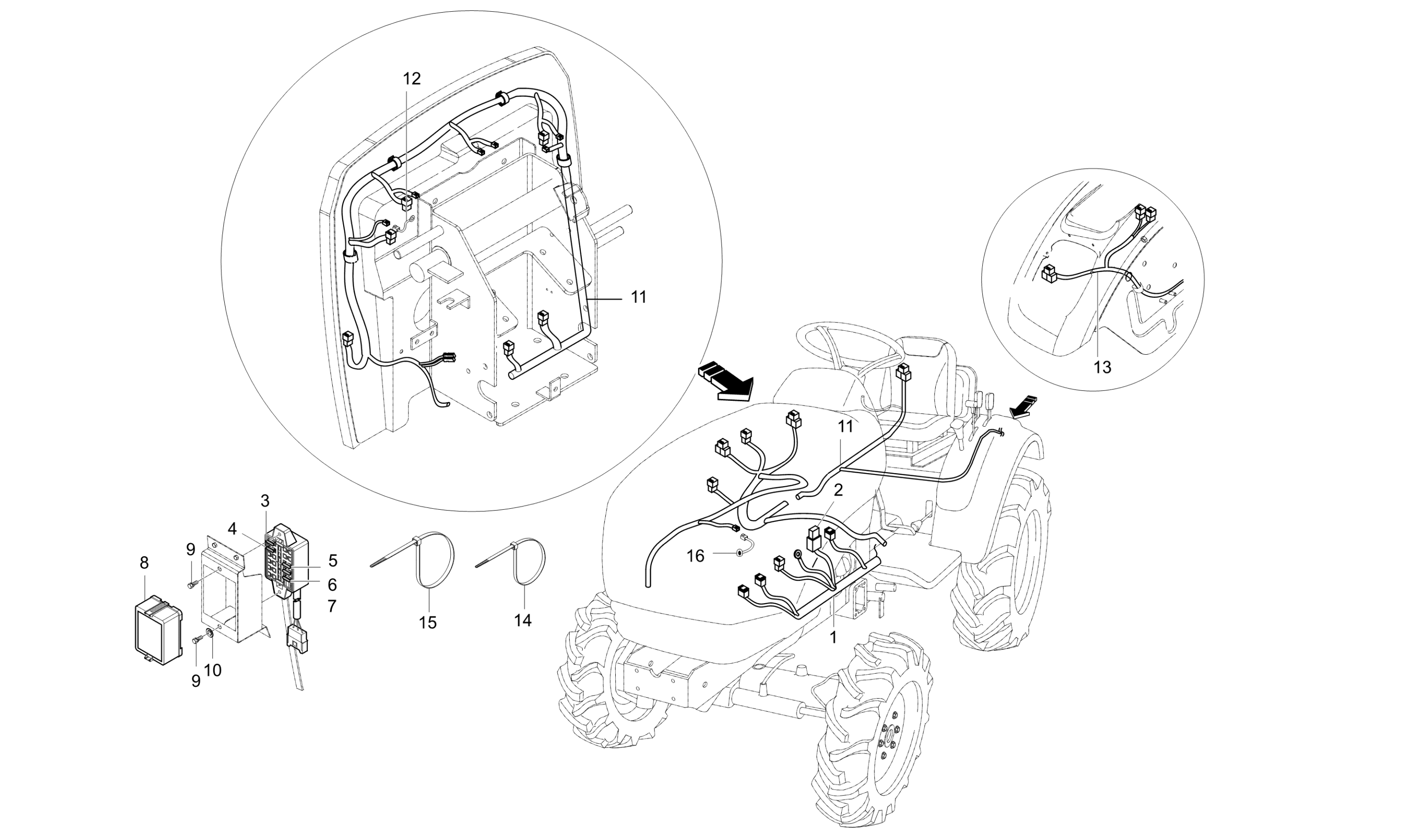

Diagram for ELECTRICITY SYSTEM 3 GROUP - CK22M-T890A
  • 1

    ASS’Y WIRE HARNESS BONNET 1 v

    • Part No. T2380-69381
    • Serial No. Up to GS3000080
    • * multiple options for #1
    • 1 shown on diagram
    $179.99
  • 1

    ASS’Y WIRE HARNESS BONNET 1

    • Part No. T2380-69382
    • Compatibility No interchange
    • Applied Dates 2007-05-31 to 2008-02-29
    • Serial No. GS3000081 to HS3000090
    • * multiple options for #1
    • 1 shown on diagram
    $339.99
  • 1

    ASS’Y WIRE HARNESS BONNET 1

    • Part No. T2380-69383
    • Compatibility No interchange
    • Applied Dates 2008-03-01 to 2009-05-25
    • Serial No. HS3000091 to JS3000180
    • * multiple options for #1
    • 1 shown on diagram
    $274.99
  • 1

    ASS’Y WIRE HARNESS BONNET 1

    • Part No. T2380-69384
    • Compatibility New repl old
    • Applied Dates 2009-05-26 to 2010-05-30
    • Serial No. JS3000181 to KS3000221
    • * multiple options for #1
    • 1 shown on diagram
    $184.99
  • 1

    ASS’Y WIRE HARNESS BONNET 1

    • Part No. T2380-69385
    • Compatibility New repl old
    • Applied Dates 2010-05-31 and up
    • Serial No. KS3000222 and up
    • * multiple options for #1
    • 1 shown on diagram
    $339.99
  • 2

    FUSE, 60A v

    • Part No. 52794-4242-1
    • 1 shown on diagram
    $6.49
  • 3 DIODE 2P

    DIODE 2P

    • Part No. T4620-69331
    • 800V,3.0A
    • 1 shown on diagram
    $11.99
  • 4

    FUSE, 5A

    • Part No. T2185-33651
    • 2 shown on diagram
    $1.49
  • 5

    FUSE, 10A

    • Part No. T4260-33631
    • 6 shown on diagram
    $2.99
  • 6

    FUSE, 15A

    • Part No. 35820-7556-1
    • 2 shown on diagram
    $2.99
  • 7

    FUSE 25A

    • Part No. 36919-5666-1
    • 2 shown on diagram
    $2.99
  • 8

    COVER, FUSE BOX

    • Part No. P5370-69321
    • 1 shown on diagram
    $15.99
  • 9

    OB-BOLT

    • Part No. 03027-50516
    • M5XP0.8
    • 2 shown on diagram
    $1.09
  • 10

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 2 shown on diagram
    $0.67
  • 11

    ASSY,PANEL WIRE

    • Part No. T2380-69421
    • * multiple options for #11
    • 1 shown on diagram
    $399.99
  • 11

    ASSY,PANEL WIRE v

    • Part No. T2380-69422
    • Compatibility No interchange
    • Applied Dates 2007-05-15 to 2007-06-30
    • * multiple options for #11
    • 1 shown on diagram
    $234.99
  • 11

    ASSY,PANEL WIRE v

    • Part No. T2380-69423
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $399.99
  • 12

    WIRE HARNESS-EARTH

    • Part No. T2350-69491
    • 1 shown on diagram
    $0.00
  • 13

    Fender Wire Harness Replaced by T2350-69444

    • Part No. T2350-69443
    • Applied Dates Up to 2007-10-30
    • Serial No. Up to GS3000280
    • * multiple options for #13
    • 1 shown on diagram
    $0.00
  • 13

    Fender Wire Harness (T2350-69444)

    • Part No. T2350-69444
    • Compatibility Interchngable
    • Applied Dates 2007-10-31 to 2010-08-31
    • Serial No. GS3000281 to KS3000331
    • * multiple options for #13
    • 1 shown on diagram
    $119.99
  • 13

    FENDER WIRE HARNESS ASSY

    • Part No. T2350-69445
    • Compatibility Old repl new
    • Applied Dates 2010-09-01 and up
    • Serial No. KS3000332 and up
    • * multiple options for #13
    • 1 shown on diagram
    $114.99
  • 14

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 6 shown on diagram
    $0.49
  • 15

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 10 shown on diagram
    $1.29
  • 16

    WIRE 5

    • Part No. 59460-4155-1
    • Character
    • 1 shown on diagram
    $6.49
