ELECTRICITY SYSTEM 1GROUP - CK22M-T870-1A

Kioti TRACTOR | CK Series | CK20HS

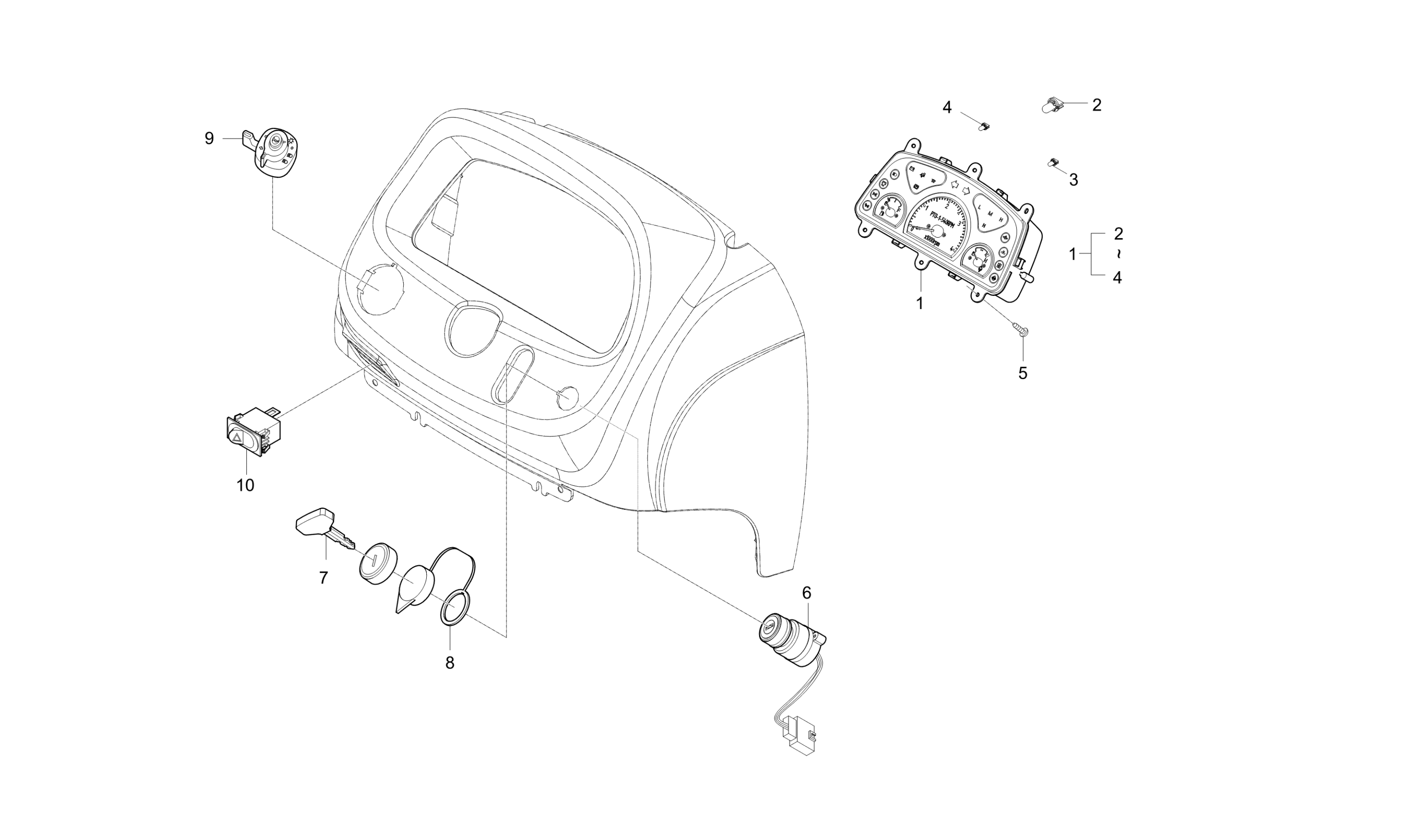

Diagram for ELECTRICITY SYSTEM 1GROUP - CK22M-T870-1A
  • 1

    ASSY PLATE, METER

    • Part No. T2380-68012
    • Applied Dates 2008-11-25 to 2012-03-31
    • 1 shown on diagram
    $464.99
  • 2

    BULB dnr v

    • Part No. T4684-69021004
    • 12V3.4W
    • 2 shown on diagram
    $6.99
  • 3

    BULB v

    • Part No. T2185-00101
    • 14V 1.4W
    • 6 shown on diagram
    $5.49
  • 4

    LAMP dnr v

    • Part No. T4710-69021013
    • 14V3W
    • 1 shown on diagram
    $7.49
  • 5 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 6

    Starter Switch, Replaced by T4520-75176

    • Part No. T4520-75174
    • Applied Dates Up to 2009-12-31
    • Serial No. VS3000001 to JS3000430
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 6

    Starter Switch, Replaced by T4520-75176

    • Part No. T4520-75175
    • Compatibility New repl old
    • Applied Dates 2010-01-01 to 2010-07-28
    • Serial No. KS3000001 to KS3000271
    • * multiple options for #6
    • 1 shown on diagram
    $0.00
  • 6 Ignition Starter Switch, w/o Key

    Ignition Starter Switch, w/o Key

    • Part No. T4520-75176
    • Compatibility New repl old
    • Applied Dates 2010-07-29 and up
    • Serial No. KS3000272 to LS3000530
    • * multiple options for #6
    • 1 shown on diagram
    $99.99
  • 6

    Starter Switch (T5515-75171)

    • Part No. T5515-75171
    • Compatibility Call for compat
    • Applied Dates 2012-01-01 to 2012-05-31
    • Serial No. HS3000271 to MS3000250
    • * multiple options for #6
    • 1 shown on diagram
    $89.99
  • 6

    ASSY SWITCH, STARTER W/O KEY v (single cut key)

    • Part No. T5515-75172
    • Compatibility New repl old
    • Applied Dates 2012-06-01 to 2012-10-12
    • Serial No. MS3000251 to MS3000340
    • * multiple options for #6
    • 1 shown on diagram
    $99.99
  • 7 Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    • Part No. T4625-75191
    • Applied Dates 2012-10-13 to 2011-08-31
    • Serial No. VS3000001 to LS3000270
    • * multiple options for #7
    • 2 shown on diagram
    $16.99
  • 7

    KEY New style (single cut) [NLA], Replaced by 551-6693241

    • Part No. T5515-75191
    • Compatibility Call for compat
    • Applied Dates 2011-09-01 to 2012-05-31
    • Serial No. LS3000271 to MS3000250
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7 KEY – SINGLE SIDED, Replaced by 551-6693241

    KEY – SINGLE SIDED, Replaced by 551-6693241

    • Part No. T5515-75192
    • Compatibility New repl old
    • Applied Dates 2012-06-01 to 2012-10-12
    • Serial No. MS3000251 to MS3000340
    • * multiple options for #7
    • 1 shown on diagram
    $0.00
  • 7 Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    • Part No. T4625-75191
    • Compatibility No interchange
    • * multiple options for #7
    • 1 shown on diagram
    $16.99

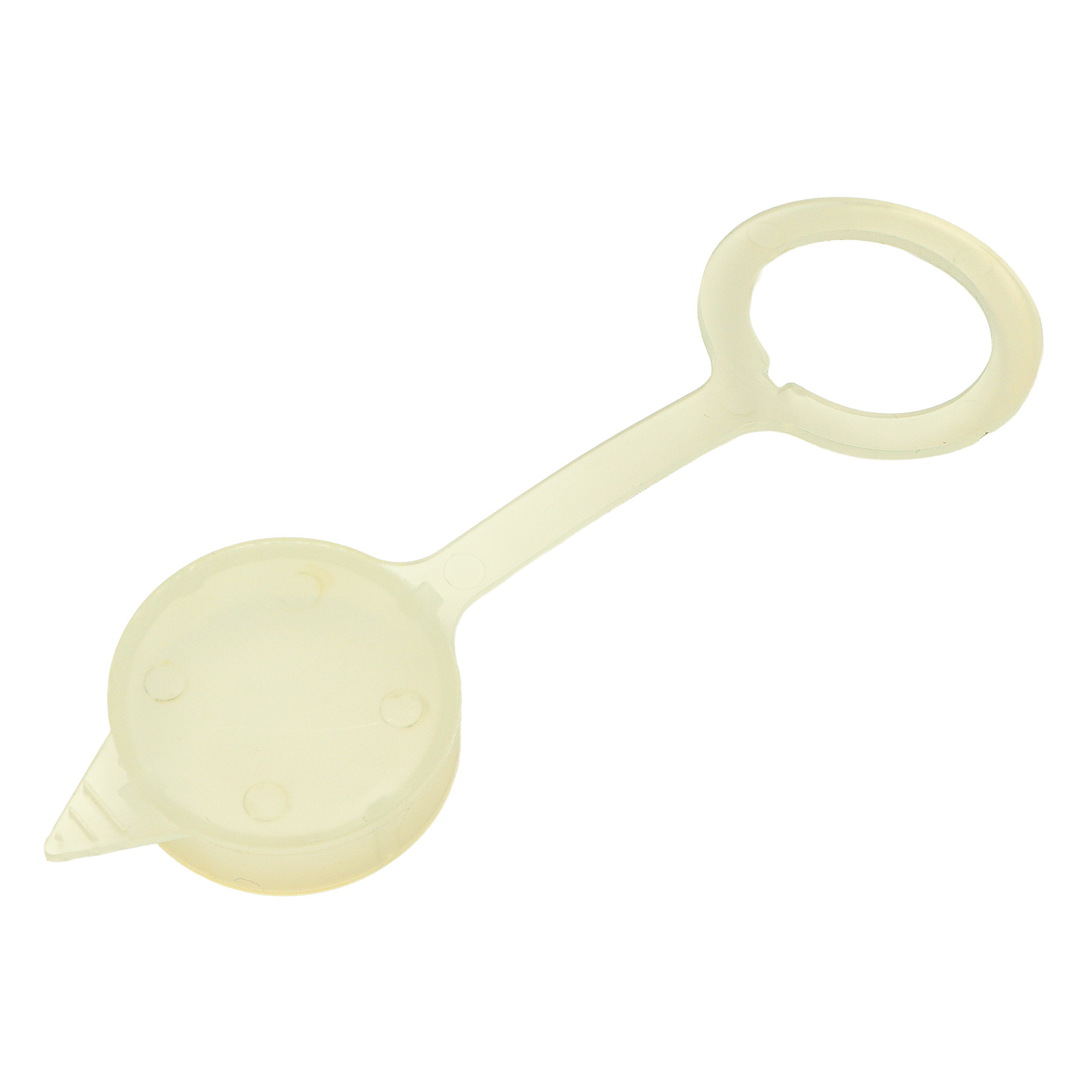

  • 8 WATERPROOF COVER, STARTING SWITCH, CLEAR, Replaced by T4837-77774

    WATERPROOF COVER, STARTING SWITCH, CLEAR, Replaced by T4837-77774

    • Part No. T4837-77772
    • Applied Dates Up to 2007-06-30
    • Serial No. Up to GS3000080
    • * multiple options for #8
    • 1 shown on diagram
    $3.49
  • 8

    Starter Switch Waterproof Cover (T4837-77773)

    • Part No. T4837-77773
    • Compatibility Interchngable
    • * multiple options for #8
    • 1 shown on diagram
    $5.99
  • 9

    ASS’Y COMBINATION SWITCH v, Replaced by T2368-69025

    • Part No. T4121-69031
    • Applied Dates 2007-02-28 to 2007-04-24
    • Serial No. GS3000001 to GS3000080
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    ASS’Y COMBINATION SWITCH, Replaced by T2368-69025

    • Part No. T2368-69021
    • Compatibility New repl old
    • Applied Dates 2007-07-01 to 2007-10-31
    • Serial No. GS3000081 to GS3000280
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    ASS’Y COMBINATION SWITCH v, Replaced by T2368-69025

    • Part No. T2368-69022
    • Compatibility Interchngable
    • Applied Dates 2007-11-01 to 2008-04-30
    • Serial No. GS3000281 to HS3000170
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    COMBINATION SWITCH ASSY, Replaced by T2368-69025

    • Part No. T2368-69023
    • Compatibility New repl old
    • Applied Dates 2008-05-01 to 2013-03-30
    • Serial No. HS3000171 to NS3000160
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    ASSY COMBINATION SWITCH 9 pin, Replaced by T2368-69025

    • Part No. T2368-69024
    • Compatibility New repl old
    • Applied Dates 2013-03-31 to 2014-12-31
    • Serial No. NS3000161 and up
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9 Assy Combination Switch 9 Pin

    Assy Combination Switch 9 Pin

    • Part No. T2368-69025
    • Compatibility New repl old
    • Applied Dates 2015-01-01 and up
    • * multiple options for #9
    • 1 shown on diagram
    $139.99

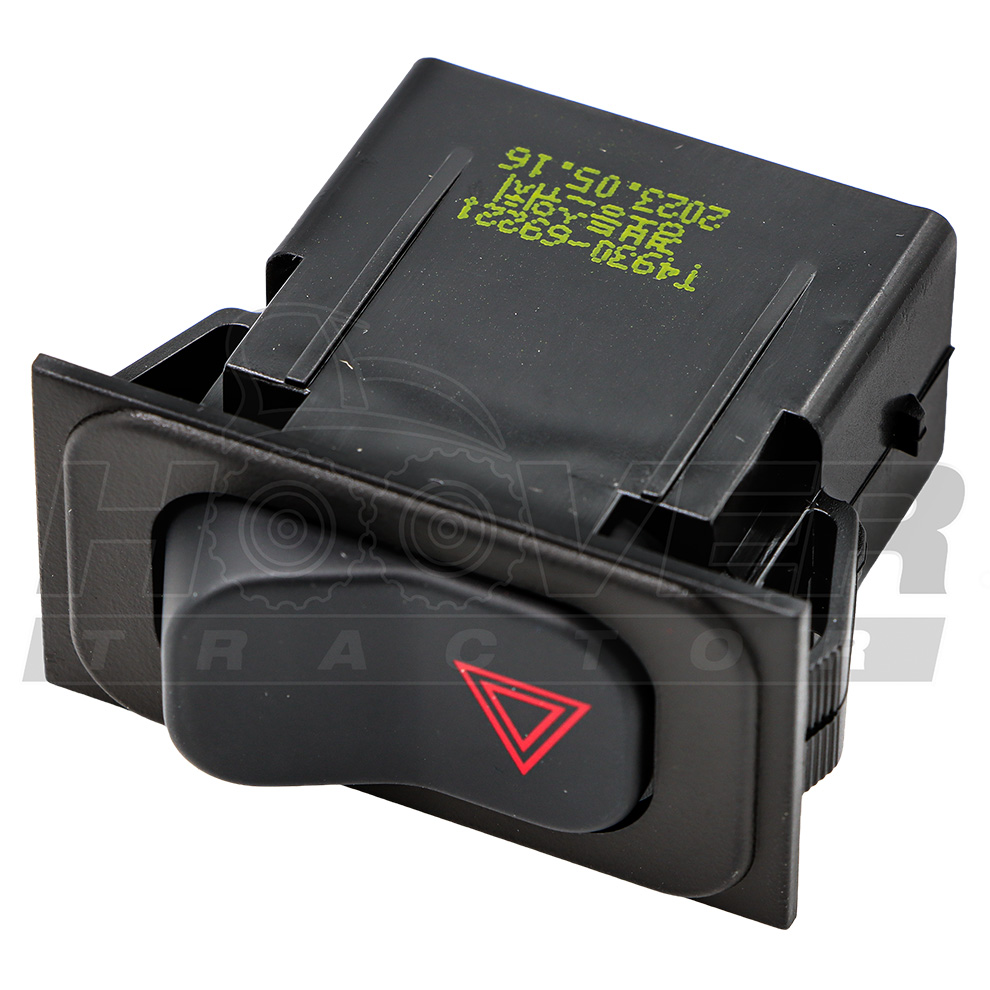

  • 10 SWITCH, HAZARD

    SWITCH, HAZARD

    • Part No. T4930-69221
    • 1 shown on diagram
    $84.99
