AIR CONDITIONER HEATER GROUP - D652-T615A

Kioti TRACTOR | DK Series | DK754C

  • 1

    HOSE 1, AIR CON

    • Part No. T4930-86001
    • *multiple options for # 1
    • 1 shown on diagram
    $119.99
  • 1

    CLIP, HOSE

    • Part No. T4930-84141
    • Compatibility Interchngable
    • Applied Dates 2007-06-05 to 2007-10-04
    • DIA 19
    • *multiple options for # 1
    • 4 shown on diagram
    $1.49
  • 2

    Bolt w/Lock Washer M10 P1.25x35mm

    • Part No. 01133-51035
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 3

    Bolt With Washers, M8 P1.25 x 30mm

    • Part No. 01125-50830
    • Applied Dates Up to 2009-06-03
    • Serial No. Up to JH2400042
    • M8*P1.25
    • *multiple options for # 3
    • 1 shown on diagram
    $2.99
  • 3

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • Compatibility Interchngable
    • Applied Dates 2009-06-17 and up
    • Serial No. JH2400043 and up
    • M8XP1.25
    • *multiple options for # 3
    • 1 shown on diagram
    $2.49
  • 4

    HOSE 2, AIR CON

    • Part No. T4930-86011
    • 1 shown on diagram
    $57.99
  • 5

    BOLT

    • Part No. 01025-50630
    • 1 shown on diagram
    $1.59
  • 6

    HOSE 3, AIR CON obs v

    • Part No. T4930-86231
    • *multiple options for # 6
    • 1 shown on diagram
    $79.99
  • 6

    HOSE 3, AIR CONDITIONER HIGH PRESSURE V

    • Part No. T4930-86232
    • Compatibility New Replaces Old
    • Applied Dates 2010-04-06 to 2011-01-08
    • Serial No. KH2400001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $78.99
  • 6

    HOSE 3, AIR CONDITIONER HIGH PRESSURE

    • Part No. T4930-86233
    • Compatibility New Replaces Old
    • Applied Dates 2011-01-09 and up
    • Serial No. LH2400001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $109.99
  • 7

    HOSE 1, AIR CON v

    • Part No. T4930-86221
    • *multiple options for # 7
    • 1 shown on diagram
    $75.99
  • 7

    HOSE 1, AIR CONDITIONER

    • Part No. T4930-86222
    • Compatibility New Replaces Old
    • Applied Dates 2010-04-06 to 2011-01-08
    • Serial No. KH2400001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $0.00
  • 7

    HOSE 1, AIR CONDITIONER

    • Part No. T4930-86223
    • Compatibility New Replaces Old
    • Applied Dates 2011-01-09 and up
    • Serial No. LH2400001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $124.99
  • 8

    Condenser

    • Part No. T4930-50041
    • 1 shown on diagram
    $524.99
  • 9 Bolt With Washer, M8 P1.25 x 16mm

    Bolt With Washer, M8 P1.25 x 16mm

    • Part No. 01123-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.09

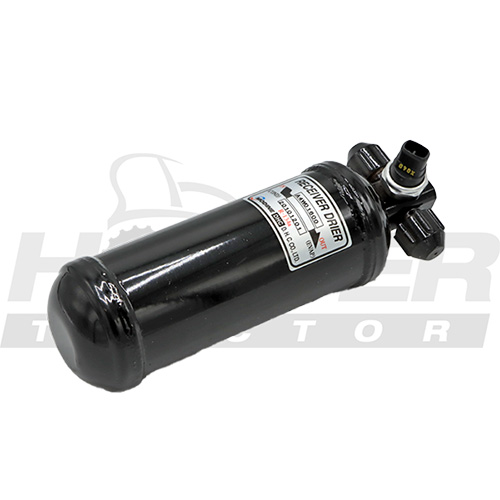

  • 10 RECEIVER DRYER

    RECEIVER DRYER

    • Part No. T4930-50061
    • 1 shown on diagram
    $134.99
  • 11 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 1 shown on diagram
    $1.99
  • 12 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $0.79
  • 13 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 14

    AIR COMPRESSOR, Replaced by TG16-1299A

    • Part No. T4930-87291
    • 1 shown on diagram
    $0.00
  • 15

    Bolt With Washer, M8 P1.25 x 95mm

    • Part No. 01123-50895
    • M8*1.25
    • 4 shown on diagram
    $3.99
  • 16

    JOINT 2, TUBE

    • Part No. T4520-55312
    • 2 shown on diagram
    $26.99
  • 17

    HOSE A, HEATER

    • Part No. T4682-86151
    • 1 shown on diagram
    $58.99
  • 18

    HOSE C, HEATER

    • Part No. T4930-86191
    • *multiple options for # 18
    • 1 shown on diagram
    $44.99
  • 18

    HOSE C, HEATER

    • Part No. T4930-86192
    • Compatibility New Replaces Old
    • *multiple options for # 18
    • 1 shown on diagram
    $61.99
  • 19

    BAND HOSE

    • Part No. T4340-38241
    • Applied Dates Up to 2007-06-04
    • ??27#
    • *multiple options for # 19
    • 4 shown on diagram
    $4.49
  • 19

    CLIP, HOSE

    • Part No. T4930-84151
    • Compatibility New Replaces Old
    • Applied Dates 2007-10-15 and up
    • DIA 21
    • *multiple options for # 19
    • 4 shown on diagram
    $1.19
  • 20

    BAND, CORD v

    • Part No. T4520-82551
    • Applied Dates Up to 2009-03-12
    • Serial No. Up to JH2400042
    • L270
    • *multiple options for # 20
    • 3 shown on diagram
    $1.19
  • 20

    BAND CORD

    • Part No. T2185-82551
    • Compatibility Interchngable
    • Serial No. JH2400043 and up
    • L290
    • *multiple options for # 20
    • 3 shown on diagram
    $1.29
  • 21

    Band Cord (T4520-82561)

    • Part No. T4520-82561
    • Applied Dates Up to 2009-03-12
    • L200
    • *multiple options for # 21
    • 3 shown on diagram
    $0.59
  • 21

    BAND, CORD

    • Part No. T2185-82561
    • Compatibility Interchngable
    • Applied Dates 2009-04-23 and up
    • L200
    • *multiple options for # 21
    • 3 shown on diagram
    $0.49
  • 22

    CLAMP 1, HOSE

    • Part No. T4816-45401
    • OD22 X ID17
    • 1 shown on diagram
    $11.99
  • 23

    CLAMP 2, HOSE

    • Part No. T4816-45411
    • DIA17, DIA17
    • 1 shown on diagram
    $9.99
  • 24

    BRACKET(HOSE)

    • Part No. T5310-84101
    • 1 shown on diagram
    $18.99
  • 25

    HOLDER v

    • Part No. T5310-84111
    • 2 shown on diagram
    $8.99
  • 26 NUT, LOCK(M8)

    NUT, LOCK(M8)

    • Part No. 41011-5151-4
    • 1 shown on diagram
    $2.49
  • 27

    Valve, A/C Shut Off-A

    • Part No. T4681-84081
    • 1 shown on diagram
    $284.99
  • 28 Valve, A/C Shut Off-B

    Valve, A/C Shut Off-B

    • Part No. T4681-84091
    • 1 shown on diagram
    $194.99
  • 29

    BRACKET

    • Part No. T4815-84101
    • 1 shown on diagram
    $13.99
