ENGINE ELECTRICAL GROUP - DK55CHSE-T935A

Kioti TRACTOR | DK Series | DK60CHSE

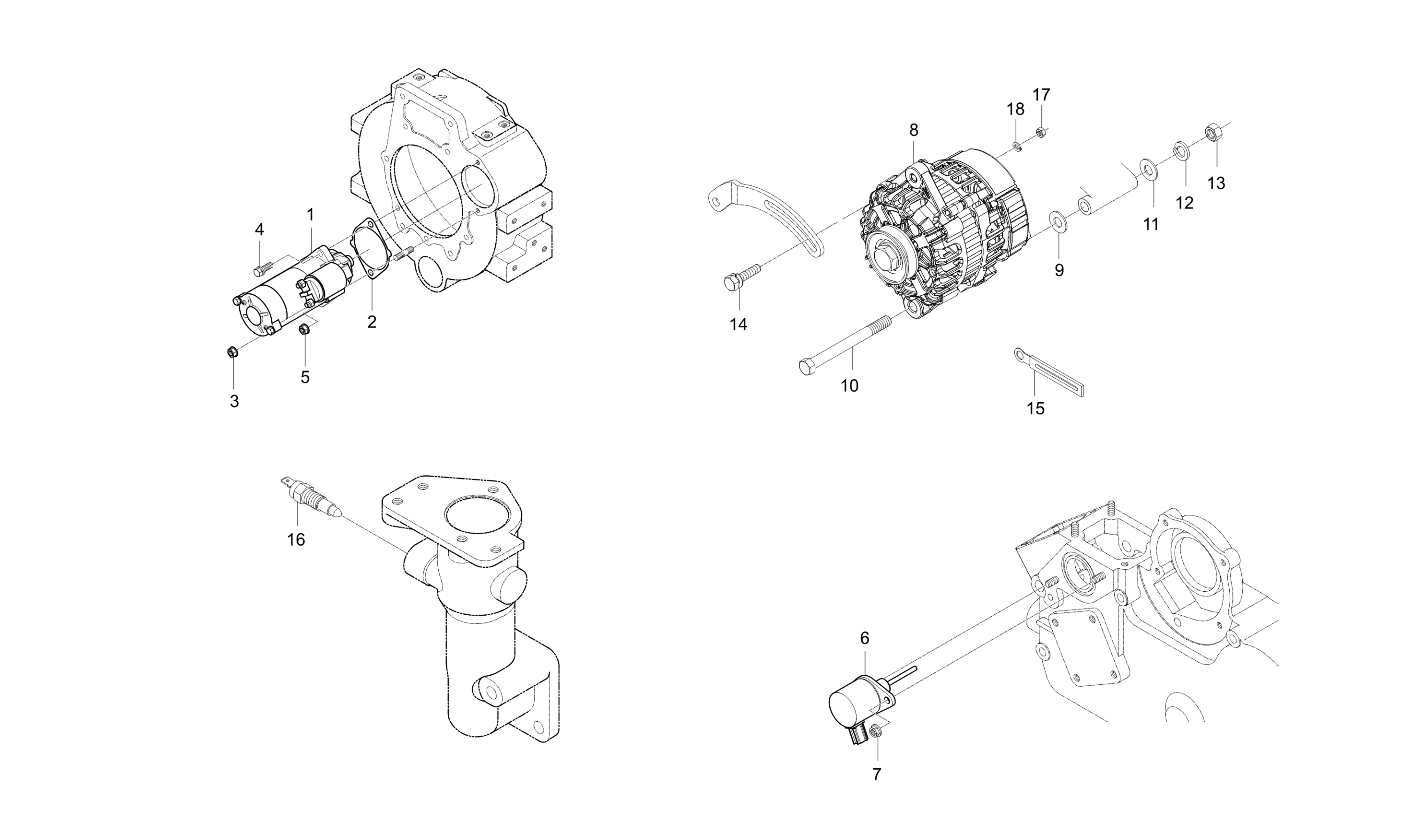

Diagram for ENGINE ELECTRICAL GROUP - DK55CHSE-T935A
  • 1 ASSY STARTER  v

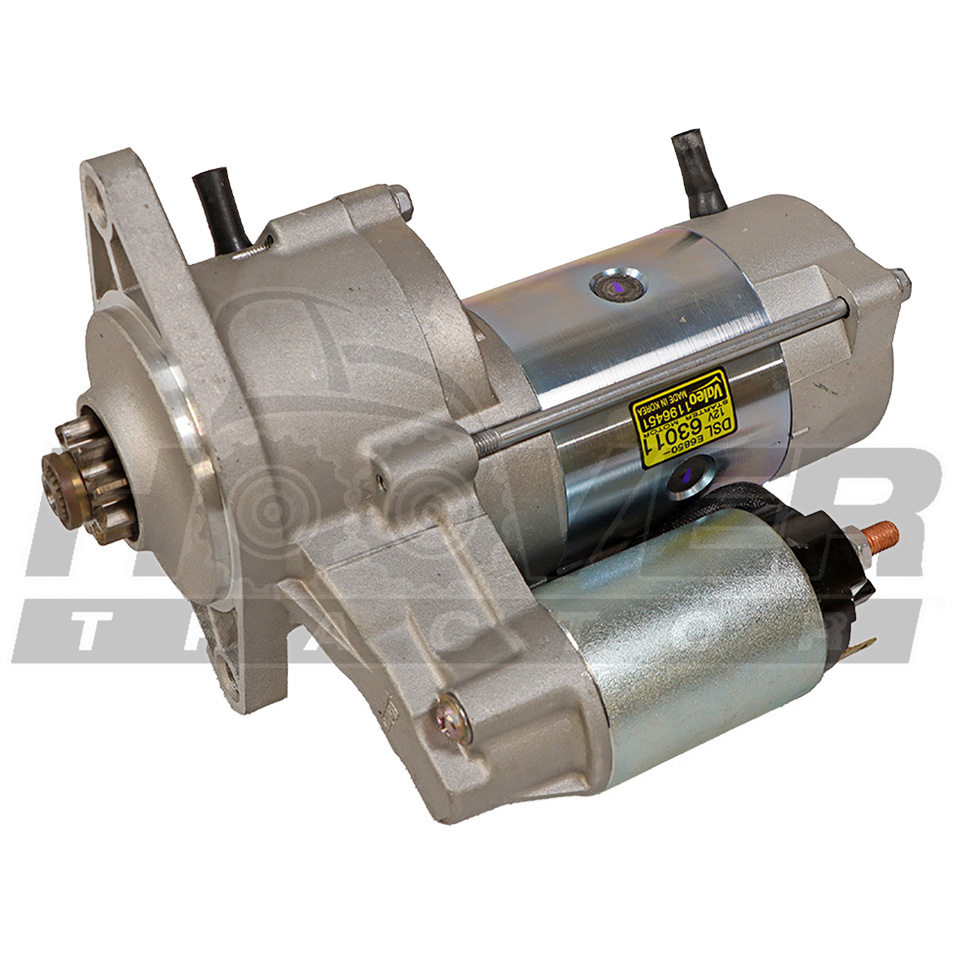

    ASSY STARTER  v

    • Part No. E6850-63011
    • 1 shown on diagram
    $864.99
  • 2

    GASKET v

    • Part No. E7103-04621
    • T=0.5
    • 1 shown on diagram
    $7.99
  • 3 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 4 Bolt w/Lock Washer M10 P1.25x30mm

    Bolt w/Lock Washer M10 P1.25x30mm

    • Part No. 01133-51030
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 5

    NUT, FLANGE

    • Part No. 02783-50100
    • 1 shown on diagram
    $0.85
  • 6

    SOLENOID, ENGINE STOP, Replaced by E6820-60012

    • Part No. E6850-60012
    • Applied Dates Up to 2011-05-31
    • *multiple options for # 6
    • 1 shown on diagram
    $0.00
  • 6 Engine Stop Solenoid, 3 Pin

    Engine Stop Solenoid, 3 Pin

    • Part No. E6820-60011
    • Compatibility Interchngable
    • Applied Dates 2011-06-01 and up
    • Serial No. LA8600001 and up
    • *multiple options for # 6
    • 1 shown on diagram
    $154.99
  • 7 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.67
  • 8

    ASSY, ALTERNATOR

    • Part No. E7230-64012
    • Applied Dates Up to 2015-06-30
    • *multiple options for # 8
    • 1 shown on diagram
    $709.99
  • 8

    ALTERNATOR ASSY 75AMP, Replaced by E7251-64012

    • Part No. E7251-64011
    • Compatibility No Interchange
    • Applied Dates 2015-07-01 and up
    • Serial No. RA8600001 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $0.00
  • 8 ALTERNATOR 75A

    ALTERNATOR 75A

    • Part No. E7251-64012
    • Compatibility New Replaces Old
    • Serial No. XA8600001 and up
    • *multiple options for # 8
    • 1 shown on diagram
    $594.99
  • 9

    SPACER, Replaced by E5800-64102BB

    • Part No. E5800-64102
    • DIA24*T5.15
    • 1 shown on diagram
    $0.00
  • 10

    Bolt M10 P1.25

    • Part No. 01173-51005
    • *multiple options for # 10
    • 1 shown on diagram
    $7.49
  • 10

    FLANGE_BOLT

    • Part No. 01774-51003
    • Compatibility No Interchange
    • M10XP1.25
    • *multiple options for # 10
    • 1 shown on diagram
    $4.99
  • 11 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 12 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 13 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 14

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 15

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 16 TEMPERATURE SENSOR ASSY

    TEMPERATURE SENSOR ASSY

    • Part No. E7240-32731
    • 1 shown on diagram
    $45.99
  • 17 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 18 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
