ELECTRICITY SYSTEM 3 GROUP - DK55CHSE-T955A

Kioti TRACTOR | DK Series | DK60CHSE

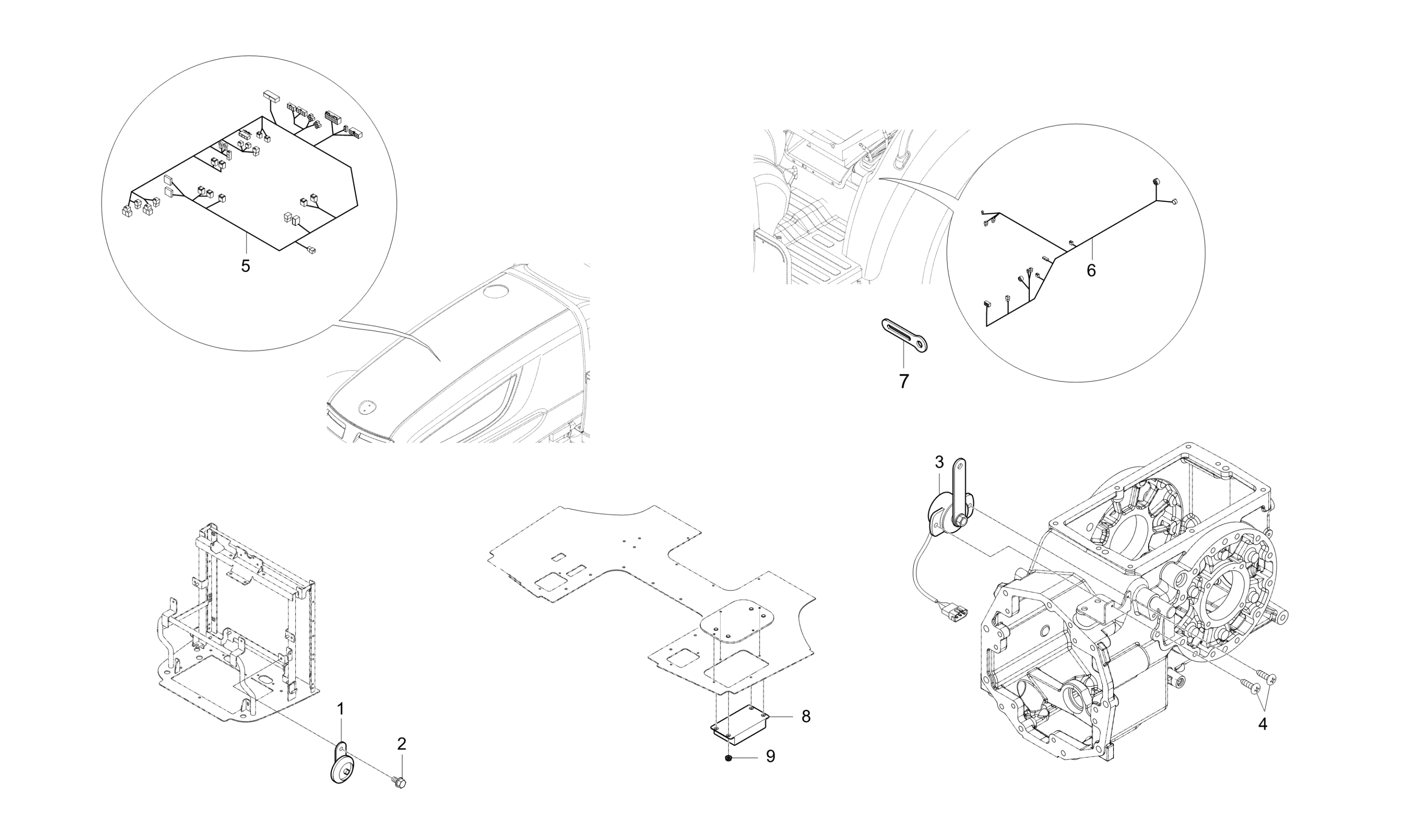

Diagram for ELECTRICITY SYSTEM 3 GROUP - DK55CHSE-T955A
  • 1

    HORN ASSY v

    • Part No. T4520-75954
    • Applied Dates Up to 2012-03-31
    • *multiple options for # 1
    • 1 shown on diagram
    $52.99
  • 1

    ASSY HORN dnr v

    • Part No. T4689-75951
    • Compatibility Interchngable
    • Applied Dates 2012-04-01 and up
    • Serial No. MA8600001 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $75.99
  • 1

    ASSY HORN

    • Part No. T2660-75951
    • Compatibility New Replaces Old
    • 90??, 415Hz, 113
    • *multiple options for # 1
    • 1 shown on diagram
    $58.99
  • 2 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 3 ASS’Y STROKE SENSOR

    ASS’Y STROKE SENSOR

    • Part No. T4682-32231
    • 1 shown on diagram
    $244.99
  • 4

    BOLT,SCREW

    • Part No. 03054-50408
    • M4XP0.7
    • 2 shown on diagram
    $0.56
  • 5

    ASS’Y WIRE HARNESS BONNET v

    • Part No. T4145-69114
    • 1 shown on diagram
    $509.99
  • 6

    ASSY WIRE HARNESS,FENDER

    • Part No. T5515-69133
    • 1 shown on diagram
    $459.99
  • 7

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 8

    ASS’Y HST CONTROLLER

    • Part No. T5515-69331
    • 1 shown on diagram
    $709.99
  • 9 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
