FRONT AXLE GROUP - DK65-T285A

Kioti TRACTOR | DK Series | DK65C

  • 1

    BEVEL GEAR 34

    • Part No. T4818-43721
    • 2 shown on diagram
    $674.99
  • 2

    BALL BEARING obs v

    • Part No. 08101-06020
    • Applied Dates Up to 2006-12-31
    • 6020
    • 2 shown on diagram
    $379.99
  • 3

    ASS’Y PLANET GEAR v

    • Part No. T4818-44201
    • Applied Dates Up to 2006-12-31
    • 2 shown on diagram
    $1,679.99
  • 4

    SUPPORT, PLANET GEAR v

    • Part No. T4818-44211
    • Applied Dates Up to 2002-12-31
    • *multiple options for # 4
    • 2 shown on diagram
    $384.99
  • 4

    CARRIER v

    • Part No. T4818-44212
    • Compatibility New Replaces Old
    • Applied Dates 2003-04-16 to 2004-03-11
    • *multiple options for # 4
    • 2 shown on diagram
    $424.99
  • 4

    CARRIER obs v

    • Part No. T4818-44213
    • Compatibility New Replaces Old
    • Applied Dates 2004-03-12 to 2004-03-18
    • *multiple options for # 4
    • 2 shown on diagram
    $634.99
  • 5

    CARRIER 1 v

    • Part No. T4818-44221
    • Applied Dates 2004-03-12 and up
    • 1 shown on diagram
    $349.99
  • 6

    CARRIER 2 v

    • Part No. T4818-44231
    • Applied Dates 2004-03-12 and up
    • 1 shown on diagram
    $189.99
  • 7

    BOLT, UBS v

    • Part No. T4520-43271
    • Applied Dates 2004-03-12 and up
    • 3 shown on diagram
    $6.49
  • 8

    PIN, DOWEL

    • Part No. 05012-01016
    • Applied Dates 2004-03-12 and up
    • 2 shown on diagram
    $1.49
  • 9

    BEARING,BALL

    • Part No. 08101-06009
    • Applied Dates Up to 2006-12-31
    • #6009
    • 2 shown on diagram
    $45.99
  • 10

    GEAR, PLANETARY 19T

    • Part No. T4520-44221
    • Applied Dates Up to 2010-12-31
    • 6 shown on diagram
    $89.99
  • 11

    COLLAR, THRUST v

    • Part No. T4520-44232
    • Applied Dates 1996-03-12 and up
    • 12 shown on diagram
    $13.99
  • 12 BEARING, NEEDLE

    BEARING, NEEDLE

    • Part No. T4520-44241
    • KOYO 25R3324B-1
    • 6 shown on diagram
    $31.99
  • 13

    SHAFT, PLANETARY GEAR

    • Part No. T4520-44252
    • 6 shown on diagram
    $55.99
  • 14

    PIN, SPRING

    • Part No. 05411-00522
    • Applied Dates Up to 2006-12-31
    • 6 shown on diagram
    $0.73
  • 15

    INTERNAL GEAR 60

    • Part No. T4818-44191
    • 2 shown on diagram
    $1,029.99
  • 16

    PIN, STRAIGHT

    • Part No. 05012-01050
    • 4 shown on diagram
    $2.99
  • 17

    FLANGE, FRONT AXLE v

    • Part No. T4818-43711
    • Applied Dates Up to 2003-12-31
    • *multiple options for # 17
    • 2 shown on diagram
    $334.99
  • 17

    Front Axle Flange obs

    • Part No. T4818-43712
    • Compatibility New Replaces Old
    • Applied Dates 2003-04-16 to 2003-05-22
    • *multiple options for # 17
    • 2 shown on diagram
    $0.00
  • 18

    COVER, FRONT AXLE obs v

    • Part No. T4818-43621
    • 2 shown on diagram
    $2,169.99

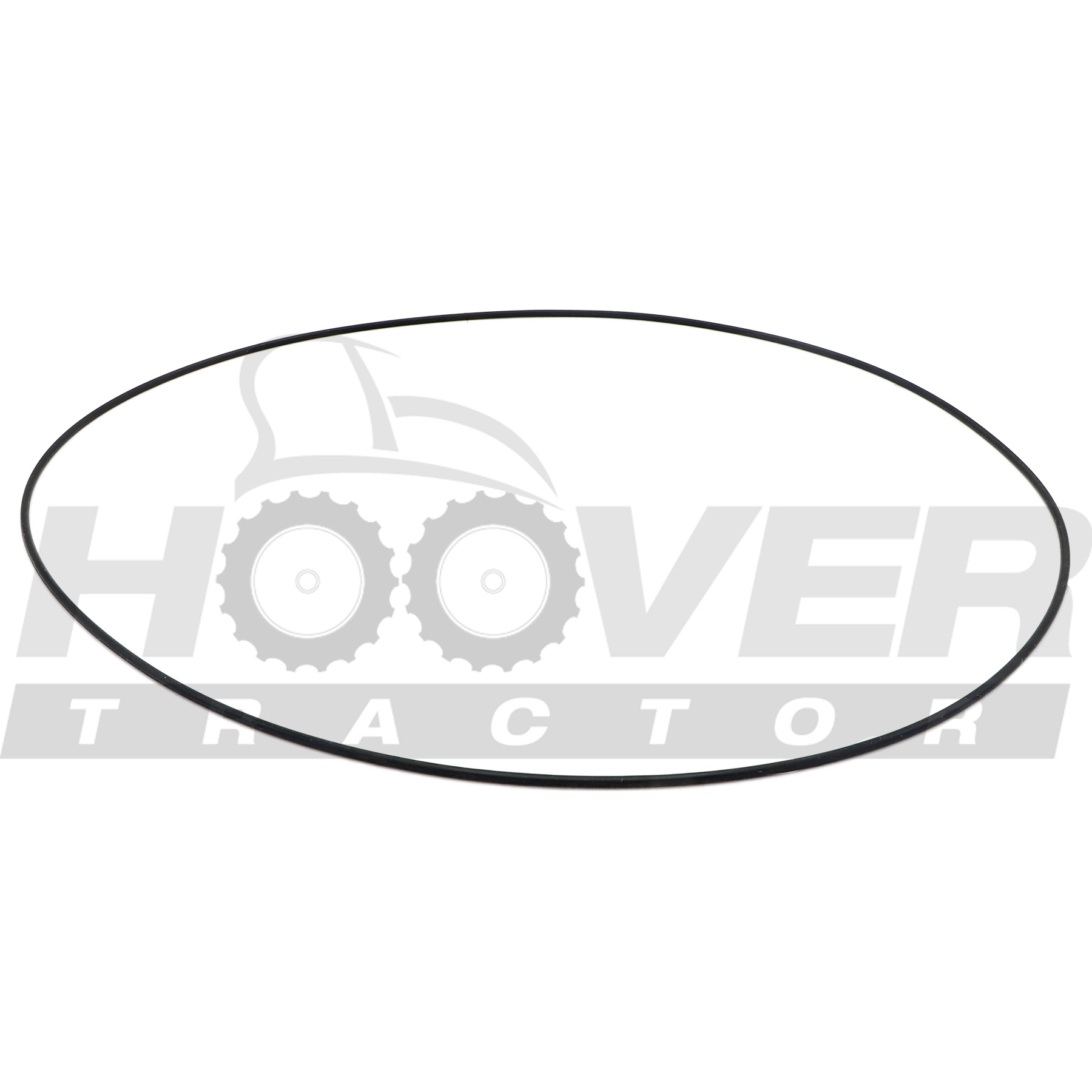

  • 19 O RING

    O RING

    • Part No. T4818-44291
    • 2 shown on diagram
    $11.99

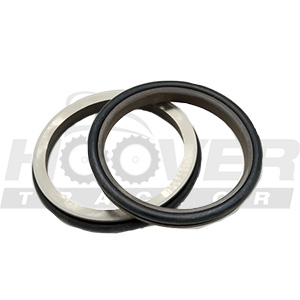

  • 20 FLOATING SEAL ASS Y

    FLOATING SEAL ASS Y

    • Part No. T4818-43651
    • 2 shown on diagram
    $129.99
  • 21

    RING, SEAL

    • Part No. T4818-43651001
    • 2 shown on diagram
    $0.01
  • 22

    O-RING

    • Part No. T4818-43651002
    • 2 shown on diagram
    $0.01
  • 23

    BEARING, BALL

    • Part No. 08101-06215
    • 2 shown on diagram
    $129.99
  • 24

    Bolt

    • Part No. 01176-51070
    • M10*1.25
    • 36 shown on diagram
    $4.49
  • 25 Lock Washer M10

    Lock Washer M10

    • Part No. 04512-50100
    • M10
    • 36 shown on diagram
    $0.79
  • 26 Stud M16 P1.5

    Stud M16 P1.5

    • Part No. T4340-27122
    • Applied Dates Up to 2006-12-31
    • 4 shown on diagram
    $13.99
  • 27

    COVER, FRONT AXLE FLANGE

    • Part No. T4818-43771
    • 2 shown on diagram
    $59.99
  • 28 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 12 shown on diagram
    $2.49
  • 29

    WASHER, PLAIN

    • Part No. T4818-43791
    • T6.0
    • 2 shown on diagram
    $34.99
  • 30

    NUT, AXLE LOCK

    • Part No. T4818-43751
    • 2 shown on diagram
    $66.99
  • 31

    PACKING

    • Part No. T4818-43761
    • Applied Dates Up to 2006-07-19
    • T0.5
    • 2 shown on diagram
    $7.49

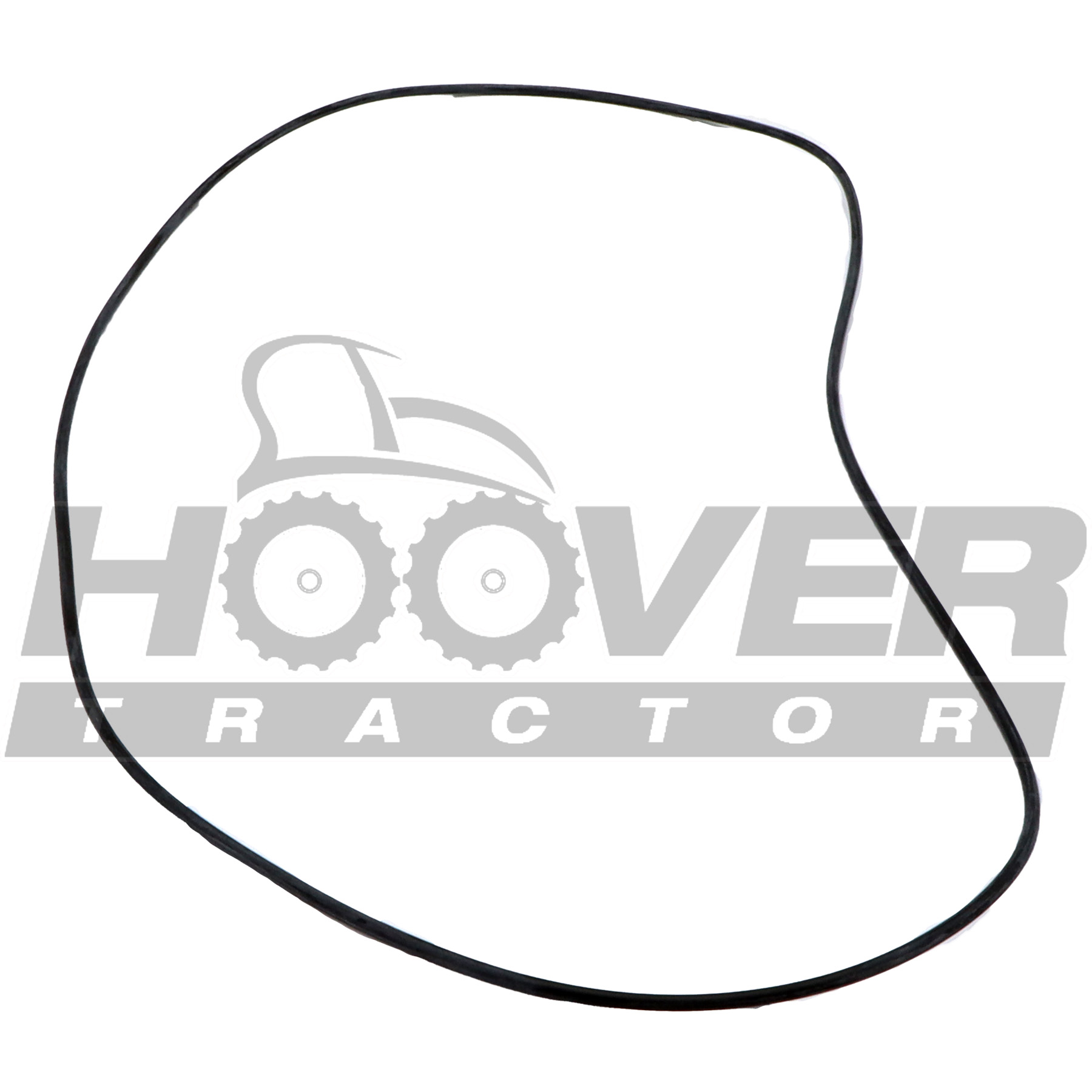

  • 32 O RING

    O RING

    • Part No. T8110-44291
    • Applied Dates Up to 2006-12-31
    • 2 shown on diagram
    $6.99
  • 33

    SUPPORT, CARRIER BEARING

    • Part No. T4818-44301
    • 2 shown on diagram
    $184.99
  • 34

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 4 shown on diagram
    $1.79
  • 35 Bolt w/Lock Washer M10 P1.25x30mm

    Bolt w/Lock Washer M10 P1.25x30mm

    • Part No. 01133-51030
    • M10XP1.25
    • 12 shown on diagram
    $2.99
