ROOF GROUP - DK65-T680E

Kioti TRACTOR | DK Series | DK65C

  • 1

    TRK – ROOF (ORANGE)

    • Part No. T4815-82002OE
    • 1 shown on diagram
    $1,084.99
  • 2 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 4 shown on diagram
    $1.19
  • 3 PACKING

    PACKING

    • Part No. T4520-88401
    • 4 shown on diagram
    $3.49
  • 4 Packing, 1 T4520-87402

    Packing, 1 T4520-87402

    • Part No. T4520-87402
    • T3
    • 4 shown on diagram
    $2.99
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 4 shown on diagram
    $1.09
  • 6 Spacer

    Spacer

    • Part No. T4620-81351
    • 4 shown on diagram
    $4.99
  • 7

    BRACKET,HING

    • Part No. T4620-50471
    • 1 shown on diagram
    $19.99
  • 8

    BRACKET, HITCH (RH)

    • Part No. T4620-50491
    • 1 shown on diagram
    $14.99
  • 9

    BOLT (HITCH BRACKET), Replaced by T4681-85211

    • Part No. T4620-50481
    • 2 shown on diagram
    $0.00
  • 10 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 11 Packing, 1 T4520-87402

    Packing, 1 T4520-87402

    • Part No. T4520-87402
    • T3
    • 2 shown on diagram
    $2.99
  • 12 PACKING

    PACKING

    • Part No. T4520-88401
    • 2 shown on diagram
    $3.49
  • 13 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 2 shown on diagram
    $1.09
  • 14 Spacer

    Spacer

    • Part No. T4620-81351
    • 2 shown on diagram
    $4.99
  • 15

    TRK – ROOF(IN)

    • Part No. T4815-82011
    • Applied Dates Up to 2003-05-27
    • Serial No. Up to 362300150
    • *multiple options for # 15
    • 1 shown on diagram
    $544.99
  • 15

    ROOF (IN)

    • Part No. T4815-82012
    • Compatibility No Interchange
    • Applied Dates 2003-05-28 and up
    • Serial No. 362300151 and up
    • *multiple options for # 15
    • 1 shown on diagram
    $544.99
  • 16 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 8 shown on diagram
    $0.73
  • 17

    SCREW

    • Part No. 03004-50620
    • 8 shown on diagram
    $0.73
  • 18 Packing, 1 T4520-87402

    Packing, 1 T4520-87402

    • Part No. T4520-87402
    • T3
    • 8 shown on diagram
    $2.99
  • 19 NUT, SPRING

    NUT, SPRING

    • Part No. 38245-2925-3
    • 8 shown on diagram
    $4.49
  • 20

    PRE-FILTER 8-3/4×3-1/8″ V

    • Part No. T4837-81371
    • Applied Dates Up to 2002-08-15
    • *multiple options for # 20
    • 1 shown on diagram
    $7.99
  • 20

    PRE-FILTER 8-3/4×3-1/8″ V

    • Part No. T4837-81371
    • Compatibility New Replaces Old
    • Applied Dates 2002-08-16 and up
    • *multiple options for # 20
    • 2 shown on diagram
    $7.99

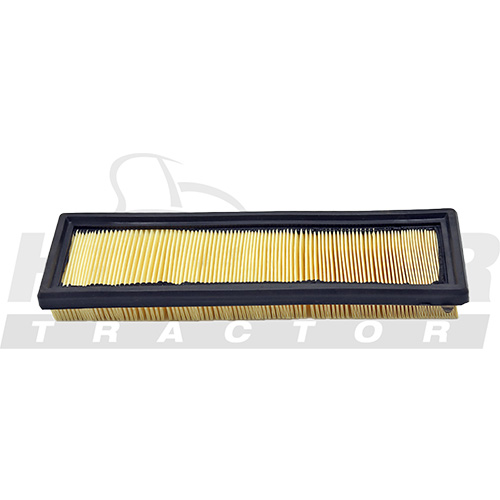

  • 21 ELEMENT 11.5×3.75″

    ELEMENT 11.5×3.75″

    • Part No. T4620-81371
    • Applied Dates 2002-08-16 and up
    • 1 shown on diagram
    $38.99
  • 22

    BRACKET WINDOW A, Replaced by T4681-85011BB

    • Part No. T4681-85011
    • Applied Dates Up to 2002-08-15
    • *multiple options for # 22
    • 2 shown on diagram
    $7.99
  • 22

    BRACKET, CURVED GLASS LOCK obs

    • Part No. T4681-85021
    • Compatibility New Replaces Old
    • Applied Dates 2002-08-16 and up
    • *multiple options for # 22
    • 1 shown on diagram
    $9.49
  • 23 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • Applied Dates 1999-11-06 to 2002-08-15
    • Serial No. 962300001 to 362300036
    • M6
    • *multiple options for # 23
    • 2 shown on diagram
    $0.73
  • 23 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • Compatibility New Replaces Old
    • Applied Dates 2002-08-16 and up
    • M6
    • *multiple options for # 23
    • 1 shown on diagram
    $0.73
  • 24 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • Applied Dates 2004-12-21 to 2002-08-15
    • Serial No. 262300052 and up
    • M06
    • *multiple options for # 24
    • 2 shown on diagram
    $0.61
  • 24 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • Compatibility New Replaces Old
    • Applied Dates 2002-08-16 and up
    • M06
    • *multiple options for # 24
    • 1 shown on diagram
    $0.61
  • 25 NUT

    NUT

    • Part No. 02056-50060
    • Applied Dates 2002-02-05 to 2002-08-15
    • Serial No. 262300001 and up
    • M6XP1.0
    • *multiple options for # 25
    • 4 shown on diagram
    $0.49
  • 25 NUT

    NUT

    • Part No. 02056-50060
    • Compatibility New Replaces Old
    • Applied Dates 2002-08-16 and up
    • M6XP1.0
    • *multiple options for # 25
    • 1 shown on diagram
    $0.49
  • 26

    ASSY,WORK LAMP(FRONT)

    • Part No. T4681-69801
    • Applied Dates Up to 2003-04-09
    • *multiple options for # 26
    • 2 shown on diagram
    $109.99
  • 26

    ASSY,LAMP WORKING(FRONT) v

    • Part No. T4682-69802
    • Compatibility New Replaces Old
    • Applied Dates 2003-04-10 to 2007-03-19
    • Serial No. D62300103 and up
    • *multiple options for # 26
    • 2 shown on diagram
    $71.99
  • 27 ASSY,LAMP WORKING(REAR)

    ASSY,LAMP WORKING(REAR)

    • Part No. T4682-69812
    • 2 shown on diagram
    $144.99
  • 28 MIRROR, ROOM

    MIRROR, ROOM

    • Part No. T4810-82811
    • 1 shown on diagram
    $59.99
  • 29

    RUBBER

    • Part No. T4681-88211
    • 1 shown on diagram
    $84.99
  • 30

    RUBBER I

    • Part No. T4815-88251
    • 1 shown on diagram
    $89.99
  • 31

    RUBBER, CEILING

    • Part No. T4815-88281
    • 1 shown on diagram
    $29.99
  • 32 BULB, HALOGEN-12V35W

    BULB, HALOGEN-12V35W

    • Part No. T4620-69251
    • H3
    • 1 shown on diagram
    $21.99
  • 33 BULB 12V 21W-5W (1157)

    BULB 12V 21W-5W (1157)

    • Part No. T4340-33682
    • 12V21/5W(S25D)
    • 1 shown on diagram
    $9.49

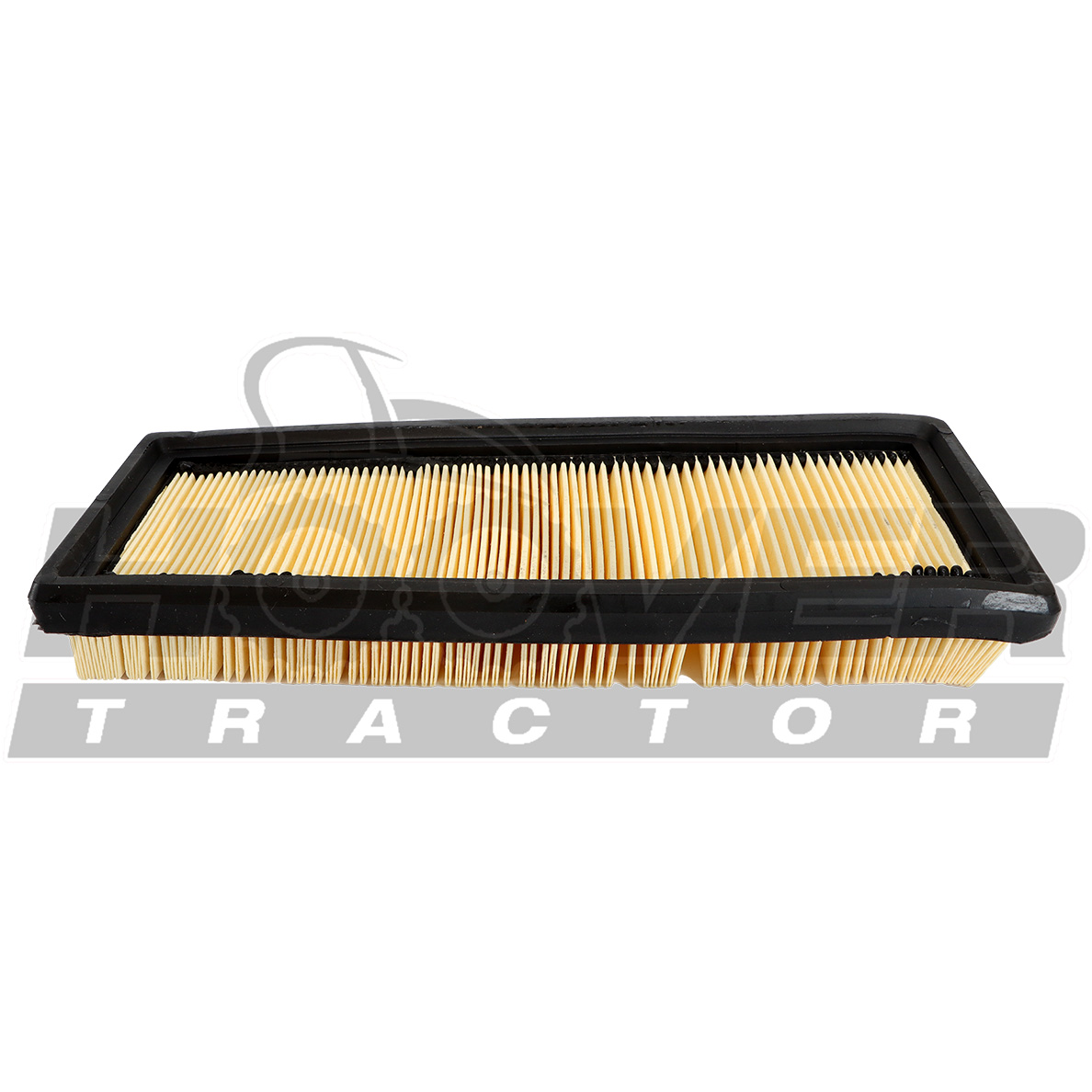

  • 34 ELEMENT 9.25″x 3.75″ overall

    ELEMENT 9.25″x 3.75″ overall

    • Part No. T4818-81371
    • Applied Dates 2002-08-16 and up
    • 1 shown on diagram
    $26.99
