CABIN ELECTRICAL 1 GROUP - DK754-T635E

Kioti TRACTOR | DK Series | DK754C

  • 1

    ASSY METER, Replaced by T4935-69013

    • Part No. T4935-69012
    • Applied Dates 2008-06-05 to 2009-02-09
    • Serial No. HH2400001 to JH2400021
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    Meter Assembly

    • Part No. T4935-69013
    • Compatibility Interchngable
    • Applied Dates 2009-02-10 and up
    • Serial No. JH2400022 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $764.99
  • 2

    BULB dnr v

    • Part No. T4684-69021004
    • 12V3.4W
    • 2 shown on diagram
    $6.99
  • 3

    BULB v

    • Part No. T2185-00101
    • 14V 1.4W
    • 10 shown on diagram
    $5.49
  • 4

    LAMP dnr v

    • Part No. T4710-69021013
    • 14V3W
    • 1 shown on diagram
    $7.49
  • 5

    Starter Switch, Replaced by T4520-75176

    • Part No. T4520-75174
    • Applied Dates Up to 2009-12-31
    • Serial No. Up to JH2400042
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 5 Ignition Starter Switch, w/o Key

    Ignition Starter Switch, w/o Key

    • Part No. T4520-75176
    • Compatibility New Replaces Old
    • Applied Dates 2010-07-29 to 2011-12-31
    • Serial No. KH2400004 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $99.99
  • 5

    ASSY SWITCH, STARTER W/O KEY v (single cut key)

    • Part No. T5515-75172
    • Compatibility New Replaces Old
    • Applied Dates 2012-06-01 and up
    • Serial No. MH2400001 and up
    • *multiple options for # 5
    • 1 shown on diagram
    $99.99
  • 5 Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    • Part No. T5520-75171
    • Compatibility Call for compatibility
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 6 Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    Kioti Ignition Keys, Trapezoid Handle, Double Cut Blade, Set of 2

    • Part No. T4625-75191
    • 1 shown on diagram
    $16.99
  • 7

    COMBINATION SWITCH ASS`Y obs v

    • Part No. T4930-69032
    • *multiple options for # 7
    • 1 shown on diagram
    $729.99
  • 7

    ASS’Y COMBINATION SWITCH

    • Part No. T5327-69031
    • Compatibility Interchngable
    • Serial No. PH2400001 and up
    • *multiple options for # 7
    • 1 shown on diagram
    $499.99
  • 8 SWITCH, HAZARD

    SWITCH, HAZARD

    • Part No. T4930-69221
    • 1 shown on diagram
    $84.99
  • 9

    SWITCH, PTO, Replaced by T4810-67725

    • Part No. T4810-67723
    • Applied Dates Up to 2011-05-31
    • *multiple options for # 9
    • 1 shown on diagram
    $0.00
  • 9

    SWITCH, PTO, Replaced by T4810-67725

    • Part No. T4810-67724
    • Compatibility New Replaces Old
    • Applied Dates 2011-06-01 and up
    • Serial No. LH2400001 and up
    • *multiple options for # 9
    • 1 shown on diagram
    $26.52

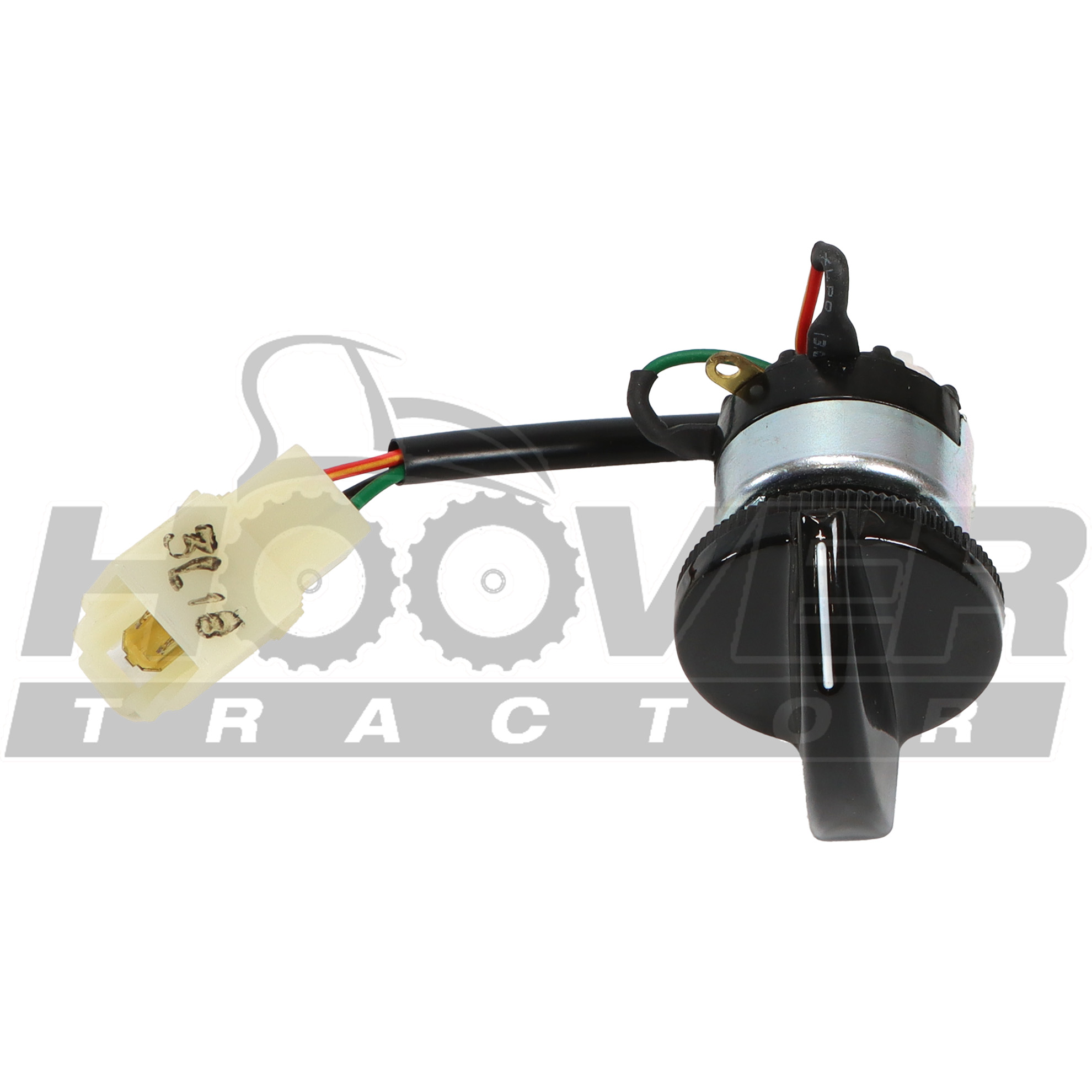

  • 9 SWITCH PTO v

    SWITCH PTO v

    • Part No. T4810-67725
    • Compatibility Interchngable
    • *multiple options for # 9
    • 1 shown on diagram
    $76.99
  • 10

    Fuse Box Ass`y

    • Part No. T4816-69101
    • 1 shown on diagram
    $91.99
  • 11

    FUSE, 5A

    • Part No. T2185-33651
    • 2 shown on diagram
    $1.49
  • 12

    FUSE, 10A

    • Part No. T4260-33631
    • 4 shown on diagram
    $2.99
  • 13

    FUSE, 15A

    • Part No. 35820-7556-1
    • 4 shown on diagram
    $2.99
  • 14

    20A Fuse (36919-5665-0)

    • Part No. 36919-5665-0
    • 1 shown on diagram
    $2.99
  • 15

    FUSE 25A

    • Part No. 36919-5666-1
    • 3 shown on diagram
    $2.99
  • 16

    COVER v

    • Part No. 52300-4166-4
    • 1 shown on diagram
    $26.99
  • 17

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 18

    UNIT, FLASHER IA, Replaced by T4121-31054

    • Part No. T4121-31052
    • Applied Dates Up to 2010-10-29
    • Serial No. Up to KH2400003
    • *multiple options for # 18
    • 1 shown on diagram
    $0.00
  • 18 UNIT FLASHER v

    UNIT FLASHER v

    • Part No. T4121-31053
    • Compatibility Interchngable
    • Applied Dates 2010-10-30 and up
    • Serial No. KH2400004 and up
    • *multiple options for # 18
    • 1 shown on diagram
    $41.99
  • 18 FLASHER UNIT, SENSOR v

    FLASHER UNIT, SENSOR v

    • Part No. T4121-31054
    • Compatibility Interchngable
    • *multiple options for # 18
    • 1 shown on diagram
    $41.99
  • 19 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 20

    Relay 5p V, Replaced By T5535-69961

    • Part No. T2185-69971
    • Applied Dates 2009-04-07 to 2008-08-31
    • Serial No. Up to HH2400018
    • *multiple options for # 20
    • 1 shown on diagram
    $0.00
  • 20

    RELAY(5P) v, Replaced by T5535-69961

    • Part No. T2368-69961
    • Compatibility Interchngable
    • Applied Dates 2008-06-16 to 2009-04-06
    • Serial No. HH2400019 to JH2400042
    • 12V 40A
    • *multiple options for # 20
    • 1 shown on diagram
    $0.00
  • 20 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility Interchngable
    • Applied Dates 2014-11-01 and up
    • Serial No. PH2400001 and up
    • Bracket
    • *multiple options for # 20
    • 1 shown on diagram
    $19.99
  • 21 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 22 SWITCH, SAFETY STARTE

    SWITCH, SAFETY STARTE

    • Part No. T4520-75481
    • 1 shown on diagram
    $53.99
  • 23 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 2 shown on diagram
    $0.85
  • 24 ASSY STOP SWITCH

    ASSY STOP SWITCH

    • Part No. T4520-41821
    • 1 shown on diagram
    $58.99
  • 25 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85

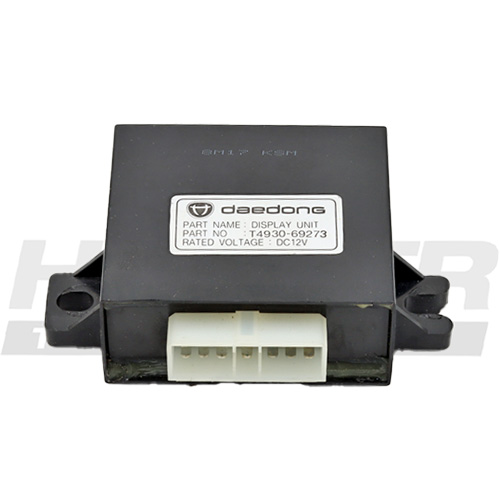

  • 26 DISPLAY UNIT, Replaced by T4930-69274

    DISPLAY UNIT, Replaced by T4930-69274

    • Part No. T4930-69273
    • Applied Dates 2008-06-05 and up
    • Serial No. HH2400001 and up
    • *multiple options for # 26
    • 1 shown on diagram
    $119.99
  • 26

    DISPLAY UNIT v

    • Part No. T4930-69274
    • Compatibility No Interchange
    • *multiple options for # 26
    • 1 shown on diagram
    $164.99
  • 27 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 28 COVER

    COVER

    • Part No. T4025-68301
    • Applied Dates Up to 2008-06-27
    • 1 shown on diagram
    $5.49
  • 29

    BRACKET,SEESAW S/W

    • Part No. T4818-50771
    • 1 shown on diagram
    $15.99
  • 30 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.73
  • 31

    RELAY-COOLER

    • Part No. T4520-75031
    • 1 shown on diagram
    $25.99
  • 32 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 33

    WIRE HARNESS ASSY, Replaced by T4935-68123

    • Part No. T4935-68122
    • *multiple options for # 33
    • 1 shown on diagram
    $0.00
  • 33

    WIRE HARNESS ASS`Y v

    • Part No. T4935-68123
    • Compatibility New Replaces Old
    • *multiple options for # 33
    • 1 shown on diagram
    $699.99
  • 34

    WIRE HARNESS 2

    • Part No. T4620-69462
    • 1 shown on diagram
    $4.99
  • 35

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 10 shown on diagram
    $1.29
  • 36

    BAND, CORD

    • Part No. T2185-82561
    • L200
    • 5 shown on diagram
    $0.49
  • 37

    SOCKET v

    • Part No. T4935-92501
    • Applied Dates Up to 2010-01-30
    • *multiple options for # 37
    • 1 shown on diagram
    $24.99
  • 37 SOCKET

    SOCKET

    • Part No. T4935-92502
    • Compatibility Call for compatibility
    • Applied Dates 2010-01-31 and up
    • Serial No. KH2400001 and up
    • *multiple options for # 37
    • 1 shown on diagram
    $27.99
  • 38 Stereo Cover (T4145-82072 )

    Stereo Cover (T4145-82072 )

    • Part No. T4145-82072
    • 1 shown on diagram
    $9.99
  • 39 OB Screw (03054-50420)

    OB Screw (03054-50420)

    • Part No. 03054-50420
    • 2 shown on diagram
    $0.68
  • 40 MICRO SWITCH

    MICRO SWITCH

    • Part No. T4810-69251
    • 1 shown on diagram
    $84.99
  • 41

    SCREW

    • Part No. 03054-50320
    • 2 shown on diagram
    $0.50
  • 42

    Flat Washer M3

    • Part No. 04012-50030
    • M3
    • 2 shown on diagram
    $0.67
  • 43

    WASHER, SPRING

    • Part No. 04512-50030
    • M03
    • 4 shown on diagram
    $0.61
  • 44

    NUT

    • Part No. 02054-50030
    • M3XP0.5
    • 2 shown on diagram
    $0.61
