ELECTRICITY SYSTEM 1GROUP - DK902-T400E
Kioti TRACTOR | DK Series | DK754C
-
RELAY V, Replaced by T4180-69951
- Part No. T2198-69951
- Applied Dates 2009-04-06 to 2009-11-30
- Serial No. Up to HH2400018
- 70A(???)
- *multiple options for # 1
- 2 shown on diagram
$0.00 -
RELAY 4P 70A, Replaced by T5535-69951
- Part No. T4180-69951
- Compatibility Interchngable
- Applied Dates 2009-12-01 to 2015-01-31
- Serial No. JH2400043 and up
- 12V 70A
- *multiple options for # 1
- 2 shown on diagram
$0.00 -
70 Amp (4) Pin Relay (T5535-69951)
- Part No. T5535-69951
- Compatibility Interchngable
- Applied Dates 2015-02-01 and up
- *multiple options for # 1
- 2 shown on diagram
$29.99 -
BOLT, FLANGE
- Part No. 01754-50612
- M6XP1.0
- 1 shown on diagram
$1.39 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- 1 shown on diagram
$0.73 -
HORN ASSY v
- Part No. T4520-75954
- Applied Dates Up to 2012-03-31
- *multiple options for # 4
- 1 shown on diagram
$52.99 -
ASSY HORN dnr v
- Part No. T4689-75951
- Compatibility Interchngable
- Applied Dates 2012-04-01 to 2014-01-31
- Serial No. MH2400001 and up
- *multiple options for # 4
- 1 shown on diagram
$75.99 -
ASSY HORN
- Part No. T2660-75951
- Compatibility New Replaces Old
- Applied Dates 2014-02-01 and up
- 90??, 415Hz, 113
- *multiple options for # 4
- 1 shown on diagram
$58.99 -
Bolt With Washer, M8 P1.25 x 20mm
- Part No. 01123-50820
- M8XP1.25
- 1 shown on diagram
$2.49 -
RELAY ARRAY ASS’Y
- Part No. T4939-69373
- Applied Dates 2008-03-31 and up
- 1 shown on diagram
$259.99 -
BOLT, FLANGE M6 P1.00 x 16
- Part No. 01754-50616
- M6XP1.0
- 2 shown on diagram
$1.89 -
PTO SWITCH ASS`Y
- Part No. T4710-69251
- *multiple options for # 8
- 1 shown on diagram
$189.99 -

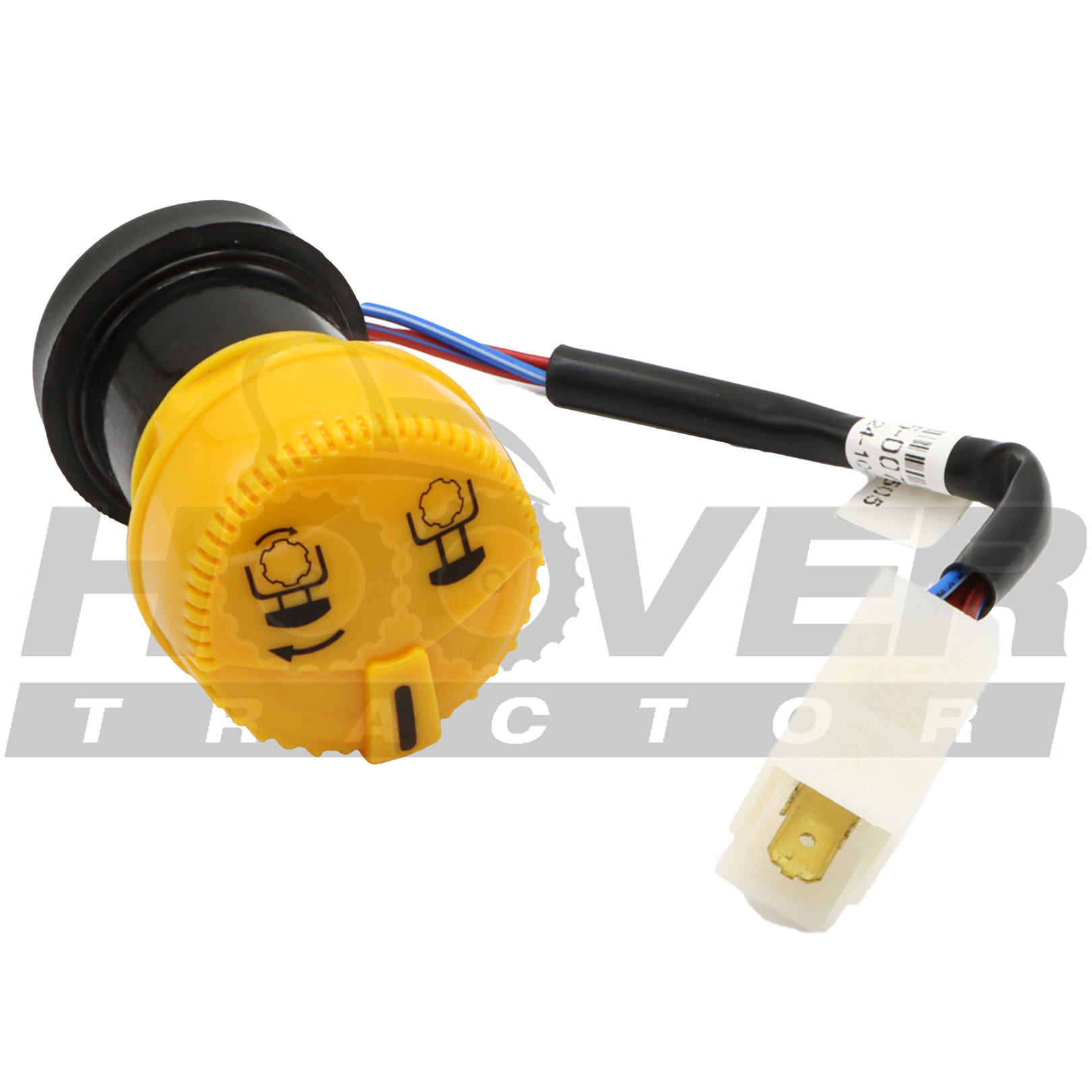

ASSY SWITCH, PTO v
- Part No. TF15-0079A
- Compatibility Call for compatibility
- *multiple options for # 8
- 1 shown on diagram
$99.99 -
SWITCH, SAFETY STARTER
- Part No. T4930-69881
- 1 shown on diagram
$59.99 -
7-PIN SOCKET – POLLACK dnr r, Replaced by T5535-69931
- Part No. T4935-69931
- Applied Dates 2007-10-01 and up
- *multiple options for # 10
- 1 shown on diagram
$0.00 -
7 PIN SOCKET ASS’Y SAE v
- Part No. T5535-69931
- Compatibility Interchngable
- *multiple options for # 10
- 1 shown on diagram
$144.99 -
Bolt With Washers, M8 P1.25 x 20mm
- Part No. 01125-50820
- Applied Dates 2007-10-01 and up
- M8XP1.25
- 2 shown on diagram
$2.49 -
Spring Lock Washer M5
- Part No. 04512-50050
- Applied Dates Up to 2007-08-07
- M5
- 3 shown on diagram
$0.55 -
Nut M5 P0.80
- Part No. 02054-50050
- Applied Dates Up to 2007-08-07
- M5*P1.0
- 3 shown on diagram
$0.43 -
CONNECTION WIRE, SWITCH
- Part No. T4937-69341
- *multiple options for # 14
- 1 shown on diagram
$47.99 -
CONNECTION WIRE, SWITCH
- Part No. T4937-69342
- Compatibility New Replaces Old
- Applied Dates 2007-10-01 to 2009-01-14
- Serial No. Up to JH2400015
- *multiple options for # 14
- 1 shown on diagram
$49.99 -
CONNECTION WIRE, SWITCH
- Part No. T4937-69343
- Compatibility Interchngable
- Applied Dates 2009-01-15 to 2012-06-30
- Serial No. JH2400016 and up
- *multiple options for # 14
- 1 shown on diagram
$0.00 -
CONNECTION WIRE, SWITCH
- Part No. T4937-69344
- Compatibility Interchngable
- Applied Dates 2012-07-01 and up
- Serial No. MH2400001 and up
- *multiple options for # 14
- 1 shown on diagram
$51.99 -
CONNECTOR, SWITCH
- Part No. T4025-68321
- 1 shown on diagram
$12.99 -
SWITCH, 4WD
- Part No. T4025-68291
- 1 shown on diagram
$84.99 -
GROMMET
- Part No. T4682-55801
- 1 shown on diagram
$3.99 -
SWITCH, PRESSURE
- Part No. T4710-69511
- 1 shown on diagram
$88.99 -
ADAPTOR
- Part No. T4710-69521
- 1 shown on diagram
$18.99 -
3 PIN SOCKET ASSY v
- Part No. T4935-69031
- 1 shown on diagram
$164.99 -
BOLT SCREW
- Part No. 03054-50316
- M3XP0.5
- 4 shown on diagram
$0.62 -
WASHER, SPRING
- Part No. 04512-50030
- M03
- 4 shown on diagram
$0.61 -
NUT
- Part No. 02054-50030
- M3XP0.5
- 4 shown on diagram
$0.61
