BONNET GROUP - DK902-T420A

Kioti TRACTOR | DK Series | DK754C

  • 1

    BONNET, Replaced by T4836-50605

    • Part No. T4836-50604
    • Applied Dates Up to 2007-10-01
    • *multiple options for # 1
    • 1 shown on diagram
    $0.00
  • 1

    BONNET

    • Part No. T4836-50605
    • Compatibility Interchngable
    • Applied Dates 2007-10-02 and up
    • *multiple options for # 1
    • 1 shown on diagram
    $2,109.99
  • 2

    BRACKET, HEADLIGHT dnr v, Replaced by T4836-50631ED

    • Part No. T4836-50631
    • T3.2
    • *multiple options for # 2
    • 1 shown on diagram
    $0.00
  • 2

    BRACKET obs

    • Part No. T4836-50631ED
    • Compatibility No Interchange
    • Serial No. HH2400019 and up
    • *multiple options for # 2
    • 1 shown on diagram
    $27.99
  • 3 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 4

    COVER, SIDE LH dnr v

    • Part No. T4880-50751BK
    • Applied Dates Up to 2009-04-14
    • Serial No. Up to JH2400042
    • *multiple options for # 4
    • 1 shown on diagram
    $424.99
  • 4

    COVER, SIDE LH

    • Part No. T4880-50752
    • Compatibility No Interchange
    • Applied Dates 2010-10-31 to 2010-10-30
    • *multiple options for # 4
    • 1 shown on diagram
    $0.00
  • 5

    COVER, SIDE RH

    • Part No. T4880-50821BK
    • Applied Dates Up to 2009-04-14
    • Serial No. Up to JH2400042
    • *multiple options for # 5
    • 1 shown on diagram
    $614.99
  • 5

    COVER, SIDE RH

    • Part No. T4880-50822
    • Compatibility No Interchange
    • Applied Dates 2010-10-31 to 2010-10-30
    • *multiple options for # 5
    • 1 shown on diagram
    $0.00
  • 6

    Head Light Ass’y

    • Part No. T4816-50531
    • 1 shown on diagram
    $714.99
  • 7

    HEADLIGHT, Replaced by T2611-50641

    • Part No. T2350-69551
    • 2 shown on diagram
    $0.00
  • 8

    BULB, 12V 55/60W

    • Part No. T2350-69571
    • 2 shown on diagram
    $45.99
  • 9 Bulb, 12V 10W

    Bulb, 12V 10W

    • Part No. T4620-69262
    • 12V10W(G18)
    • 2 shown on diagram
    $5.99
  • 10

    SCREW

    • Part No. 03514-50512
    • 5 shown on diagram
    $0.56
  • 11

    GRILLE,FRONT obs v

    • Part No. T4836-50511BK
    • Applied Dates 2007-06-25 and up
    • 1 shown on diagram
    $364.99
  • 12

    WASHER BOLT v

    • Part No. 01025-50625
    • Applied Dates 2011-02-13 to 2011-03-13
    • Serial No. JH2400043 and up
    • M6XP1.0
    • *multiple options for # 12
    • 8 shown on diagram
    $1.89
  • 12

    BOLT

    • Part No. 01029-50625
    • Compatibility Interchngable
    • Applied Dates 2011-03-14 to 2011-02-12
    • Serial No. LH2400001 and up
    • *multiple options for # 12
    • 8 shown on diagram
    $1.89
  • 13 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 8 shown on diagram
    $0.67
  • 14

    SCREW

    • Part No. 03514-50512
    • 3 shown on diagram
    $0.56
  • 15

    WASHER, SPUR 16

    • Part No. 53143-7311-2
    • T1.0*18*18
    • 11 shown on diagram
    $1.09
  • 16

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 17

    BRACKET, BONNET v

    • Part No. T4836-50621
    • Applied Dates Up to 2007-09-27
    • *multiple options for # 17
    • 1 shown on diagram
    $49.99
  • 17

    BRACKET BONNET obs v

    • Part No. T4931-50621
    • Compatibility New Replaces Old
    • Applied Dates 2007-10-31 and up
    • *multiple options for # 17
    • 1 shown on diagram
    $214.99
  • 18 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 4 shown on diagram
    $1.09
  • 19 Bolt With Washers, M8 P1.25 x 20mm

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49

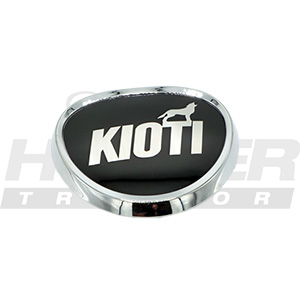

  • 20 EMBLEM v

    EMBLEM v

    • Part No. T4818-51462
    • 1 shown on diagram
    $43.99
  • 21 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 2 shown on diagram
    $1.39
  • 22 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • 2 shown on diagram
    $1.19
  • 23 NUT, SPRING

    NUT, SPRING

    • Part No. 38245-2925-3
    • 2 shown on diagram
    $4.49
  • 24

    RUBBER

    • Part No. T4876-50643
    • 1 shown on diagram
    $32.99
  • 25

    RUBBER

    • Part No. T4876-50431
    • 2 shown on diagram
    $36.99
  • 26

    SPACER

    • Part No. T4818-50691
    • 4 shown on diagram
    $3.49
  • 27 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 4 shown on diagram
    $0.73
  • 28 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 4 shown on diagram
    $0.79
  • 29

    RUBBER

    • Part No. T4816-50231
    • 2 shown on diagram
    $13.99
  • 30

    PLATE

    • Part No. T4836-50641
    • Applied Dates Up to 2011-01-08
    • *multiple options for # 30
    • 1 shown on diagram
    $109.99
  • 30

    PLATE, BONNET FR

    • Part No. T4836-50642
    • Compatibility Interchngable
    • *multiple options for # 30
    • 1 shown on diagram
    $109.99
  • 31

    PLATE

    • Part No. T4836-50651
    • Applied Dates Up to 2011-01-08
    • *multiple options for # 31
    • 1 shown on diagram
    $109.99
  • 31

    PLATE, BONNET RR

    • Part No. T4836-50652
    • Compatibility Interchngable
    • *multiple options for # 31
    • 1 shown on diagram
    $109.99
  • 32

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • M6XP1.0
    • 4 shown on diagram
    $2.49
