FRONT AXLE SUPPORT GROUP - T2555-G310

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

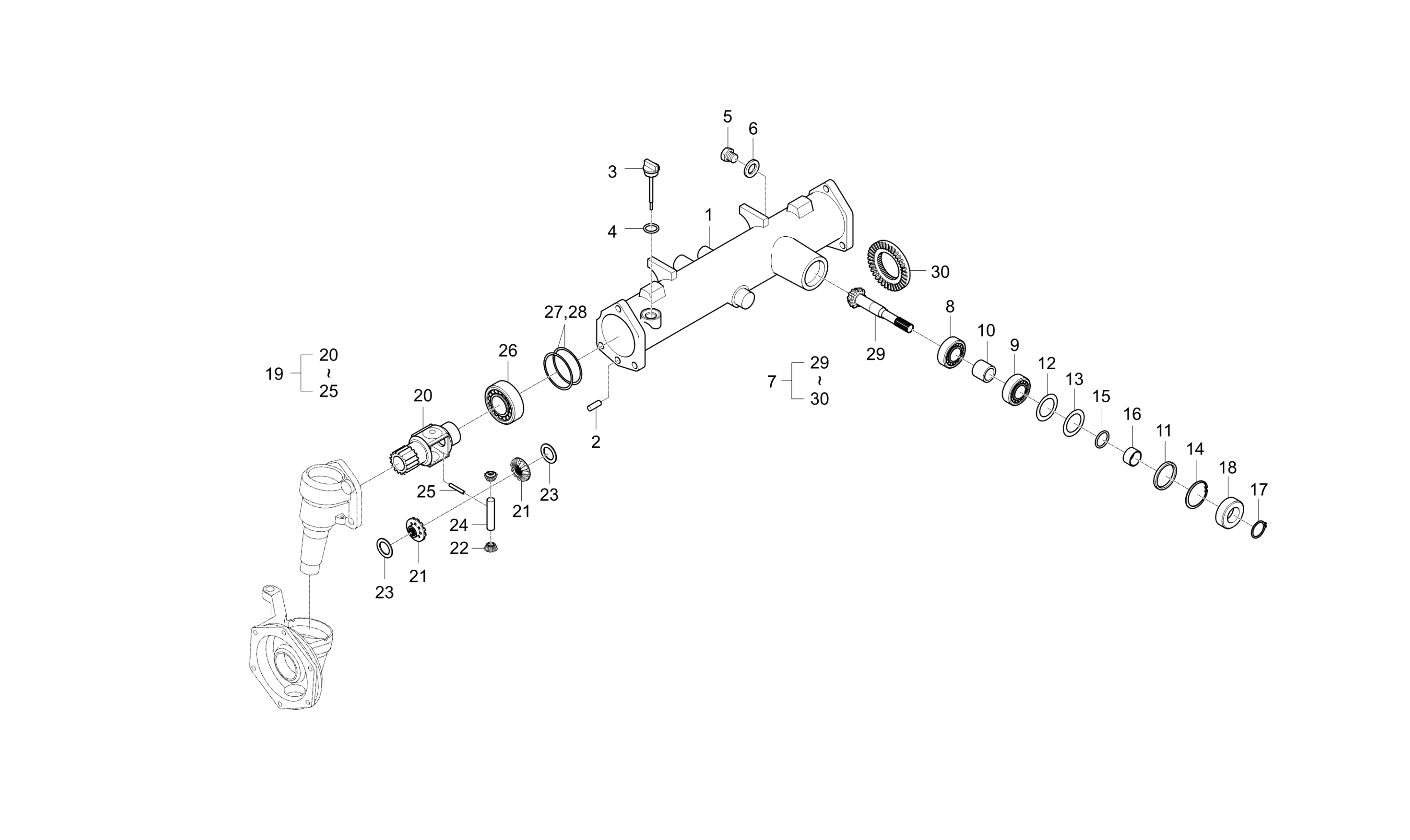

Diagram for FRONT AXLE SUPPORT GROUP - T2555-G310
  • 1

    SUPPORT, FRONT AXLE RR

    • Part No. T2555-42142
    • 1 shown on diagram
    $449.99
  • 2

    PIN, PARALLEL

    • Part No. 05012-00825
    • DIA8
    • 2 shown on diagram
    $2.99
  • 3

    GAUGE,OIL

    • Part No. T2555-42171
    • 1 shown on diagram
    $19.99
  • 4 O-Ring P18

    O-Ring P18

    • Part No. 04811-00180
    • P18
    • 1 shown on diagram
    $1.09
  • 5 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
    $4.49
  • 6 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 7

    ASSY,BEVEL GEAR

    • Part No. T2555-42201
    • 1 shown on diagram
    $374.99
  • 8 OB BEARING,BALL

    OB BEARING,BALL

    • Part No. T2610-24131
    • 6205R
    • 1 shown on diagram
    $49.99
  • 9 Plug M10 P1.25

    Plug M10 P1.25

    • Part No. 06331-45010
    • #6205, GMB CHINA
    • 1 shown on diagram
    $4.49
  • 10

    BUSHING

    • Part No. T2555-42751
    • 1 shown on diagram
    $9.99
  • 11

    COLLAR

    • Part No. T2555-42761
    • 1 shown on diagram
    $5.49
  • 12

    SHIM 0.10

    • Part No. T2555-42311
    • 1 shown on diagram
    $2.49
  • 13

    SHIM 0.20

    • Part No. T2555-42321
    • 1 shown on diagram
    $2.49
  • 14 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 15 O RING

    O RING

    • Part No. 04811-00210
    • DIA20.8
    • 1 shown on diagram
    $4.49
  • 16

    BUSHING

    • Part No. T2555-42341
    • 1 shown on diagram
    $14.99
  • 17 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09

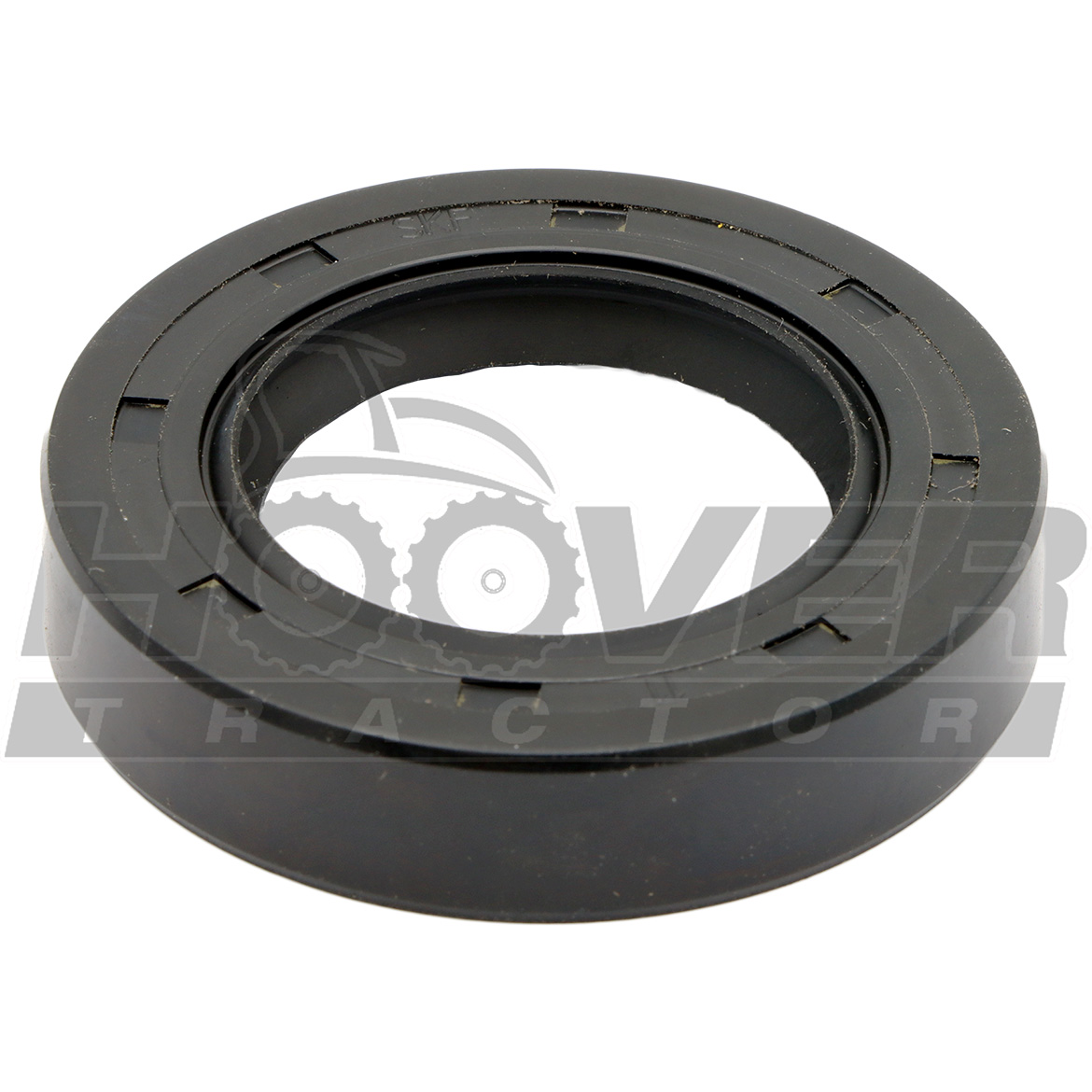

  • 18 OIL SEAL 32x52x11

    OIL SEAL 32x52x11

    • Part No. 09503-25211
    • 1 shown on diagram
    $6.49
  • 19

    FRONT DIFFERENTIAL ASSEMBLY

    • Part No. T2555-43101
    • 1 shown on diagram
    $454.99
  • 20

    CASE,FRONT DIFF

    • Part No. T2555-43121
    • 1 shown on diagram
    $98.99
  • 21

    PINION

    • Part No. T2555-43131
    • 2 shown on diagram
    $45.99
  • 22

    GEAR,DIFF. SIDE

    • Part No. T2555-43141
    • 2 shown on diagram
    $57.99
  • 23

    WASHER, THRUST

    • Part No. T2555-43151
    • 2 shown on diagram
    $4.99
  • 24

    SHAFT,PINION

    • Part No. T2555-43111
    • 1 shown on diagram
    $24.99
  • 25

    PIN, SPRING

    • Part No. 05411-00436
    • 1 shown on diagram
    $0.56
  • 26

    BALL BEARING

    • Part No. T2555-06209
    • #6209, GMB CHINA
    • 2 shown on diagram
    $62.99
  • 27 Shim 0.10

    Shim 0.10

    • Part No. T2555-43171
    • 1 shown on diagram
    $2.49

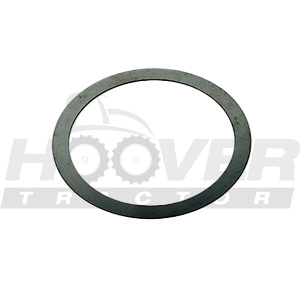

  • 28 SHIM 0.20

    SHIM 0.20

    • Part No. T2555-43181
    • 1 shown on diagram
    $2.49
  • 29

    PINION, BEVEL 2

    • Part No. T2555-42261
    • 1 shown on diagram
    $124.99
  • 30

    GEAR, BEVEL 17

    • Part No. T2555-42231
    • 1 shown on diagram
    $129.99
