BEVEL GEAR CASE GROUP - T2555-G315

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

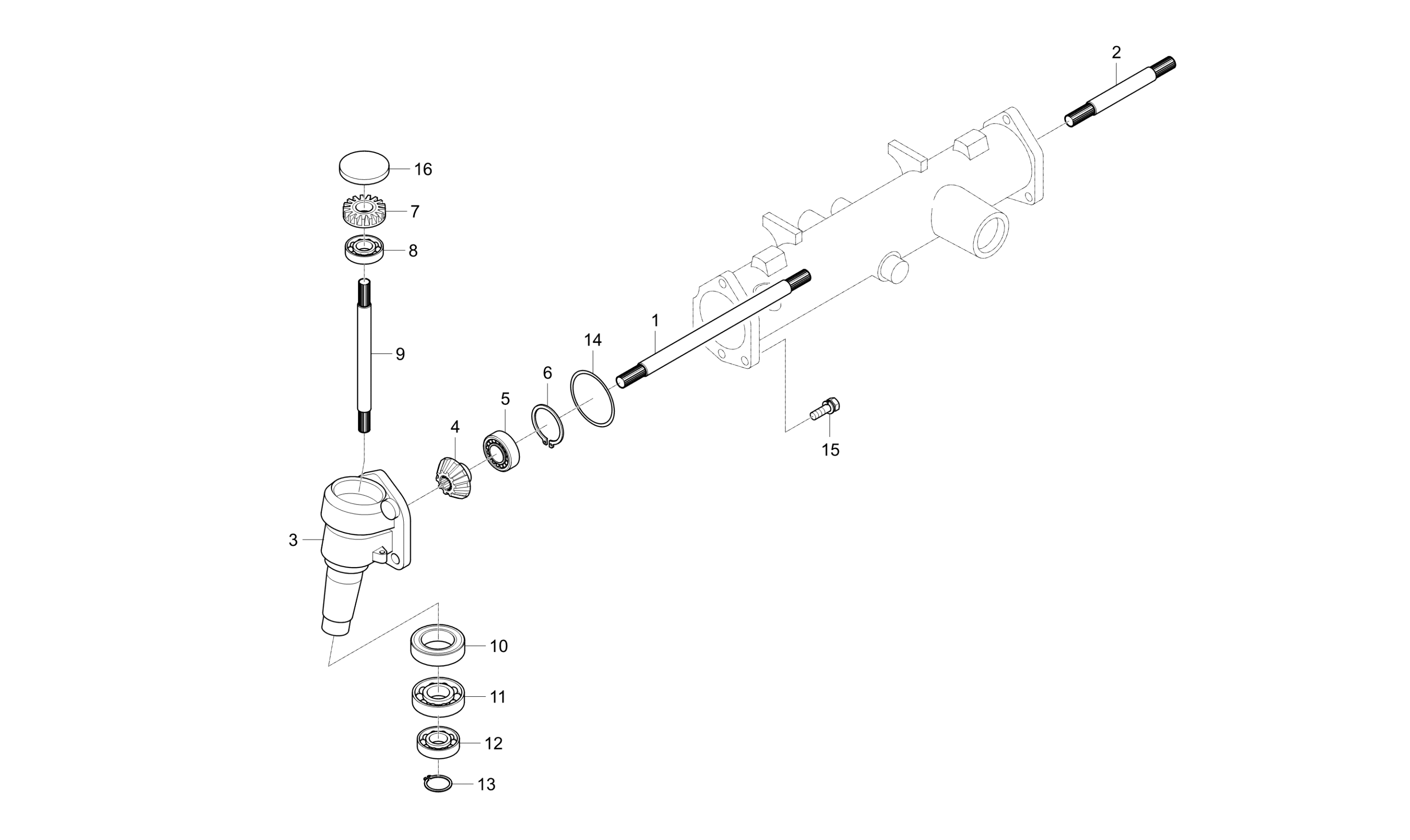

Diagram for BEVEL GEAR CASE GROUP - T2555-G315
  • 1

    LH Differential Gear Shaft

    • Part No. T2555-43211
    • 1 shown on diagram
    $99.99
  • 2

    SHAFT,DIFF. GEAR RH

    • Part No. T2555-43221
    • 1 shown on diagram
    $58.99
  • 3

    BEVEL GEAR CASE

    • Part No. T2555-43311
    • * multiple options for #3
    • 2 shown on diagram
    $179.99
  • 3

    BEVEL GEAR CASE

    • Part No. T2555-43312
    • Compatibility Interchngable
    • * multiple options for #3
    • 1 shown on diagram
    $179.99
  • 4

    GEAR,11 BEVEL

    • Part No. T2555-43241
    • * multiple options for #4
    • 2 shown on diagram
    $59.99
  • 4 GEAR,11 BEVEL

    GEAR,11 BEVEL

    • Part No. T2555-43242
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $59.99
  • 5

    BALLBEARING

    • Part No. T2555-06207
    • #6207, GMB CHINA
    • 2 shown on diagram
    $29.99
  • 6 RING,SNAP

    RING,SNAP

    • Part No. 04611-00720
    • DIA72
    • 2 shown on diagram
    $7.99
  • 7

    GEAR 19,BEVEL

    • Part No. T2555-43441
    • * multiple options for #7
    • 2 shown on diagram
    $61.99
  • 7 GEAR 19,BEVEL

    GEAR 19,BEVEL

    • Part No. T2555-43442
    • Compatibility Interchngable
    • * multiple options for #7
    • 1 shown on diagram
    $61.99
  • 8 BALL BEARING 20x47x14

    BALL BEARING 20x47x14

    • Part No. 08101-06204
    • DIA20
    • 2 shown on diagram
    $15.99
  • 9 BEVEL GEAR SHAFT

    BEVEL GEAR SHAFT

    • Part No. T2555-43411
    • 2 shown on diagram
    $68.99

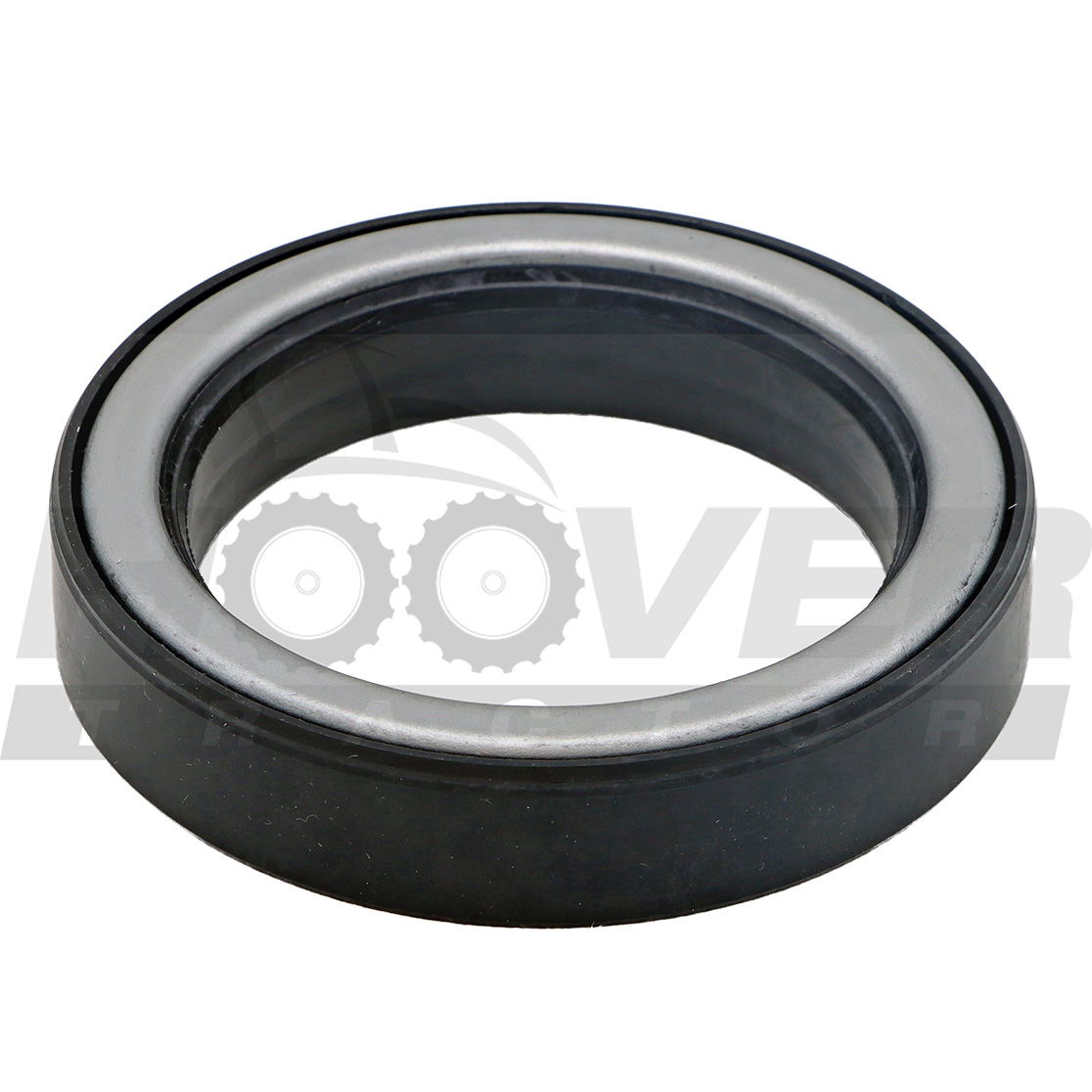

  • 10 OIL SEAL

    OIL SEAL

    • Part No. T2555-43451
    • 2 shown on diagram
    $39.99
  • 11 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 2 shown on diagram
    $49.99
  • 12 BEARING BALL 40x67x19

    BEARING BALL 40x67x19

    • Part No. 08101-06007
    • DIA35
    • 2 shown on diagram
    $26.99
  • 13 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 14 O RING

    O RING

    • Part No. 04811-50800
    • DIA79.4
    • 2 shown on diagram
    $1.69
  • 15

    BOLT

    • Part No. 01177-51035
    • M10XP1.25(9T)
    • 6 shown on diagram
    $3.49
  • 16

    SEAL COVER

    • Part No. T2555-43541
    • 2 shown on diagram
    $9.49
