STEERING CYLINDER GROUP - T2555-G335

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

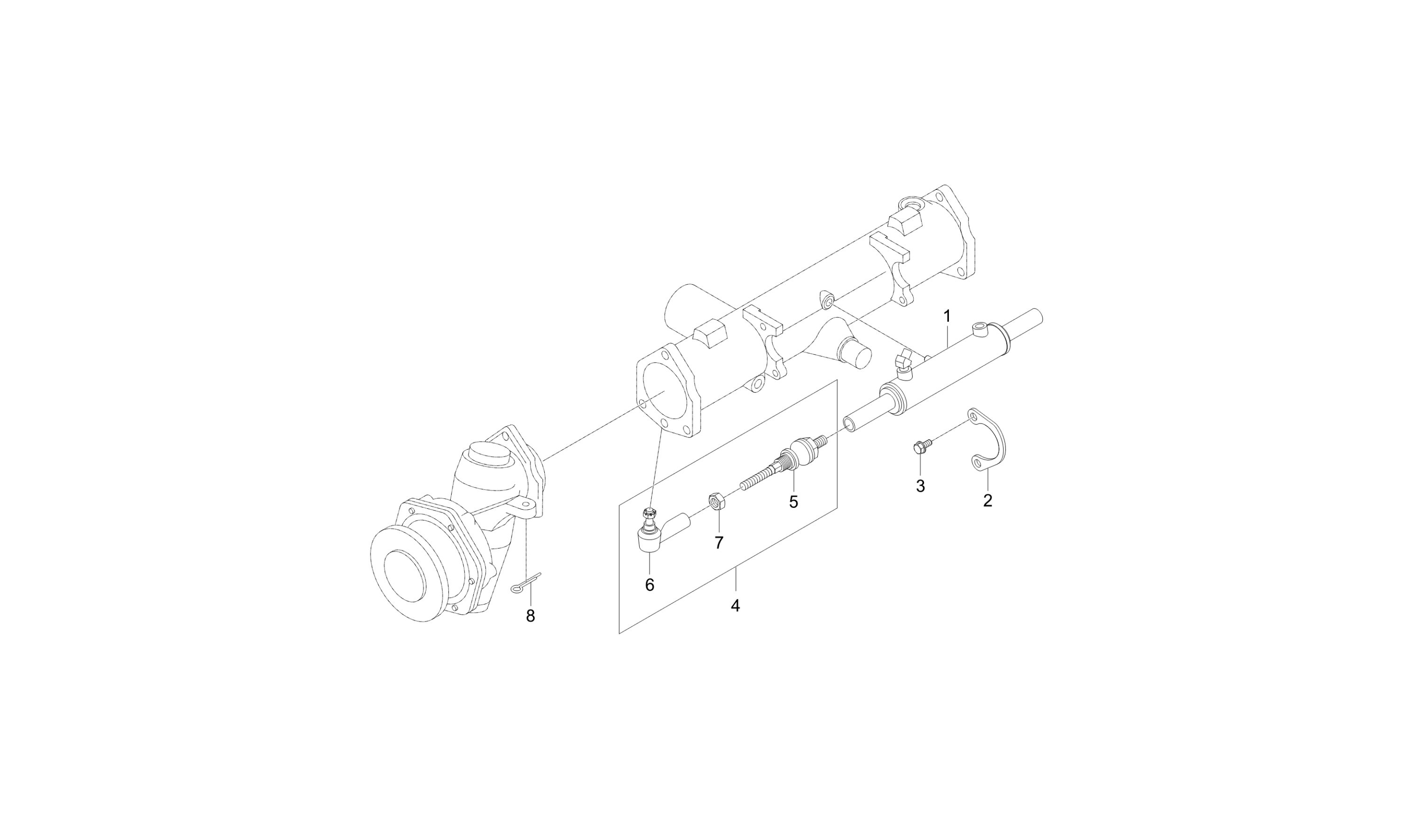

Diagram for STEERING CYLINDER GROUP - T2555-G335

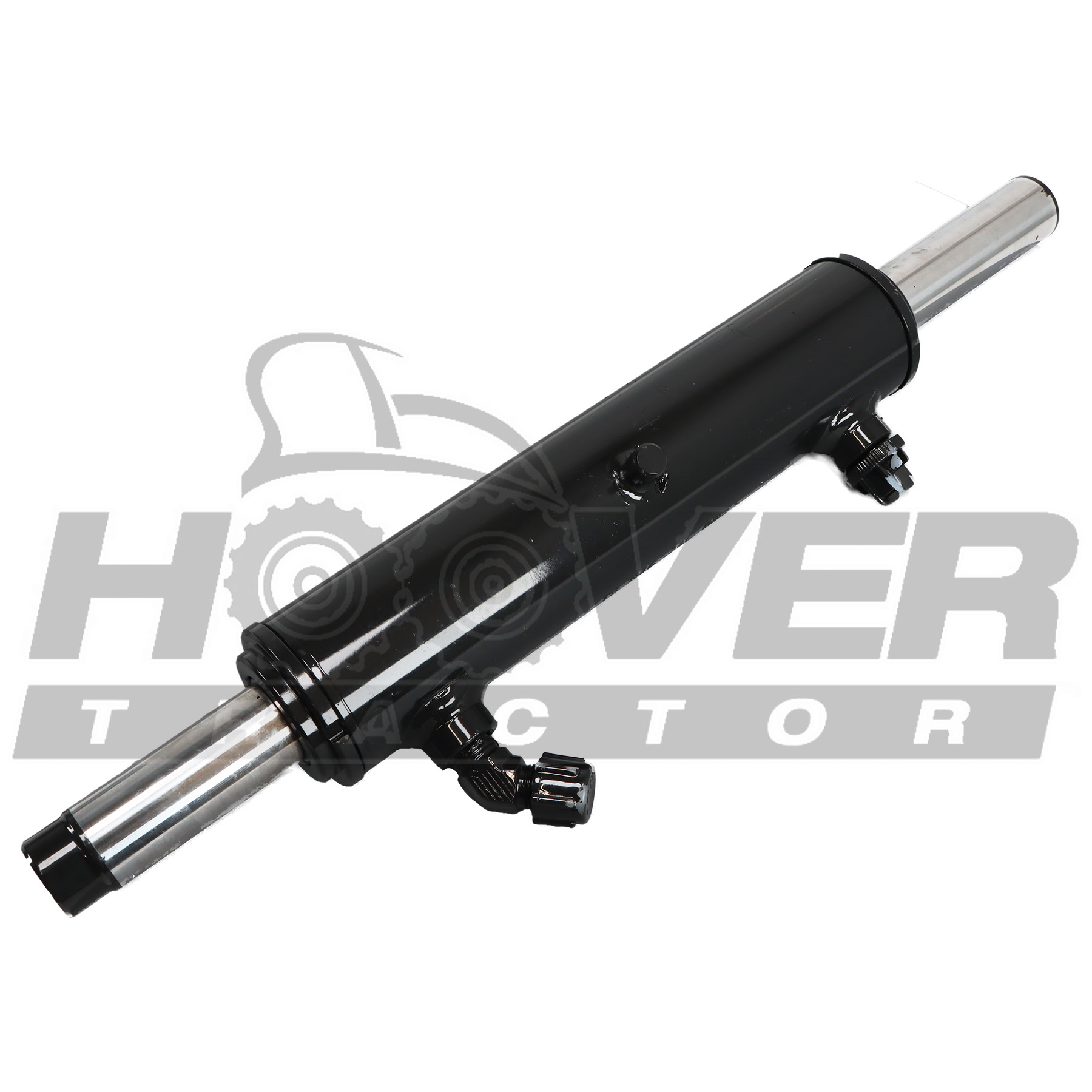

  • 1 ASSY,STEERING CYLINDER

    ASSY,STEERING CYLINDER

    • Part No. T2555-45301
    • * multiple options for #1
    • 1 shown on diagram
    $619.99
  • 1

    ASSY,STEERING CYLINDER v

    • Part No. T2555-45302
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $474.99
  • 2

    BRACKET, CYLINDER

    • Part No. T2555-45211
    • 2 shown on diagram
    $8.99
  • 3 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 4

    JOINT dnr v

    • Part No. T2555-45401
    • * multiple options for #4
    • 2 shown on diagram
    $184.99

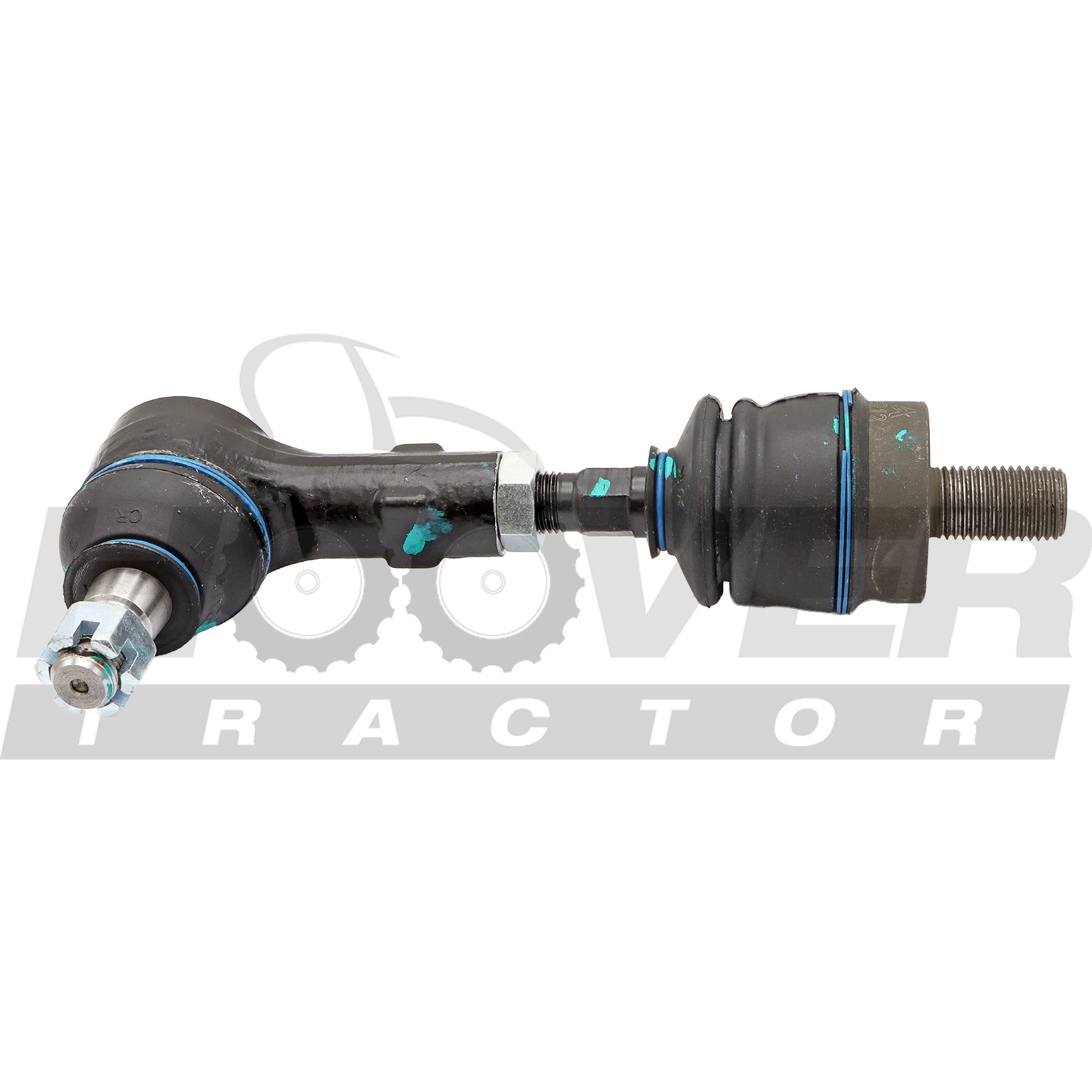

  • 4 BALL JOINT ASSY v

    BALL JOINT ASSY v

    • Part No. T2555-45402
    • Compatibility Interchngable
    • Applied Dates 2018-01-12 and up
    • * multiple options for #4
    • 2 shown on diagram
    $174.99
  • 5

    BALL JOINT ASSY

    • Part No. T2555-45421
    • * multiple options for #5
    • 1 shown on diagram
    $109.99
  • 5

    RACK END ASSY v

    • Part No. T2555-45422
    • Compatibility Interchngable
    • * multiple options for #5
    • 1 shown on diagram
    $54.99
  • 6

    ASSY, END

    • Part No. T2555-45431
    • * multiple options for #6
    • 1 shown on diagram
    $159.99
  • 6 TIE-ROD ASSY

    TIE-ROD ASSY

    • Part No. T2555-45432
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $65.99
  • 7 NUT

    NUT

    • Part No. 02176-50140
    • M14XP1.5
    • 1 shown on diagram
    $1.79
  • 8

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 2 shown on diagram
    $0.68
