LIGHT GROUP - T2555-G761

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

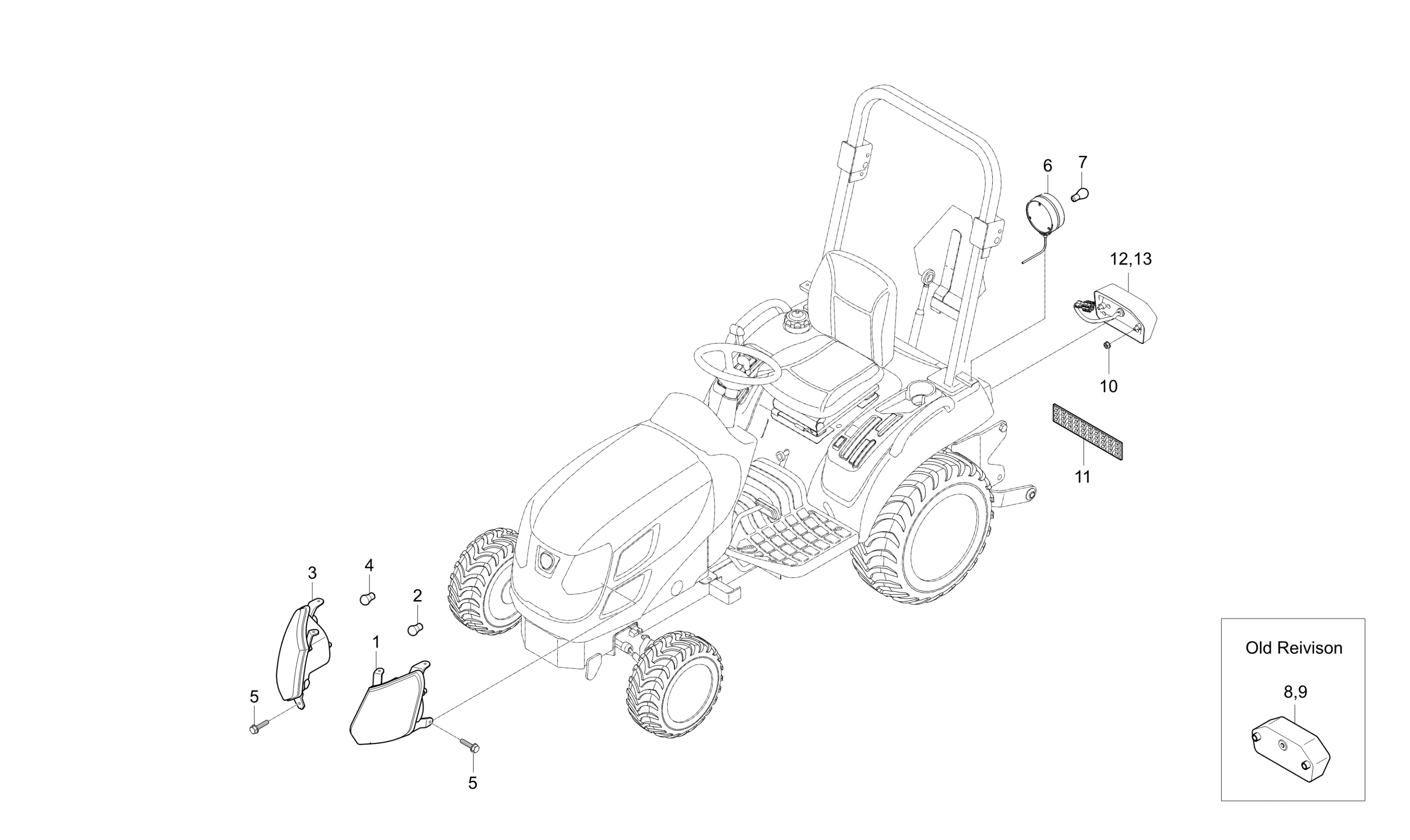

Diagram for LIGHT GROUP - T2555-G761
  • 1

    ASSY LAMP,HEAD LH

    • Part No. T2555-69552
    • * multiple options for #1
    • 1 shown on diagram
    $284.99

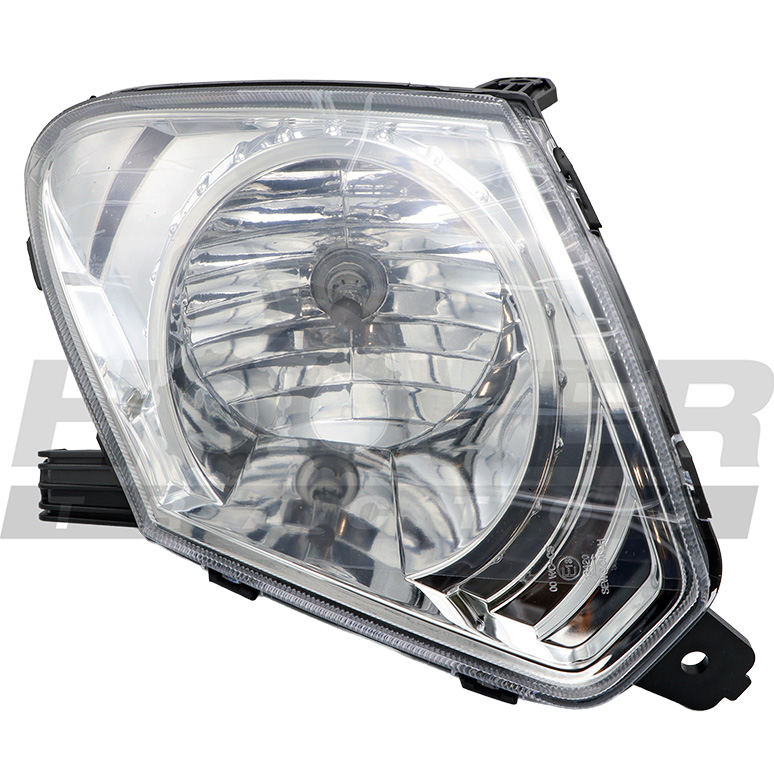

  • 1 ASSY LAMP,HEAD LH

    ASSY LAMP,HEAD LH

    • Part No. T2555-69553
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $274.99
  • 2

    BULB

    • Part No. T2555-69571
    • H7 12V 55W
    • 1 shown on diagram
    $43.99
  • 3

    ASSY LAMP,HEAD RH

    • Part No. T2555-69562
    • * multiple options for #3
    • 1 shown on diagram
    $284.99

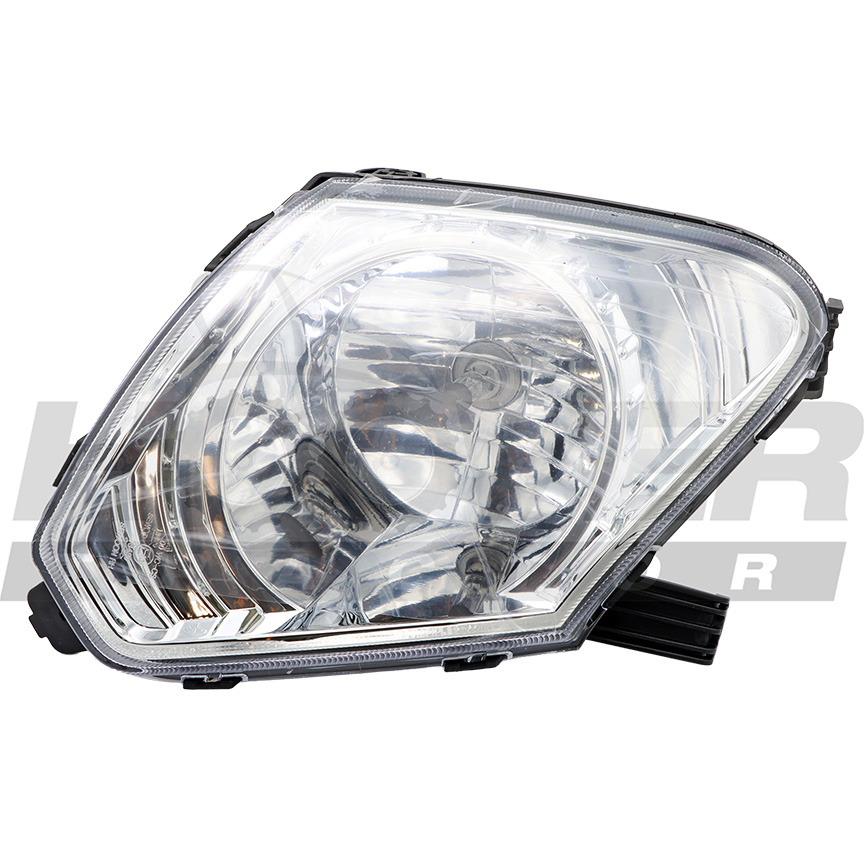

  • 3 ASSY LAMP,HEAD RH

    ASSY LAMP,HEAD RH

    • Part No. T2555-69563
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $274.99
  • 4

    BULB

    • Part No. T2555-69571
    • H7 12V 55W
    • 1 shown on diagram
    $43.99
  • 5 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 8 shown on diagram
    $1.89
  • 6 Turn Signal Lamp (K2400-46212)

    Turn Signal Lamp (K2400-46212)

    • Part No. K2400-46212
    • 2 shown on diagram
    $44.99
  • 7

    BULB(12V 21W) v

    • Part No. T4240-33692
    • 2 shown on diagram
    $5.49

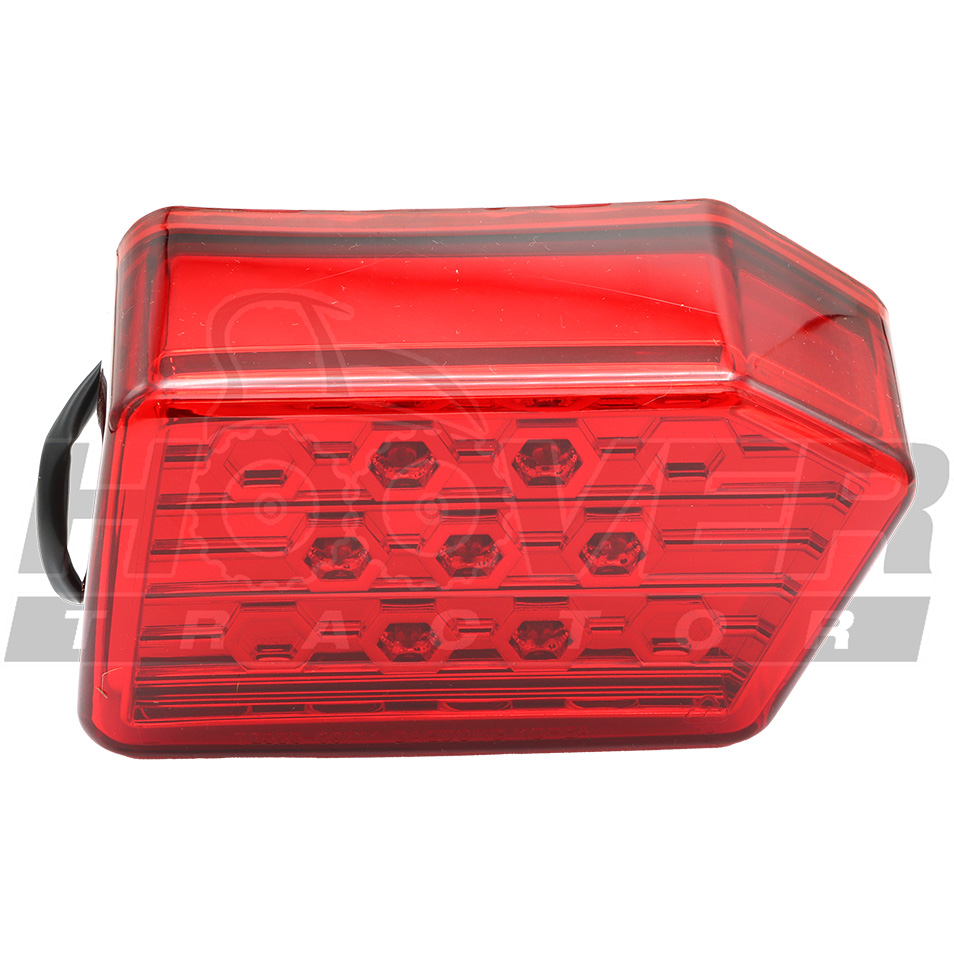

  • 8 ASS’Y TAIL LAMP(L)

    ASS’Y TAIL LAMP(L)

    • Part No. T2555-69711
    • 1 shown on diagram
    $134.99
  • 9

    ASS’Y TAIL LAMP(R)

    • Part No. T2555-69721
    • 1 shown on diagram
    $134.99
  • 10 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 4 shown on diagram
    $0.73
  • 11

    PLATE, REFLECTION

    • Part No. T2555-69761
    • 2 shown on diagram
    $11.99

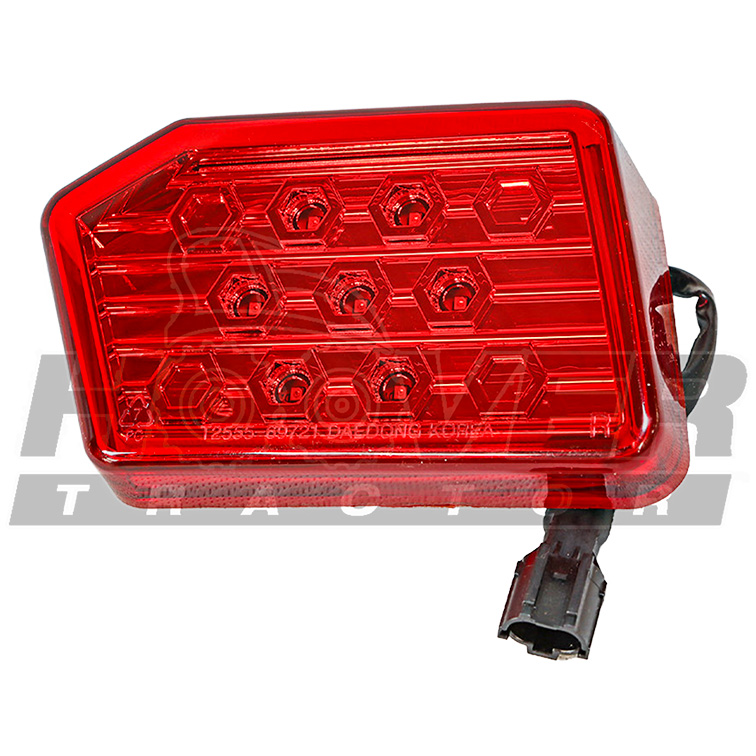

  • 12 ASS’Y TAIL LAMP(R)

    ASS’Y TAIL LAMP(R)

    • Part No. T2555-69722
    • 1 shown on diagram
    $134.99

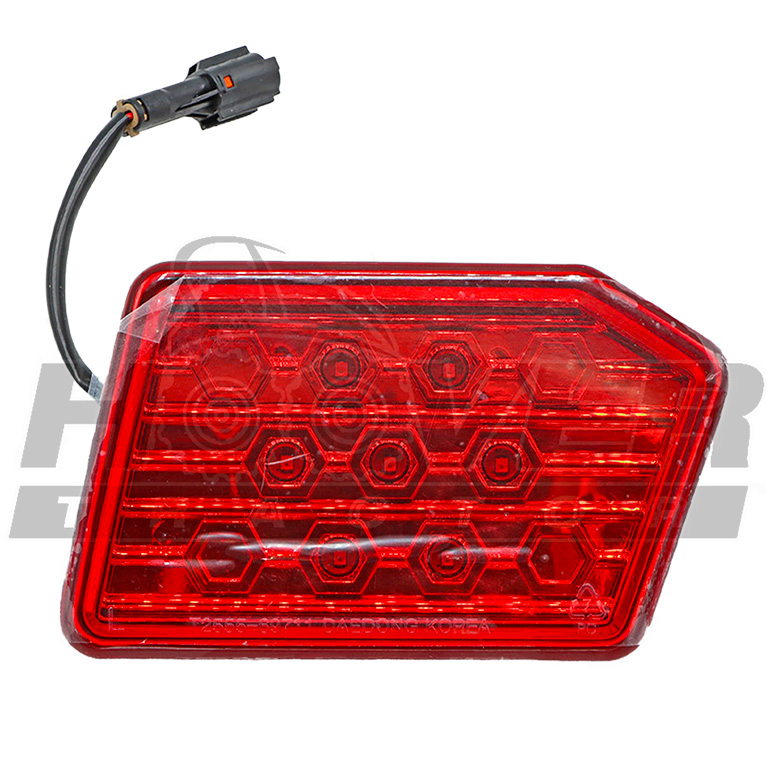

  • 13 ASSY LAMP, REAR COMBINATION-LH

    ASSY LAMP, REAR COMBINATION-LH

    • Part No. T2555-69712
    • 1 shown on diagram
    $134.99
