BONNET ELECTRICAL SYSTEM GROUP - T2575-G711

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

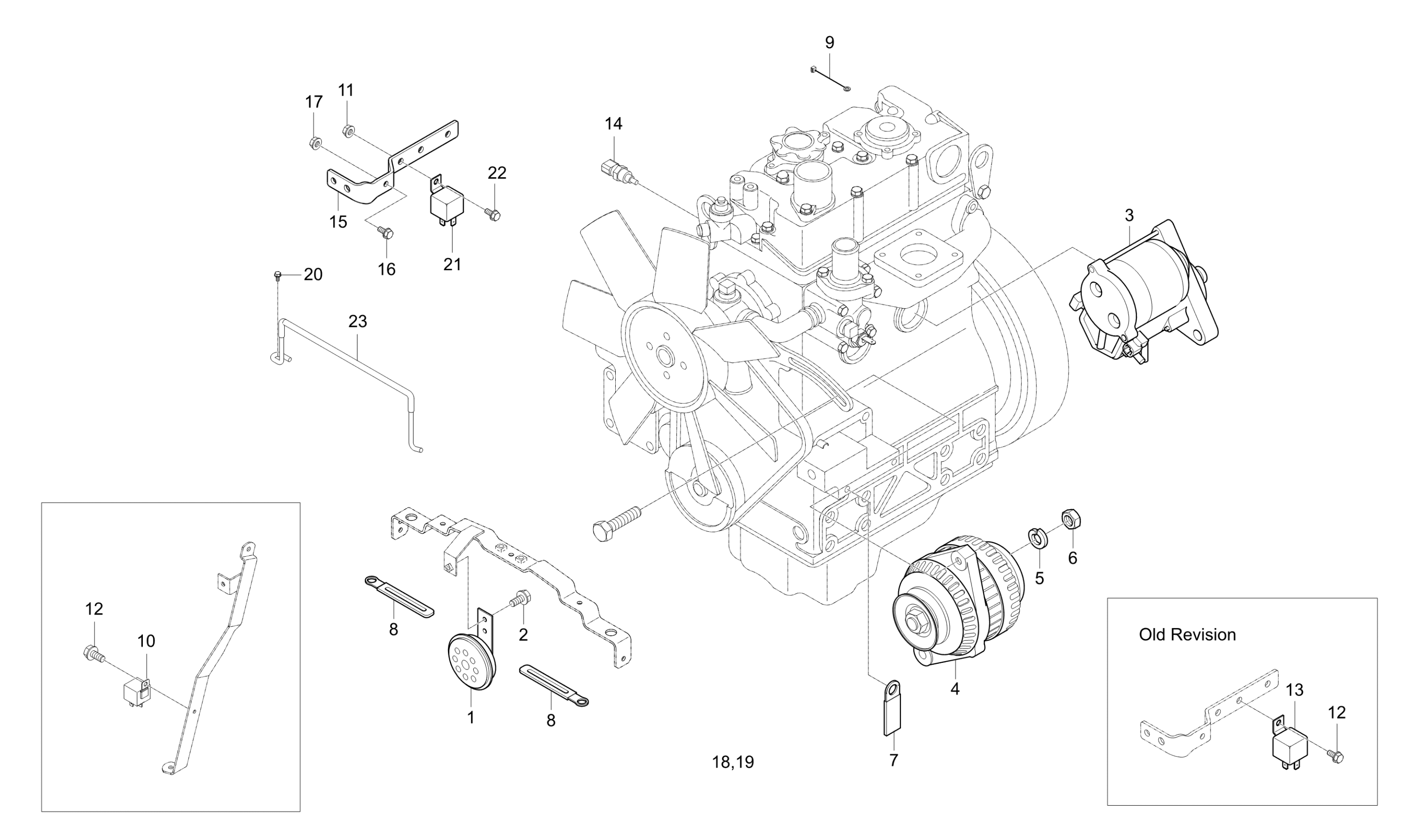

Diagram for BONNET ELECTRICAL SYSTEM GROUP - T2575-G711
  • 1

    ASSY HORN

    • Part No. T2555-75951
    • * multiple options for #1
    • 1 shown on diagram
    $46.99
  • 1 ASSY HORN

    ASSY HORN

    • Part No. T4144-75952
    • Compatibility New repl old
    • 70 pi, 420 Hz, 110
    • * multiple options for #1
    • 1 shown on diagram
    $52.99
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 3

    ASSY STARTER, Replaced by 185086670

    • Part No. T2555-63011
    • 1 shown on diagram
    $0.00
  • 4

    ASS’Y, DYNAMO

    • Part No. E6213-64012
    • 1 shown on diagram
    $719.99
  • 5 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • M5
    • 1 shown on diagram
    $0.55
  • 6 Nut M5 P0.80

    Nut M5 P0.80

    • Part No. 02054-50050
    • M5*P1.0
    • 1 shown on diagram
    $0.43
  • 7

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 8

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 4 shown on diagram
    $4.99
  • 9

    WIRE 5

    • Part No. 59460-4155-1
    • Character
    • * multiple options for #9
    • 1 shown on diagram
    $6.49
  • 9

    WIRE HARNESS

    • Part No. T2558-69361
    • Compatibility Interchngable
    • * multiple options for #9
    • 1 shown on diagram
    $6.49
  • 9

    HARNESS WIRE 3, CABLE

    • Part No. T2198-69471
    • Compatibility No interchange
    • * multiple options for #9
    • 1 shown on diagram
    $14.99
  • 10 RELAY 5P, Replaced by T5535-69961

    RELAY 5P, Replaced by T5535-69961

    • Part No. T4180-69961
    • * multiple options for #10
    • 3 shown on diagram
    $0.00
  • 10 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility Interchngable
    • Bracket
    • * multiple options for #10
    • 3 shown on diagram
    $19.99
  • 10 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility No interchange
    • Bracket
    • * multiple options for #10
    • 1 shown on diagram
    $19.99
  • 10 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Compatibility New repl old
    • Bracket
    • * multiple options for #10
    • 2 shown on diagram
    $19.99
  • 11 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 3 shown on diagram
    $0.73
  • 12 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 13 Flasher Unit Replaced by T2380-31053

    Flasher Unit Replaced by T2380-31053

    • Part No. T2380-31052
    • * multiple options for #13
    • 1 shown on diagram
    $49.99
  • 13

    FLASHER UNIT , SENSOR v

    • Part No. T2380-31053
    • Compatibility Interchngable
    • * multiple options for #13
    • 1 shown on diagram
    $49.99
  • 14

    SENSOR,TEMPERATURE

    • Part No. E7240-32721
    • 1 shown on diagram
    $38.99
  • 15

    BRACKET, RELAY

    • Part No. T2555-56211
    • * multiple options for #15
    • 1 shown on diagram
    $15.99
  • 15

    BRACKET, RELAY

    • Part No. TB25-0016A
    • Compatibility Old repl new
    • * multiple options for #15
    • 1 shown on diagram
    $14.99
  • 16 BOLT, FLANGE M6 P1.00 x 16

    BOLT, FLANGE M6 P1.00 x 16

    • Part No. 01754-50616
    • M6XP1.0
    • 1 shown on diagram
    $1.89
  • 17 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 18

    Flat Washer M8

    • Part No. 04014-50080
    • 1 shown on diagram
    $0.67
  • 19 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
    $1.19
  • 20 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 21 UNIT, FLASHER SENSOR

    UNIT, FLASHER SENSOR

    • Part No. T2198-31052
    • * multiple options for #21
    • 1 shown on diagram
    $124.99
  • 21 70 Amp (4) Pin Relay (T5535-69951)

    70 Amp (4) Pin Relay (T5535-69951)

    • Part No. T5535-69951
    • Compatibility No interchange
    • * multiple options for #21
    • 1 shown on diagram
    $29.99
  • 22

    BOLT, FLANGE

    • Part No. 01754-50620
    • M6XP1.0
    • 1 shown on diagram
    $1.29
  • 23

    ROD, BATTERY FIXING dnr v

    • Part No. T2555-50264
    • * multiple options for #23
    • 1 shown on diagram
    $58.99
  • 23

    ROD, BATTERY FIXING v

    • Part No. T2555-50265
    • Compatibility Call for compat
    • 6
    • * multiple options for #23
    • 1 shown on diagram
    $48.99
