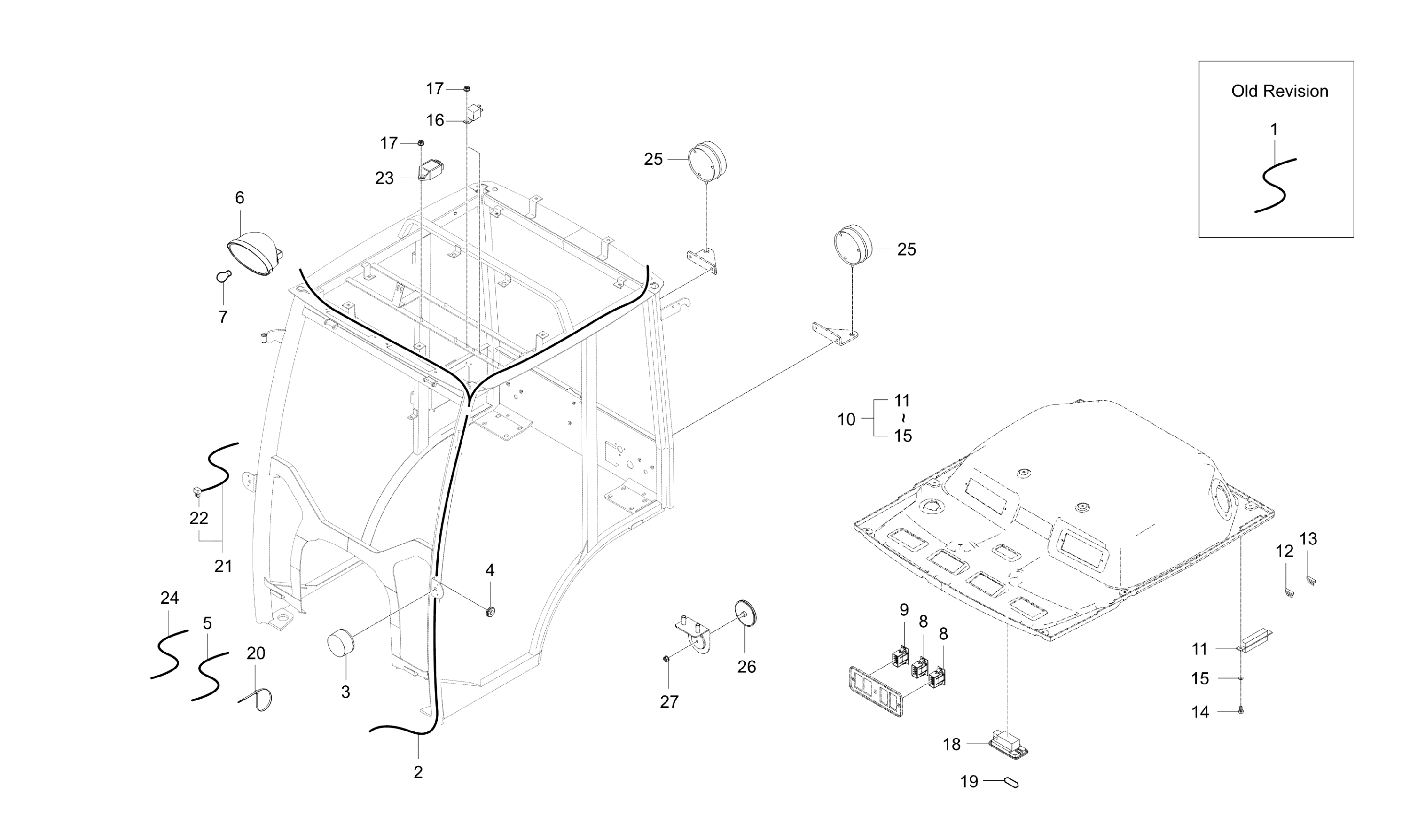

ELECTRICAL GROUP - TB200C-T2160A
Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)
-
HARNESS WIRE ASSY CABIN 1
- Part No. T2391-69171
- 1 shown on diagram
$374.99 -
HARNESS WIRE -KTT
- Part No. T2395-69171
- * multiple options for #2
- 1 shown on diagram
$254.99 -
ASSY WIRE HARNESS, CABIN
- Part No. TB25-0003A
- Compatibility New repl old
- * multiple options for #2
- 1 shown on diagram
$644.99 -
ASSY WIRE HARNESS, CABIN
- Part No. TB25-0003B
- Compatibility New repl old
- Applied Dates 2020-01-16 and up
- * multiple options for #2
- 1 shown on diagram
$644.99 -
LAMP FRONT COMBINATION v
- Part No. T2391-69071
- 2 shown on diagram
$84.99 -
GROMMET
- Part No. 31355-2949-1
- 2 shown on diagram
$4.99 -
HARNESS WIRE GENERATOR CONNECTION
- Part No. T2131-69351
- 1 shown on diagram
$16.99 -
ASSY LAMP, WORKING
- Part No. T2131-69803
- AF/O TCJ1022800A3
- 2 shown on diagram
$134.99 -
BULB, HALOGEN-12V35W
- Part No. T4620-69251
- H3
- 1 shown on diagram
$21.99 -
Switch, Work Light (T4520-54222)
- Part No. T4520-54222
- 2 shown on diagram
$33.99 -
SWITCH HEATER
- Part No. T4681-83611
- 1 shown on diagram
$72.99 -
Fuse Box KTT
- Part No. T2135-69601
- 1 shown on diagram
$89.99 -
COVER, FUSE BOX
- Part No. P5370-69321
- 1 shown on diagram
$15.99 -
FUSE, 10A
- Part No. T4260-33631
- 4 shown on diagram
$2.99 -
FUSE, 15A
- Part No. 35820-7556-1
- 5 shown on diagram
$2.99 -
BOLT
- Part No. 03056-50416
- M4XP0.7
- 2 shown on diagram
$0.40 -
Flat Washer M10
- Part No. 04013-50100
- M10
- 2 shown on diagram
$0.73 -
Relay, 5P, 30A 40A, with bracket
- Part No. T5535-69961
- Bracket
- * multiple options for #16
- 3 shown on diagram
$19.99 -
Relay, 5P, 30A 40A, with bracket
- Part No. T5535-69961
- Compatibility New repl old
- Bracket
- * multiple options for #16
- 6 shown on diagram
$19.99 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- M6XP1.0
- * multiple options for #17
- 3 shown on diagram
$0.73 -
Nut, Flange, M6 P1.00 02751-50060
- Part No. 02751-50060
- Compatibility New repl old
- M6XP1.0
- * multiple options for #17
- 7 shown on diagram
$0.73 -
LAMP ROOM 1156-00030
- Part No. T4815-82361
- 1 shown on diagram
$54.99 -
BULB (ROOM LAMP ASS’Y)
- Part No. T4815-46791
- 1 shown on diagram
$9.99 -
BAND, CORD v
- Part No. T4520-82551
- L270
- 10 shown on diagram
$1.19 -
WIRE, CONNECTION
- Part No. T2555-69361
- 2 shown on diagram
$69.99 -
FUSE, 60A v
- Part No. 52794-4242-1
- 1 shown on diagram
$6.49 -
TIMER
- Part No. T4836-69251
- * multiple options for #23
- 1 shown on diagram
$119.99 -
TIMER, HEAT WIRE
- Part No. T4836-69252
- Compatibility New repl old
- * multiple options for #23
- 1 shown on diagram
$94.99 -
ASSY WIRE HARNESS, CONNECTING GLASS HEAT
- Part No. TD25-0015A
- 2 shown on diagram
$35.99 -
TURN SIGNAL LAMP
- Part No. TB15-0024A
- 2 shown on diagram
$62.99 -
REFLEX REFLECTOR ASS’Y, Replaced by T4144-85721
- Part No. T5638-85721
- 2 shown on diagram
$9.99 -
Nut M4XP0.7 (02054-50040)
- Part No. 02054-50040
- M4XP0.7
- 2 shown on diagram
$0.61
