BODY ELECTRICAL SYSTEM GROUP - T2575-G731

Kioti TRACTOR | CS Series | CS2410E (NY5700001 to RY6200100)

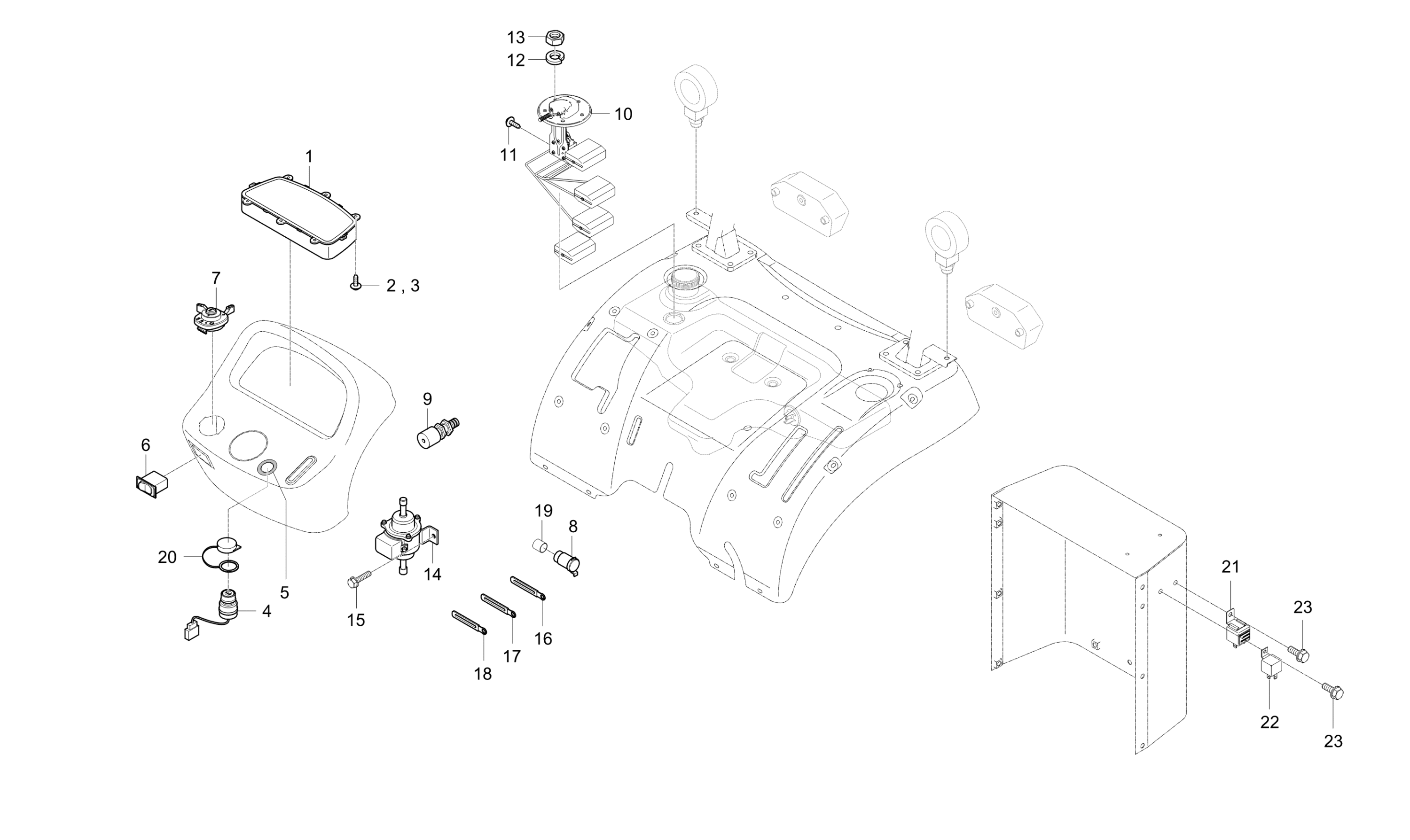

Diagram for BODY ELECTRICAL SYSTEM GROUP - T2575-G731
  • 1

    ASSY PLATE METER

    • Part No. T2575-69011
    • * multiple options for #1
    • 1 shown on diagram
    $354.99
  • 1

    ASSY PLATE, METER use T2575-69013 dnr v

    • Part No. T2575-69012
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $429.99
  • 1

    ASSY PLATE,METER

    • Part No. T2575-69013
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $509.99
  • 1

    ASSY PLATE,METER

    • Part No. T2575-69014
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY, PLATER METER

    • Part No. T2575-69015
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $509.99
  • 2

    BOLT, SCREW obs

    • Part No. 84612-1823-0
    • M6X16
    • 6 shown on diagram
    $0.79
  • 3 TAPPING SCREW v

    TAPPING SCREW v

    • Part No. 38240-1883-1
    • M4X16
    • 6 shown on diagram
    $0.79
  • 4 Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    • Part No. T5520-75171
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4 Ignition Starter Switch With Shutter

    Ignition Starter Switch With Shutter

    • Part No. TF15-0196A
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $119.99
  • 5 Key Switch Decal (T5248-52101)

    Key Switch Decal (T5248-52101)

    • Part No. T5248-52101
    • 1 shown on diagram
    $3.99
  • 6 SWITCH, HAZARD

    SWITCH, HAZARD

    • Part No. T4930-69221
    • 1 shown on diagram
    $84.99
  • 7

    ASS’Y COMBINATION SWITCH (use T2555-69023) dnr v

    • Part No. T2555-69022
    • * multiple options for #7
    • 1 shown on diagram
    $129.99
  • 7 ASS’Y COMBINATION SWITCH v

    ASS’Y COMBINATION SWITCH v

    • Part No. T2555-69023
    • Compatibility New repl old
    • * multiple options for #7
    • 1 shown on diagram
    $129.99
  • 8 SOCKET

    SOCKET

    • Part No. T4935-92502
    • 1 shown on diagram
    $27.99
  • 9 SWITCH, SAFETY STARTER

    SWITCH, SAFETY STARTER

    • Part No. T4930-69881
    • 1 shown on diagram
    $59.99
  • 10

    ASSY,FUEL SERNER dnr v

    • Part No. T2555-69221
    • * multiple options for #10
    • 1 shown on diagram
    $83.99
  • 10

    ASSY SENDER, FUEL

    • Part No. TB25-0014A
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $77.99
  • 10

    ASSY SENDER, FUEL

    • Part No. TB25-0014B
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10

    ASSY SENDER, FUEL

    • Part No. TB25-0014C
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10

    ASSY SENDER, FUEL

    • Part No. TB35-0041A
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $98.99
  • 11

    SCREW v

    • Part No. 03024-50410
    • M*P0.7
    • 5 shown on diagram
    $0.62
  • 12

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 5 shown on diagram
    $0.55
  • 13

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 5 shown on diagram
    $0.61
  • 14 Electric Fuel Lift Pump

    Electric Fuel Lift Pump

    • Part No. T2555-69231
    • * multiple options for #14
    • 1 shown on diagram
    $189.99
  • 14

    Electric Fuel Lift Pump, dnr, Replaced by CF15-0030A

    • Part No. TB35-0029B
    • Compatibility New repl old
    • * multiple options for #14
    • 1 shown on diagram
    $0.00
  • 15 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 16

    CLAMP, NOZZLE dnr v

    • Part No. 32240-3446-1
    • 5 shown on diagram
    $3.99
  • 17

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 4 shown on diagram
    $4.99
  • 18

    CLAMP

    • Part No. 37150-3447-1
    • T0.5
    • 1 shown on diagram
    $4.99
  • 19

    TUBE

    • Part No. T2555-92601
    • 1 shown on diagram
    $0.47
  • 20

    Starter Switch Waterproof Cover (T4837-77773)

    • Part No. T4837-77773
    • * multiple options for #20
    • 1 shown on diagram
    $5.99
  • 20 COVER STARTER SWITCH WATERPROOF, BLACK

    COVER STARTER SWITCH WATERPROOF, BLACK

    • Part No. T4837-77774
    • Compatibility New repl old
    • * multiple options for #20
    • 1 shown on diagram
    $5.99
  • 21 Relay, 5P, 30A 40A, with bracket

    Relay, 5P, 30A 40A, with bracket

    • Part No. T5535-69961
    • Bracket
    • 1 shown on diagram
    $19.99
  • 22 UNIT, FLASHER SENSOR

    UNIT, FLASHER SENSOR

    • Part No. T2198-31052
    • 1 shown on diagram
    $124.99
  • 23 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 2 shown on diagram
    $1.39
