TRANSMISSION CASE GROUP - TC2-G224006

Kioti TRACTOR | CK Series | CK3520H

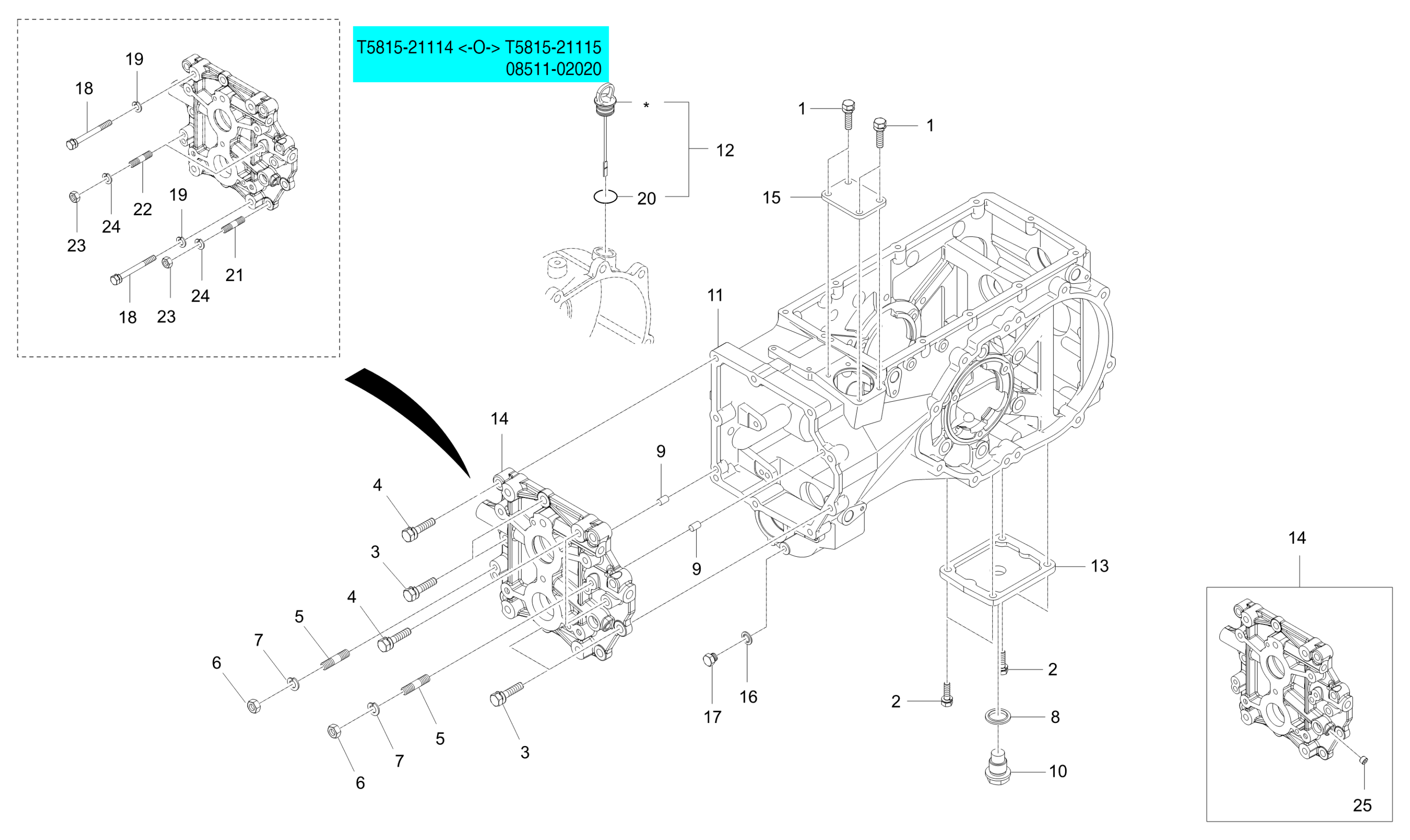

Diagram for TRANSMISSION CASE GROUP - TC2-G224006
  • 1 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.09
  • 2

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • M10XP1.25(9T)
    • 4 shown on diagram
    $3.49
  • 3

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 6 shown on diagram
    $3.49
  • 4

    BOLT

    • Part No. 01177-51250
    • M12XP1.25(9T)
    • 3 shown on diagram
    $3.99
  • 5

    STUD

    • Part No. 01517-51030
    • 2 shown on diagram
    $4.99
  • 6 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $.98
  • 7 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 8 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 9

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 10 PLUG

    PLUG

    • Part No. T4125-14261
    • 1 shown on diagram
    $39.99
  • 11

    TRK CASE,TRANSMISSION

    • Part No. T5815-21116
    • 1 shown on diagram
    $964.99
  • 12
    • Part No. T5815-23974
    • 1 shown on diagram
  • 13

    COVER

    • Part No. T5815-24171
    • 1 shown on diagram
    $79.99
  • 14

    PLATE

    • Part No. T5855-21154
    • 1 shown on diagram
    $294.99
  • 15

    COVER

    • Part No. T5855-24181
    • 1 shown on diagram
    $13.99
  • 16 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 17
    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
  • 18

    BOLT

    • Part No. T4850-26501
    • 4 shown on diagram
    $25.99
  • 19

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 4 shown on diagram
    $0.9
  • 20 O RING

    O RING

    • Part No. 04811-00200
    • DIA19.8
    • 2 shown on diagram
    $1.39
  • 21

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 1 shown on diagram
    $5.99
  • 22

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 1 shown on diagram
    $5.99
  • 23 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 24
    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
  • 25

    PLUG

    • Part No. E5900-96032
    • 1 shown on diagram
    $2.49
