DRIVE SHAFT GROUP - TC2-G232004

Kioti TRACTOR | CK Series | CK3520H

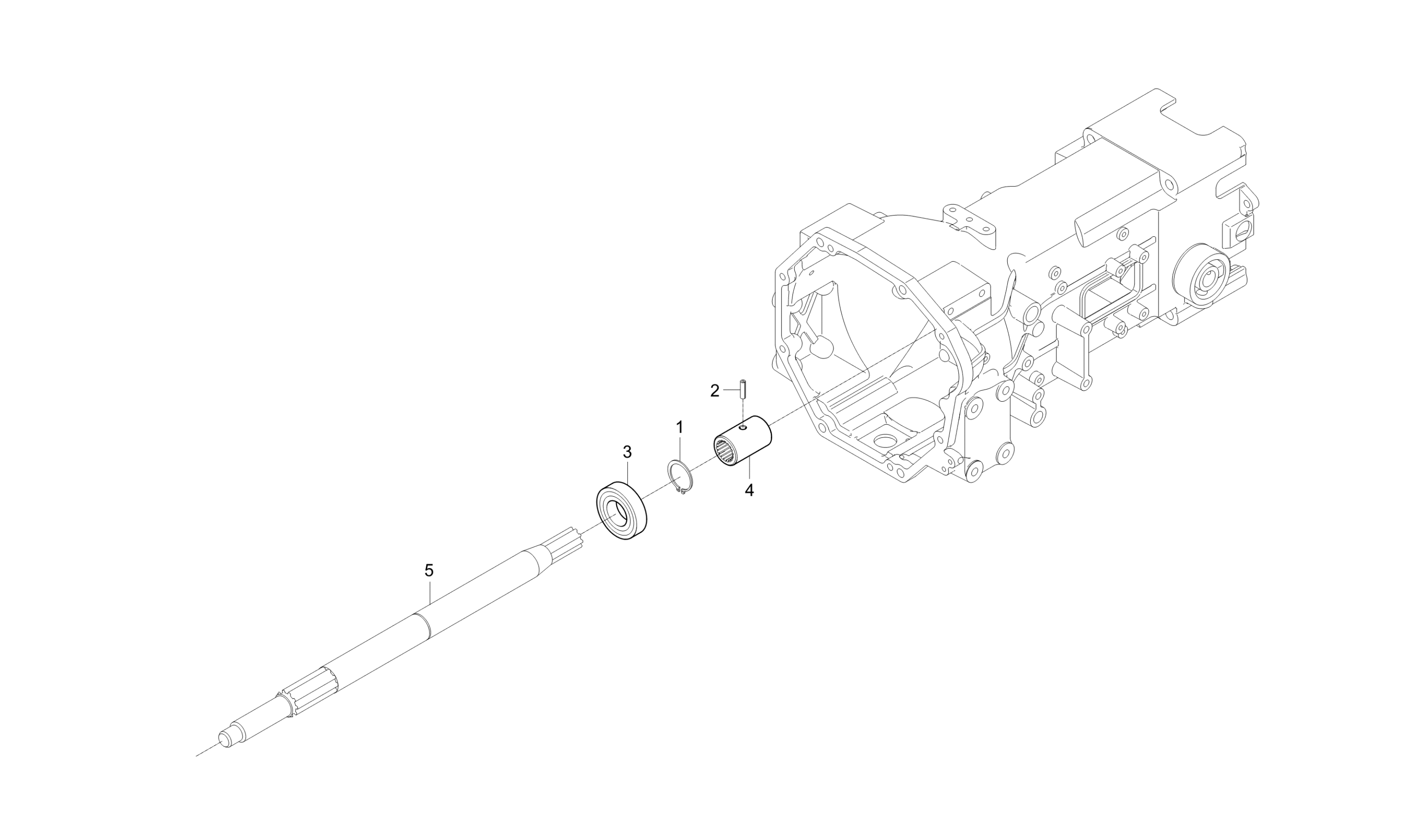

Diagram for DRIVE SHAFT GROUP - TC2-G232004
  • 1 Snap Ring, External, 25mm

    Snap Ring, External, 25mm

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 2 PIN,SPRING (Roll) 5×28 05411-00528

    PIN,SPRING (Roll) 5×28 05411-00528

    • Part No. 05411-00528
    • 1 shown on diagram
    $0.90
  • 3

    BEARING,BALL

    • Part No. 08141-06205
    • #6205UU
    • 1 shown on diagram
    $21.99
  • 4

    COUPLING

    • Part No. T2195-25241
    • 1 shown on diagram
    $41.99
  • 5

    SHAFT,MAIN

    • Part No. T5855-21402
    • 1 shown on diagram
    $0.00
