SUCTION LINE GROUP - TC2-G411004

Kioti TRACTOR | CK Series | CK3520CHSEB

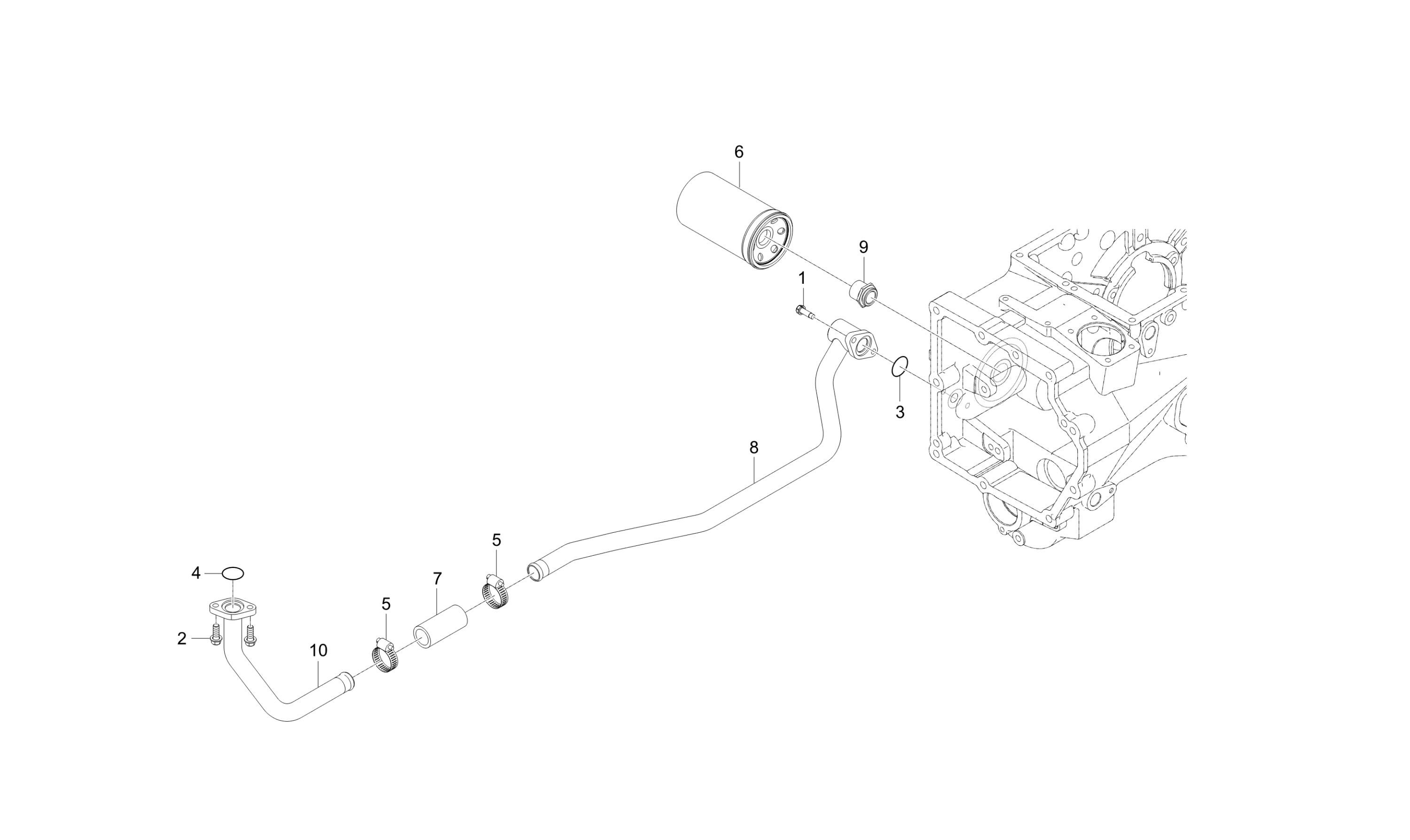

Diagram for SUCTION LINE GROUP - TC2-G411004
  • 1 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 2 Bolt With Washer, M8 P1.25 x 25mm

    Bolt With Washer, M8 P1.25 x 25mm

    • Part No. 01123-50825
    • M8XP1.25
    • 2 shown on diagram
    $1.99

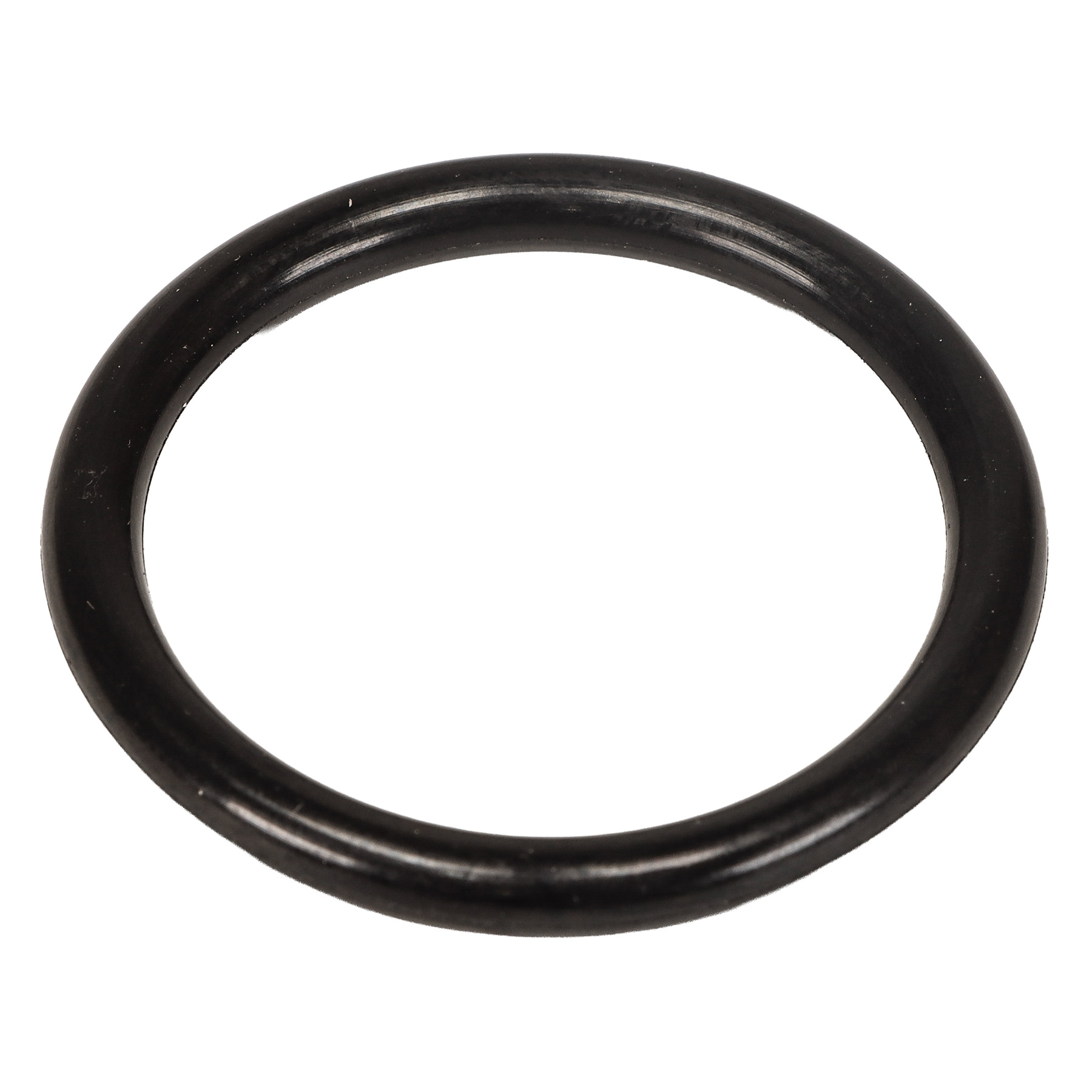

  • 3 O RING

    O RING

    • Part No. 04810-00280
    • DIA27.7
    • 1 shown on diagram
    $1.09
  • 4 O RING

    O RING

    • Part No. 04810-00280
    • DIA27.7
    • 1 shown on diagram
    $1.09
  • 5

    BAND, HOSE

    • Part No. F6800-91841
    • 25-40mm
    • 2 shown on diagram
    $2.99
  • 6 Hydraulic Filter

    Hydraulic Filter

    • Part No. T4260-38125
    • 1 shown on diagram
    $37.99
  • 7 HOSE,RUBBER 28mm ID

    HOSE,RUBBER 28mm ID

    • Part No. T4125-38151
    • 1 shown on diagram
    $6.49
  • 8

    TUBE, INLET

    • Part No. T5855-46003
    • 1 shown on diagram
    $144.99
  • 9

    CONNECTION

    • Part No. T5855-46502
    • 1 shown on diagram
    $32.99
  • 10

    PIPE, SUCTION-T4

    • Part No. TC24-0007A
    • D27.2XT1.5
    • 1 shown on diagram
    $99.99
