LIFT CYLINDER GROUP - TC2-G463503

Kioti TRACTOR | CK Series | CK3520CHSEB

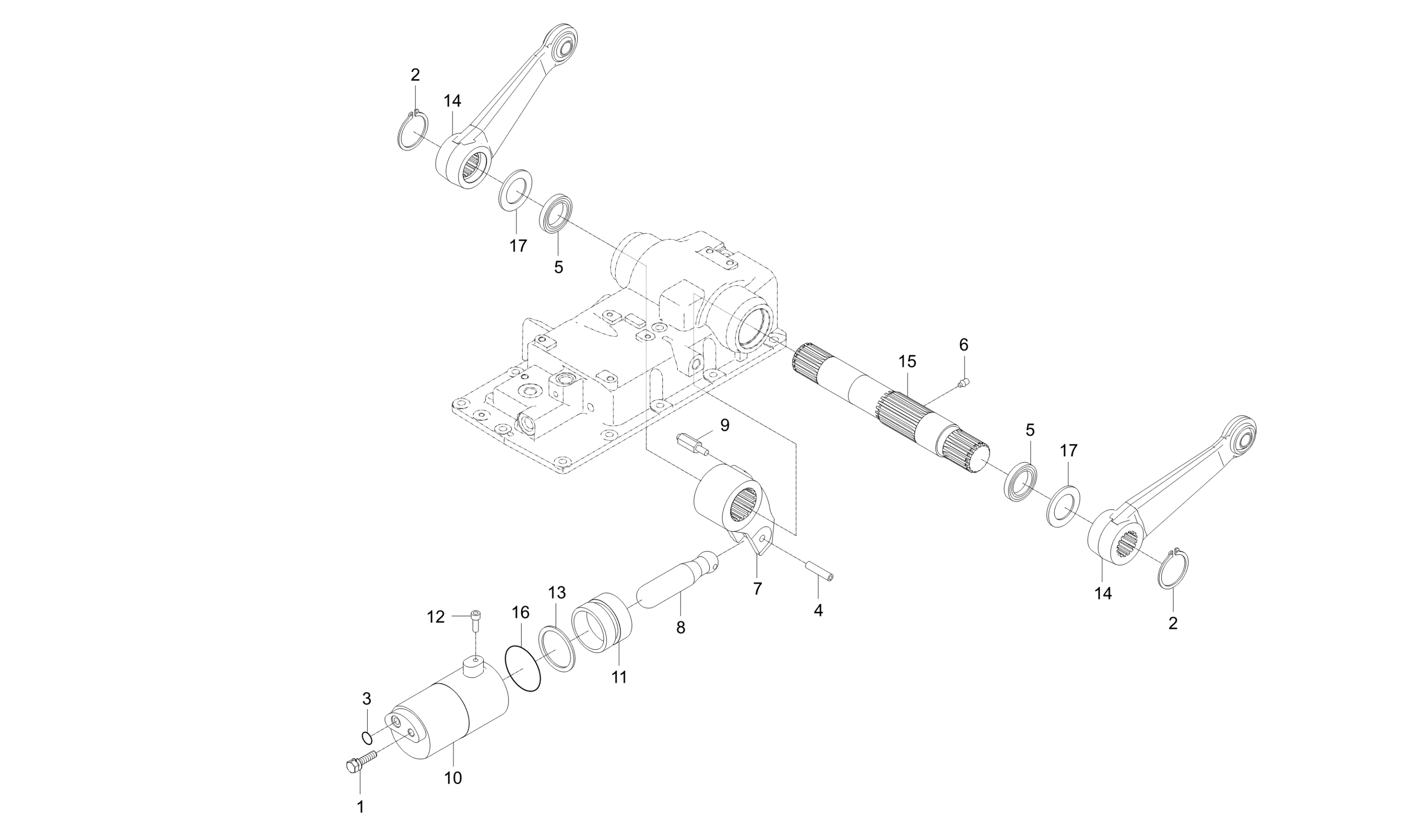

Diagram for LIFT CYLINDER GROUP - TC2-G463503
  • 1
    • Part No. 01133-51222
    • M12XP1.25
    • 1 shown on diagram
  • 2
    • Part No. 04612-00450
    • DIA45
    • 2 shown on diagram
  • 3 O RING

    O RING

    • Part No. 04810-00140
    • P14
    • 1 shown on diagram
    $.90
  • 4

    PIN, SPRING

    • Part No. 05411-00855
    • 8*55
    • 1 shown on diagram
    $2.49

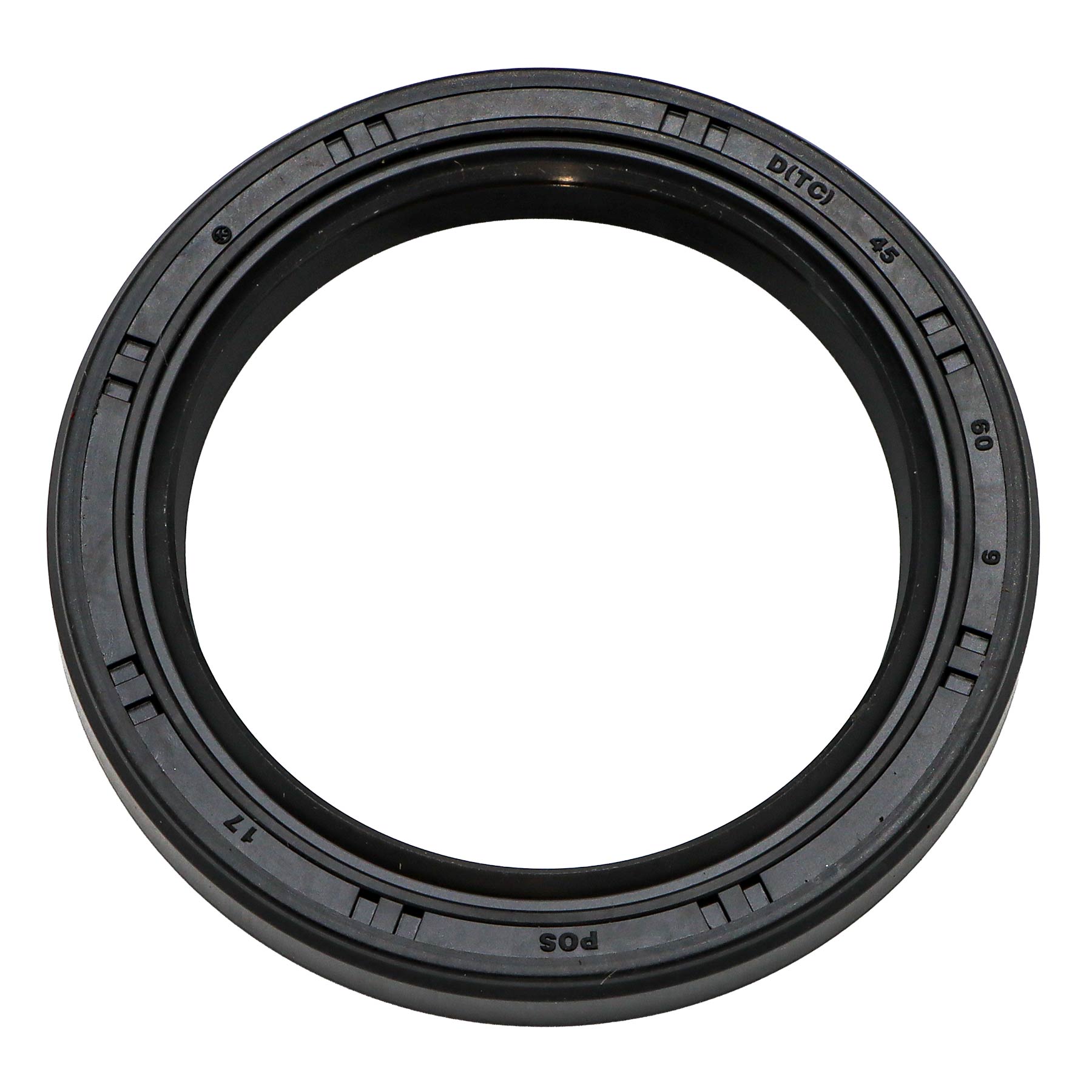

  • 5 SEAL,OIL

    SEAL,OIL

    • Part No. 09500-45609
    • DIA45
    • 2 shown on diagram
    $11.99
  • 6
    • Part No. T2610-37453
    • M10*P1.5
    • 1 shown on diagram
  • 7

    CRANK

    • Part No. T5710-37231
    • 1 shown on diagram
    $349.99
  • 8

    CONNECTING ROD

    • Part No. T5710-37241
    • 1 shown on diagram
    $99.99
  • 9

    PIN

    • Part No. T5855-43031
    • 1 shown on diagram
    $27.99
  • 10

    CYLINDER

    • Part No. T5855-43042
    • 1 shown on diagram
    $319.99
  • 11

    PISTON,HYDRAULIC

    • Part No. T5855-43051
    • 1 shown on diagram
    $144.99
  • 12
    • Part No. T5855-43061
    • 1 shown on diagram

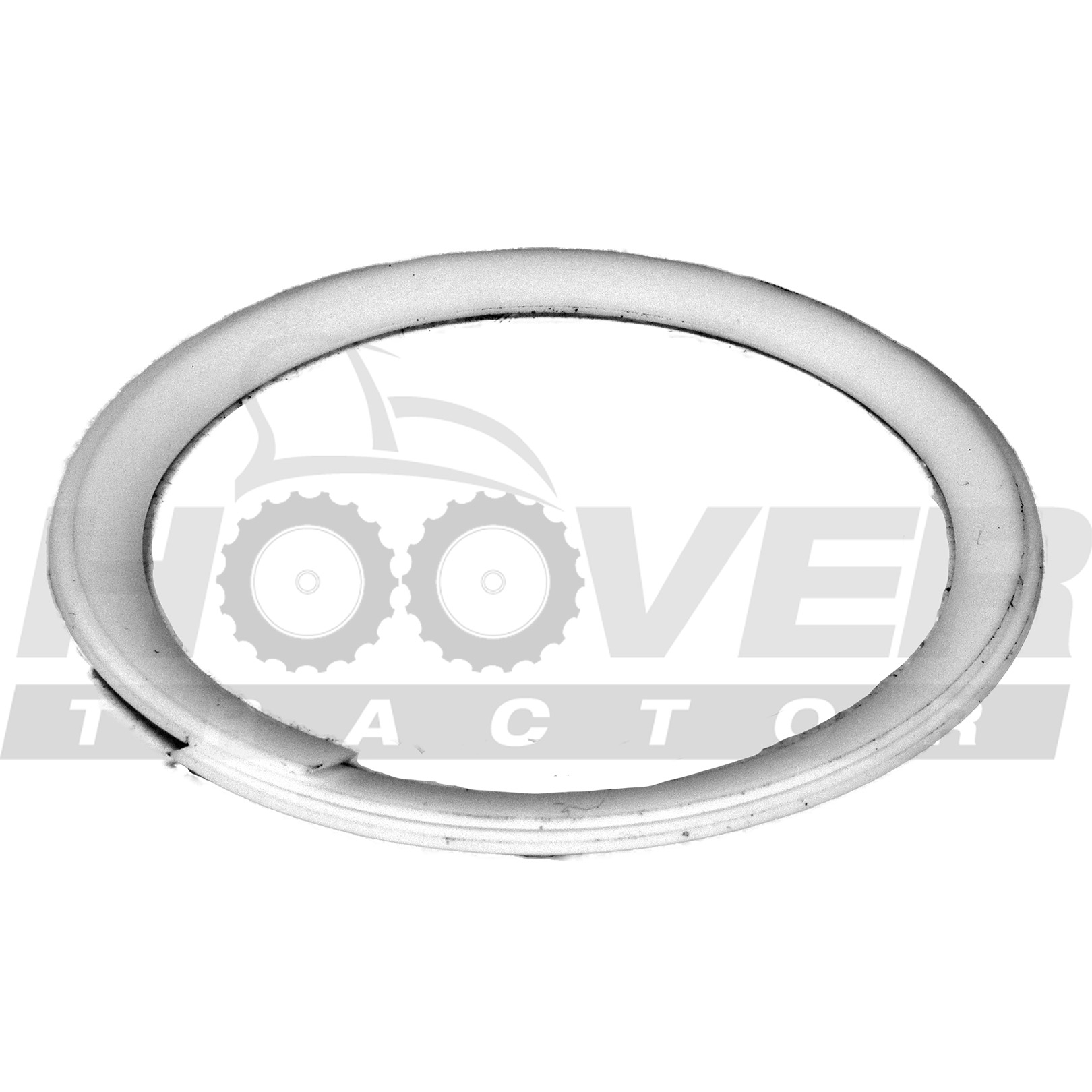

  • 13 BACK UP RING v

    BACK UP RING v

    • Part No. T5855-43072
    • 1 shown on diagram
    $19.99
  • 14

    ASSY, LIFT ARM

    • Part No. T5855-43082
    • 2 shown on diagram
    $199.99
  • 15
    • Part No. TC24-0164A
    • 1 shown on diagram
  • 16
    • Part No. TC24-0197A
    • F60
    • 1 shown on diagram
  • 17
    • Part No. TD24-0008A
    • 2 shown on diagram
