HST HYDRAULIC LINE GROUP - TC2-G423003

Kioti TRACTOR | CK Series | CK3520CHSEB

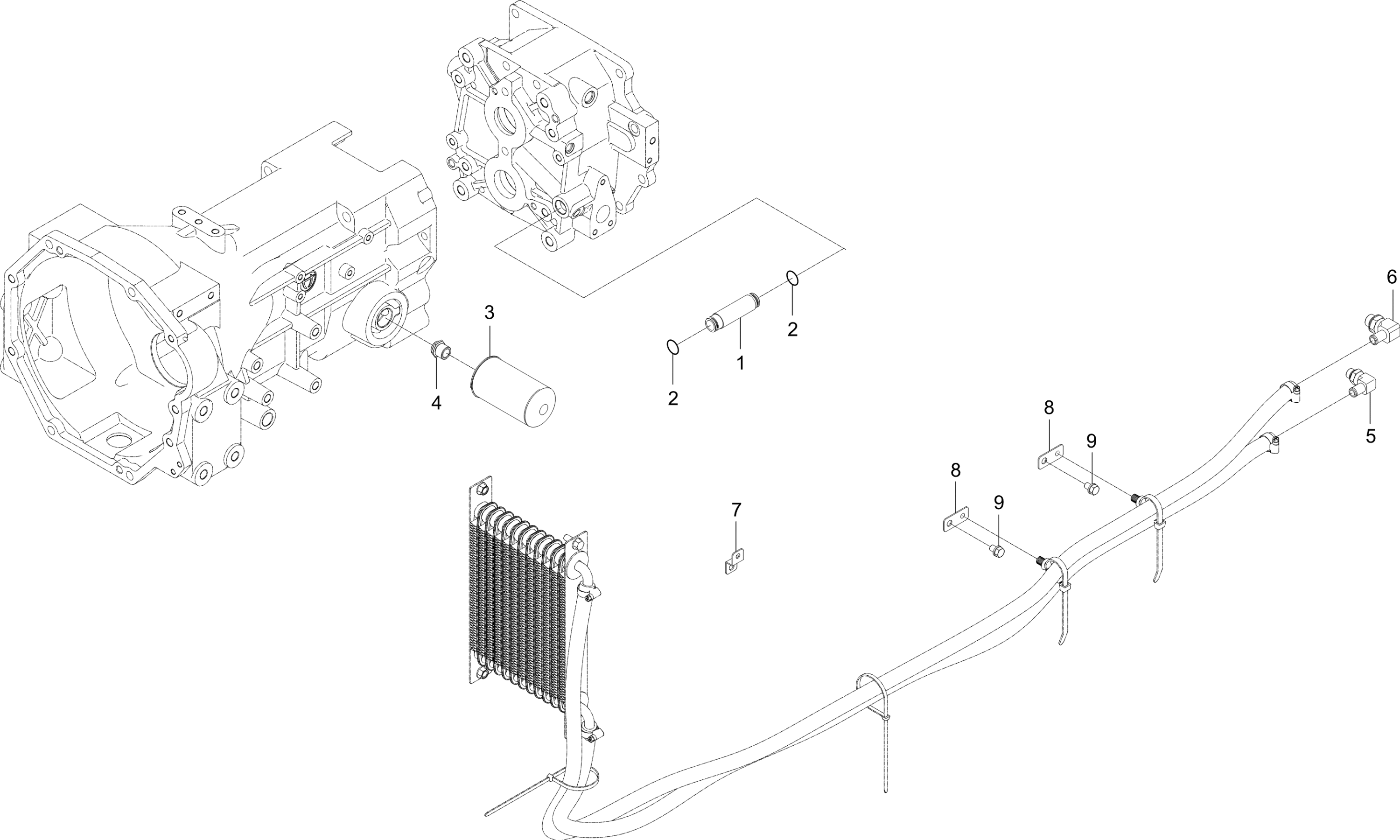

Diagram for HST HYDRAULIC LINE GROUP - TC2-G423003
  • 1

    CHARGEPIPE

    • Part No. T5855-42041
    • 1 shown on diagram
    $19.99

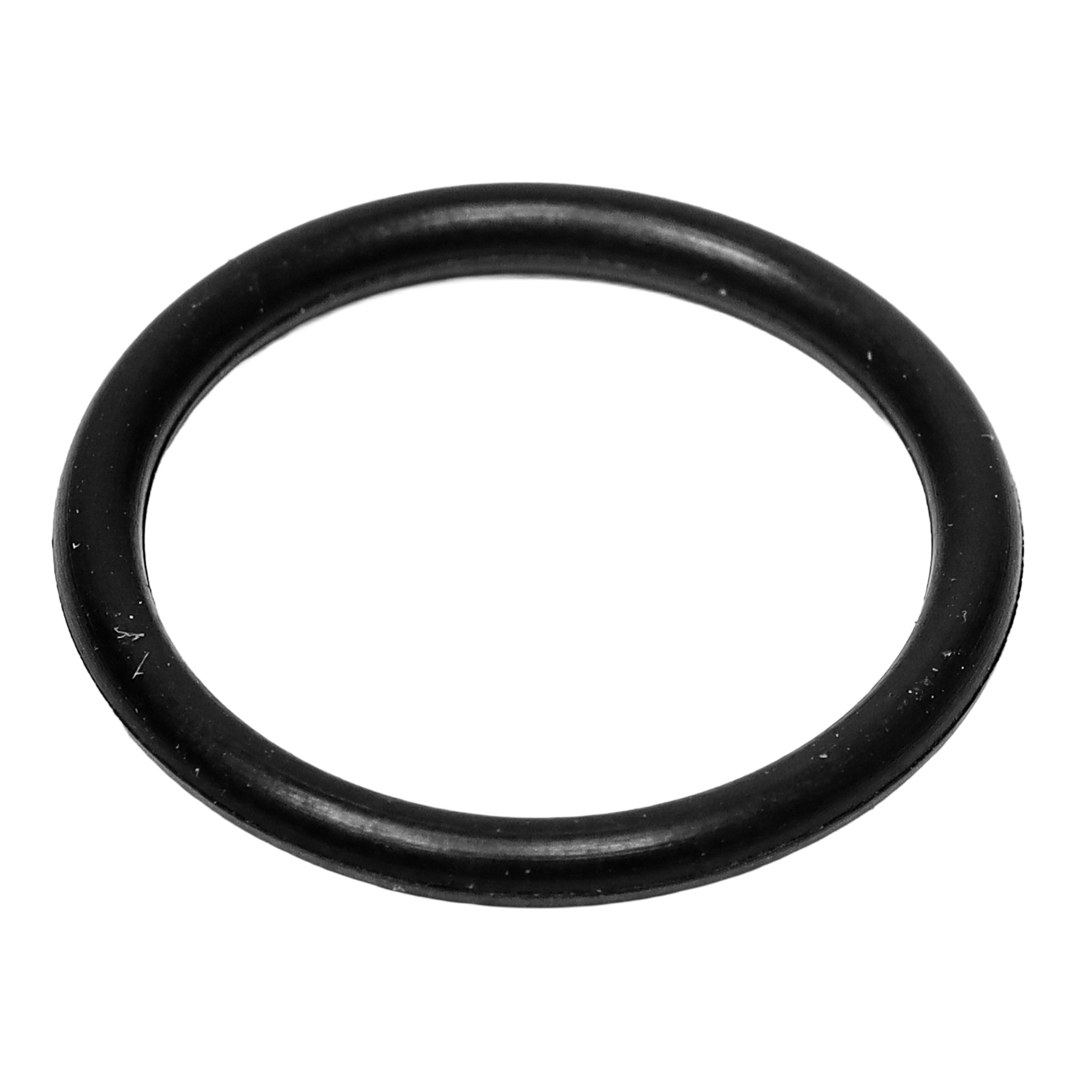

  • 2 O RING

    O RING

    • Part No. 04811-05170
    • DIA16.8
    • 2 shown on diagram
    $1.19
  • 3 Hydrostatic Transmission Filter

    Hydrostatic Transmission Filter

    • Part No. T5855-46531
    • 1 shown on diagram
    $39.99
  • 4

    CONNECTION

    • Part No. T5855-46502
    • 1 shown on diagram
    $32.99
  • 5

    ELBOW

    • Part No. T4682-34142
    • 1 shown on diagram
    $35.99
  • 6 ELBOW

    ELBOW

    • Part No. T4876-45162
    • 1 shown on diagram
    $26.99
  • 7

    BRACKET

    • Part No. T5250-68771
    • t1.6
    • 2 shown on diagram
    $9.49
  • 8

    BRACKET WIRE HARNESS

    • Part No. T2185-69771
    • T1.6
    • 1 shown on diagram
    $5.49
  • 9

    Bolt With Washer, M8 P1.25 x 12mm

    • Part No. 01123-50812
    • M8P1.25
    • 2 shown on diagram
    $1.79
