COOLING SYSTEM GROUP - TC2-G413003

Kioti TRACTOR | CK Series | CK3520CHSEB

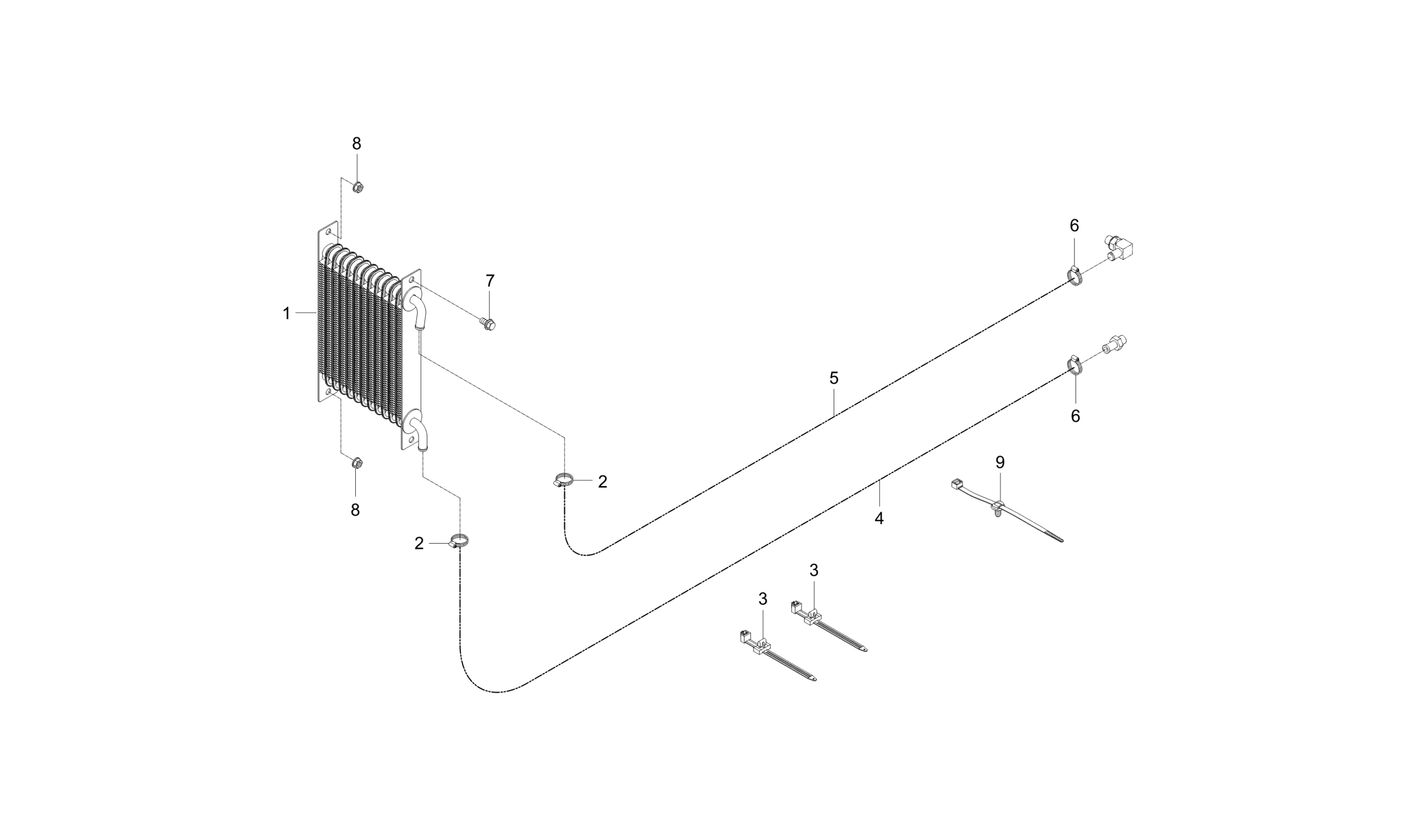

Diagram for COOLING SYSTEM GROUP - TC2-G413003
  • 1 ASSY COOLER, OIL

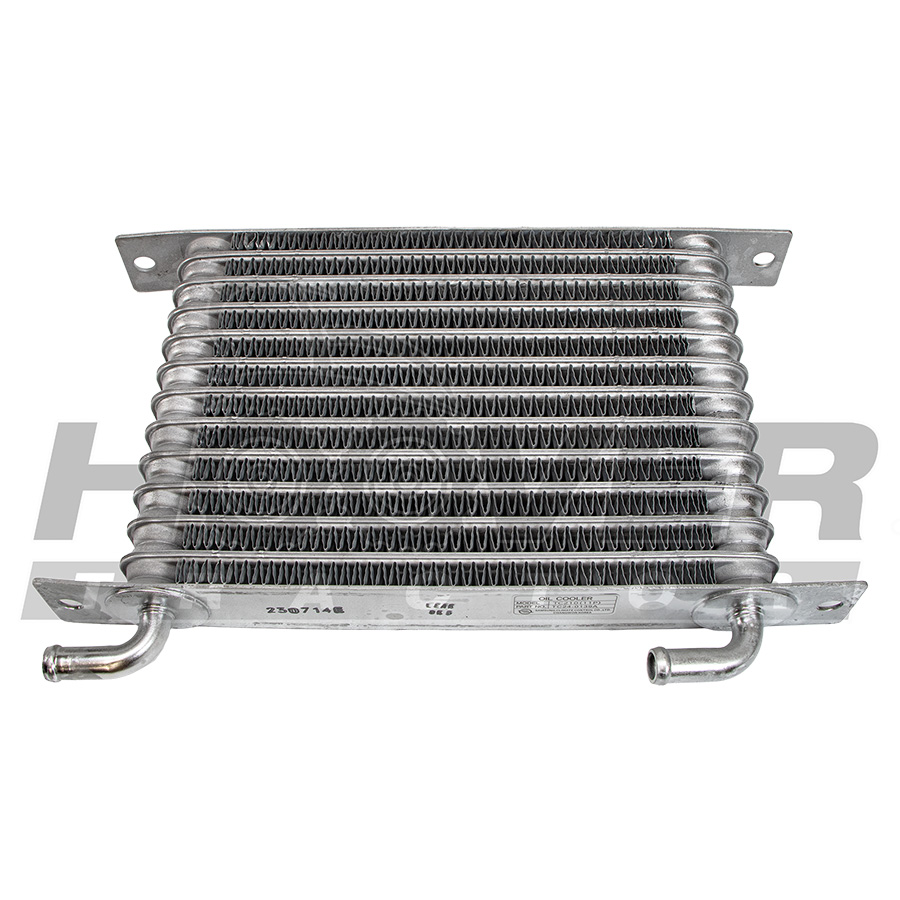

    ASSY COOLER, OIL

    • Part No. TC24-0139A
    • 1 shown on diagram
    $269.99
  • 2

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 3

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 2 shown on diagram
    $1.29
  • 4

    HOSE, COOLING-P

    • Part No. TC24-0174A
    • 1 shown on diagram
    $91.99
  • 5

    HOSE, COOLING-T

    • Part No. TC24-0175A
    • 1 shown on diagram
    $109.99
  • 6

    BAND, HOSE

    • Part No. F6800-91851
    • 12-22mm
    • 2 shown on diagram
    $1.89
  • 7
    • Part No. 01754-50820
    • M8XP1.25
    • 1 shown on diagram
  • 8 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 9

    BAND v

    • Part No. T2198-82571
    • 2 shown on diagram
    $1.99
