HST ASSY GROUP - TC2-G422001

Kioti TRACTOR | CK Series | CK3520CHSEB

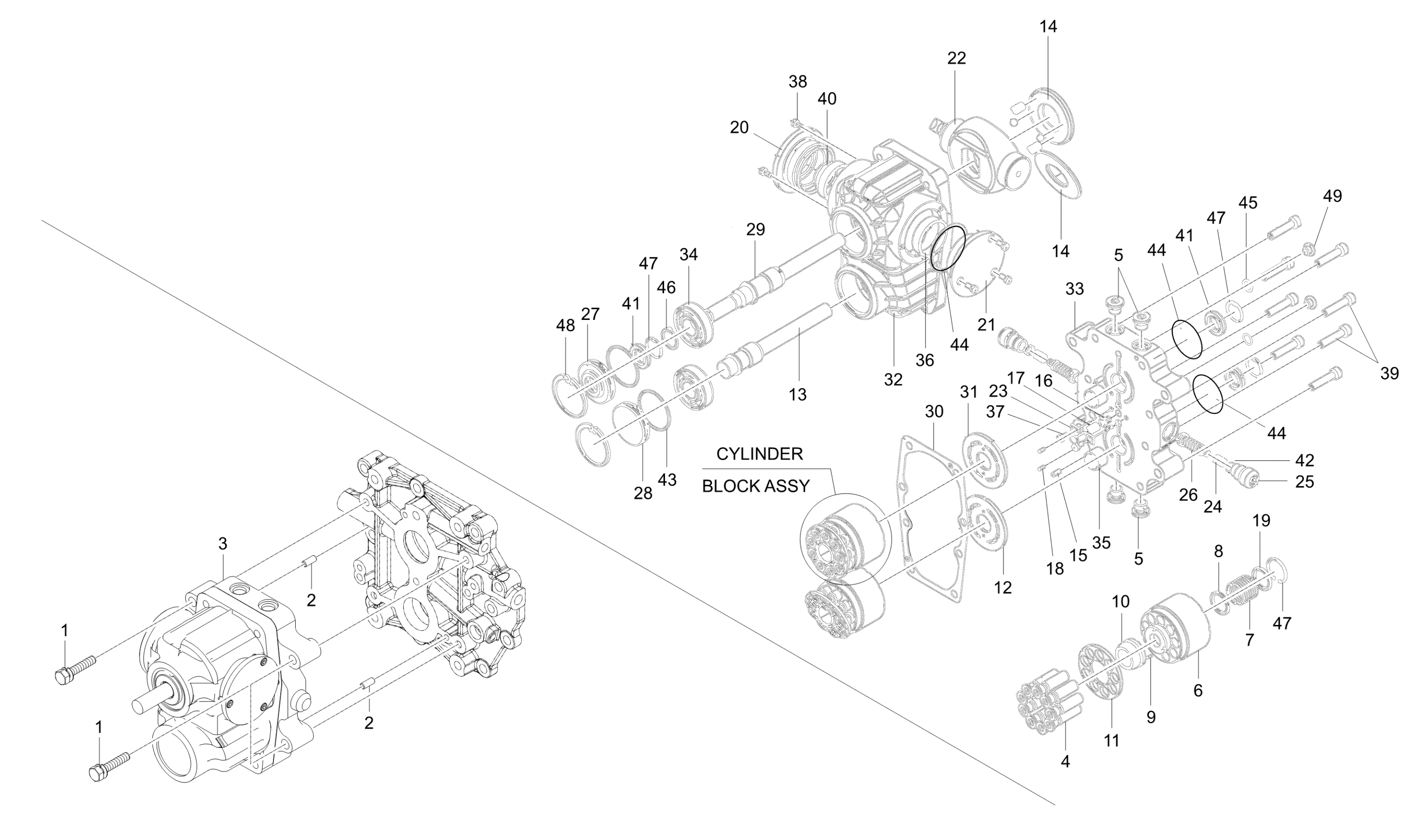

Diagram for HST ASSY GROUP - TC2-G422001
  • 1

    BOLT

    • Part No. 01133-51260
    • M12*1.25
    • 4 shown on diagram
    $4.99
  • 2 PIN, PARALLEL

    PIN, PARALLEL

    • Part No. 05012-00818
    • DIA8XL18
    • 2 shown on diagram
    $1.59

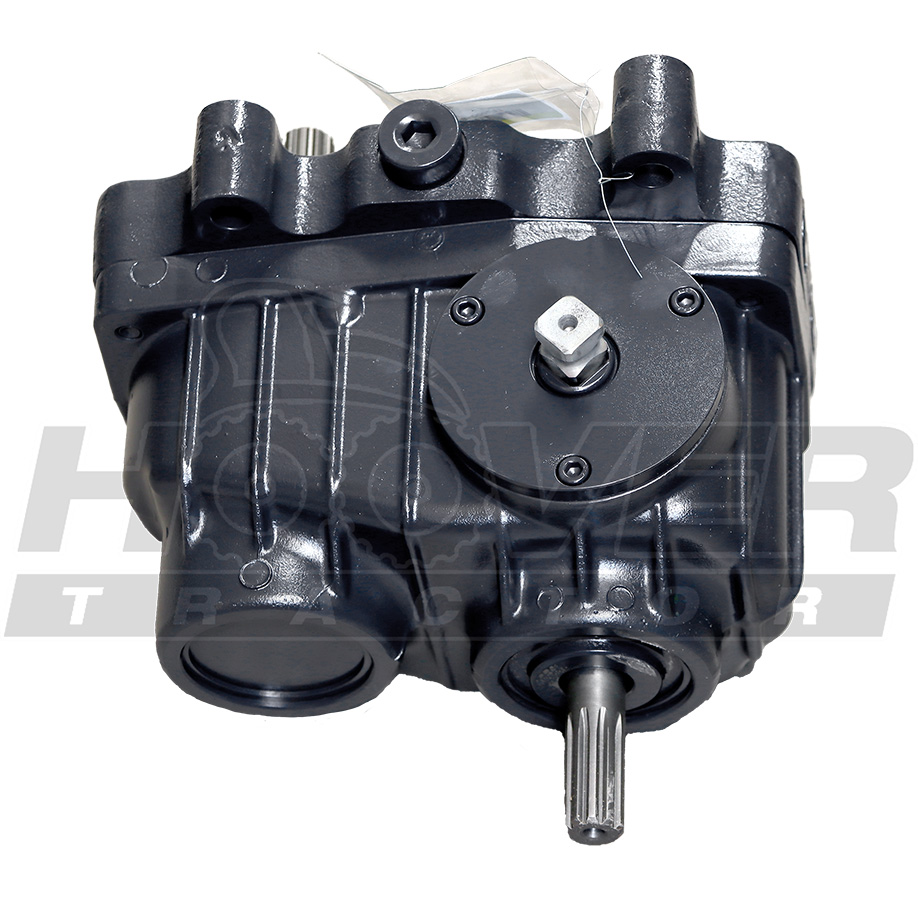

  • 3 TRK HST ASSEMBLY v

    TRK HST ASSEMBLY v

    • Part No. T5855-41006
    • 1 shown on diagram
    $3399.99
  • 4

    ASSY PISTON

    • Part No. H001-101-B
    • 18 shown on diagram
    $.00
  • 5

    PLUG

    • Part No. H001-104
    • PF3/8
    • 4 shown on diagram
    $39.99
  • 6

    BLOCK, CYL

    • Part No. H001-200-B
    • 2 shown on diagram
    $.00
  • 7

    SPRING

    • Part No. H001-201
    • 2 shown on diagram
    $.00
  • 8

    SEAT, SPRING-1

    • Part No. H001-202
    • 2 shown on diagram
    $.00
  • 9

    PIN

    • Part No. H001-203
    • 6 shown on diagram
    $.00
  • 10

    GUIDE, BALL

    • Part No. H001-204-A
    • 2 shown on diagram
    $.00
  • 11

    RETAINER

    • Part No. H001-205-A
    • 2 shown on diagram
    $.00
  • 12

    PLATE, VALVE-M

    • Part No. H001-209-B
    • 1 shown on diagram
    $299.99
  • 13

    Shaft-(M)

    • Part No. H001-211-A
    • 1 shown on diagram
    $224.99
  • 14

    PLATE, SHOE

    • Part No. H001-212-A
    • 2 shown on diagram
    $99.99
  • 15

    PIN

    • Part No. H001-215
    • DIA6x14L
    • 2 shown on diagram
    $3.49
  • 16

    CHECK

    • Part No. H001-217
    • 1 shown on diagram
    $49.99
  • 17

    SPRING-CHECK

    • Part No. H001-218
    • 1 shown on diagram
    $6.49
  • 18

    PIN

    • Part No. H001-219
    • DIA4x10L
    • 2 shown on diagram
    $2.99
  • 19

    SEAT, SPRING-2

    • Part No. H001-500
    • 2 shown on diagram
    $7.99
  • 20

    COVER-(A)

    • Part No. H001-501-A
    • 1 shown on diagram
    $144.99
  • 21

    COVER-(B)

    • Part No. H001-502-A
    • 1 shown on diagram
    $144.99
  • 22

    PLATE-SWASH (P)

    • Part No. H001-503
    • 1 shown on diagram
    $334.99
  • 23

    SPRING HOLDER

    • Part No. H001-506
    • 1 shown on diagram
    $12.99
  • 24

    SPRING

    • Part No. H016-215
    • 2 shown on diagram
    $6.99
  • 25

    Plug

    • Part No. H020-227
    • PF 1/2
    • 2 shown on diagram
    $82.99
  • 26

    RELIEF VALVE ASSY

    • Part No. H033-100
    • 300K
    • 2 shown on diagram
    $369.99
  • 27

    COVER

    • Part No. H033-200
    • 1 shown on diagram
    $184.99
  • 28

    COVER-(M)

    • Part No. H033-201A
    • 1 shown on diagram
    $83.99
  • 29

    SHAFT-(P) obs v

    • Part No. H033-202
    • 1 shown on diagram
    $284.99
  • 30

    GASKET

    • Part No. H033-203
    • 1 shown on diagram
    $83.99
  • 31

    PLATE, VALVE-P

    • Part No. H033-206
    • 1 shown on diagram
    $309.99
  • 32

    MAIN CASING

    • Part No. H033-500-A
    • 1 shown on diagram
    $869.99
  • 33

    VALVE-BLOCK

    • Part No. H033-501
    • 1 shown on diagram
    $934.99
  • 34

    BALL BEARING

    • Part No. K01-011
    • #6305
    • 2 shown on diagram
    $72.99
  • 35

    BEARING-NEEDLE

    • Part No. K01-037
    • DIA6 20 x DIA6 27 x
    • 2 shown on diagram
    $79.99
  • 36

    BEARING-DX

    • Part No. K01-045
    • DIA6 50 x DIA6 55 x
    • 2 shown on diagram
    $58.99
  • 37

    BOLT-WRENCH

    • Part No. K02-012
    • M6 x 10L
    • 2 shown on diagram
    $0.85
  • 38

    BOLT-WRENCH

    • Part No. K02-013
    • M16 x 12L
    • 6 shown on diagram
    $0.79
  • 39

    BOLT-WRENCH

    • Part No. K02-024
    • M10 x 40L
    • 8 shown on diagram
    $3.99
  • 40

    OIL SEAL obs v

    • Part No. K04-017
    • DIA25xDIA40x70L
    • 1 shown on diagram
    $63.99
  • 41 OIL SEAL 20x35x6

    OIL SEAL 20x35x6

    • Part No. K04-028
    • DIA6 20 x DIA6 35 x
    • 3 shown on diagram
    $61.99

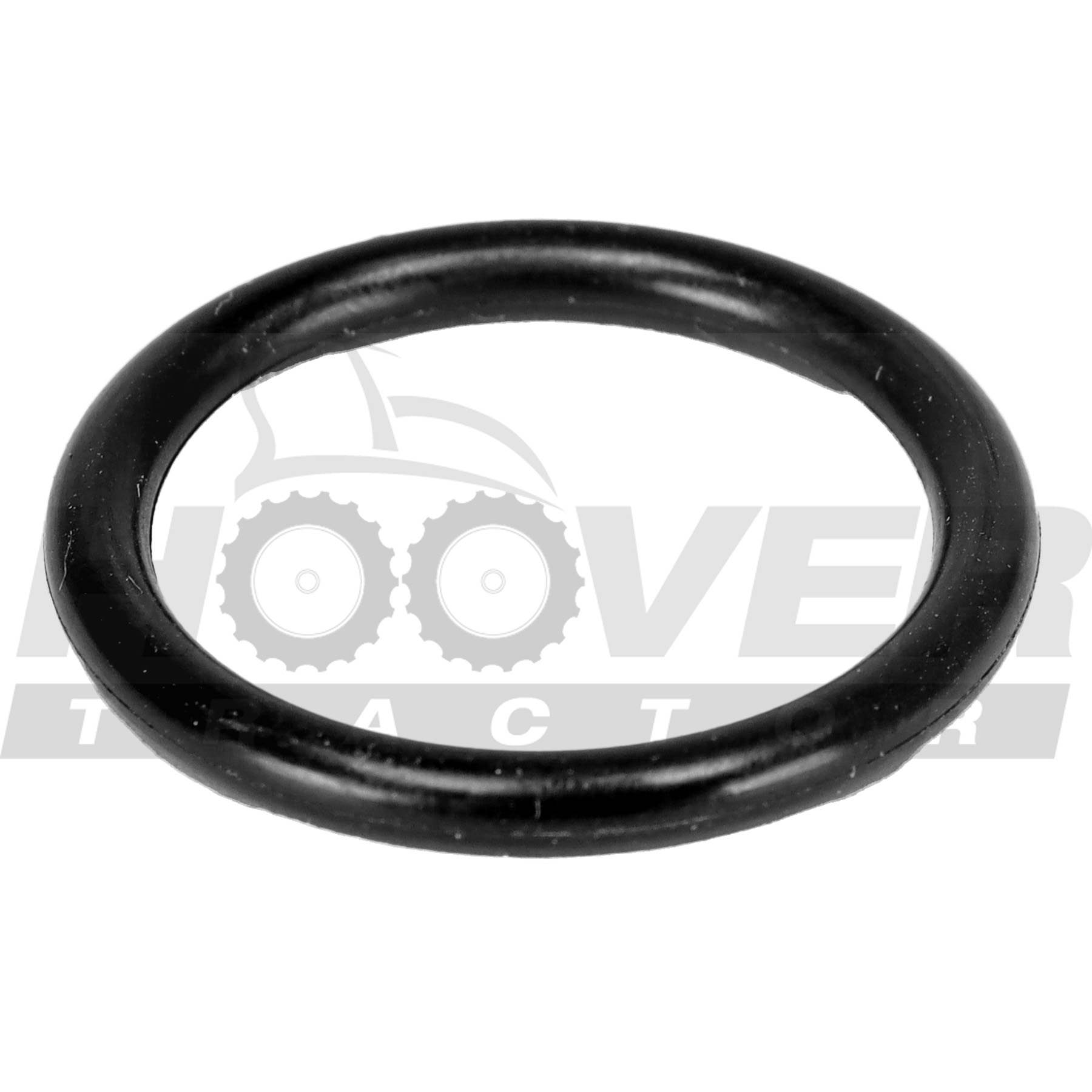

  • 42 O-RING

    O-RING

    • Part No. K06-077
    • BP18
    • 2 shown on diagram
    $2.99
  • 43

    O RING

    • Part No. K06-121
    • AP52
    • 2 shown on diagram
    $7.99
  • 44

    O-RING

    • Part No. K06-123
    • G65
    • 5 shown on diagram
    $19.99
  • 45

    O-RING

    • Part No. K06-124
    • P14
    • 2 shown on diagram
    $1.29
  • 46

    SNAP RING

    • Part No. K11-010
    • DIA6 25
    • 1 shown on diagram
    $1.99
  • 47

    SNAP RING

    • Part No. K11-016
    • DIA35(HOLE)
    • 5 shown on diagram
    $2.99
  • 48

    SNAP RING

    • Part No. K11-024
    • R62
    • 2 shown on diagram
    $9.99
  • 49

    CAP, RUBBER

    • Part No. K15-002
    • DIA6 12
    • 2 shown on diagram
    $3.49
