POWER STEERING UNIT GROUP - TC2-G431016

Kioti TRACTOR | CK Series | CK3510HSEB

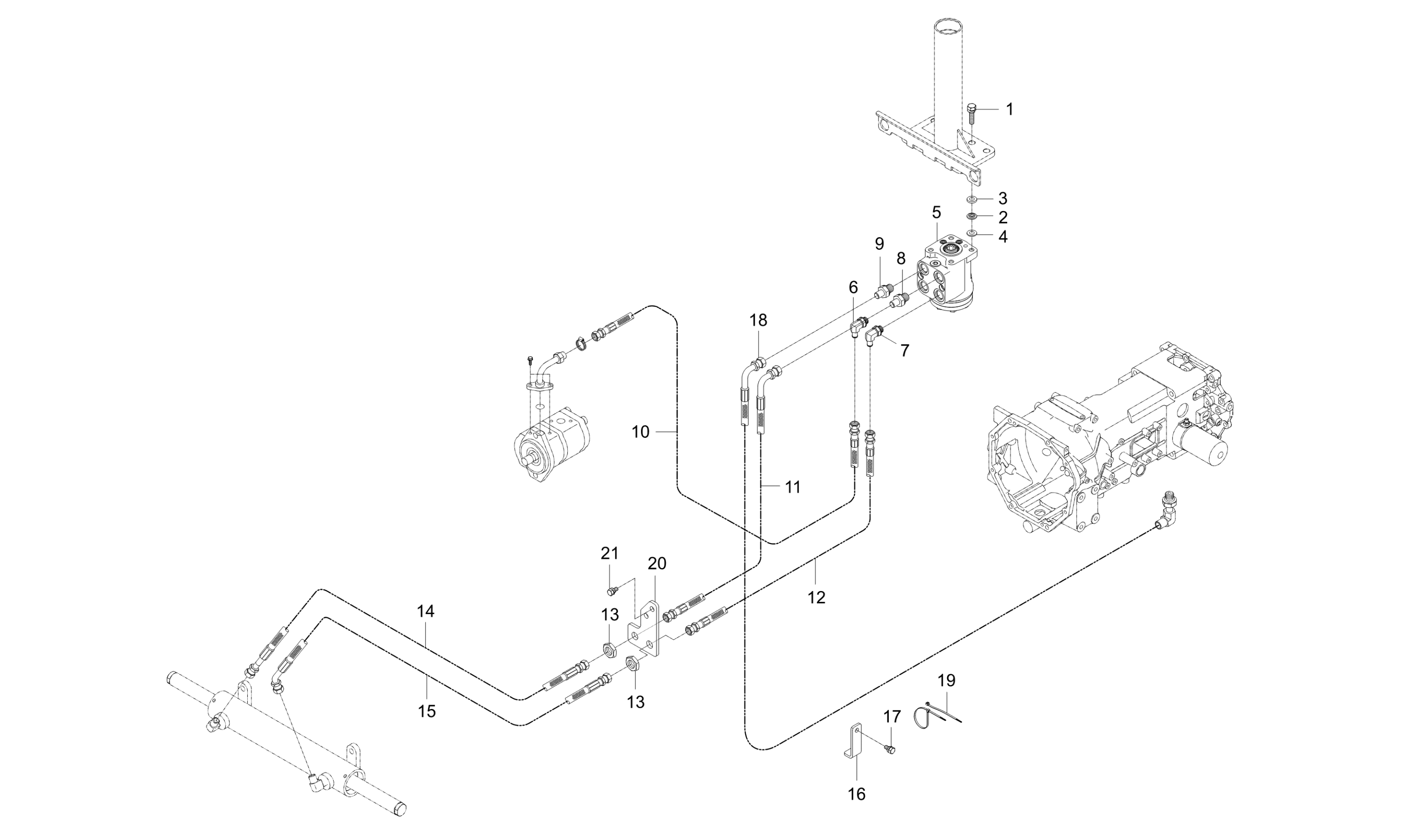

Diagram for POWER STEERING UNIT GROUP - TC2-G431016
  • 1

    Bolt With Washer, M10 P1.50 x 30mm

    • Part No. 01123-51030
    • M10*1.5
    • 4 shown on diagram
    $3.49
  • 2

    BUSHING

    • Part No. T5520-80531
    • 4 shown on diagram
    $7.49
  • 3

    WASHER

    • Part No. 62411-3313-1
    • 4 shown on diagram
    $4.49
  • 4

    CAP 2, BEARING

    • Part No. 55611-5711-1
    • T1.0
    • 4 shown on diagram
    $2.99
  • 5

    UNIT, POWER STEERING

    • Part No. T5855-41501
    • 80cc/rev
    • 1 shown on diagram
    $959.99
  • 6

    ELBOW

    • Part No. T4930-45671
    • PF3/8, 3/4-16UNF
    • 1 shown on diagram
    $29.99
  • 7

    ELBOW

    • Part No. T4930-45681
    • PF1/4, 3/4-16UNF
    • 1 shown on diagram
    $29.99
  • 8

    CONNECTOR

    • Part No. T4850-45771
    • 1 shown on diagram
    $18.99
  • 9

    CONNECTOR

    • Part No. TC24-0147A
    • 1 shown on diagram
    $21.99
  • 10

    HOSE P, STEERING

    • Part No. T5855-41512
    • 1 shown on diagram
    $84.99
  • 11

    HOSE, HYD-L

    • Part No. TC24-0083A
    • 1 shown on diagram
    $88.99
  • 12

    HOSE, HYD-R

    • Part No. TC24-0084A
    • 1 shown on diagram
    $79.99
  • 13

    NUT

    • Part No. T4930-47091
    • 2 shown on diagram
    $2.49
  • 14

    HOSE, HYD-L1

    • Part No. TC24-0088A
    • 1 shown on diagram
    $114.99
  • 15

    HOSE, HYD-R1

    • Part No. TC24-0089A
    • 1 shown on diagram
    $114.99
  • 16
    • Part No. T5855-42031
    • 1 shown on diagram
  • 17

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 18

    HOSE, HYD-T(H)

    • Part No. TC24-0193A
    • 1 shown on diagram
    $99.99
  • 19

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 2 shown on diagram
    $1.29
  • 20

    BRACKET, HYD HOSE

    • Part No. TC24-0087A
    • * multiple options for #20
    • 1 shown on diagram
    $16.99
  • 20
    • Part No. TC24-0087B
    • Compatibility Interchngable
    • Applied Dates 2018-11-26 to 2019-07-21
    • Serial No. UJJ800645 to VJJ800415
    • * multiple options for #20
    • 1 shown on diagram
  • 20

    BRACKET, HYD HOSE

    • Part No. TC24-0087C
    • Compatibility Interchngable
    • Applied Dates 2019-07-22 and up
    • Serial No. VJJ800416 to WJJ800230
    • * multiple options for #20
    • 1 shown on diagram
    $16.99
  • 21

    Bolt With Washer, M8 P1.25 x 14mm

    • Part No. 01123-50814
    • M8XP1.25
    • 2 shown on diagram
    $2.49
