START CONTROL GROUP - TC2-G515023

Kioti TRACTOR | CK Series | CK3520CHSEB

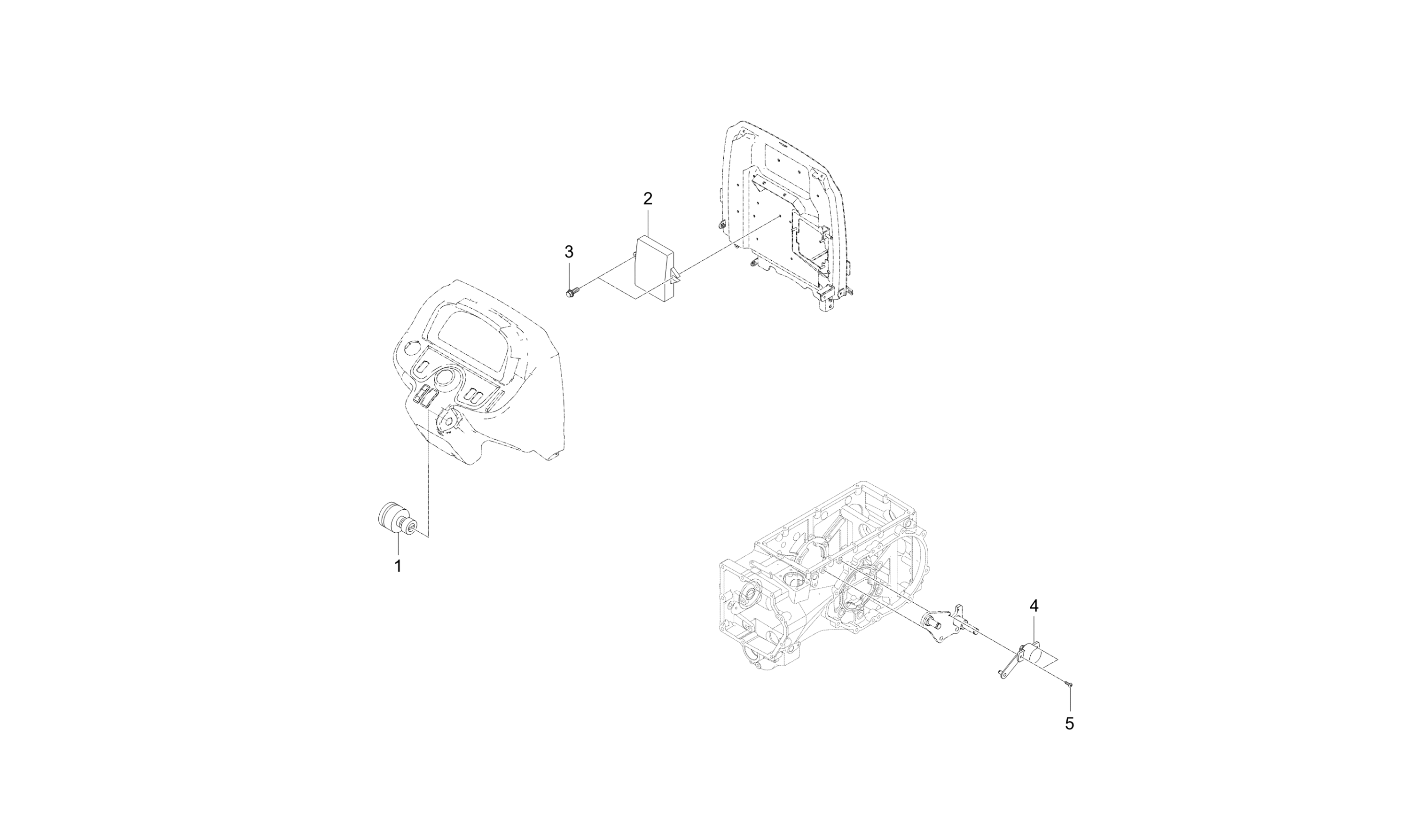

Diagram for START CONTROL GROUP - TC2-G515023
  • 1 Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    Ignition Switch w/ Shutter (Epoxy filled), Replaced by TF15-0196A

    • Part No. T5520-75171
    • * multiple options for #1
    • 1 shown on diagram
    $.00

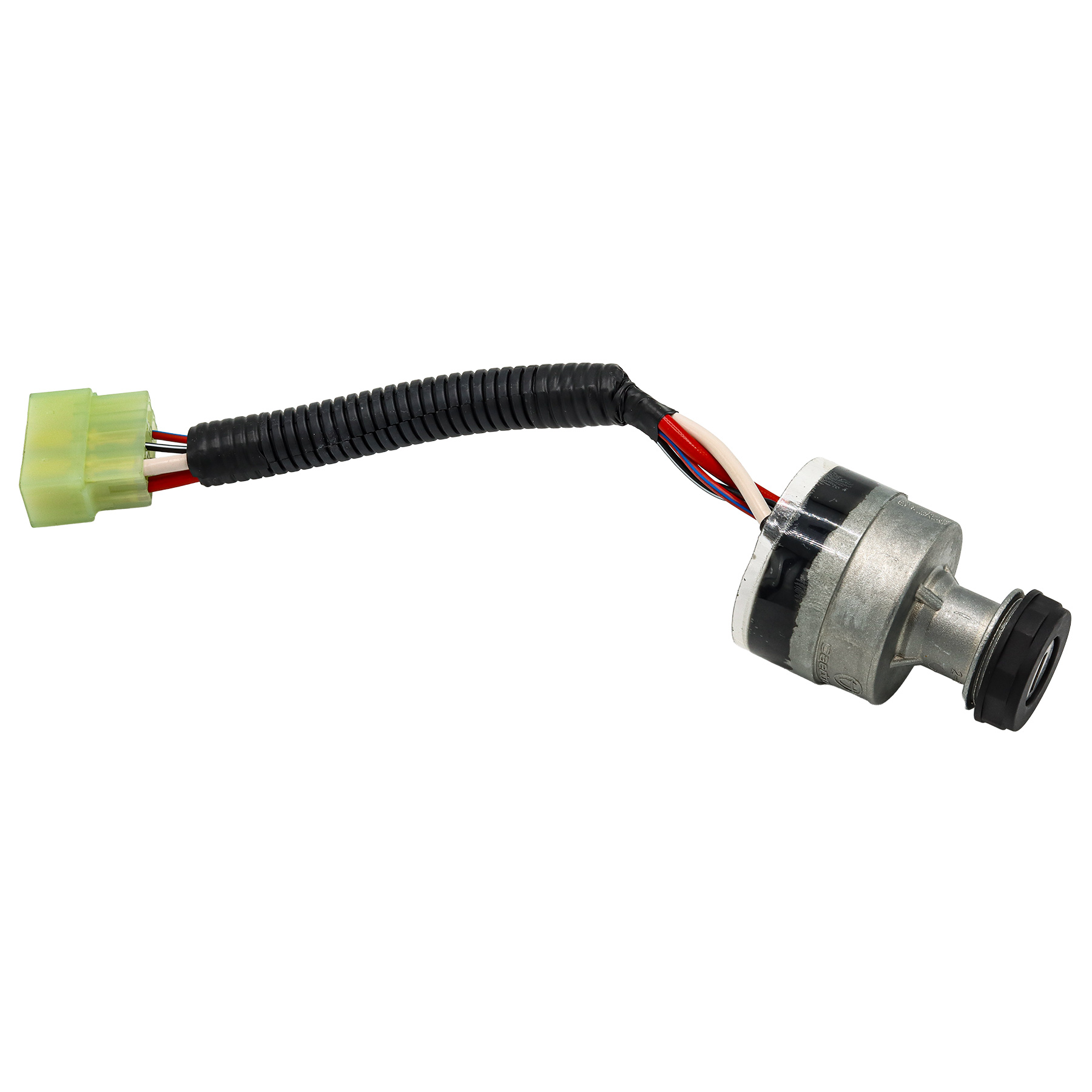

  • 1 Ignition Starter Switch With Shutter

    Ignition Starter Switch With Shutter

    • Part No. TF15-0196A
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $119.99
  • 2
    • Part No. TC25-0124B
    • Applied Dates 2019-07-03 and up
    • 1 shown on diagram
  • 3

    BOLT, FLANGE

    • Part No. 01754-50610
    • M6XP1.0
    • 2 shown on diagram
    $1.09
  • 4 ASSY SENSOR, STROKE -V-

    ASSY SENSOR, STROKE -V-

    • Part No. TG35-0136A
    • 1 shown on diagram
    $144.99
  • 5

    BOLT,SCREW

    • Part No. 03054-50408
    • M4XP0.7
    • 2 shown on diagram
    $0.56
