CYLINDER HEAD GROUP - 3C093-E030B

Kioti TRACTOR | CK Series | CK20HJ

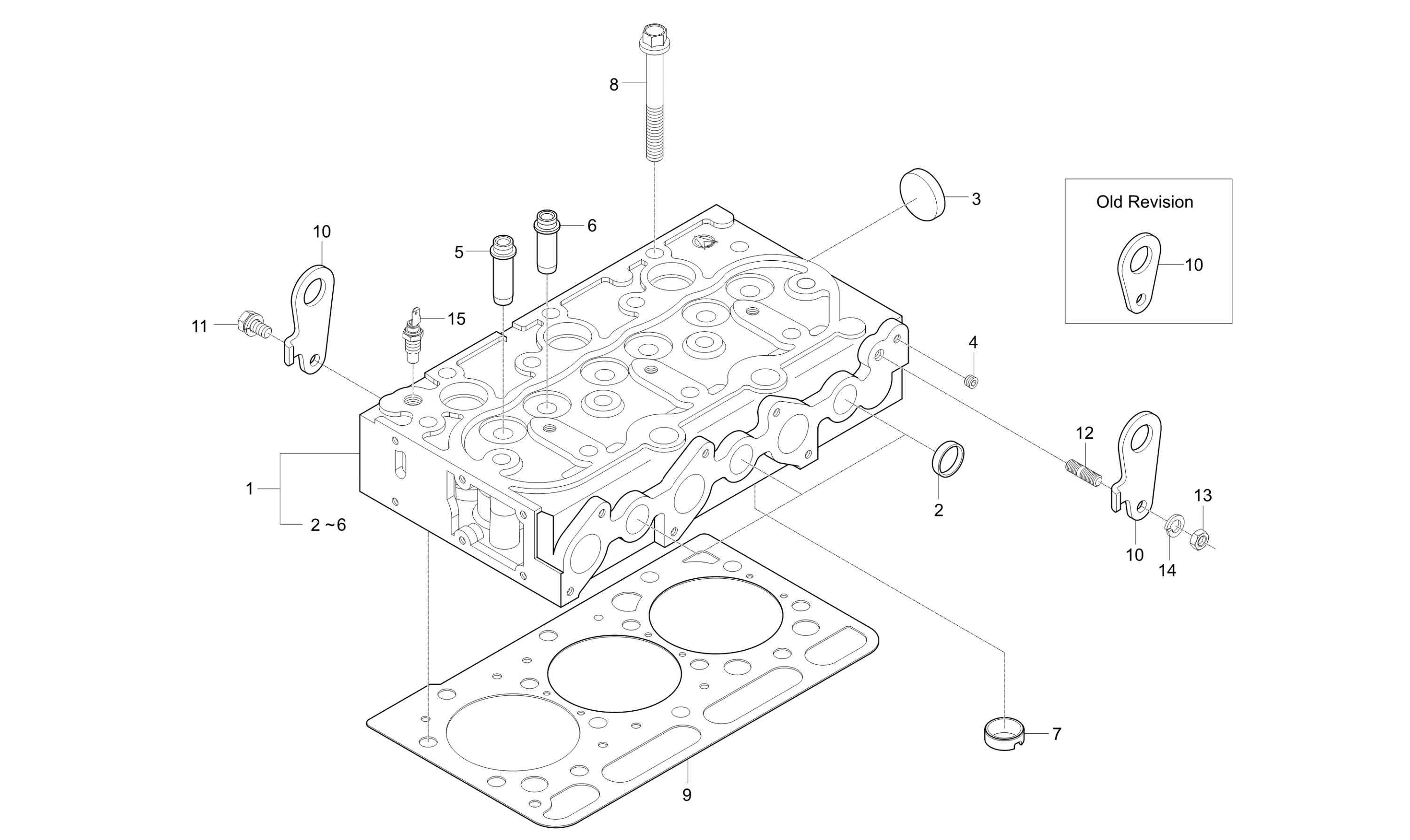

Diagram for CYLINDER HEAD GROUP - 3C093-E030B
  • 1

    A’SSY CYLINDER HEAD

    • Part No. E5753-03045
    • Applied Dates 2002-01-03 to 2003-03-26
    • * multiple options for #1
    • 1 shown on diagram
    $1,359.99
  • 1

    ASSY CYLINDER HEAD V

    • Part No. E5753-03046
    • Compatibility New repl old
    • Applied Dates 2003-03-27 to 2004-09-23
    • Serial No. Up to F19600480
    • * multiple options for #1
    • 1 shown on diagram
    $2,639.99
  • 1

    CYLINDER HEAD assy v

    • Part No. E5753-03047
    • Compatibility No interchange
    • Serial No. G19600001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,749.99
  • 1

    TOTAL CYLINDER HEAD A

    • Part No. E5753-A0301
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $2,464.99

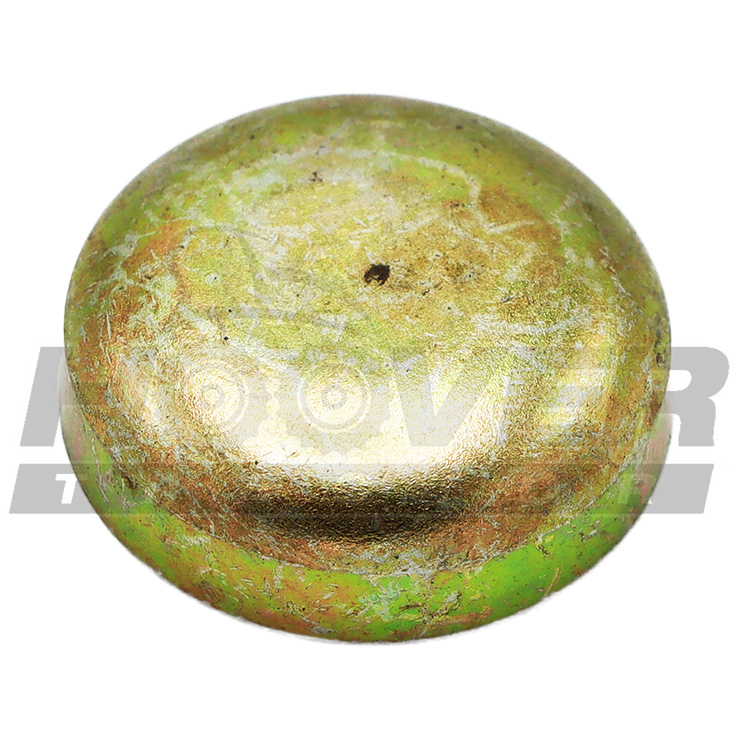

  • 2 CAP

    CAP

    • Part No. E5205-03371
    • T1.6*32*32
    • 5 shown on diagram
    $3.49
  • 3 PLUG 30mm

    PLUG 30mm

    • Part No. 15321-9626-3
    • T1.6*50*50
    • 1 shown on diagram
    $4.49
  • 4

    PLUG dnr v

    • Part No. 15521-9602-2
    • Applied Dates Up to 2004-01-11
    • * multiple options for #4
    • 2 shown on diagram
    $3.99
  • 4 PLUG, Replaced by E5900-96022

    PLUG, Replaced by E5900-96022

    • Part No. E5900-96021
    • Compatibility Interchngable
    • * multiple options for #4
    • 2 shown on diagram
    $4.99
  • 5

    GUIDE, INTAKE VALVE dnr v

    • Part No. E5205-13542
    • DIA12*10
    • 3 shown on diagram
    $13.99
  • 6

    Exhaust Valve Guide (E5205-13562)

    • Part No. E5205-13562
    • DIA16*45
    • 3 shown on diagram
    $14.99
  • 7

    Combustion Chamber

    • Part No. E5700-03144
    • 3 shown on diagram
    $154.99
  • 8

    BOLT.HEAD v, Replaced by E5770-03451

    • Part No. E5205-03452
    • Applied Dates Up to 2007-12-07
    • 14 shown on diagram
    $0.00
  • 9

    Head Gasket Replaced by E5753-03314

    • Part No. E5753-03312
    • Applied Dates 2002-08-13 to 2003-05-08
    • Serial No. Up to 319600080
    • T1.25
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    CYLINDER HEAD GASKET

    • Part No. E5753-03313
    • Compatibility No interchange
    • Serial No. 319600081 and up
    • * multiple options for #9
    • 1 shown on diagram
    $89.99
  • 9 Head Gasket (E5753-03314)

    Head Gasket (E5753-03314)

    • Part No. E5753-03314
    • Compatibility Interchngable
    • T1.25
    • * multiple options for #9
    • 1 shown on diagram
    $93.99
  • 10

    Engine Hook (15221-0175-1)

    • Part No. 15221-0175-1
    • T4*40*64
    • * multiple options for #10
    • 1 shown on diagram
    $3.99
  • 10

    HOLDER, ENGINE

    • Part No. E6305-01751
    • Compatibility New repl old
    • * multiple options for #10
    • 1 shown on diagram
    $4.99
  • 11 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 12 STUD

    STUD

    • Part No. 01513-50822
    • Applied Dates 2001-08-30 to 2002-12-20
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 13 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Applied Dates Up to 2008-07-22
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 14 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates Up to 2008-07-22
    • M08
    • 1 shown on diagram
    $0.61
  • 15

    Temp Sender Assembly (E5205-32832)

    • Part No. E5205-32832
    • 1 shown on diagram
    $81.99
  • 16

    TOTAL CYLINDER HEAD A

    • Part No. E5753-A0301
    • 1 shown on diagram
    $2,464.99
