WATER PUMP GROUP - 3C093A-E180

Kioti TRACTOR | CK Series | CK20HJ

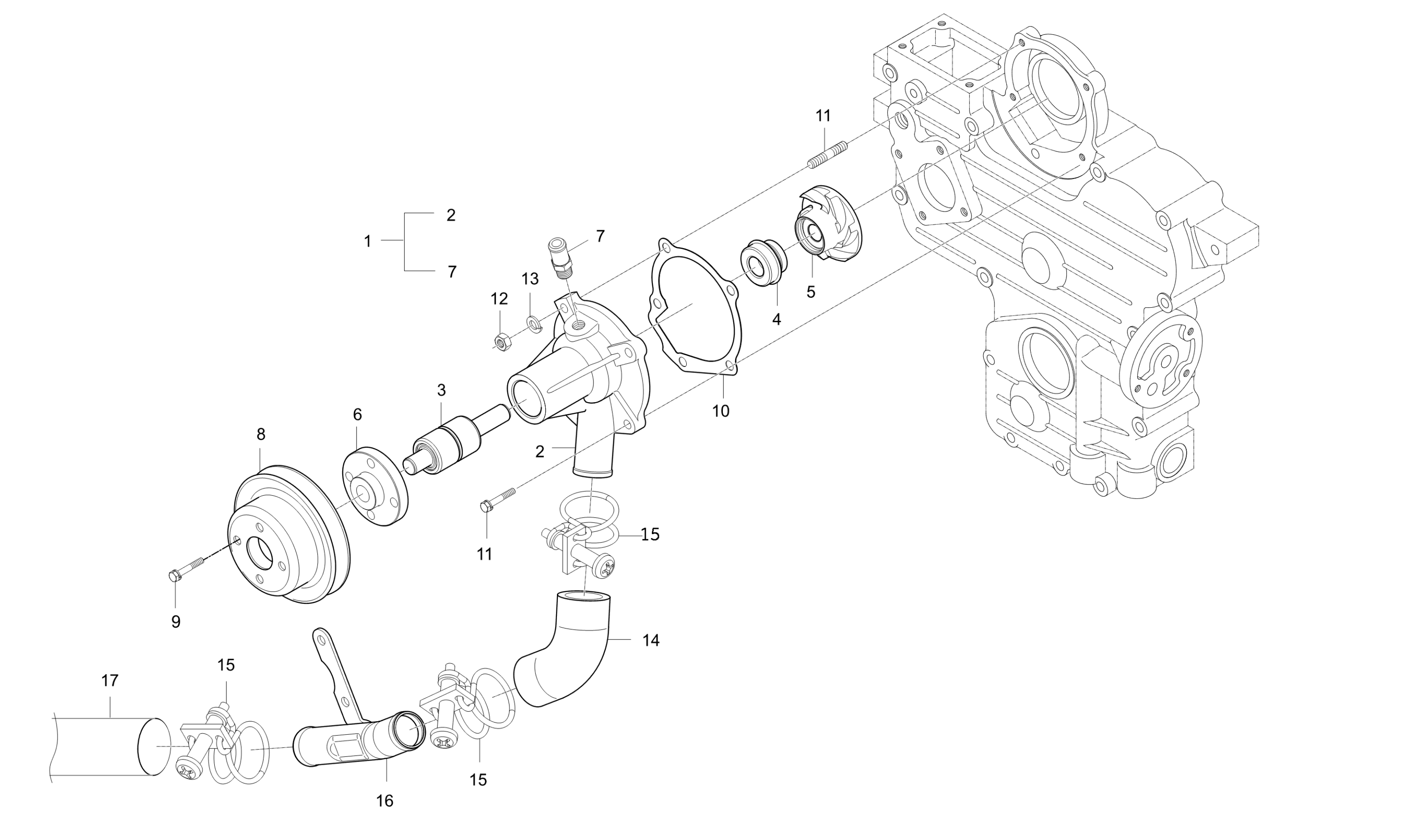

Diagram for WATER PUMP GROUP - 3C093A-E180

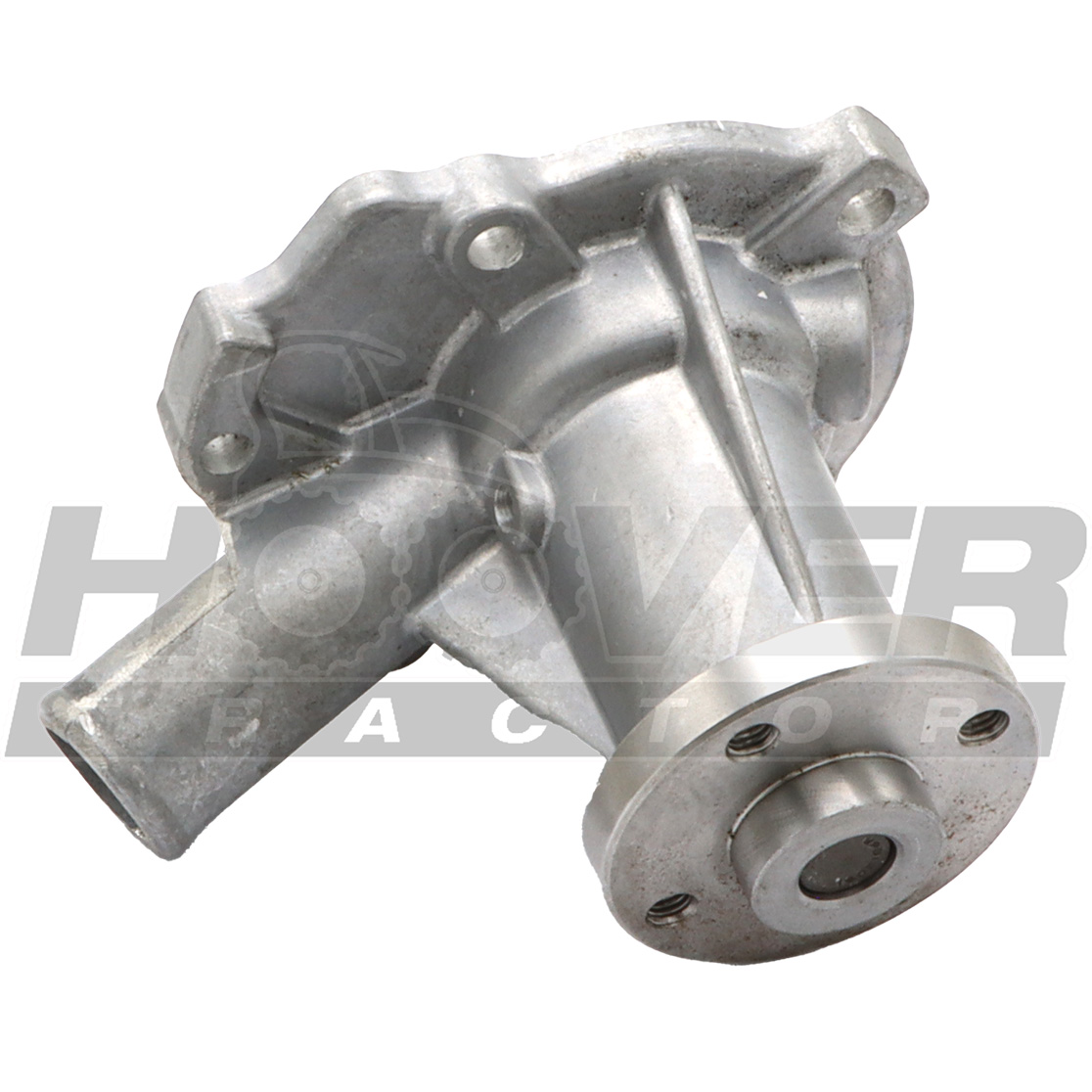

  • 1 WATER PUMP ASSEMBLY [NLA]

    WATER PUMP ASSEMBLY [NLA]

    • Part No. E5700-73032
    • Applied Dates 2002-06-03 and up
    • 1 shown on diagram
    $239.99
  • 2

    WATER PUMP BODY ONLY

    • Part No. E5700-73042
    • Applied Dates 2002-06-03 and up
    • 1 shown on diagram
    $39.99
  • 3

    BEARING obs v

    • Part No. E5205-73551
    • WPB12091(KOYO)
    • 1 shown on diagram
    $67.99
  • 4

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • Applied Dates 2002-06-03 and up
    • 1 shown on diagram
    $39.99
  • 5

    IMPELLAR

    • Part No. E5700-73512
    • Applied Dates 2002-06-03 and up
    • 1 shown on diagram
    $21.99
  • 6

    FLANGE

    • Part No. E5205-73523
    • DIA54*20
    • 1 shown on diagram
    $17.99
  • 7

    HOSE, WATER RETURN

    • Part No. E5700-73342
    • Applied Dates 2002-03-21 and up
    • DIA12*31
    • 1 shown on diagram
    $11.99
  • 8

    FAN PULLEY dnr v

    • Part No. E5752-74251
    • Applied Dates 2003-01-13 to 2003-09-20
    • 1 shown on diagram
    $31.99
  • 9 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50625
    • Applied Dates 2003-01-13 and up
    • M6XP1.0
    • 4 shown on diagram
    $1.29
  • 10

    GASKET, WATER PUMP, Replaced by E5700-73432

    • Part No. 15531-7343-0
    • Applied Dates Up to 2006-08-25
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10 WATER PUMP GASKET

    WATER PUMP GASKET

    • Part No. E5700-73432
    • Compatibility New repl old
    • Applied Dates 2006-08-26 and up
    • t0.5
    • * multiple options for #10
    • 1 shown on diagram
    $6.99
  • 11

    BOLT

    • Part No. 01518-50620
    • Applied Dates Up to 2007-02-01
    • * multiple options for #11
    • 4 shown on diagram
    $2.99
  • 11

    BOLT WASHER

    • Part No. 01023-50625
    • Compatibility Call for compat
    • Applied Dates 2007-02-02 and up
    • M6XP1.0
    • * multiple options for #11
    • 4 shown on diagram
    $1.79
  • 12 NUT

    NUT

    • Part No. 02056-50060
    • Applied Dates Up to 2007-02-01
    • M6XP1.0
    • 4 shown on diagram
    $0.49
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • Applied Dates Up to 2007-02-01
    • M06
    • 4 shown on diagram
    $0.61
  • 14

    HOSE 3, COOLING WATER, Replaced by E5205-72952

    • Part No. E5205-72951
    • 1 shown on diagram
    $0.00
  • 15

    HOSE BAND v

    • Part No. 31355-3819-1
    • Applied Dates 2001-06-18 to 2003-03-23
    • Serial No. Up to 319600820
    • Stan40#
    • * multiple options for #15
    • 3 shown on diagram
    $4.99
  • 15

    CLAMP, STAINLESS HOSE

    • Part No. E5752-18171
    • Compatibility New repl old
    • Applied Dates 2003-03-24 and up
    • Serial No. G19600061 and up
    • * multiple options for #15
    • 3 shown on diagram
    $4.49
  • 16 HOSE, WATER V

    HOSE, WATER V

    • Part No. E5205-72873
    • Applied Dates 2001-06-18 and up
    • 1 shown on diagram
    $19.99
  • 17 HOSE 2, WATER

    HOSE 2, WATER

    • Part No. E5205-72943
    • 1 shown on diagram
    $9.99
