NOZZLE HOLDER GROUP - TD950C-E130B

Kioti TRACTOR | CK Series | CK20HJ

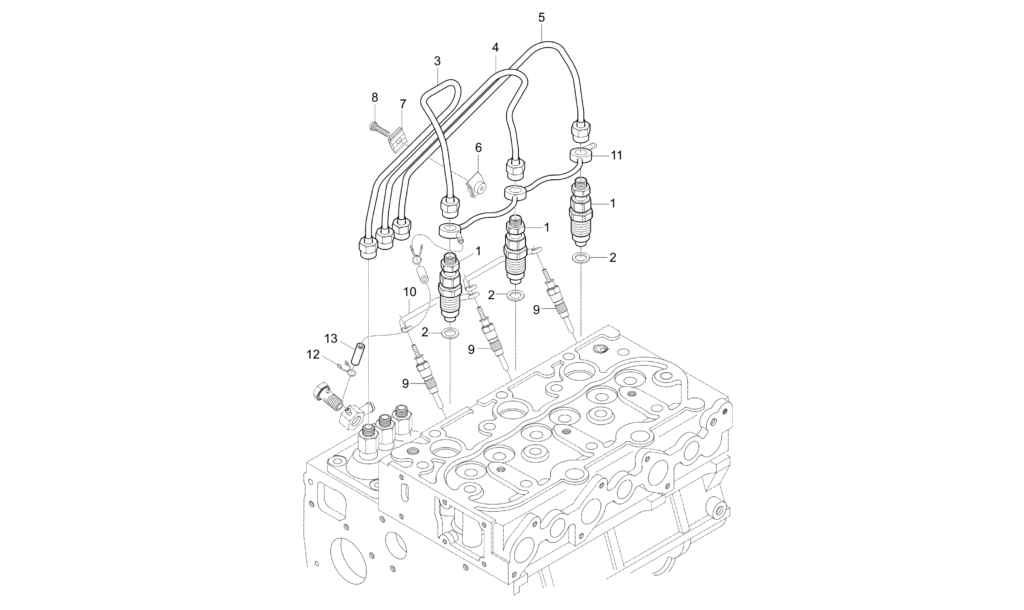

Diagram for NOZZLE HOLDER GROUP - TD950C-E130B
  • 1

    ASS’Y NOZZLE HOLDER

    • Part No. E5752-53002
    • Applied Dates 2003-04-01 to 2003-07-08
    • * multiple options for #1
    • 3 shown on diagram
    $109.99

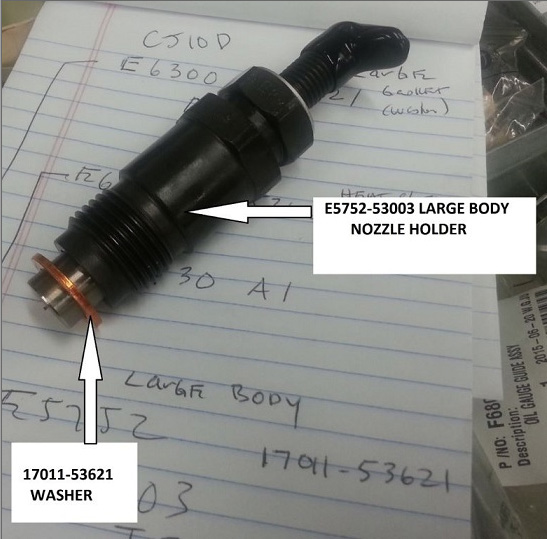

  • 1 ASS’Y NOZZLE HOLDER – LARGE BODY

    ASS’Y NOZZLE HOLDER – LARGE BODY

    • Part No. E5752-53003
    • Compatibility New repl old
    • Applied Dates 2003-07-09 and up
    • * multiple options for #1
    • 3 shown on diagram
    $219.99
  • 2 GASKET

    GASKET

    • Part No. 17011-5362-1
    • Applied Dates 2003-04-01 and up
    • T2
    • 3 shown on diagram
    $1.89
  • 3

    TUBE 1, INJECTION

    • Part No. E5700-53714
    • Applied Dates 2003-01-03 and up
    • OD3*ID2*270
    • 1 shown on diagram
    $47.99
  • 4

    TUBE 2, INJECTION

    • Part No. E5700-53724
    • Applied Dates 2003-01-03 and up
    • 1 shown on diagram
    $43.99
  • 5

    TUBE 3, INJECTION

    • Part No. E5700-53734
    • Applied Dates 2002-01-03 and up
    • 1 shown on diagram
    $47.99
  • 6

    CLAMP 1, TUBE

    • Part No. 15121-5385-2
    • 2 shown on diagram
    $9.49
  • 7

    HOLDER, TUBE

    • Part No. T4815-67371
    • Applied Dates 2000-04-28 and up
    • 2 shown on diagram
    $7.49
  • 8

    SCREW, WASHER (03024-50520)

    • Part No. 03024-50520
    • DIA10*28
    • 2 shown on diagram
    $0.85
  • 9

    GLOW PLUG v

    • Part No. E5205-65511
    • Applied Dates Up to 2004-02-08
    • * multiple options for #9
    • 3 shown on diagram
    $48.99
  • 9 Glow Plug

    Glow Plug

    • Part No. E5205-65512
    • Compatibility Interchngable
    • Applied Dates 2004-02-09 and up
    • * multiple options for #9
    • 3 shown on diagram
    $62.99
  • 10

    CORD,GLOW PLUG

    • Part No. E5205-65561
    • 2 shown on diagram
    $9.99
  • 11

    HOSE, OVER FLOW

    • Part No. E5753-42504
    • * multiple options for #11
    • 1 shown on diagram
    $54.99
  • 11

    HOSE, OVER FLOW v

    • Part No. E5753-42505
    • Compatibility Call for compat
    • * multiple options for #11
    • 1 shown on diagram
    $49.99
  • 11

    HOSE, OVER FLOW v

    • Part No. E5753-42506
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $65.99
  • 12

    Hose Clamp (14971-4275-1)

    • Part No. 14971-4275-1
    • Applied Dates 2000-06-22 to 2008-03-26
    • DIA1.0*ID7.8
    • 2 shown on diagram
    $1.59
  • 13

    FUEL TUBE

    • Part No. 09661-40160
    • Applied Dates 2001-05-30 to 2007-03-12
    • D8*4-L160
    • * multiple options for #13
    • 1 shown on diagram
    $3.49
  • 13

    HOSE, FUEL

    • Part No. 09661-40200
    • Compatibility New repl old
    • Applied Dates 2007-03-13 and up
    • * multiple options for #13
    • 1 shown on diagram
    $4.49
