VALVE ROCKER ARM GROUP - 3C093-E080B

Kioti TRACTOR | CK Series | CK20HJ

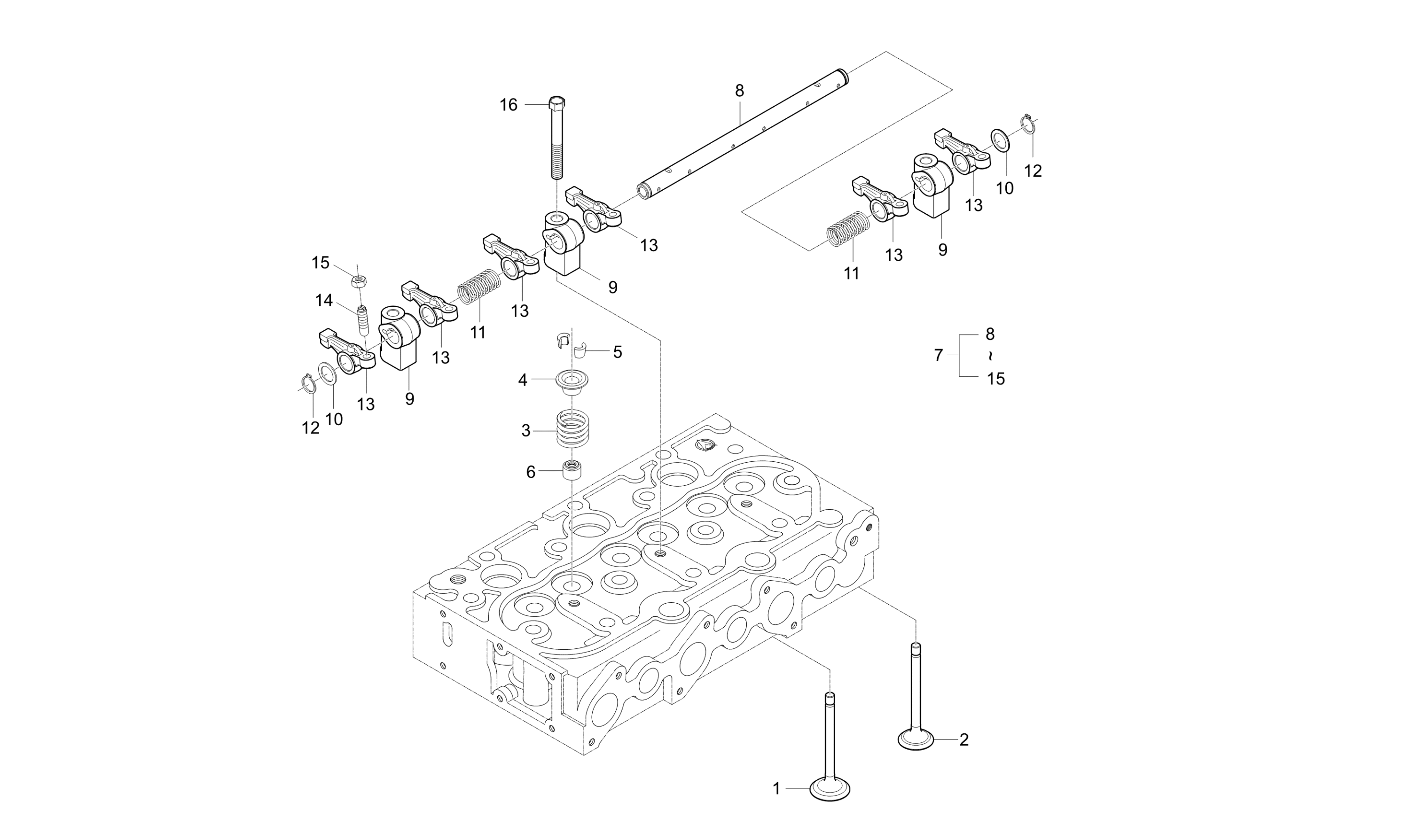

Diagram for VALVE ROCKER ARM GROUP - 3C093-E080B
  • 1

    INLET VALVE v

    • Part No. E5753-13111
    • 3 shown on diagram
    $25.99
  • 2

    EXHAUST VALVE V

    • Part No. E5753-13121
    • 3 shown on diagram
    $25.99
  • 3 SPRING, VALVE

    SPRING, VALVE

    • Part No. E5205-13241
    • DIA29
    • 6 shown on diagram
    $8.99
  • 4

    RETAINER, VALVE SPRING (E5700-13332)

    • Part No. E5700-13332
    • 6 shown on diagram
    $11.99
  • 5

    COLLET,VALVE SPRING v

    • Part No. E5700-13363
    • Applied Dates Up to 2000-06-21
    • DIA13*14
    • * multiple options for #5
    • 2 shown on diagram
    $4.49
  • 5

    COLLET,VALVE SPRING v

    • Part No. E5700-13363
    • Compatibility Interchngable
    • Applied Dates 2000-06-22 to 2008-10-27
    • DIA13*14
    • * multiple options for #5
    • 12 shown on diagram
    $4.49
  • 6

    SEAL,VALVE STEM v

    • Part No. E5205-13151
    • Applied Dates Up to 2006-11-26
    • * multiple options for #6
    • 6 shown on diagram
    $6.99
  • 6

    SEAL, VALVE STEM

    • Part No. E5205-13152
    • Compatibility New repl old
    • Applied Dates 2006-11-27 and up
    • * multiple options for #6
    • 6 shown on diagram
    $7.49
  • 7

    ROCKER ARM TOTAL ASSY

    • Part No. E5753-14001
    • 1 shown on diagram
    $364.99
  • 8

    ROCKER ARM SHAFT ASSY

    • Part No. E5753-14051
    • 1 shown on diagram
    $62.99
  • 9

    SUPPORT, ROCKER ARM v

    • Part No. E5753-14351
    • 3 shown on diagram
    $19.99
  • 10

    WASHER, PLAIN

    • Part No. E5753-14431
    • 2 shown on diagram
    $1.09
  • 11

    SPRING, ROCKER ARM

    • Part No. E5753-14311
    • 2 shown on diagram
    $2.49
  • 12

    SNAP RING

    • Part No. 04612-00130
    • 2 shown on diagram
    $0.85
  • 13

    ARM, ROCKER

    • Part No. E5753-14111
    • 6 shown on diagram
    $39.99
  • 14

    SCREW, ADJUSTING

    • Part No. E5700-14232
    • DIA8*30
    • 6 shown on diagram
    $5.49
  • 15

    NUT, ADJUSTING dnr v

    • Part No. E5205-14241
    • HEX10*9
    • 6 shown on diagram
    $1.19
  • 16

    BOLT, ROCKER ARM SUPPORT

    • Part No. E5752-91501
    • Applied Dates 2004-09-24 and up
    • * multiple options for #16
    • 3 shown on diagram
    $4.49
  • 16

    BOLT, ROCKER ARM SUPPORT

    • Part No. E5752-91502
    • Compatibility New repl old
    • * multiple options for #16
    • 3 shown on diagram
    $4.49
