CYLINDER HEAD GROUP - 3C100A-E030

Kioti TRACTOR | CK Series | CK20S

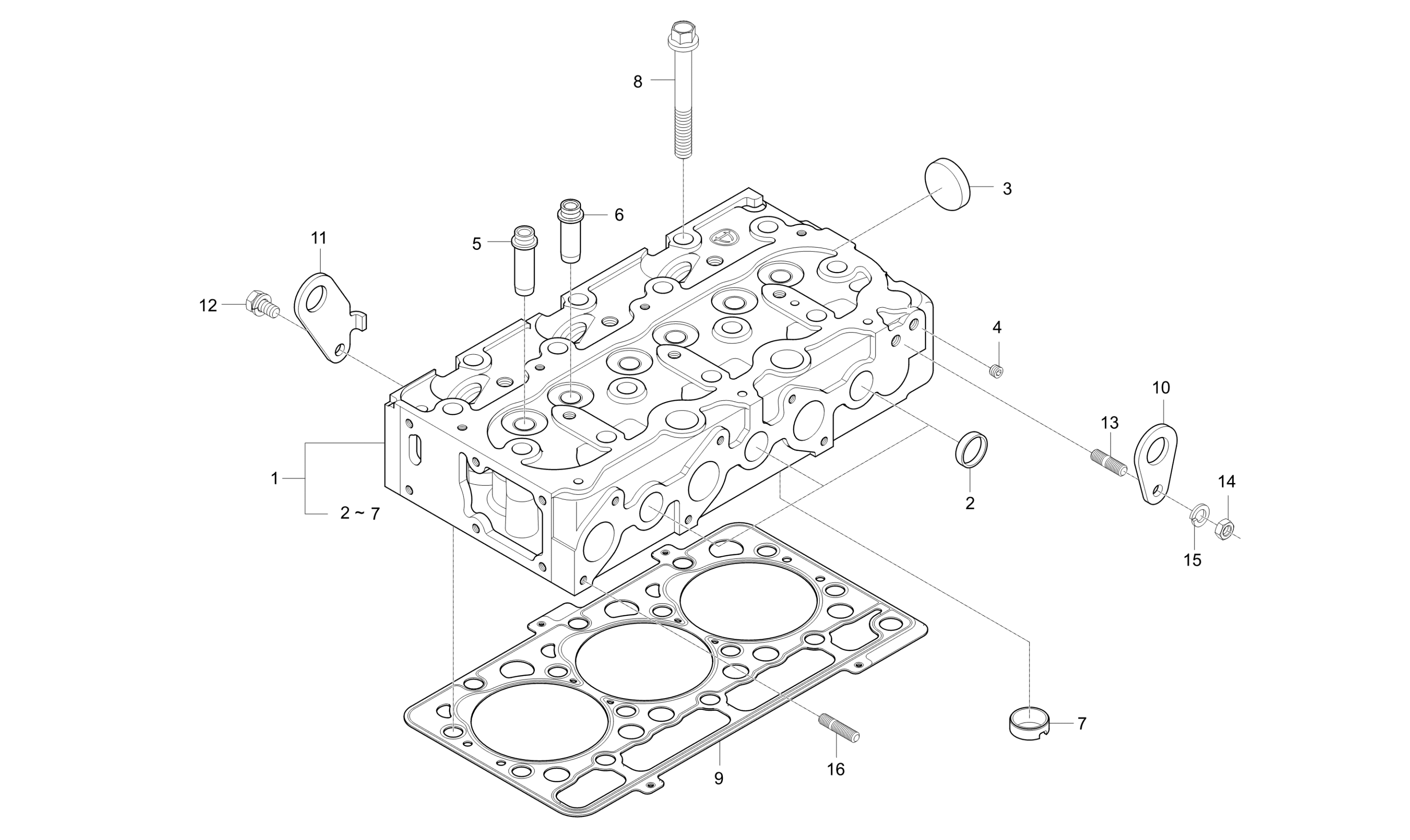

Diagram for CYLINDER HEAD GROUP - 3C100A-E030
  • 1

    TOTAL CYLINDER HEAD ASSY

    • Part No. E5760-A0302
    • * multiple options for #1
    • 1 shown on diagram
    $1,799.99
  • 1

    CYLINDER HEAD

    • Part No. E5760-A0303
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $2,529.99
  • 1

    TOTAL CYLINDER HEAD ASSY

    • Part No. E5760-A0304
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $2,674.99
  • 2 CAP

    CAP

    • Part No. E5205-03371
    • T1.6*32*32
    • 5 shown on diagram
    $3.49
  • 3 PLUG 30mm

    PLUG 30mm

    • Part No. 15321-9626-3
    • T1.6*50*50
    • 1 shown on diagram
    $4.49
  • 4 PLUG, Replaced by E5900-96022

    PLUG, Replaced by E5900-96022

    • Part No. E5900-96021
    • * multiple options for #4
    • 2 shown on diagram
    $4.99
  • 4 PLUG

    PLUG

    • Part No. E5900-96022
    • Compatibility Interchngable
    • * multiple options for #4
    • 2 shown on diagram
    $3.99
  • 5

    GUIDE, INTAKE VALVE dnr v

    • Part No. E5205-13542
    • DIA12*10
    • 3 shown on diagram
    $13.99
  • 6

    Exhaust Valve Guide (E5205-13562)

    • Part No. E5205-13562
    • DIA16*45
    • 3 shown on diagram
    $14.99
  • 7

    HOT FLUG

    • Part No. E5760-03141
    • 3 shown on diagram
    $72.99
  • 8

    BOLT,HEAD

    • Part No. E5760-03451
    • 14 shown on diagram
    $6.99
  • 9

    GASKET,HEAD v

    • Part No. E5760-03311
    • Applied Dates Up to 2007-04-09
    • * multiple options for #9
    • 1 shown on diagram
    $72.99
  • 9

    GASKET,HEAD v

    • Part No. E5760-03312
    • Compatibility New repl old
    • Applied Dates 2007-04-10 to 2007-12-07
    • * multiple options for #9
    • 1 shown on diagram
    $82.99
  • 9 GASKET, CYLINDER HEAD, Replaced by E5760-03314

    GASKET, CYLINDER HEAD, Replaced by E5760-03314

    • Part No. E5760-03313
    • Compatibility New repl old
    • Applied Dates 2007-12-08 and up
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9 GASKET, HEAD

    GASKET, HEAD

    • Part No. E5760-03314
    • Compatibility New repl old
    • * multiple options for #9
    • 1 shown on diagram
    $114.99
  • 10

    Engine Hook (15221-0175-1)

    • Part No. 15221-0175-1
    • Applied Dates 2007-01-31 and up
    • T4*40*64
    • 1 shown on diagram
    $3.99
  • 11

    ENGINE HOOK

    • Part No. E5760-01751
    • 1 shown on diagram
    $8.49
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.09
  • 13 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 14 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 15 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 16

    STUD

    • Part No. 01513-50620
    • 6 shown on diagram
    $3.49
