GEAR CASE GROUP - EC1-G114018

Kioti TRACTOR | CK Series | CK20S

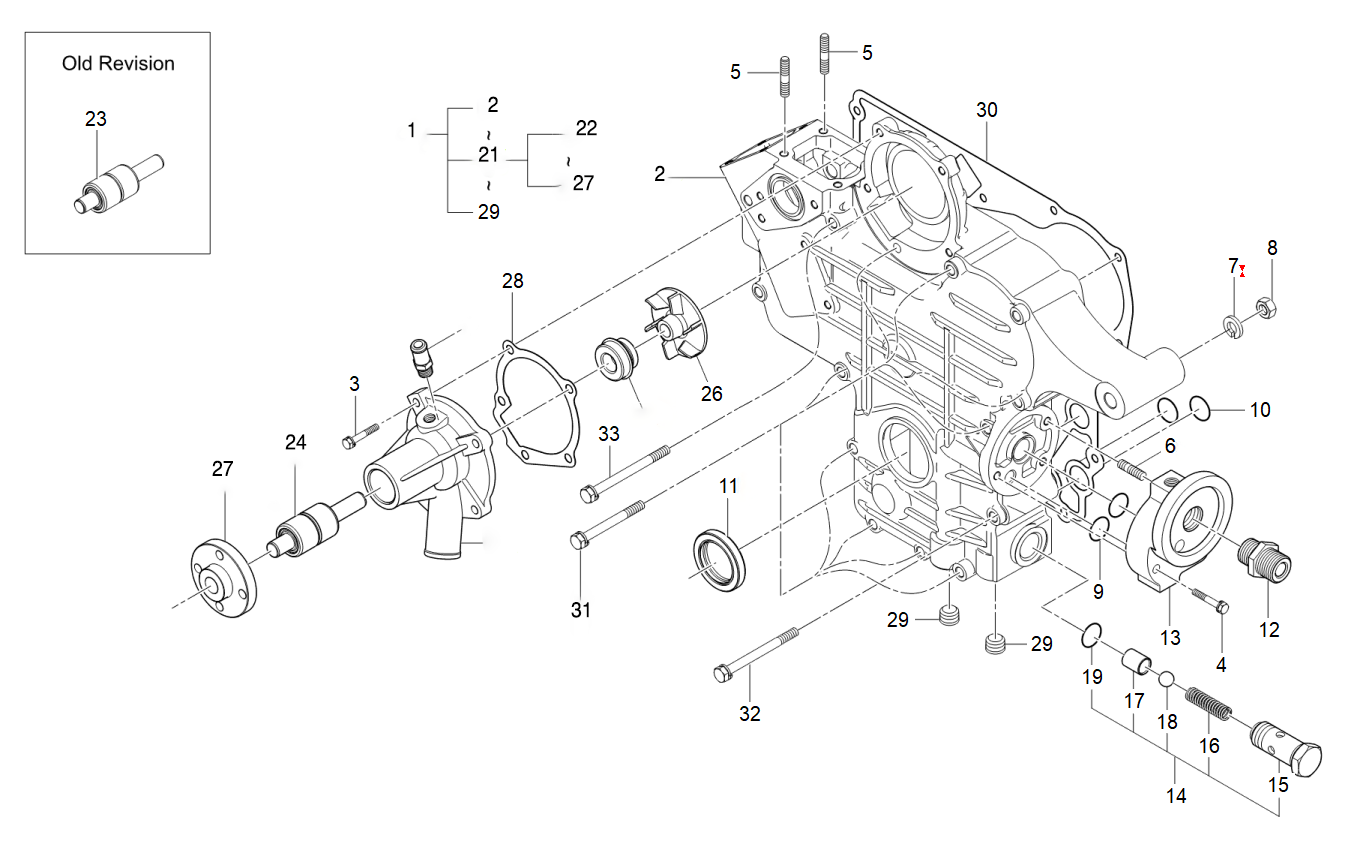

Diagram for GEAR CASE GROUP - EC1-G114018
  • 1

    ASSY CASE, GEAR

    • Part No. EC11-0119A
    • 1 shown on diagram
    $0.00
  • 2

    CASE, GEAR

    • Part No. E5760-04111
    • * multiple options for #2
    • 1 shown on diagram
    $374.99
  • 2

    CASE, GEAR

    • Part No. E5760-04114
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $449.99
  • 2

    CASE, GEAR

    • Part No. E5760-04115
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. E5760-04116
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. E5760-04117
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 3

    BOLT WASHER

    • Part No. 01023-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.79
  • 4

    BOLT WASHER

    • Part No. 01023-50630
    • 2 shown on diagram
    $1.59
  • 5 STUD

    STUD

    • Part No. 01513-50614
    • 4 shown on diagram
    $3.49
  • 6

    STUD

    • Part No. 01513-50618
    • M6*1.0
    • 4 shown on diagram
    $3.49
  • 7 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 1 shown on diagram
    $0.61
  • 9

    O RING

    • Part No. 04811-05140
    • 2 shown on diagram
    $0.68
  • 10 O-Ring

    O-Ring

    • Part No. 04811-06130
    • 3 shown on diagram
    $0.68
  • 11 SEAL, OIL 30x44x7

    SEAL, OIL 30x44x7

    • Part No. 09550-00008
    • 1 shown on diagram
    $24.99
  • 12

    TUBE, CONNECTING

    • Part No. E5205-32291
    • HEX24*39
    • 1 shown on diagram
    $15.99
  • 13

    SUPPORT, OIL FILTER

    • Part No. E5700-32313
    • 1 shown on diagram
    $66.99
  • 14

    RELIFE VALVE ASSY

    • Part No. E5700-36071
    • 1 shown on diagram
    $76.99
  • 15

    BODY, RELIEF VALVE dnr v

    • Part No. E5700-36911
    • 1 shown on diagram
    $19.99
  • 16

    SPRING

    • Part No. 15241-3695-2
    • DIA1.2
    • 1 shown on diagram
    $6.49
  • 17

    SEAT, VALVE

    • Part No. E5700-36932
    • DIA16*21
    • 1 shown on diagram
    $29.99
  • 18

    STEEL BALL

    • Part No. 07715-03213
    • 13/32"(10.3188)
    • 1 shown on diagram
    $0.68
  • 19

    O RING

    • Part No. 04810-00150
    • 1 shown on diagram
    $0.90
  • 20

    HOSE, WATER RETURN

    • Part No. E5700-73342
    • DIA12*31
    • * multiple options for #20
    • 1 shown on diagram
    $11.99
  • 20

    HOSE, COOLING WATER RETURN

    • Part No. E5700-73343
    • Compatibility New repl old
    • DIA12*31
    • * multiple options for #20
    • 1 shown on diagram
    $9.49
  • 21

    WATER PUMP ASSY

    • Part No. E5760-73032
    • * multiple options for #21
    • 1 shown on diagram
    $124.99
  • 21 WATER PUMP ASSY v

    WATER PUMP ASSY v

    • Part No. E5760-73033
    • Compatibility Interchngable
    • * multiple options for #21
    • 1 shown on diagram
    $154.99
  • 22

    BODY, WATER PUMP

    • Part No. E5760-73042
    • * multiple options for #22
    • 1 shown on diagram
    $61.99
  • 22

    BODY, WATER PUMP

    • Part No. E5760-73043
    • Compatibility Interchngable
    • * multiple options for #22
    • 1 shown on diagram
    $59.99
  • 23

    BEARING obs v

    • Part No. E5205-73551
    • WPB12091(KOYO)
    • 1 shown on diagram
    $67.99
  • 24

    BEARING obs v

    • Part No. E5205-73551
    • WPB12091(KOYO)
    • * multiple options for #24
    • 1 shown on diagram
    $67.99
  • 24

    BEARING

    • Part No. E5760-73551
    • Compatibility Interchngable
    • * multiple options for #24
    • 1 shown on diagram
    $43.99
  • 25

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • 1 shown on diagram
    $39.99
  • 26

    IMPELLER

    • Part No. E5760-73512
    • 1 shown on diagram
    $25.99
  • 27

    FLANGE

    • Part No. E5205-73523
    • DIA54*20
    • * multiple options for #27
    • 1 shown on diagram
    $17.99
  • 27

    FLANGE

    • Part No. E5205-73524
    • Compatibility Interchngable
    • * multiple options for #27
    • 1 shown on diagram
    $18.99
  • 28 GASKET, WATER PUMP

    GASKET, WATER PUMP

    • Part No. E5760-73432
    • t0.5
    • 1 shown on diagram
    $6.99
  • 29

    PLUG

    • Part No. E5900-96032
    • 2 shown on diagram
    $2.49
  • 30 GASKET, GEAR CASE

    GASKET, GEAR CASE

    • Part No. E5760-04132
    • 1 shown on diagram
    $19.99
  • 31

    BOLT, WASHER

    • Part No. 01023-50665
    • MEX10*76
    • * multiple options for #31
    • 9 shown on diagram
    $2.49
  • 31

    BOLT, WASHER

    • Part No. 01023-50665
    • Compatibility No interchange
    • MEX10*76
    • * multiple options for #31
    • 11 shown on diagram
    $2.49
  • 32

    BOLT, WASHER

    • Part No. 01023-50670
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 33

    Bolt/Washer (01023-50675)

    • Part No. 01023-50675
    • MEX10*86
    • 1 shown on diagram
    $2.49
