GEAR CASE GROUP - 3C100LWS-E040

Kioti TRACTOR | CK Series | CK20S

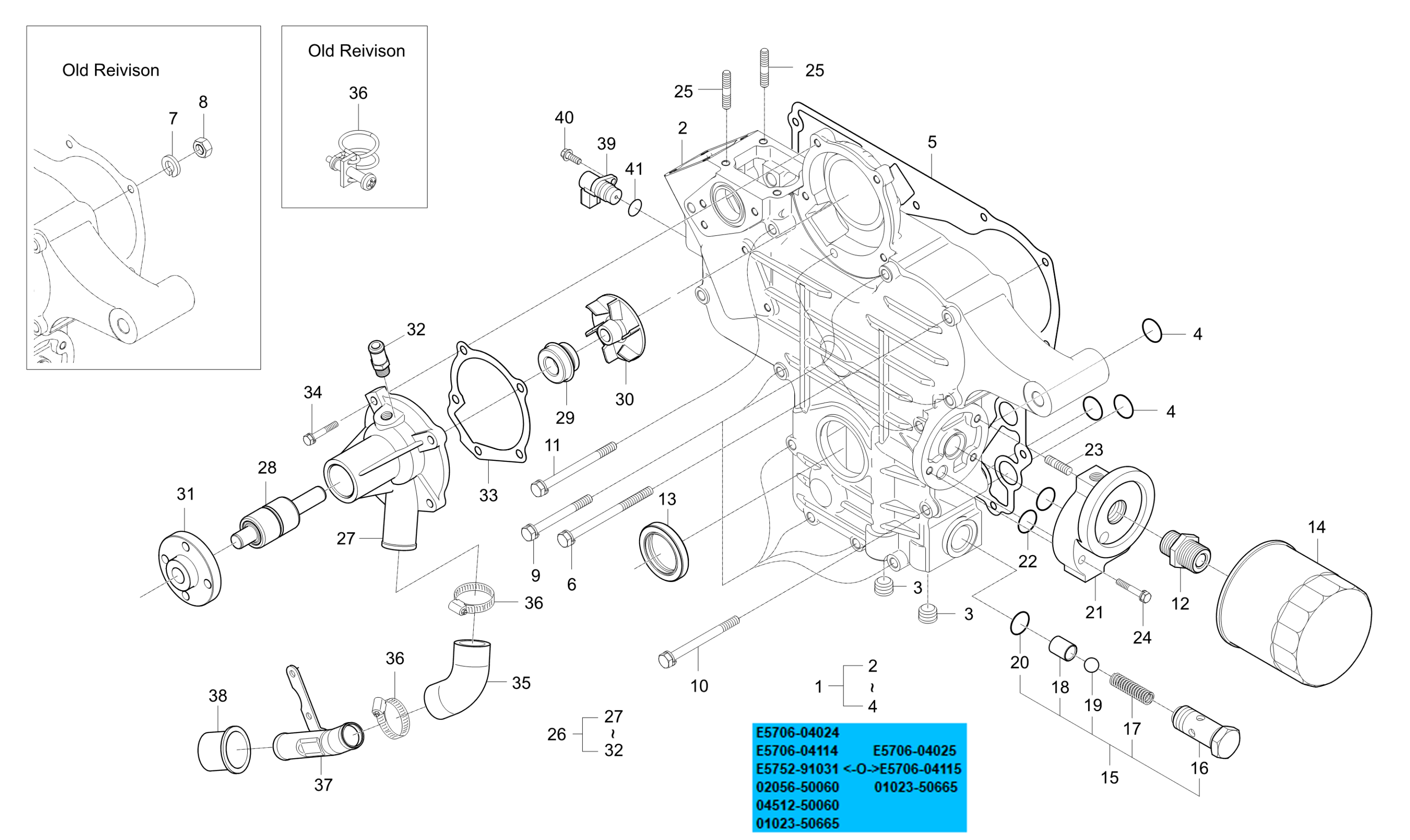

Diagram for GEAR CASE GROUP - 3C100LWS-E040
  • 1

    ASSY CASE,GEAR

    • Part No. E5706-04023
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY CASE,GEAR

    • Part No. E5706-04024
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY CASE,GEAR

    • Part No. E5706-04025
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    ASSY CASE,GEAR

    • Part No. E5706-04026
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. E5706-04113
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. E5706-04114
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    GEAR CASE

    • Part No. E5706-04115
    • Compatibility No interchange
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    CASE, ENGINE GEAR

    • Part No. E5706-04116
    • Compatibility Interchngable
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 3

    PLUG

    • Part No. E5900-96031
    • * multiple options for #3
    • 1 shown on diagram
    $4.49
  • 3

    PLUG

    • Part No. E5900-96032
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $2.49
  • 4 O-Ring

    O-Ring

    • Part No. 04811-06130
    • 1 shown on diagram
    $0.68
  • 5 GASKET, GEAR CASE, Replaced by E5760-04132

    GASKET, GEAR CASE, Replaced by E5760-04132

    • Part No. E5760-04133
    • 1 shown on diagram
    $0.00
  • 6

    BOLT, WASHER M6*P1.0*85

    • Part No. E5752-91031
    • M6*P1.0*85
    • 2 shown on diagram
    $3.99
  • 7 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 8 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 2 shown on diagram
    $0.61
  • 9

    BOLT, WASHER

    • Part No. 01023-50665
    • MEX10*76
    • * multiple options for #9
    • 9 shown on diagram
    $2.49
  • 9

    BOLT, WASHER

    • Part No. 01023-50665
    • Compatibility No interchange
    • MEX10*76
    • * multiple options for #9
    • 11 shown on diagram
    $2.49
  • 10

    BOLT, WASHER

    • Part No. 01023-50670
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 11

    Bolt/Washer (01023-50675)

    • Part No. 01023-50675
    • MEX10*86
    • 1 shown on diagram
    $2.49
  • 12

    TUBE, CONNECTING

    • Part No. E5205-32291
    • HEX24*39
    • 1 shown on diagram
    $15.99
  • 13 SEAL, OIL 30x44x7

    SEAL, OIL 30x44x7

    • Part No. 09550-00008
    • 1 shown on diagram
    $24.99
  • 14 Engine Oil Filter (Daedong engine only)

    Engine Oil Filter (Daedong engine only)

    • Part No. E5205-32091
    • 1 shown on diagram
    $11.99
  • 15

    RELIFE VALVE ASSY

    • Part No. E5700-36071
    • 1 shown on diagram
    $76.99
  • 16

    BODY, RELIEF VALVE dnr v

    • Part No. E5700-36911
    • 1 shown on diagram
    $19.99
  • 17

    SPRING

    • Part No. 15241-3695-2
    • DIA1.2
    • 1 shown on diagram
    $6.49
  • 18

    SEAT, VALVE

    • Part No. E5700-36932
    • DIA16*21
    • 1 shown on diagram
    $29.99
  • 19

    STEEL BALL

    • Part No. 07715-03213
    • 13/32"(10.3188)
    • 1 shown on diagram
    $0.68
  • 20

    O RING

    • Part No. 04810-00150
    • 1 shown on diagram
    $0.90
  • 21

    SUPPORT, OIL FILTER

    • Part No. E5700-32313
    • 1 shown on diagram
    $66.99
  • 22

    O RING

    • Part No. 04811-05140
    • 2 shown on diagram
    $0.68
  • 23

    STUD

    • Part No. 01513-50618
    • M6*1.0
    • 1 shown on diagram
    $3.49
  • 24

    BOLT WASHER

    • Part No. 01023-50630
    • 2 shown on diagram
    $1.59
  • 25 STUD

    STUD

    • Part No. 01513-50614
    • 2 shown on diagram
    $3.49
  • 26

    WATER PUMP ASSY

    • Part No. E5760-73032
    • * multiple options for #26
    • 1 shown on diagram
    $124.99
  • 26 WATER PUMP ASSY v

    WATER PUMP ASSY v

    • Part No. E5760-73033
    • Compatibility Interchngable
    • * multiple options for #26
    • 1 shown on diagram
    $154.99
  • 27

    BODY, WATER PUMP

    • Part No. E5760-73042
    • * multiple options for #27
    • 1 shown on diagram
    $61.99
  • 27

    BODY, WATER PUMP

    • Part No. E5760-73043
    • Compatibility Interchngable
    • * multiple options for #27
    • 1 shown on diagram
    $59.99
  • 28

    BEARING obs v

    • Part No. E5205-73551
    • WPB12091(KOYO)
    • * multiple options for #28
    • 1 shown on diagram
    $67.99
  • 28

    BEARING

    • Part No. E5760-73551
    • Compatibility Interchngable
    • * multiple options for #28
    • 1 shown on diagram
    $43.99
  • 29

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • 1 shown on diagram
    $39.99
  • 30

    IMPELLER

    • Part No. E5760-73512
    • 1 shown on diagram
    $25.99
  • 31

    FLANGE

    • Part No. E5205-73523
    • DIA54*20
    • * multiple options for #31
    • 1 shown on diagram
    $17.99
  • 31

    FLANGE

    • Part No. E5205-73524
    • Compatibility Interchngable
    • * multiple options for #31
    • 1 shown on diagram
    $18.99
  • 32

    HOSE, WATER RETURN

    • Part No. E5700-73342
    • DIA12*31
    • * multiple options for #32
    • 1 shown on diagram
    $11.99
  • 32

    HOSE, COOLING WATER RETURN

    • Part No. E5700-73343
    • Compatibility New repl old
    • DIA12*31
    • * multiple options for #32
    • 1 shown on diagram
    $9.49
  • 33 GASKET, WATER PUMP

    GASKET, WATER PUMP

    • Part No. E5760-73432
    • t0.5
    • 1 shown on diagram
    $6.99
  • 34

    BOLT WASHER

    • Part No. 01023-50625
    • M6XP1.0
    • 4 shown on diagram
    $1.79
  • 35

    HOSE 3, COOLING WATER, Replaced by E5205-72952

    • Part No. E5205-72951
    • * multiple options for #35
    • 1 shown on diagram
    $0.00
  • 35 HOSE 3, COOLING WATER

    HOSE 3, COOLING WATER

    • Part No. E5205-72952
    • Compatibility Interchngable
    • * multiple options for #35
    • 1 shown on diagram
    $7.99
  • 36

    CLAMP, STAINLESS HOSE

    • Part No. E5752-18171
    • * multiple options for #36
    • 3 shown on diagram
    $4.49
  • 36

    CLAMP, STAINLESS HOSE

    • Part No. E5752-18172
    • Compatibility New repl old
    • * multiple options for #36
    • 3 shown on diagram
    $4.49
  • 37

    HOSE, COOLING WATER

    • Part No. E5760-72872
    • * multiple options for #37
    • 1 shown on diagram
    $29.99
  • 37

    HOSE, REFRIGERANT

    • Part No. E5760-72873
    • Compatibility New repl old
    • * multiple options for #37
    • 1 shown on diagram
    $35.99
  • 38

    COVER,WATER HOSE

    • Part No. E5700-74213
    • 1 shown on diagram
    $12.99
  • 39

    PICK UP SENSOR

    • Part No. E6302-04931
    • 1 shown on diagram
    $119.99
  • 40 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.39
  • 41 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
