GEAR PUMP GROUP - CK22-T640A

Kioti TRACTOR | CK Series | CK20S

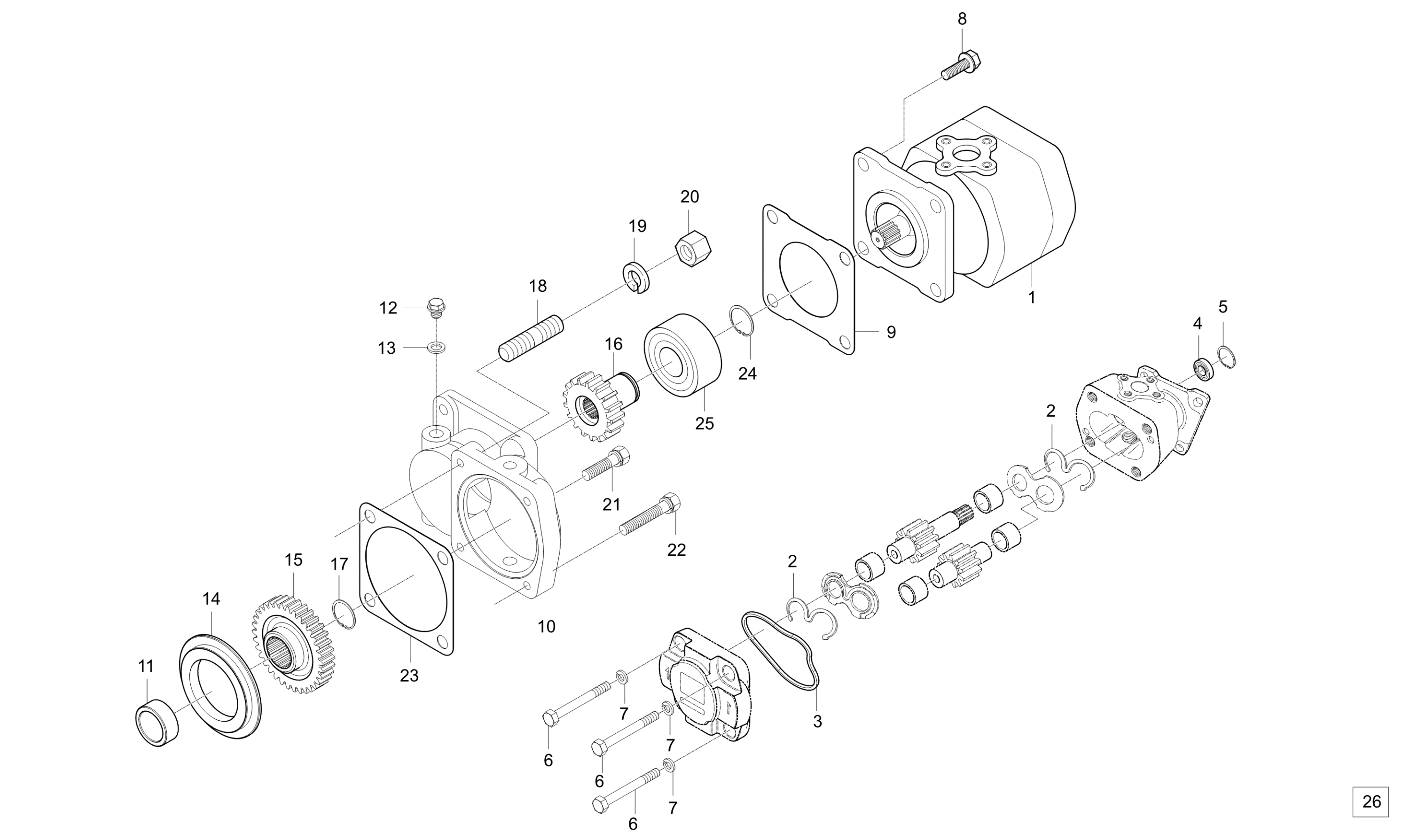

Diagram for GEAR PUMP GROUP - CK22-T640A
  • 1

    ASSY, GEAR PUMP, Replaced by T2350-76103

    • Part No. T2350-76102
    • Applied Dates Up to 2012-05-30
    • Serial No. Up to MS2900030
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    GEAR PUMP ASSY, Replaced by TB24-0064A

    • Part No. T2350-76103
    • Compatibility Interchngable
    • Applied Dates 2012-05-31 and up
    • Serial No. MS2900031 and up
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1 ASSY PUMP, GEAR

    ASSY PUMP, GEAR

    • Part No. TB24-0064A
    • Compatibility Call for compat
    • * multiple options for #1
    • 1 shown on diagram
    $834.99
  • 2

    SEAL,SHAFT 7217-00322

    • Part No. 7217-00322
    • 2 shown on diagram
    $27.99
  • 3

    SEAL-SQUARE

    • Part No. 7217-00430
    • 1 shown on diagram
    $16.99
  • 4

    SEAL-LIP obs v

    • Part No. 7217-00340
    • 1 shown on diagram
    $9.99
  • 5

    RING-RETAINING

    • Part No. 9541-02035
    • 1 shown on diagram
    $2.49
  • 6

    BOLT

    • Part No. 9016-21007
    • 4 shown on diagram
    $2.99
  • 7

    WASHER-SPRING

    • Part No. 9213-10000
    • 4 shown on diagram
    $0.59
  • 8 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 9

    GASKET V, Replaced by T2380-87132

    • Part No. T2380-87131
    • T1.0
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    GASKET

    • Part No. T2380-87133
    • Compatibility Interchngable
    • T1.0
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 10

    HOLDER, GEAR PUMP

    • Part No. T2368-76001
    • 1 shown on diagram
    $129.99
  • 11

    SPACER, GEAR PUMP

    • Part No. T2350-76041
    • DIA27.2*3.5
    • 1 shown on diagram
    $6.49
  • 12 PLUG M10XP1.25

    PLUG M10XP1.25

    • Part No. 06331-35010
    • M10XP1.25
    • 2 shown on diagram
    $4.49
  • 13

    PACKING

    • Part No. 04714-00100
    • 2 shown on diagram
    $2.49
  • 14

    BUSH

    • Part No. E5205-36481
    • DIA75
    • 1 shown on diagram
    $21.99
  • 15

    GEAR, 29 PUMP

    • Part No. T2350-76021
    • 1 shown on diagram
    $77.99
  • 16

    SHAFT, GEAR 18 GEAR PUMP

    • Part No. T2350-76031
    • 1 shown on diagram
    $79.99
  • 17

    SNAP RING

    • Part No. 04612-00190
    • DIA19
    • 1 shown on diagram
    $1.19
  • 18 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 19 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 20 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 21 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • * multiple options for #21
    • 1 shown on diagram
    $2.49
  • 21 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Compatibility Call for compat
    • M8XP1.25
    • * multiple options for #21
    • 2 shown on diagram
    $2.49
  • 22 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 23

    GASKET, FUEL CAMSHAFT, Replaced by E5760-36332

    • Part No. E5760-36331
    • ( t 1.0)
    • 1 shown on diagram
    $0.00
  • 24 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 1 shown on diagram
    $1.09
  • 25

    BALL BEARING

    • Part No. 08241-05204
    • 1 shown on diagram
    $83.99
  • 26 BOLT

    BOLT

    • Part No. TB14-0090A
    • 2 shown on diagram
    $19.99
