ELECTRICAL GROUP - EC1-G193011

Kioti TRACTOR | CK Series | CK20S

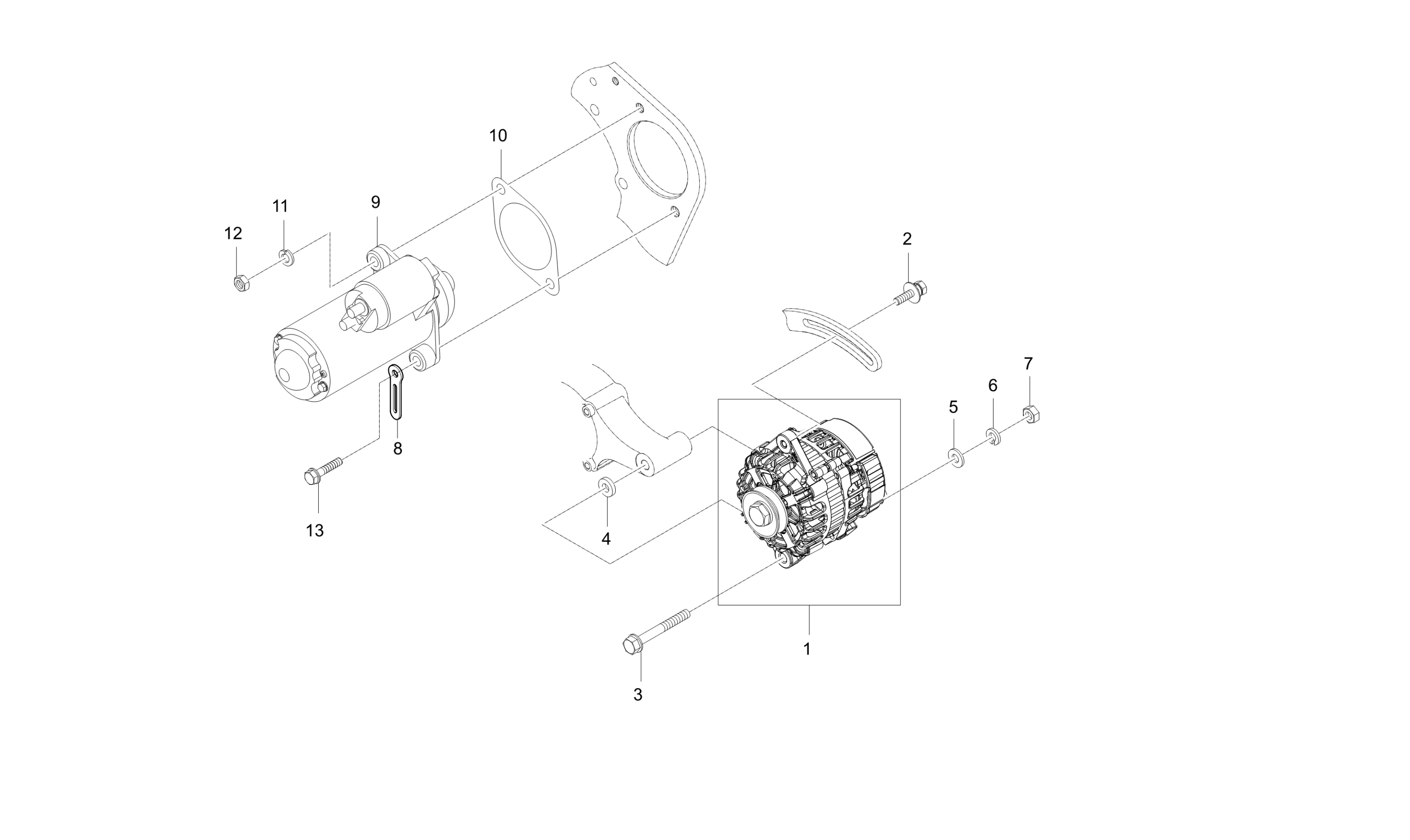

Diagram for ELECTRICAL GROUP - EC1-G193011
  • 1

    ASS’Y, DYNAMO

    • Part No. E6213-64012
    • * multiple options for #1
    • 1 shown on diagram
    $719.99
  • 1

    ALTERNATOR ASSY 75AMP, Replaced by E7251-64012

    • Part No. E7251-64011
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1 ALTERNATOR 75A

    ALTERNATOR 75A

    • Part No. E7251-64012
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $594.99
  • 2

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 3

    FLANGE_BOLT

    • Part No. 01774-51003
    • M10XP1.25
    • 1 shown on diagram
    $4.99
  • 4

    SPACER, Replaced by E5800-64102BB

    • Part No. E5800-64102
    • DIA24*T5.15
    • 1 shown on diagram
    $0.00
  • 5 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 6 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 7 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 8

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 9

    START MOTOR ASSY

    • Part No. E5760-63011
    • 1 shown on diagram
    $824.99
  • 10

    GASKET V

    • Part No. E5700-51162
    • T0.5
    • 1 shown on diagram
    $6.49
  • 11 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $0.61
  • 12 NUT

    NUT

    • Part No. 02112-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.55
  • 13

    WASHER BOLT

    • Part No. 01133-51035
    • M10XP1.25
    • 2 shown on diagram
    $3.49
