ASSY,HST GROUP - CK20H-T310A

Kioti TRACTOR | CK Series | CK20HS

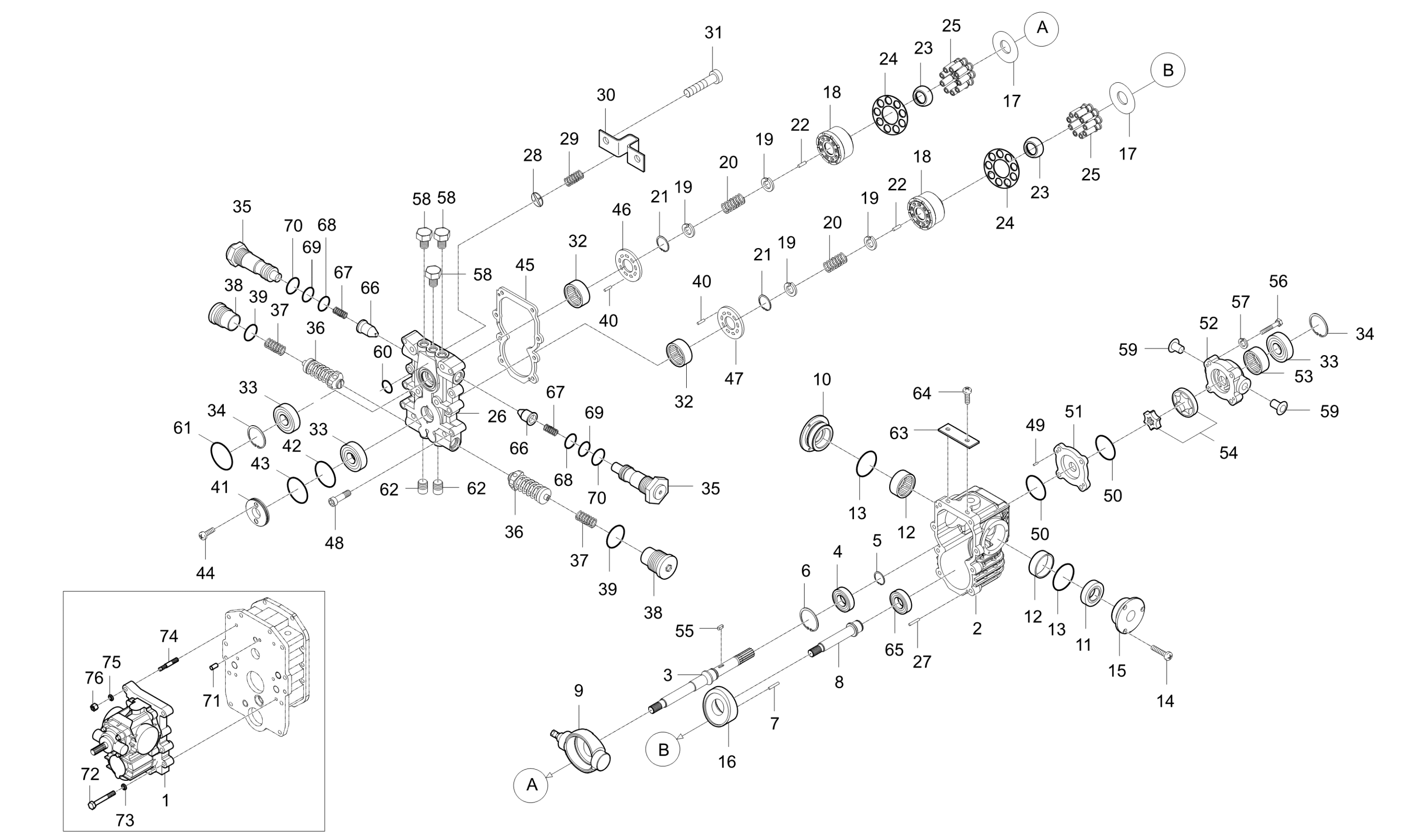

Diagram for ASSY,HST GROUP - CK20H-T310A
  • 1

    ASSY, HST(16.4CC) v

    • Part No. T2360-30014
    • Applied Dates 2006-12-31 and up
    • 1 shown on diagram
    $3,139.99
  • 2

    BODY

    • Part No. JA1C1001B
    • 1 shown on diagram
    $409.99
  • 3

    SHAFT(PUMP) v

    • Part No. JA1C1018A
    • 1 shown on diagram
    $324.99
  • 4

    BEARING v

    • Part No. BB6205
    • 6205HL
    • 1 shown on diagram
    $32.99
  • 5

    SNAP RING

    • Part No. SR25CS
    • 25mm shaft
    • 1 shown on diagram
    $4.49
  • 6

    SNAP RING

    • Part No. SR52CH
    • 1 shown on diagram
    $6.49
  • 7

    PIN

    • Part No. P20000P1
    • DIA8*20L
    • 1 shown on diagram
    $2.99
  • 8

    SHAFT(MOTOR)

    • Part No. JA1C1003A
    • 1 shown on diagram
    $219.99
  • 9

    SWASH PLATE(PUMP)

    • Part No. JA1C1004
    • 1 shown on diagram
    $199.99
  • 10

    SWASH COVER(LEVER)

    • Part No. JA1C1005
    • 1 shown on diagram
    $63.99

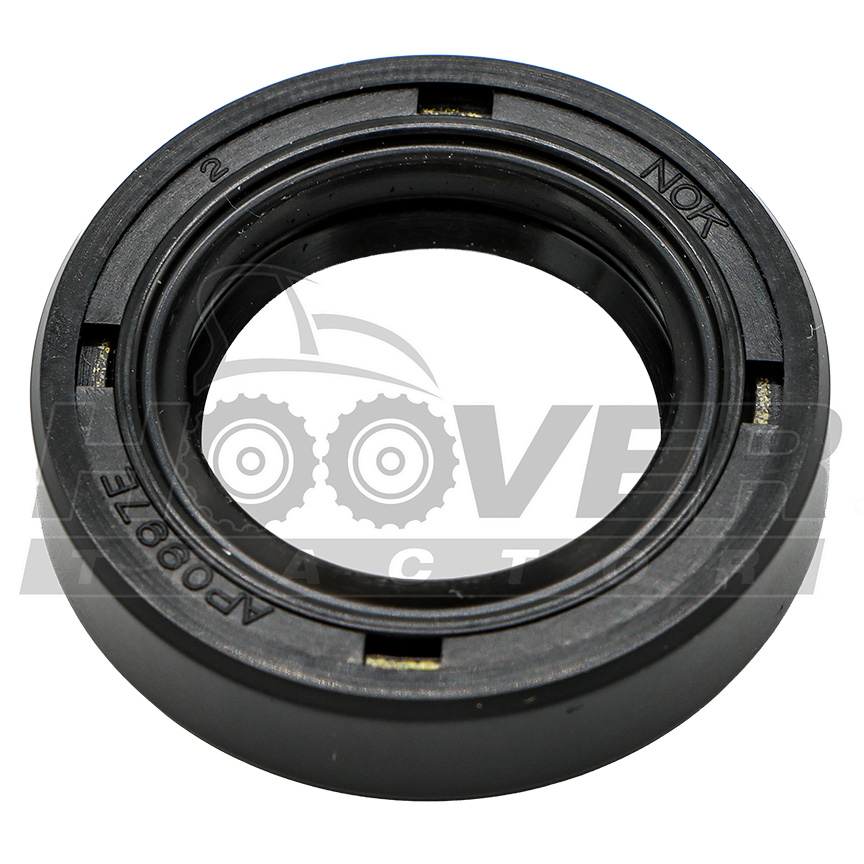

  • 11 OIL SEAL

    OIL SEAL

    • Part No. OSAP0997
    • 1 shown on diagram
    $65.99
  • 12

    DX BEARING

    • Part No. DX404415
    • 2 shown on diagram
    $53.99
  • 13

    O-RING, Replaced by GO055

    • Part No. G0055
    • * multiple options for #13
    • 2 shown on diagram
    $0.00
  • 13

    O RING

    • Part No. GO055
    • Compatibility Interchngable
    • Applied Dates 2008-01-24 and up
    • * multiple options for #13
    • 2 shown on diagram
    $13.99
  • 14

    MACHINE SCREW

    • Part No. MBM0510
    • 6 shown on diagram
    $6.49
  • 15

    SWASH COVER(B)

    • Part No. JA1C1006
    • 1 shown on diagram
    $63.99
  • 16

    SWASH PLATE(MOTOR)

    • Part No. JA1C1007
    • 1 shown on diagram
    $39.99
  • 17

    SHOE PLATE

    • Part No. J99J2007
    • 2 shown on diagram
    $76.99
  • 18

    CYLINDER BLOCK

    • Part No. J99J2008
    • 2 shown on diagram
    $499.99
  • 19

    SPRING SEAT

    • Part No. J99J2009
    • 4 shown on diagram
    $21.99
  • 20

    SPRING

    • Part No. J99J2010
    • 2 shown on diagram
    $22.99
  • 21

    SNAP RING

    • Part No. IR28CH
    • 2 shown on diagram
    $3.99
  • 22

    SPACE PIN

    • Part No. J99J2011
    • 6 shown on diagram
    $49.99
  • 23

    BALL GUIDE

    • Part No. J99J2012
    • 2 shown on diagram
    $97.99
  • 24

    FIXED PLATE

    • Part No. J99J2013
    • 2 shown on diagram
    $139.99
  • 25

    PISTON ASSY

    • Part No. J99J2014
    • 18 shown on diagram
    $469.99
  • 26

    REAR COVER

    • Part No. JA1C1008
    • 1 shown on diagram
    $319.99
  • 27

    PIN

    • Part No. P10000P3
    • DIA6*14
    • 2 shown on diagram
    $4.99
  • 28

    CHECK

    • Part No. J93E2014
    • 1 shown on diagram
    $49.99
  • 29

    SPRING v

    • Part No. J93E2019
    • 1 shown on diagram
    $3.99
  • 30

    SPRING HOLDER

    • Part No. J93E2016
    • 2 shown on diagram
    $11.99
  • 31

    BOLT, WRENCH

    • Part No. WBM0610
    • M6*10
    • 2 shown on diagram
    $2.49
  • 32

    NEEDLE B/R

    • Part No. NBTA2025Z
    • 2 shown on diagram
    $82.99

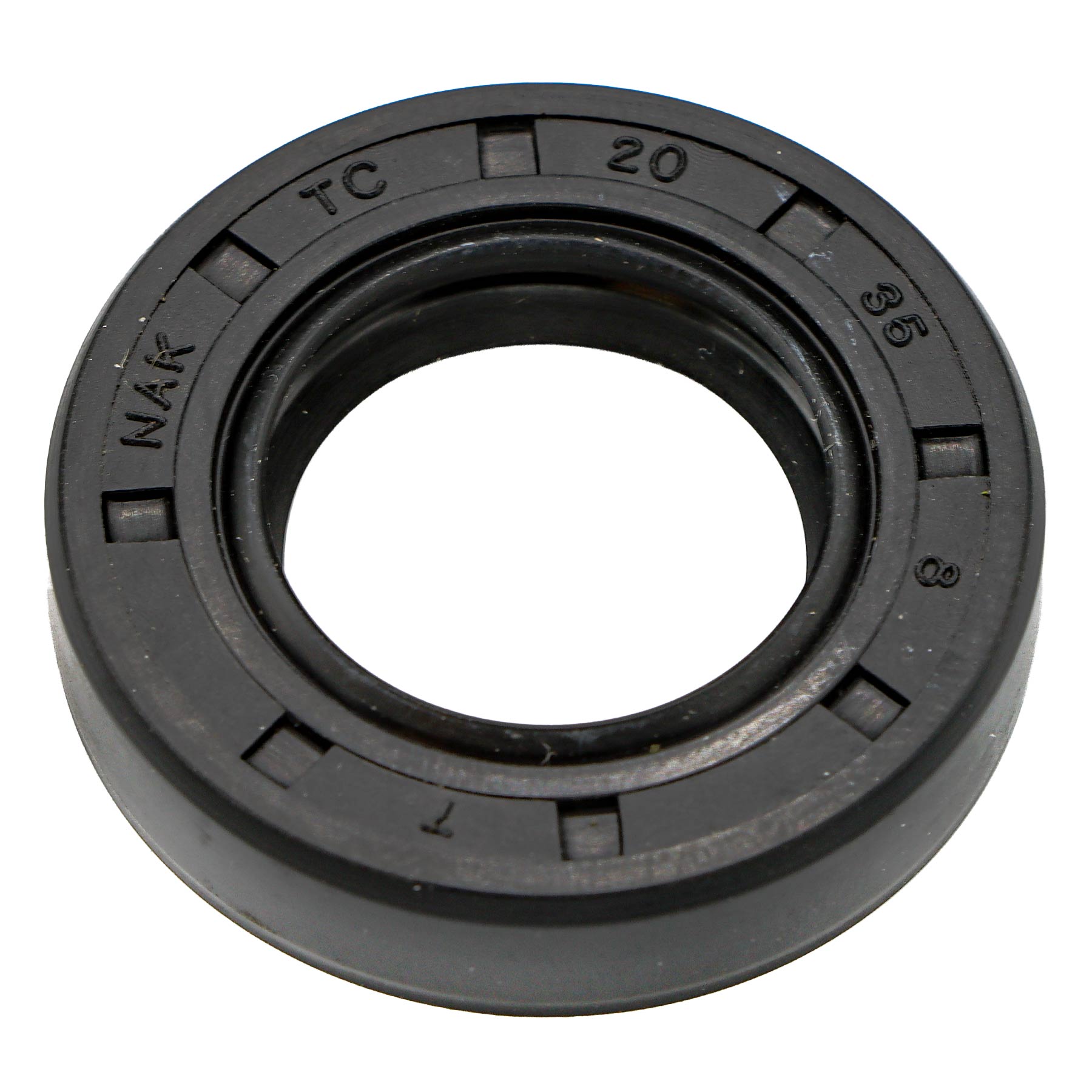

  • 33 OIL SEAL (black) Jeil TC 20x35x8

    OIL SEAL (black) Jeil TC 20x35x8

    • Part No. OSAP1013
    • 20*35*8
    • 3 shown on diagram
    $52.99
  • 34

    SNAP RING

    • Part No. SR35CH
    • DIA35 (hole)
    • 2 shown on diagram
    $4.49
  • 35

    NEUTRAL VALVE ASSY

    • Part No. JA1C1009
    • 2 shown on diagram
    $494.99
  • 36

    RELIEF VALVE ASS’Y v

    • Part No. JA2F1001
    • 2 shown on diagram
    $579.99
  • 37

    SPRING obs

    • Part No. J96G1036
    • 2 shown on diagram
    $5.49
  • 38

    PLUG

    • Part No. J96G1031
    • 2 shown on diagram
    $22.99
  • 39

    O-RING

    • Part No. P0018
    • Applied Dates Up to 2008-01-23
    • * multiple options for #39
    • 2 shown on diagram
    $4.49
  • 39

    O-RING

    • Part No. PO018
    • Compatibility Interchngable
    • P18
    • * multiple options for #39
    • 2 shown on diagram
    $5.49
  • 40

    PIN

    • Part No. P10000P4
    • DIA4*10
    • 2 shown on diagram
    $3.99
  • 41

    COVER

    • Part No. JA1C1010
    • 1 shown on diagram
    $72.99

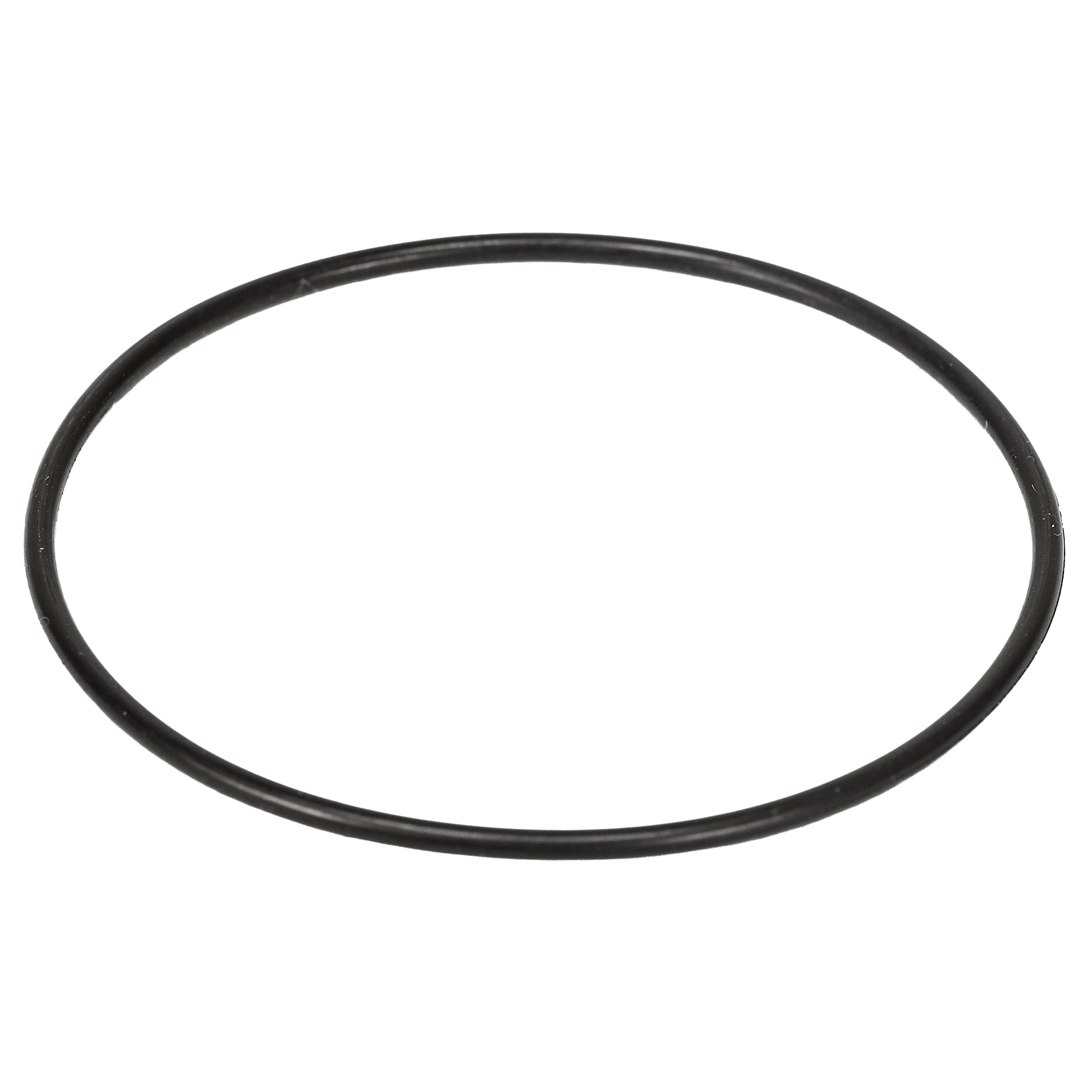

  • 42

    O-RING, Replaced by AO034

    • Part No. A0034
    • Applied Dates Up to 2008-01-23
    • * multiple options for #42
    • 1 shown on diagram
    $0.00
  • 42 O-RING

    O-RING

    • Part No. AO034
    • Compatibility Interchngable
    • AS568-034
    • * multiple options for #42
    • 1 shown on diagram
    $9.49
  • 43

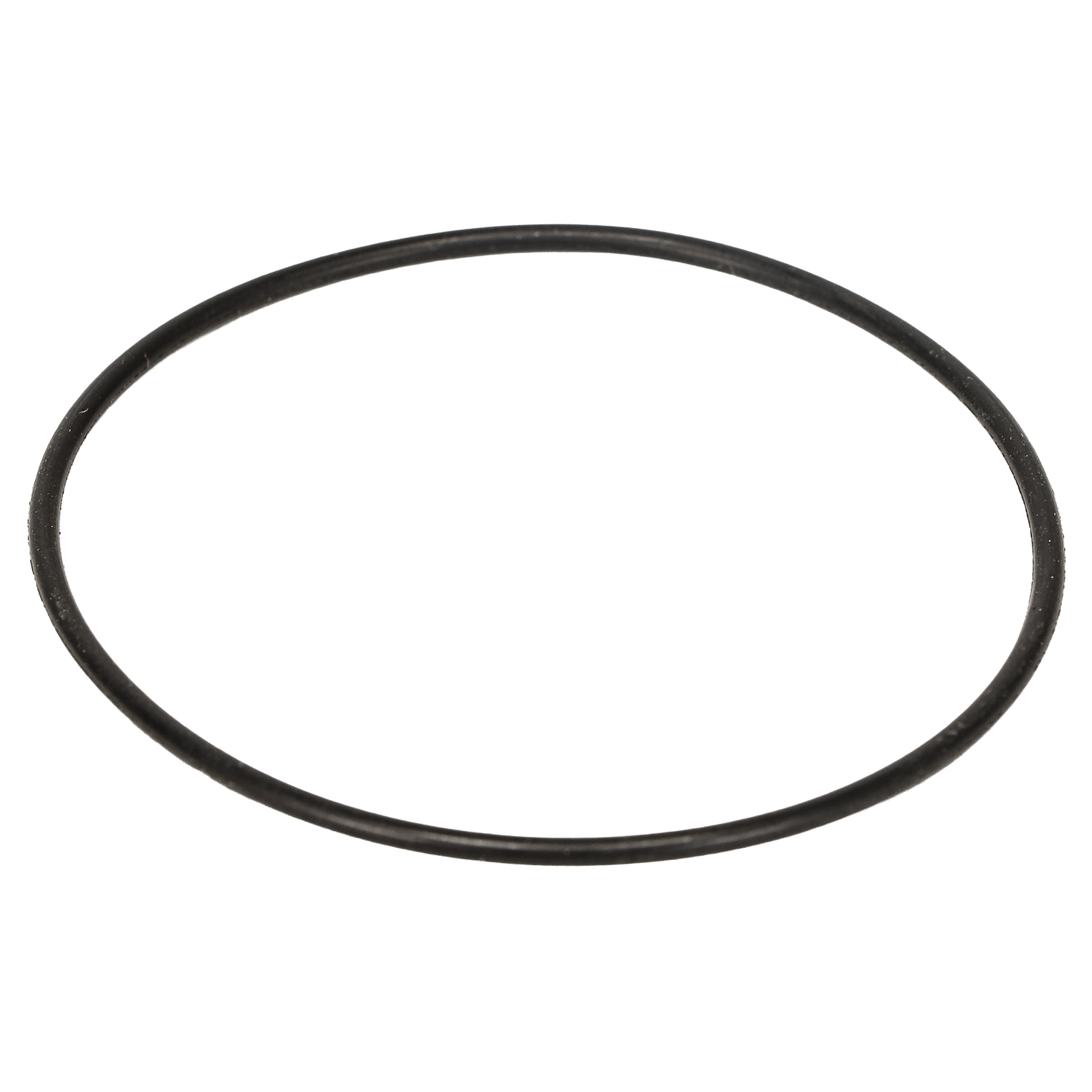

    O-RING, Replaced by AO035

    • Part No. A0035
    • Applied Dates Up to 2008-01-23
    • * multiple options for #43
    • 1 shown on diagram
    $0.00
  • 43 O-RING

    O-RING

    • Part No. AO035
    • Compatibility Interchngable
    • AS568-035
    • * multiple options for #43
    • 1 shown on diagram
    $8.99
  • 44

    BOLT

    • Part No. SDM0515
    • 2 shown on diagram
    $2.49
  • 45

    GASKET

    • Part No. JA1C1011A
    • 1 shown on diagram
    $19.99
  • 46

    VALVE PLATE

    • Part No. J99J2016
    • 1 shown on diagram
    $154.99
  • 47

    V/V PLATE

    • Part No. JA1C1012
    • 1 shown on diagram
    $144.99
  • 48

    LENCH BOLT

    • Part No. WBM1030
    • 8 shown on diagram
    $9.99
  • 49

    PIN

    • Part No. P10000P6
    • DIA6*18
    • 2 shown on diagram
    $5.49

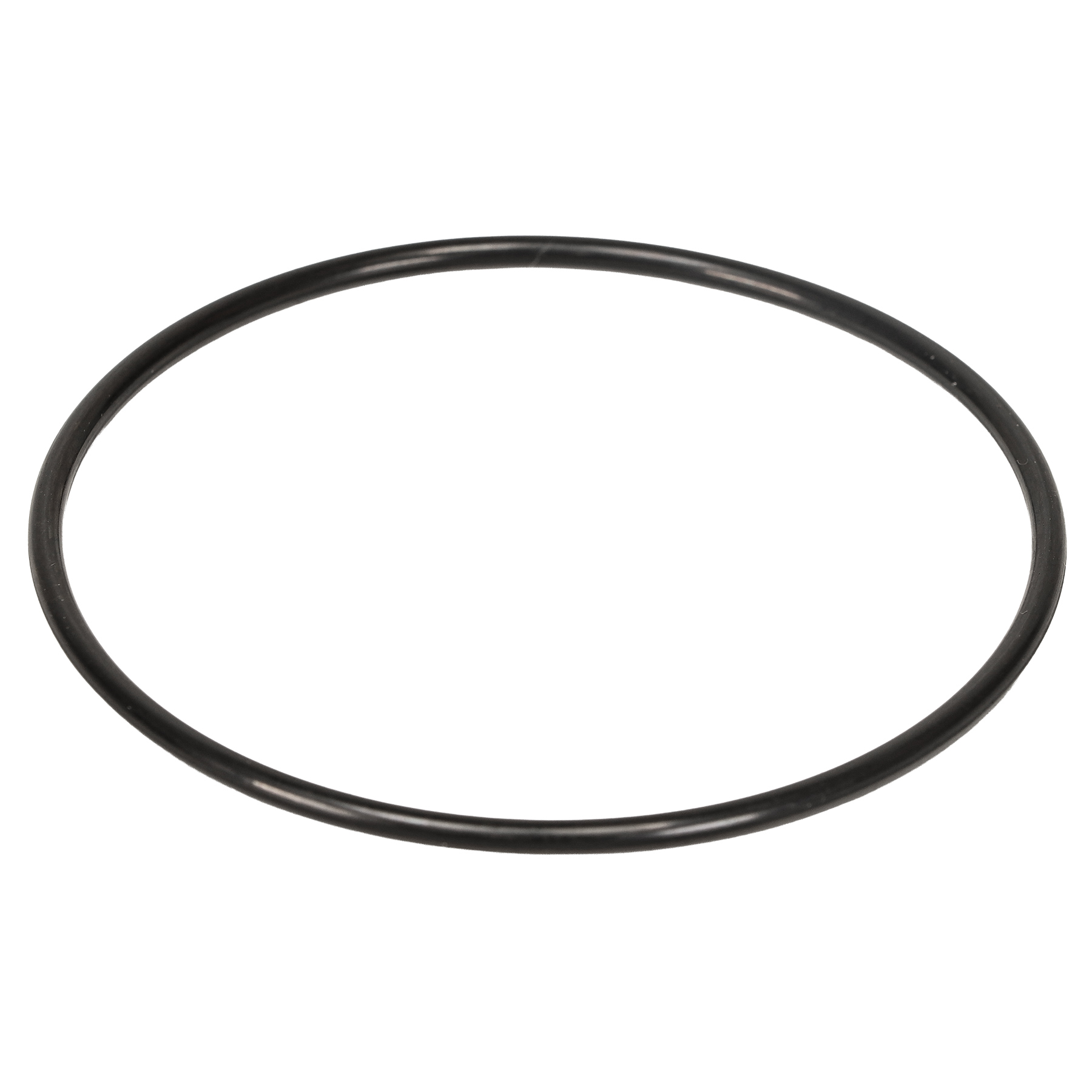

  • 50

    O-RING, Replaced by AO149

    • Part No. A0149
    • Applied Dates Up to 2008-01-23
    • AS568-149
    • * multiple options for #50
    • 1 shown on diagram
    $0.00
  • 50 O-RING

    O-RING

    • Part No. AO149
    • Compatibility Interchngable
    • AS568-149
    • * multiple options for #50
    • 1 shown on diagram
    $14.99
  • 51

    PLATE obs v

    • Part No. JA1C1013
    • 1 shown on diagram
    $39.99
  • 52

    CASHING v

    • Part No. JA1C1019A
    • 1 shown on diagram
    $169.99
  • 53

    NEEDLE B-R

    • Part No. NBTA2015Z
    • 1 shown on diagram
    $59.99
  • 54

    GEROTOR v, Replaced by 100058

    • Part No. JA1C1020B
    • 1 shown on diagram
    $0.00

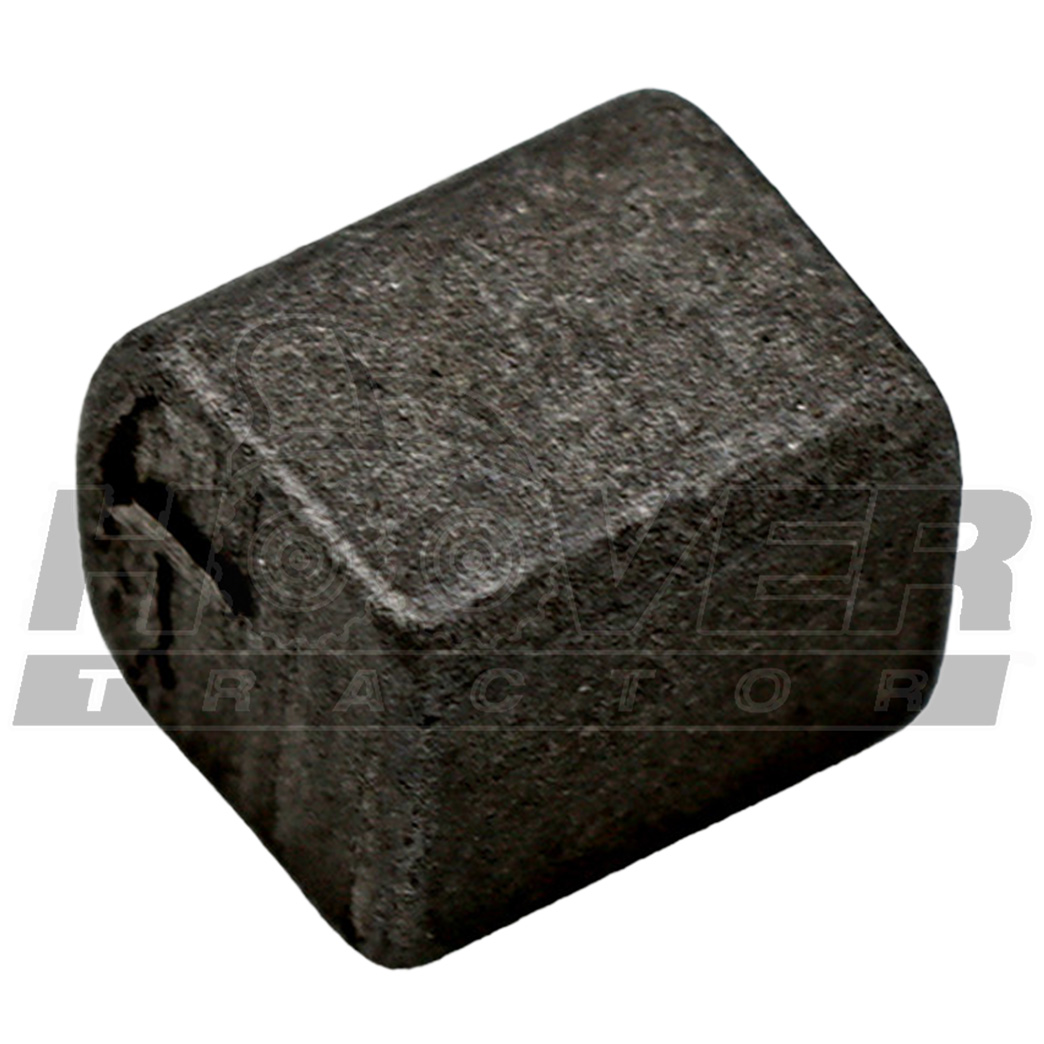

  • 55 KEY V

    KEY V

    • Part No. JA1C1021
    • 1 shown on diagram
    $3.99
  • 56

    LENCH BOLT

    • Part No. WBM0835
    • 12.9M8*38L
    • 4 shown on diagram
    $4.49
  • 57

    SPRING WASHER

    • Part No. WAS08
    • M8
    • 4 shown on diagram
    $2.99
  • 58

    PLUG

    • Part No. JA1C1016
    • PF3/8
    • 3 shown on diagram
    $45.99
  • 59

    PLUG

    • Part No. PP1815
    • M18*1.5P
    • 3 shown on diagram
    $8.99
  • 60 O-RING

    O-RING

    • Part No. PO 014
    • 4 shown on diagram
    $5.49
  • 61

    O-RING

    • Part No. PO 045
    • 1 shown on diagram
    $5.99
  • 62

    PLUG

    • Part No. WPT38
    • 2 shown on diagram
    $6.99
  • 63

    LABEL

    • Part No. JA1C1017
    • 1 shown on diagram
    $7.99
  • 64

    RIVET

    • Part No. RVT175
    • 2 shown on diagram
    $1.49
  • 65

    BEARING

    • Part No. BB6205C3
    • 1 shown on diagram
    $34.99
  • 66

    Do Not Use – Part of Ass’y

    • Part No. JA1C1009-6
    • 1 shown on diagram
    $35.99
  • 67

    SPRING

    • Part No. JA1C1009-5
    • 1 shown on diagram
    $13.99
  • 68 O-RING

    O-RING

    • Part No. PO014
    • P14
    • 1 shown on diagram
    $5.49
  • 69

    O-RING

    • Part No. BURP014
    • 1 shown on diagram
    $1.89
  • 70

    O-RING

    • Part No. PO018
    • P18
    • 1 shown on diagram
    $5.49
  • 71

    PIN, STRAIGHT

    • Part No. 05012-00816
    • DIA8XL16
    • 1 shown on diagram
    $1.59
  • 72

    BOLT

    • Part No. 01173-51060
    • 4 shown on diagram
    $2.99
  • 73 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 74

    STUD

    • Part No. 01517-51055
    • M10X1.25
    • 2 shown on diagram
    $4.49
  • 75 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 76 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
