HYDRAULIC GROUP - CK22H-T655-1B

Kioti TRACTOR | CK Series | CK20HS

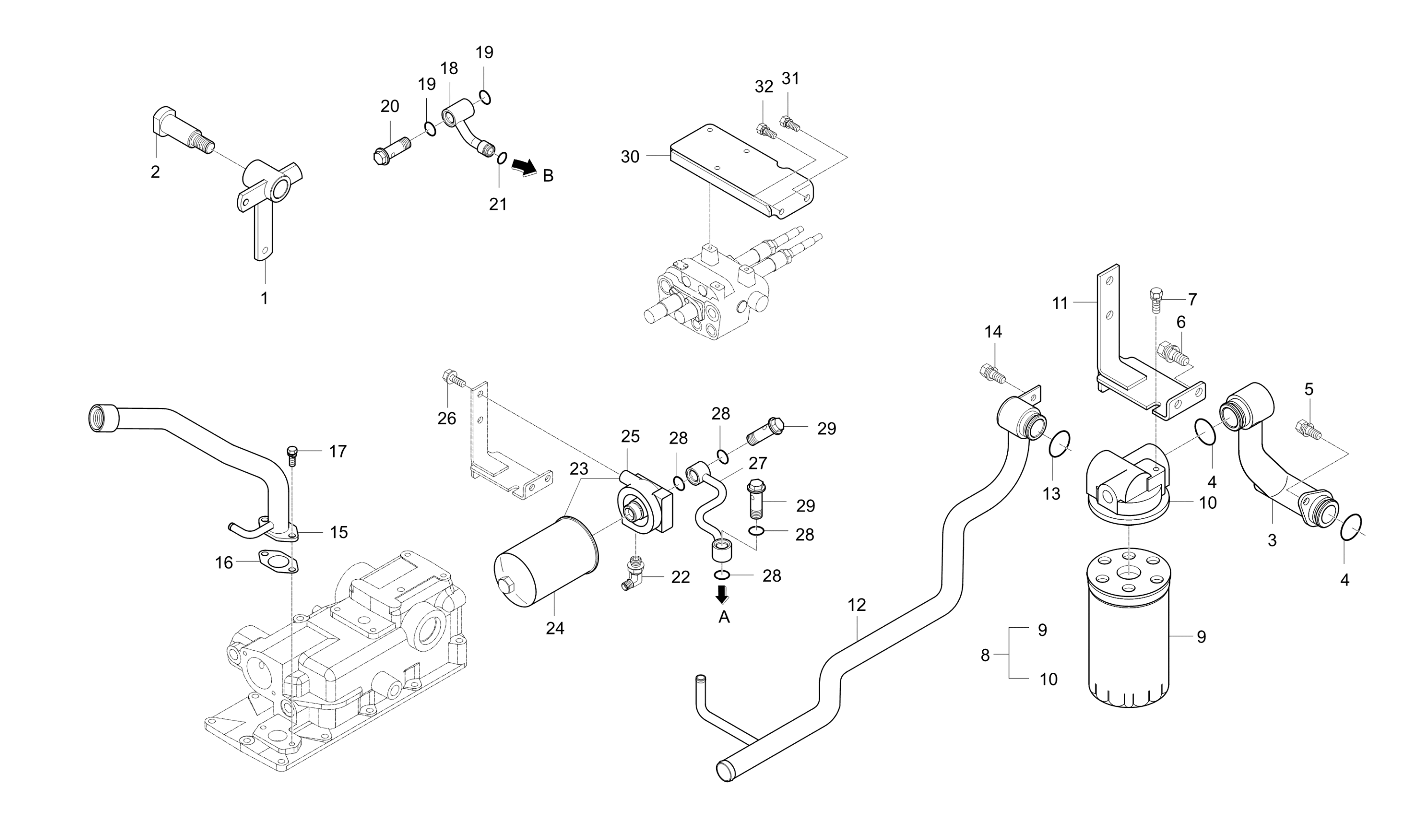

Diagram for HYDRAULIC GROUP - CK22H-T655-1B
  • 1

    ARM

    • Part No. T2368-33141BB
    • 1 shown on diagram
    $24.99
  • 2

    BOLT (HST PEDAL)

    • Part No. T2360-33171
    • Applied Dates Up to 2013-01-07
    • 1 shown on diagram
    $13.99
  • 3

    TUBE 1, INLET v

    • Part No. T2350-38002BB
    • 1 shown on diagram
    $124.99
  • 4 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 2 shown on diagram
    $0.96
  • 5 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 6

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 7

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 8

    FILTER ASS’Y-HYD.

    • Part No. T2360-38113
    • 1 shown on diagram
    $85.99
  • 9 Hydraulic Filter

    Hydraulic Filter

    • Part No. T4260-38125
    • 1 shown on diagram
    $37.99
  • 10 Bracket, HST Filter

    Bracket, HST Filter

    • Part No. T2360-38043
    • 1 shown on diagram
    $93.99
  • 11

    Filter Support

    • Part No. T2360-38061ED
    • 1 shown on diagram
    $29.99
  • 12

    TUBE 4, SUCTION

    • Part No. T2368-38113BB
    • 1 shown on diagram
    $109.99
  • 13 O RING

    O RING

    • Part No. 04811-00290
    • P29
    • 1 shown on diagram
    $0.96
  • 14 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 15

    TUBE, OIL INLET

    • Part No. T2350-35004BB
    • 1 shown on diagram
    $89.99
  • 16

    PACKING

    • Part No. T4620-35012
    • 1 shown on diagram
    $3.99
  • 17 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 18

    TUBE, HST INLET CHARGE

    • Part No. T2360-37045BB
    • 1 shown on diagram
    $42.99
  • 19 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 20

    BOLT,JOINT

    • Part No. T2360-37081
    • 1 shown on diagram
    $26.99
  • 21 O RING

    O RING

    • Part No. 04810-00160
    • P16
    • 1 shown on diagram
    $0.68
  • 22

    ELBOW

    • Part No. T2360-38081
    • 1 shown on diagram
    $39.99
  • 23

    HYDRAULIC HOSE ASSY v

    • Part No. T2360-38131
    • 1 shown on diagram
    $99.99
  • 24 Hydrostatic Transmission Filter

    Hydrostatic Transmission Filter

    • Part No. T2195-38031
    • 1 shown on diagram
    $25.99
  • 25

    Bracket 2, HST Filter

    • Part No. T2360-38052
    • 1 shown on diagram
    $95.99
  • 26

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 27

    TUBE, HST INLET

    • Part No. T2360-37034BB
    • 1 shown on diagram
    $68.99
  • 28 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 4 shown on diagram
    $1.19
  • 29 BOLT, JOINT

    BOLT, JOINT

    • Part No. T4520-90042
    • 2 shown on diagram
    $26.99
  • 30

    BRACKET, VALVE

    • Part No. T2350-90213BB
    • 1 shown on diagram
    $39.99
  • 31 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 1 shown on diagram
    $3.49
  • 32 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 1 shown on diagram
    $3.49
