HST IN HYDRAULIC LINE GROUP - CK20H-T330A

Kioti TRACTOR | CK Series | CK20HS

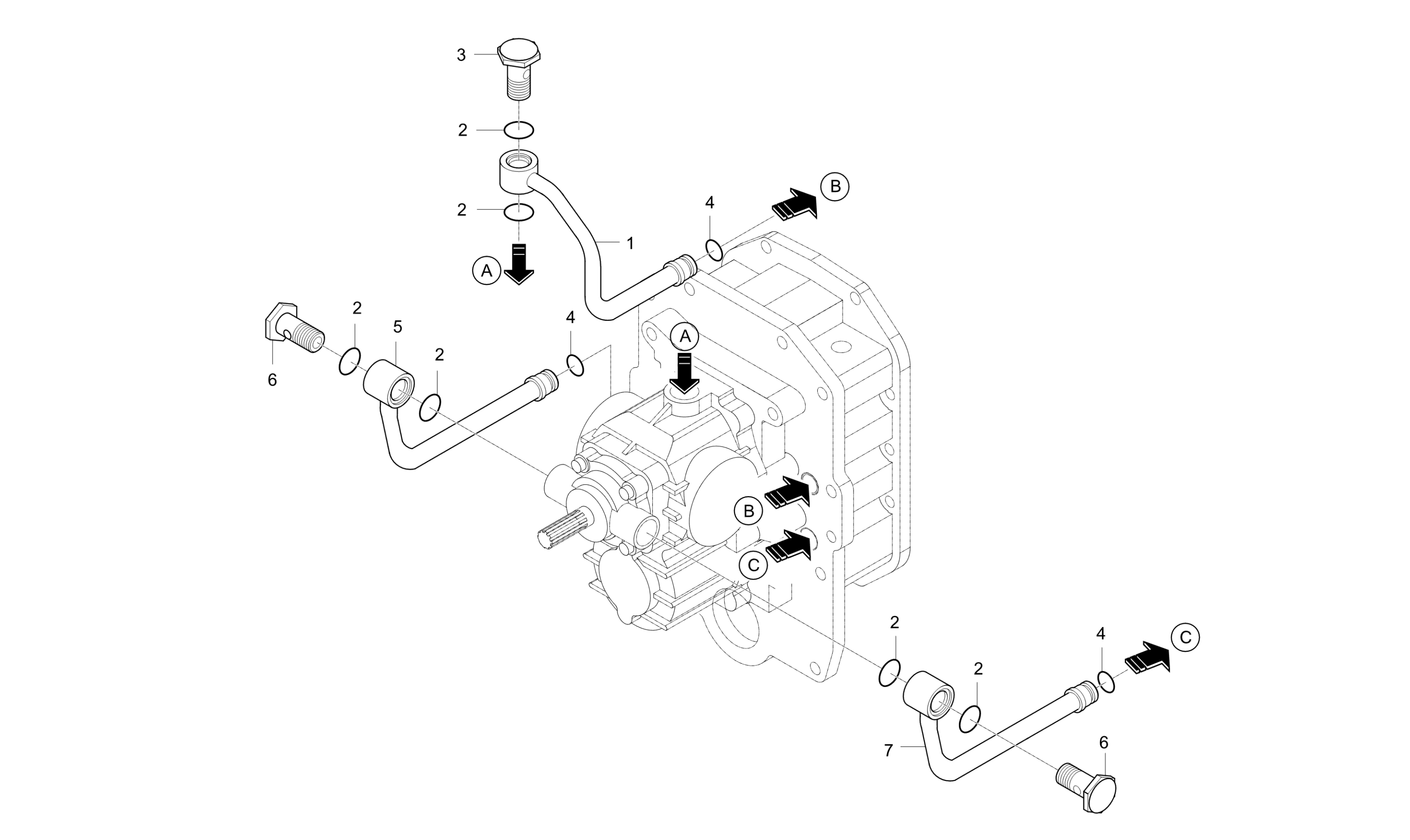

Diagram for HST IN HYDRAULIC LINE GROUP - CK20H-T330A
  • 1

    TUBE 1-HST RETURN dnr v

    • Part No. T2360-37051
    • Serial No. Up to HS3000350
    • * multiple options for #1
    • 1 shown on diagram
    $85.99
  • 1

    HST AUTO RETURN TUBE 1 v

    • Part No. T2360-37051BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #1
    • 1 shown on diagram
    $85.99
  • 2 O RING

    O RING

    • Part No. 04810-00200
    • DIA19.8
    • 2 shown on diagram
    $1.19
  • 3

    BOLT, JOINT dnr v

    • Part No. T2360-37091
    • 1 shown on diagram
    $11.99
  • 4 O RING

    O RING

    • Part No. 04810-00140
    • P14
    • 1 shown on diagram
    $0.90
  • 5

    TUBE 2-HST RETURN v

    • Part No. T2360-37061
    • Serial No. Up to HS3000350
    • * multiple options for #5
    • 1 shown on diagram
    $79.99
  • 5

    TUBE 2, HST RETURN

    • Part No. T2360-37061BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #5
    • 1 shown on diagram
    $82.99
  • 6

    BOLT,JOINT

    • Part No. T2360-37101
    • 1 shown on diagram
    $18.99
  • 7

    TUBE 3- HST RETURN v

    • Part No. T2360-37071
    • Serial No. Up to HS3000350
    • * multiple options for #7
    • 1 shown on diagram
    $79.99
  • 7

    TUBE 3, HST RETURN

    • Part No. T2360-37071BB
    • Compatibility No interchange
    • Serial No. HS3000351 and up
    • * multiple options for #7
    • 1 shown on diagram
    $82.99
