HST CONTROL 1 GROUP - CT120-T320A

Kioti TRACTOR | CK Series | CK20HS

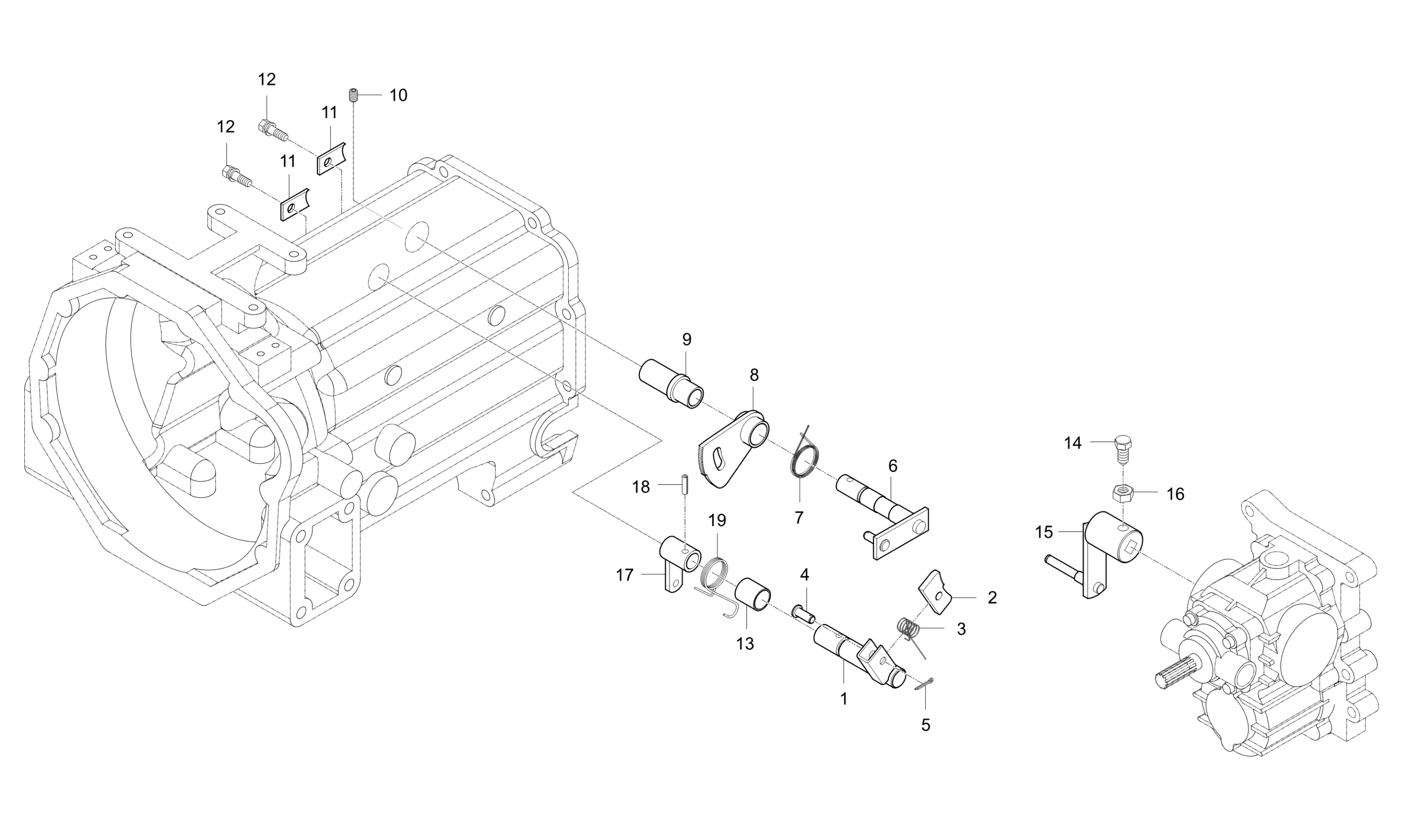

Diagram for HST CONTROL 1 GROUP - CT120-T320A
  • 1

    SHAFT,LOCK

    • Part No. T2195-32222
    • 1 shown on diagram
    $28.99
  • 2

    GEAR,ROCK

    • Part No. T2368-32251
    • Applied Dates Up to 2007-07-15
    • T6.0
    • * multiple options for #2
    • 1 shown on diagram
    $58.99
  • 2

    GEAR, ROCK v

    • Part No. T2368-32252
    • Compatibility New repl old
    • Applied Dates 2007-07-16 and up
    • T6.0
    • * multiple options for #2
    • 1 shown on diagram
    $76.99
  • 3

    SPRING

    • Part No. T2368-32191
    • 1 shown on diagram
    $3.49
  • 4

    Pin, Joint M8x25mm

    • Part No. 05122-50825
    • 1 shown on diagram
    $2.99
  • 5 Split Pin (05511-50215)

    Split Pin (05511-50215)

    • Part No. 05511-50215
    • DIA1.8XL15
    • 1 shown on diagram
    $0.62
  • 6

    CONNECTING LEVER 2

    • Part No. T2368-32151
    • 1 shown on diagram
    $83.99
  • 7

    SPRING 1

    • Part No. T2360-32251
    • DIA2
    • 1 shown on diagram
    $4.49
  • 8

    GEAR,SECTOR v

    • Part No. T2368-32261
    • Applied Dates Up to 2007-07-15
    • * multiple options for #8
    • 1 shown on diagram
    $124.99
  • 8

    GEAR,SECTOR

    • Part No. T2368-32262
    • Compatibility New repl old
    • Applied Dates 2007-07-16 and up
    • * multiple options for #8
    • 1 shown on diagram
    $209.99
  • 9

    SPACER

    • Part No. T2368-32161
    • 1 shown on diagram
    $41.99
  • 10

    LENCH BOLT

    • Part No. T2368-32171
    • 1 shown on diagram
    $1.19
  • 11

    PLATE, LOCK dnr v

    • Part No. T2360-32182
    • 19*T3.0
    • 2 shown on diagram
    $6.49
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 13 BUSH

    BUSH

    • Part No. 08511-02025
    • Inner Diameter 20XL25
    • 1 shown on diagram
    $9.99
  • 14

    BOLT,HST LEVER

    • Part No. T2360-32111
    • 1 shown on diagram
    $5.49
  • 15

    JOINT

    • Part No. T2360-32122
    • 1 shown on diagram
    $43.99
  • 16 NUT

    NUT

    • Part No. 02116-50100
    • Applied Dates Up to 2007-09-03
    • M10XP1.25
    • * multiple options for #16
    • 1 shown on diagram
    $0.67
  • 16 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • Compatibility Interchngable
    • Applied Dates 2007-09-04 and up
    • M10XP1.25
    • * multiple options for #16
    • 1 shown on diagram
    $0.98
  • 17

    CONNECTING LEVER

    • Part No. T2360-32232
    • 1 shown on diagram
    $17.99
  • 18 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00635
    • DIA6.4XL35
    • 1 shown on diagram
    $0.96
  • 19

    SPRING 2

    • Part No. T2360-32353
    • Applied Dates 2007-07-06 and up
    • 1 shown on diagram
    $8.49
