ASSY,HST GROUP - CK22H-T310A
Kioti TRACTOR | CK Series | CK20HS
-
HST ASSEMBLY
- Part No. T2360-31001
- Applied Dates Up to 2011-12-31
- 16.4cc/rev
- * multiple options for #1
- 1 shown on diagram
$3,119.99 -
TRK ASSY HST obs v
- Part No. T2360-31002
- Compatibility Interchngable
- Applied Dates 2012-11-27 and up
- Serial No. MS3000151 to NS3000160
- 16.4cc/rev
- * multiple options for #1
- 1 shown on diagram
$3,064.99 -
CASE
- Part No. 100153
- 1 shown on diagram
$324.99 -
SHAFT(PUMP)
- Part No. 100154
- 1 shown on diagram
$399.99 -
BALL BEARING
- Part No. 300051
- #6205
- 2 shown on diagram
$31.99 -
RING, SNAP
- Part No. 200010
- DIA25 (shaft)
- 2 shown on diagram
$1.39 -
RING, SNAP
- Part No. 200037
- DIA52 (hole)
- 1 shown on diagram
$4.99 -
PIN
- Part No. 100025
- DIA8x22L
- 1 shown on diagram
$4.49 -
SHAFT(MOTOR)
- Part No. 100155
- 1 shown on diagram
$264.99 -
SWASH PLATE(MOTOR)
- Part No. 100156
- 1 shown on diagram
$234.99 -
COVER(B)
- Part No. 100157
- 1 shown on diagram
$109.99 -
OIL SEAL 20x35x6 (blue), Replaced by K04-028
- Part No. 300024
- OD20X ID35x6L
- 4 shown on diagram
$0.00 -
BALL BEARING
- Part No. 300053
- F40xF44x15L
- 2 shown on diagram
$11.99 -
O RING
- Part No. 300054
- G55
- 2 shown on diagram
$5.99 -
LENCH BOLT
- Part No. 200051
- M5x10L
- 10 shown on diagram
$0.76 -
COVER(B)
- Part No. 100158
- 1 shown on diagram
$109.99 -
SWASH PLATE(MOTOR)
- Part No. 100159
- 1 shown on diagram
$219.99 -
SHOE PLATE
- Part No. 100160
- 2 shown on diagram
$75.99 -
CYLINDER BLOCK
- Part No. 100161
- 2 shown on diagram
$199.99 -
SEAT,SPRING
- Part No. 100162
- 4 shown on diagram
$7.99 -
FRICTION SPRING
- Part No. 100163
- 2 shown on diagram
$8.49 -
RING, SNAP
- Part No. 200052
- DIA28-IRTW
- 2 shown on diagram
$11.99 -
PIN
- Part No. 100164
- 6 shown on diagram
$2.99 -
BALL GUIDE
- Part No. 100165
- 2 shown on diagram
$84.99 -
RETAINER
- Part No. 100166
- 2 shown on diagram
$129.99 -
ASS’Y PISTON
- Part No. 700020
- 18 shown on diagram
$66.99 -
VALVE BLOCK
- Part No. 100167
- 1 shown on diagram
$354.99 -
PIN
- Part No. 100030
- DIA6x14L
- 2 shown on diagram
$1.79 -
CHECK
- Part No. 100031
- 1 shown on diagram
$61.99 -
FRICTION SPRING
- Part No. 100168
- 1 shown on diagram
$4.99 -
HOLDING, SPRING
- Part No. 100033
- 1 shown on diagram
$8.99 -
LENCH BOLT
- Part No. 200015
- M6x10L
- 2 shown on diagram
$2.49 -
BEARING, NIDDLE
- Part No. 300055
- OD20X ID25x20L
- 2 shown on diagram
$82.99 -
RING, SNAP
- Part No. 200018
- DIA35 (hole)
- 2 shown on diagram
$1.59 -
NEUTRAL VALVE ASSY
- Part No. 700021
- 2 shown on diagram
$424.99 -
ASSY VALVE, RELIEF
- Part No. 700022
- 2 shown on diagram
$164.99 -
FRICTION SPRING
- Part No. 100169
- 2 shown on diagram
$1.89 -
PLUG
- Part No. 100170
- 2 shown on diagram
$46.99 -
O RING
- Part No. 300042
- P18
- 2 shown on diagram
$2.99 -
PIN
- Part No. 100029
- DIA4x10L
- 2 shown on diagram
$1.89 -
COVER
- Part No. 100171
- 1 shown on diagram
$55.99 -

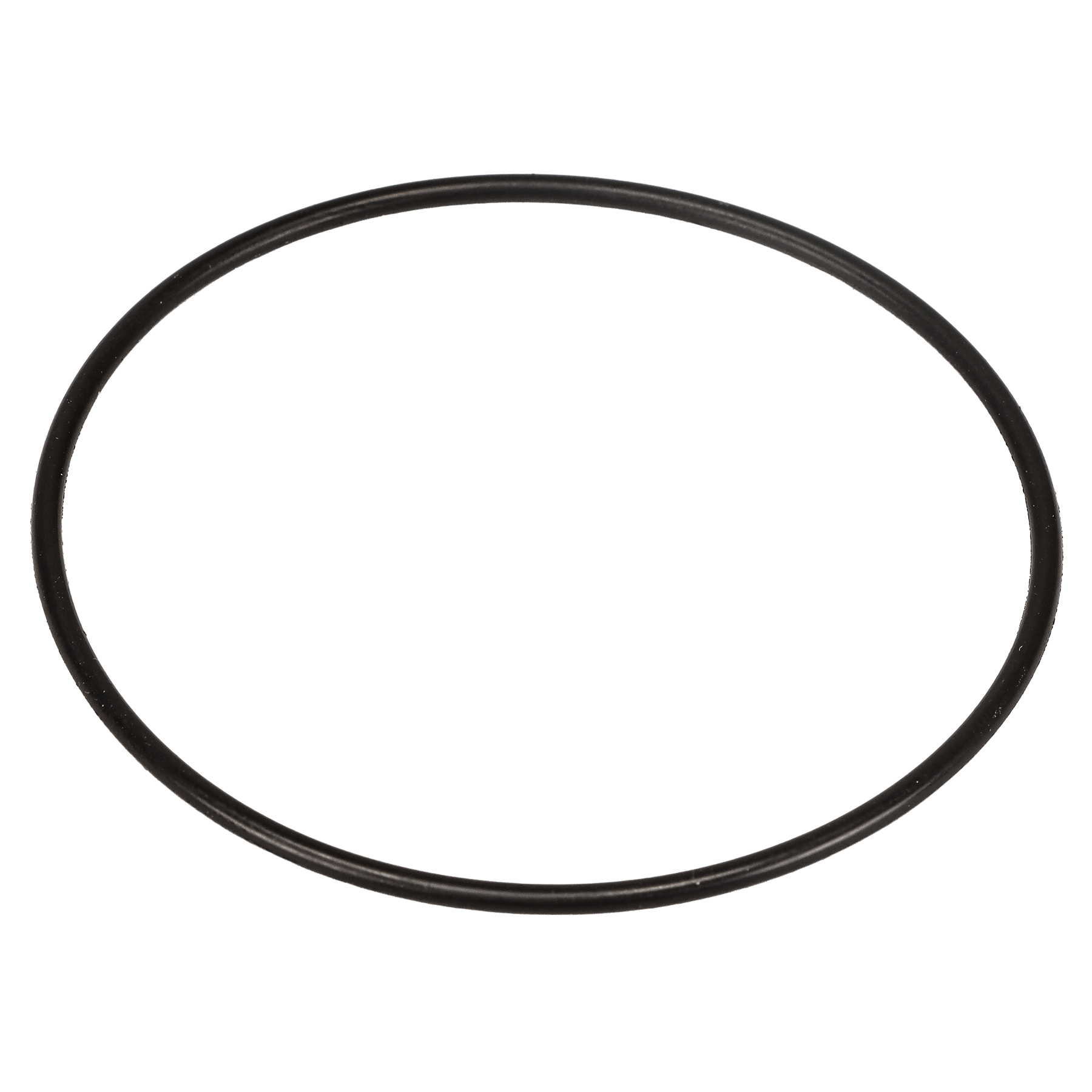

O RING
- Part No. 300025
- AS568-034
- 1 shown on diagram
$12.99 -

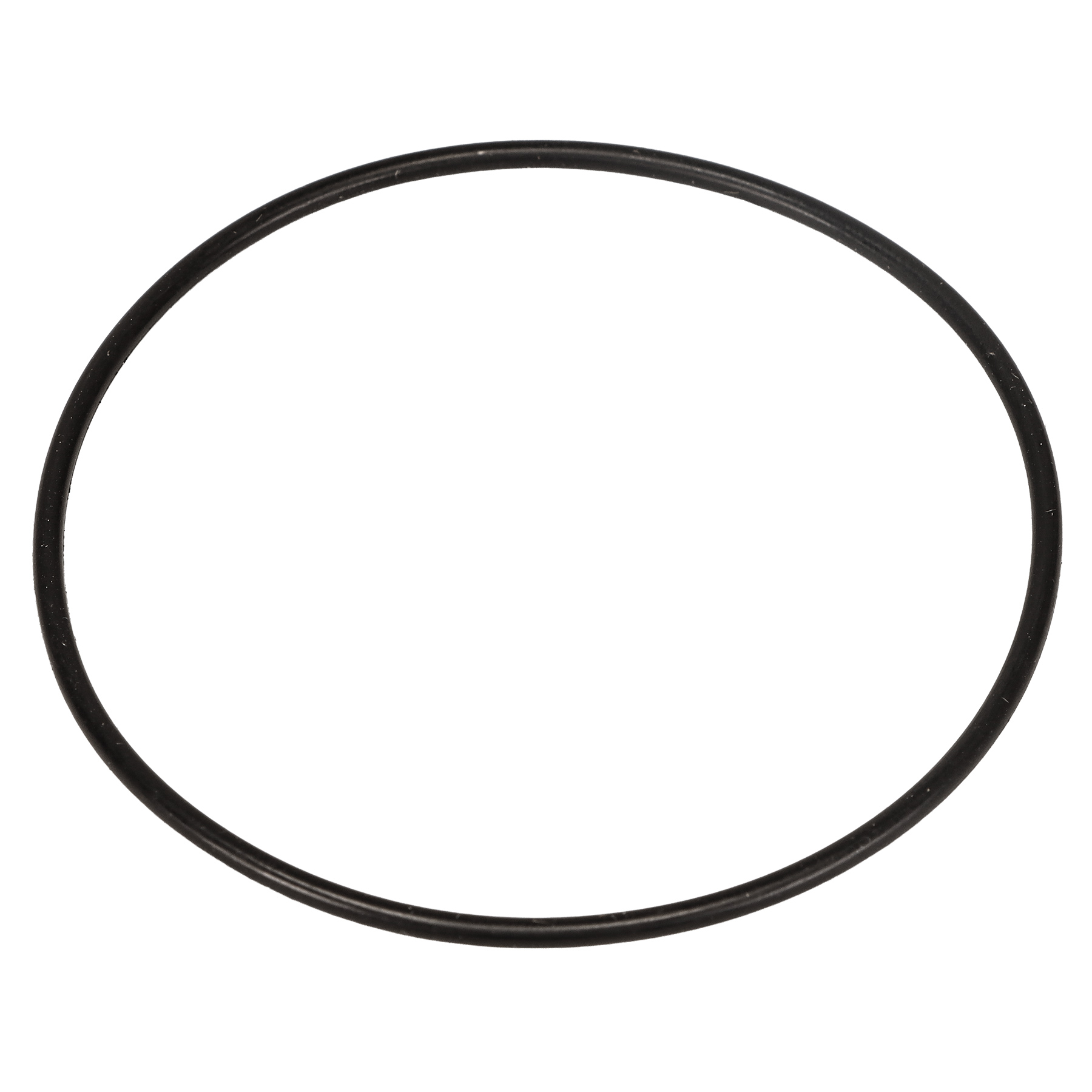

O RING
- Part No. 300026
- AS568-035
- 1 shown on diagram
$13.99 -
LENCH BOLT
- Part No. 200036
- M10x40L
- 6 shown on diagram
$2.99 -
GASKET
- Part No. 100172
- 1 shown on diagram
$27.99 -
PLATE, VALVE
- Part No. 100173
- 1 shown on diagram
$214.99 -
V/V PLATE(M)
- Part No. 100174
- 1 shown on diagram
$199.99 -
LENCH BOLT
- Part No. 200041
- M10 x 35L
- 2 shown on diagram
$2.49 -
PIN
- Part No. 100053
- F6x18L
- 2 shown on diagram
$3.99 -
O RING
- Part No. 300043
- AS568-149
- 2 shown on diagram
$22.99 -
PLATE
- Part No. 100054
- 1 shown on diagram
$95.99 -
CASE
- Part No. 100175
- 1 shown on diagram
$114.99 -
BEARING, NIDDLE
- Part No. 300027
- F20xF27x15L
- 1 shown on diagram
$83.99 -
GEROTOR
- Part No. 100176
- 1 shown on diagram
$86.99 -
KEY
- Part No. 100177
- 1 shown on diagram
$1.69 -
LENCH BOLT
- Part No. 200019
- M8x35L
- 4 shown on diagram
$1.59 -
PLUG
- Part No. 100104
- PF3/8
- 3 shown on diagram
$25.99 -
PLUG
- Part No. 200021
- 3 shown on diagram
$2.99 -

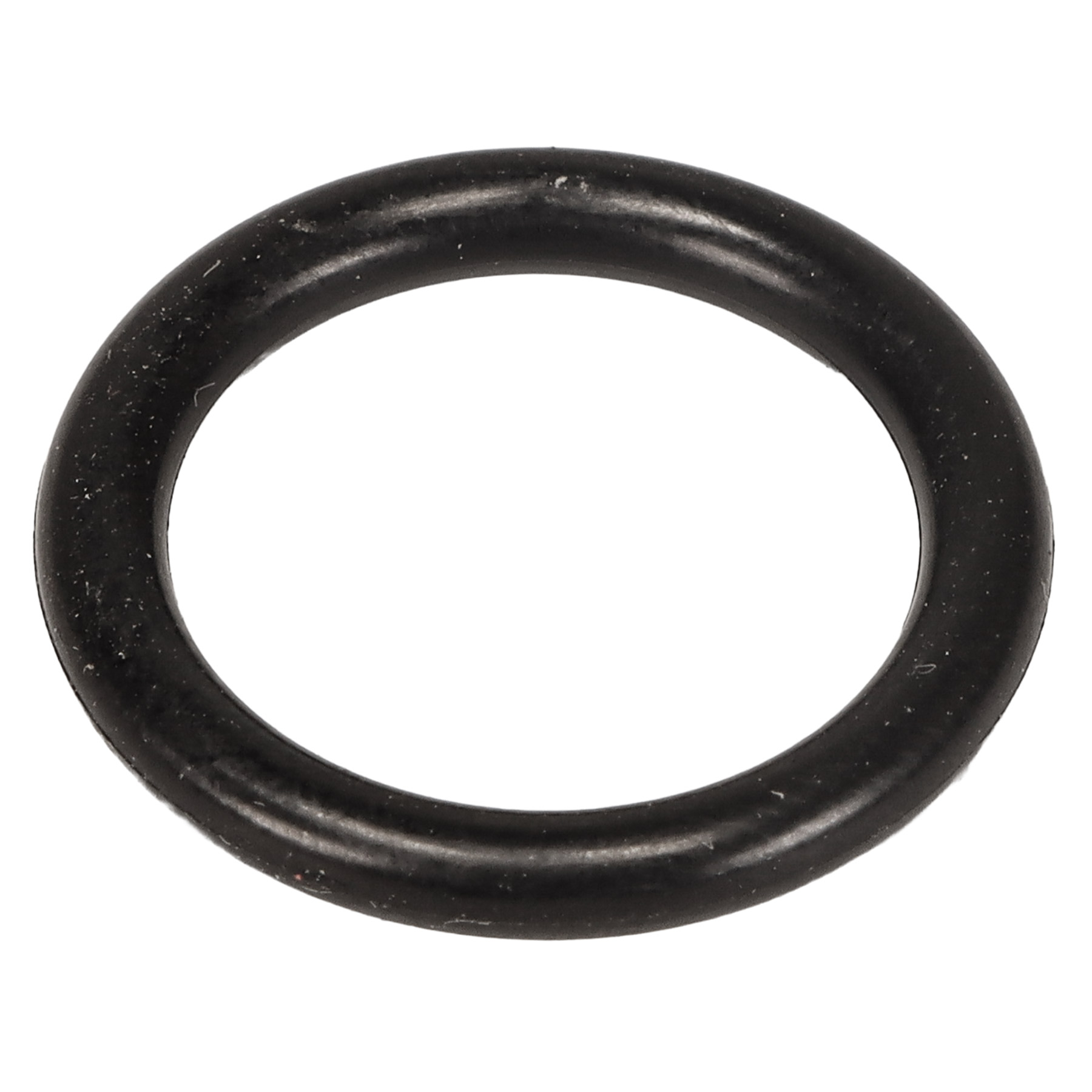

O RING
- Part No. 300016
- P14
- 6 shown on diagram
$1.49 -

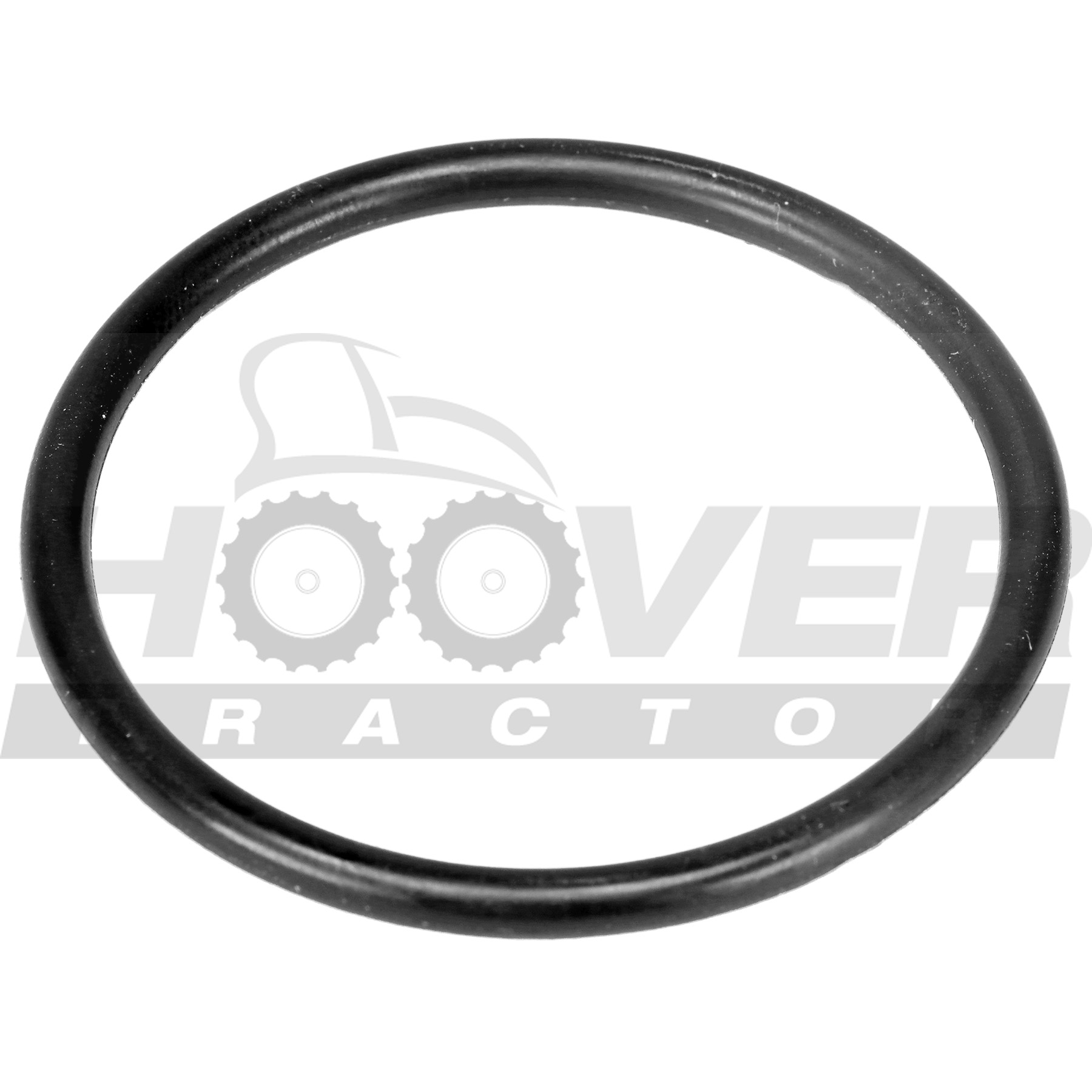

O RING
- Part No. 300056
- P45
- 1 shown on diagram
$8.99 -
PLUG
- Part No. 200040
- PT3/8
- 4 shown on diagram
$7.99 -
PLUG
- Part No. 100951
- PF 3/8
- 2 shown on diagram
$17.99 -
PIN, STRAIGHT
- Part No. 05012-00816
- DIA8XL16
- 1 shown on diagram
$1.59 -
BOLT
- Part No. 01173-51060
- 4 shown on diagram
$2.99 -
WASHER, SPRING
- Part No. 04512-50100
- M10
- 4 shown on diagram
$0.79 -
STUD
- Part No. 01517-51055
- M10X1.25
- 2 shown on diagram
$4.49 -
WASHER, SPRING
- Part No. 04512-50100
- M10
- 2 shown on diagram
$0.79 -
Nut M10 P1.25
- Part No. 02176-50100
- M10XP1.25
- 2 shown on diagram
$0.98
