INSTRUMENT COVER GROUP - CK20H-T810A

Kioti TRACTOR | CK Series | CK20HJ

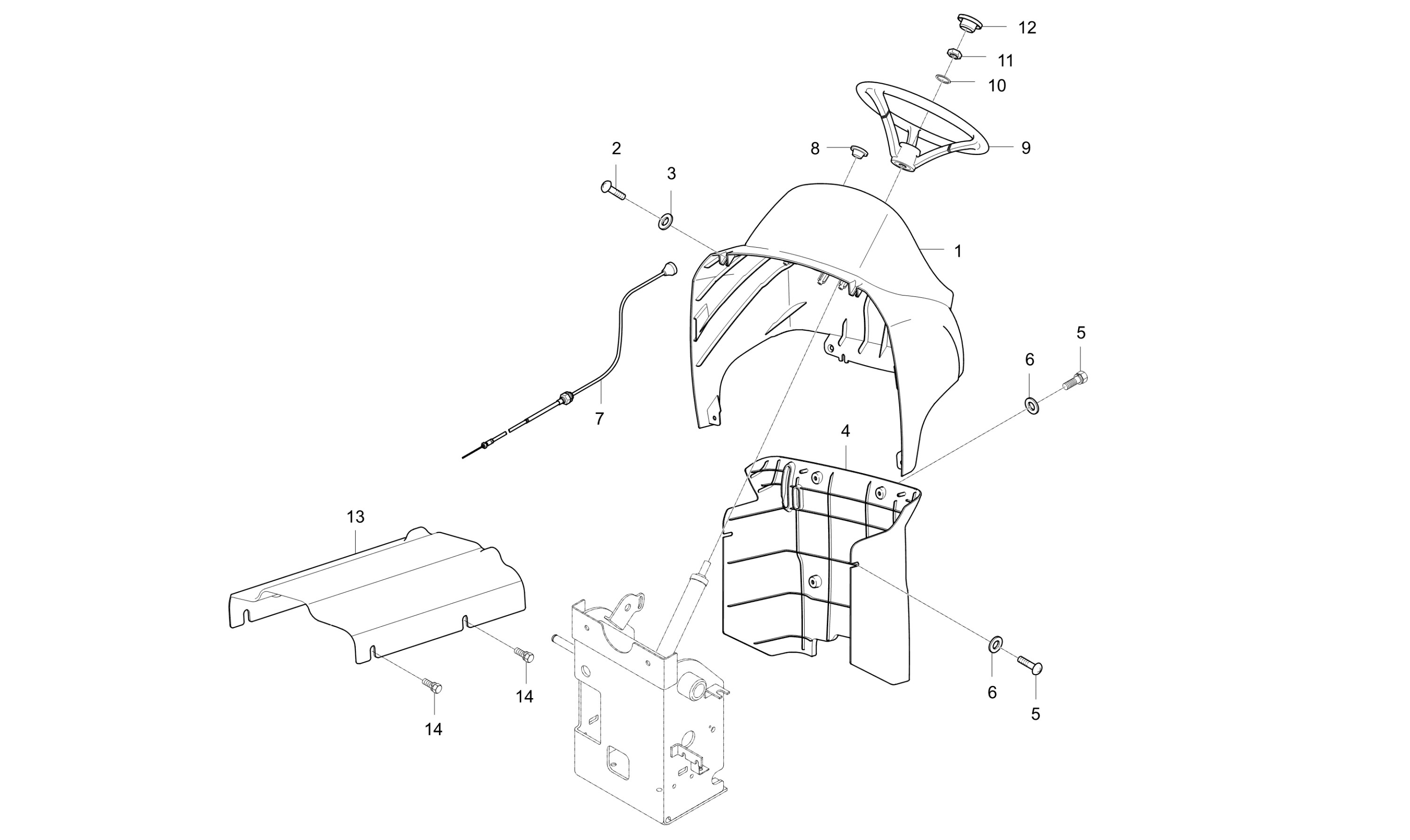

Diagram for INSTRUMENT COVER GROUP - CK20H-T810A
  • 1

    Upper Instrument Panel Cover Replaced By T2350-55315

    • Part No. T2350-55314
    • Applied Dates 2003-03-25 to 2003-05-06
    • * multiple options for #1
    • 1 shown on diagram
    $0.00
  • 1

    Upper Instrument Panel Cover

    • Part No. T2350-55315
    • Compatibility New repl old
    • Applied Dates 2003-05-07 to 2007-12-24
    • Serial No. 319600081 to G19600060
    • * multiple options for #1
    • 1 shown on diagram
    $249.99
  • 2

    BOLT obs v

    • Part No. 55571-2128-1
    • Applied Dates 2006-06-01 and up
    • M6*16
    • 4 shown on diagram
    $1.99
  • 3 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • Applied Dates Up to 2003-08-28
    • M6
    • 4 shown on diagram
    $0.73
  • 4

    COVER, INSTRUMENT LWR obs v

    • Part No. T2360-55326
    • Applied Dates 2003-03-25 to 2007-02-27
    • * multiple options for #4
    • 1 shown on diagram
    $114.99
  • 4

    METER COVER(LOWER)

    • Part No. T2360-55327
    • Compatibility New repl old
    • Applied Dates 2007-02-28 and up
    • Serial No. G19600061 and up
    • * multiple options for #4
    • 1 shown on diagram
    $139.99
  • 5

    SCREW

    • Part No. 03004-50616
    • Applied Dates Up to 2003-08-28
    • Serial No. Up to 319600080
    • M6XP1.0
    • * multiple options for #5
    • 6 shown on diagram
    $0.73
  • 5

    BOLT obs v

    • Part No. 55571-2128-1
    • Compatibility Interchngable
    • Applied Dates 2003-08-29 to 2004-02-12
    • Serial No. 319600650 to D19600200
    • M6*16
    • * multiple options for #5
    • 6 shown on diagram
    $1.99
  • 5

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • Compatibility New repl old
    • Applied Dates 2004-02-13 to 2006-05-28
    • Serial No. 319600081 to F19600160
    • M6XP1.0
    • * multiple options for #5
    • 6 shown on diagram
    $2.49
  • 6 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • Applied Dates Up to 2003-08-28
    • M6
    • 6 shown on diagram
    $0.73
  • 7

    WIRE,ENGINE STOP

    • Part No. T2350-55412
    • 1 shown on diagram
    $34.99
  • 8 PLUG

    PLUG

    • Part No. T4625-29291
    • 1 shown on diagram
    $1.79
  • 9

    HANDLE, Replaced by T2350-55454

    • Part No. T2350-55452
    • Applied Dates 2003-03-20 and up
    • Serial No. 319600081 and up
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 9

    HANDLE

    • Part No. T2350-55453
    • Compatibility Interchngable
    • * multiple options for #9
    • 1 shown on diagram
    $0.00
  • 10 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 11 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49
  • 12 CAP,HANDLE V

    CAP,HANDLE V

    • Part No. T2350-55461
    • Applied Dates 2003-03-20 to 2006-03-02
    • Serial No. 319600081 to F19600160
    • * multiple options for #12
    • 1 shown on diagram
    $18.99
  • 12

    Steering Wheel Cap (T2350-55462 )

    • Part No. T2350-55462
    • Compatibility New repl old
    • Applied Dates 2006-03-03 and up
    • Serial No. F19600161 and up
    • * multiple options for #12
    • 1 shown on diagram
    $28.99
  • 13

    COVER, MISSION

    • Part No. T2360-55374
    • Applied Dates 2003-03-25 and up
    • 1 shown on diagram
    $56.99
  • 14 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 4 shown on diagram
    $1.79
