STEP GROUP - CK20H-T840A

Kioti TRACTOR | CK Series | CK20HJ

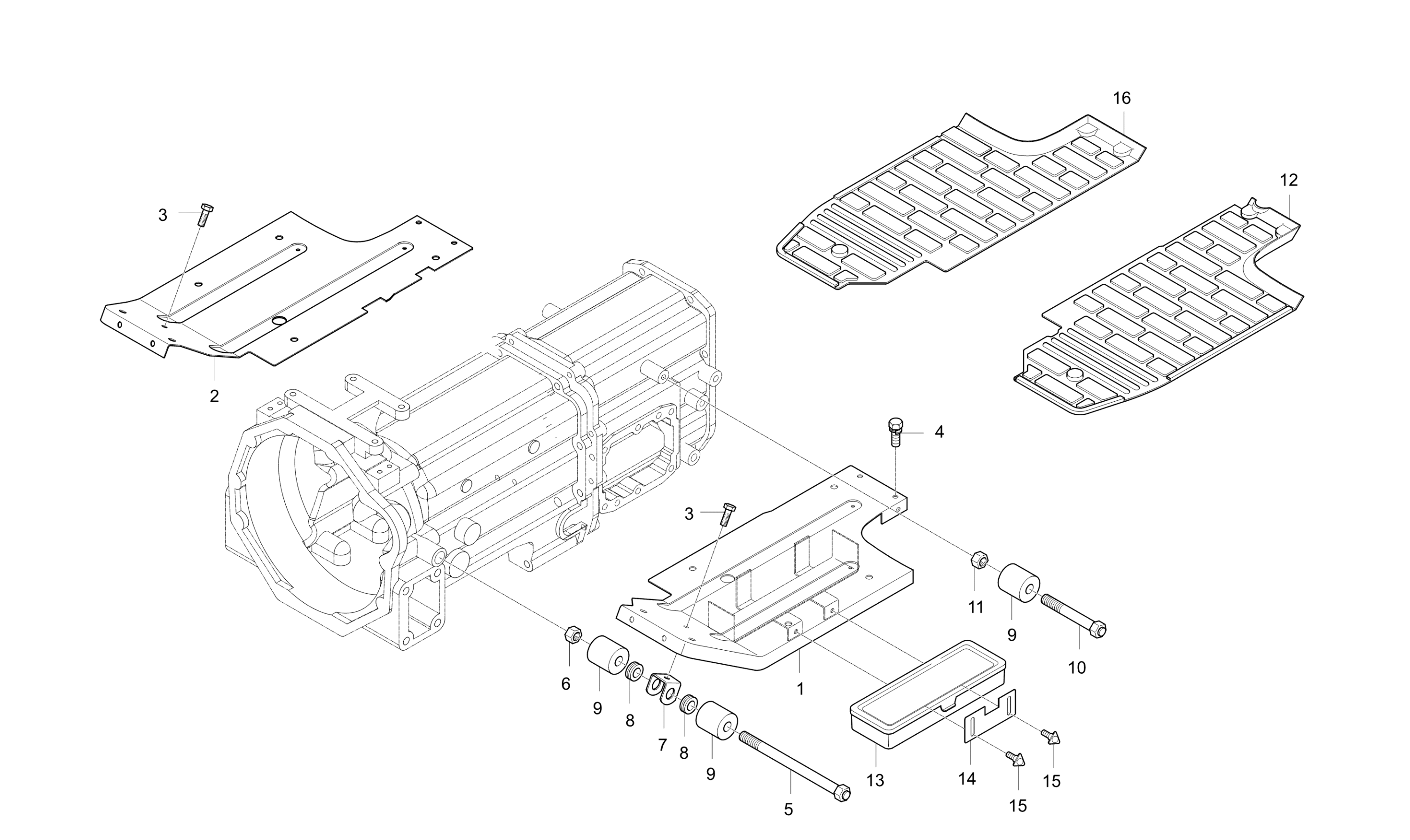

Diagram for STEP GROUP - CK20H-T840A
  • 1

    (LH) Step (T2350-70112)

    • Part No. T2350-70112
    • * multiple options for #1
    • 1 shown on diagram
    $124.99
  • 1

    STEP, LH

    • Part No. T2350-70113
    • Compatibility New repl old
    • Applied Dates 2015-05-13 and up
    • * multiple options for #1
    • 1 shown on diagram
    $144.99
  • 2

    STEP(RH)

    • Part No. T2360-70122
    • * multiple options for #2
    • 1 shown on diagram
    $88.99
  • 2

    PLATE RH,STEP

    • Part No. T2360-70123
    • Compatibility New repl old
    • Applied Dates 2007-01-01 to 2007-04-30
    • Serial No. G19600001 to G19600060
    • * multiple options for #2
    • 1 shown on diagram
    $66.99
  • 2

    PLATE RH,STEP

    • Part No. T2360-70124
    • Compatibility New repl old
    • Applied Dates 2007-05-01 to 2008-06-09
    • Serial No. G19600061 and up
    • * multiple options for #2
    • 1 shown on diagram
    $85.99
  • 2

    PLATE RH,STEP

    • Part No. T2360-70126
    • Compatibility New repl old
    • Applied Dates 2010-11-28 and up
    • * multiple options for #2
    • 1 shown on diagram
    $119.99
  • 2

    PLATE RH,STEP

    • Part No. T2360-70126OE
    • Compatibility New repl old
    • * multiple options for #2
    • 1 shown on diagram
    $119.99
  • 3 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 4 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.79
  • 5

    Front Bolt, Replaced by T4157-70151

    • Part No. T2350-70151
    • Applied Dates Up to 2003-06-18
    • * multiple options for #5
    • 2 shown on diagram
    $13.99
  • 5

    Bolt, Front, Replaced by T4157-70151

    • Part No. T2350-70152
    • Compatibility Interchngable
    • Applied Dates 2003-06-19 to 2008-12-30
    • Serial No. 319600281 and up
    • * multiple options for #5
    • 2 shown on diagram
    $0.00
  • 6 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 7

    BRACKET

    • Part No. T2350-70161
    • 2 shown on diagram
    $6.49
  • 8

    GROMMET

    • Part No. T2350-70171
    • 4 shown on diagram
    $3.99
  • 9

    CUSHION v

    • Part No. T2350-70181
    • Applied Dates 2004-11-27 to 2004-11-26
    • Serial No. D19600201 to D19600200
    • * multiple options for #9
    • 6 shown on diagram
    $11.99
  • 9

    CUSHION V

    • Part No. T2350-70182
    • Compatibility New repl old
    • Applied Dates 2007-05-31 and up
    • Serial No. G19600061 and up
    • * multiple options for #9
    • 6 shown on diagram
    $13.99
  • 10

    BOLT(REAR)

    • Part No. T2360-70191
    • * multiple options for #10
    • 2 shown on diagram
    $12.99
  • 10

    BOLT(REAR)

    • Part No. T2360-70192
    • Compatibility Interchngable
    • Applied Dates 2003-06-25 and up
    • Serial No. 319600281 and up
    • * multiple options for #10
    • 2 shown on diagram
    $15.99
  • 11 NUT

    NUT

    • Part No. 02176-50160
    • M16XP1.5
    • 2 shown on diagram
    $2.49
  • 12

    MAT, STEP LH, Replaced by T2360-70233

    • Part No. T2360-70232
    • * multiple options for #12
    • 1 shown on diagram
    $0.00
  • 12

    MAT STEP LH

    • Part No. T2360-70233
    • Compatibility Interchngable
    • Applied Dates 2012-09-30 and up
    • * multiple options for #12
    • 1 shown on diagram
    $77.99
  • 13

    BOX,TOOL dnr v

    • Part No. T2350-70491
    • * multiple options for #13
    • 1 shown on diagram
    $16.99
  • 13

    BOX, TOOL

    • Part No. T2350-70492
    • Compatibility Interchngable
    • Applied Dates 2015-05-13 and up
    • Serial No. 319601131 and up
    • * multiple options for #13
    • 1 shown on diagram
    $26.99
  • 14

    Plate 1.2mm

    • Part No. T2350-70141
    • T1.2
    • 1 shown on diagram
    $8.99
  • 15 BOLT, KNOB

    BOLT, KNOB

    • Part No. P4410-98251
    • 2 shown on diagram
    $4.49
  • 16

    MAT, STEP RH V

    • Part No. T2360-70241
    • * multiple options for #16
    • 1 shown on diagram
    $48.99
  • 16

    MAT, STEP(RH)

    • Part No. T2360-70242
    • Compatibility New repl old
    • Applied Dates 2006-12-01 to 2012-09-29
    • Serial No. F19600481 and up
    • * multiple options for #16
    • 1 shown on diagram
    $65.99
  • 16

    MAT, STEP RH v

    • Part No. T2360-70243
    • Compatibility Interchngable
    • Applied Dates 2012-09-30 and up
    • * multiple options for #16
    • 1 shown on diagram
    $81.99
