BONNET 2 GROUP - CK20M-T760A

Kioti TRACTOR | CK Series | CK20HJ

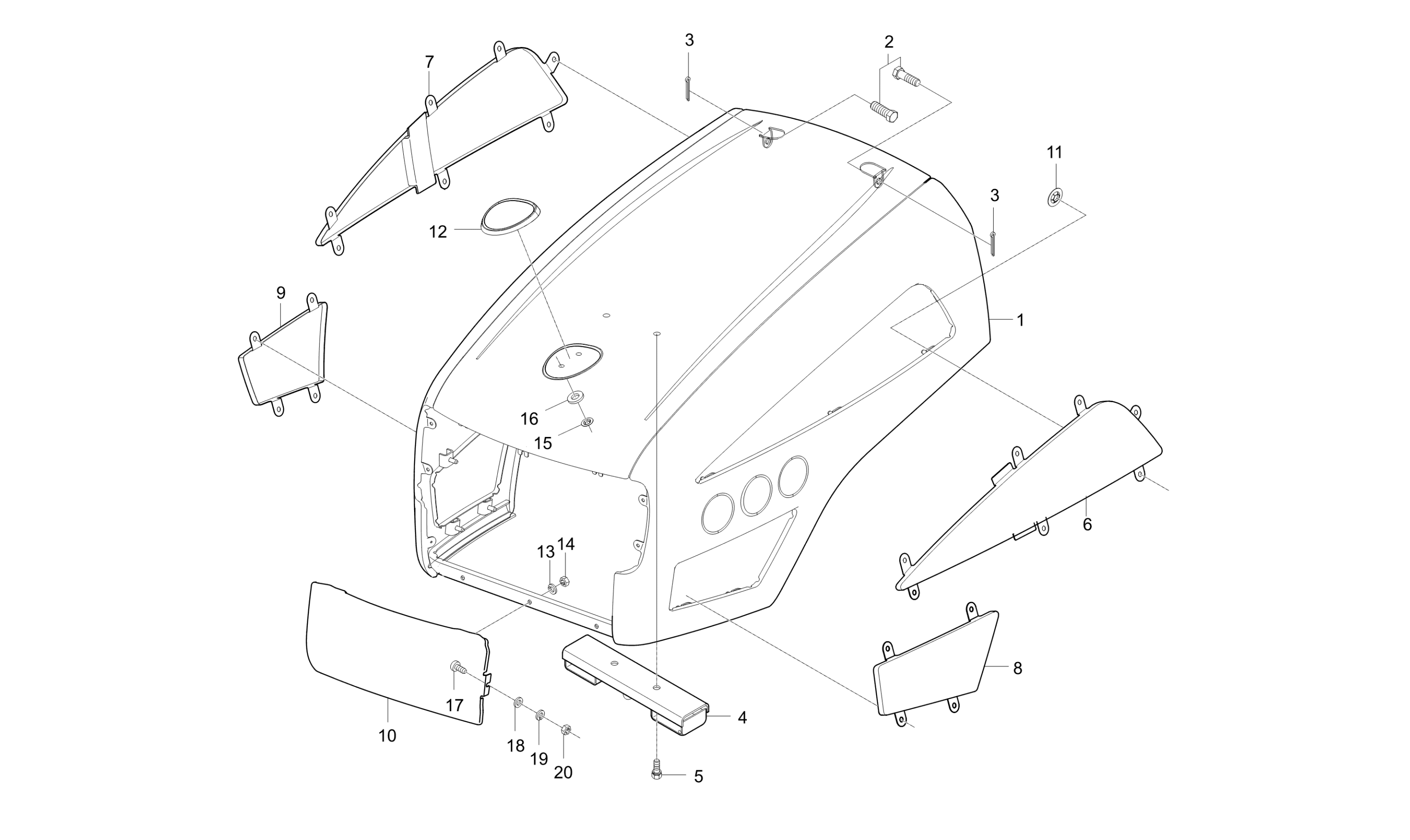

Diagram for BONNET 2 GROUP - CK20M-T760A
  • 1

    ASSY, BONNET v

    • Part No. T2350-50702
    • Applied Dates Up to 2003-03-14
    • * multiple options for #1
    • 1 shown on diagram
    $1,149.99
  • 1

    ASSY, BONNET v

    • Part No. T2350-50703
    • Compatibility Interchngable
    • Applied Dates 2003-03-15 to 2004-09-01
    • Serial No. 319600081 to D19600200
    • * multiple options for #1
    • 1 shown on diagram
    $1,159.99
  • 1

    ASSY BONNET obs v

    • Part No. T2350-50704
    • Compatibility New repl old
    • Applied Dates 2004-09-02 and up
    • Serial No. D19600201 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,499.99
  • 2

    BOLT BONNET

    • Part No. T2350-50632
    • 2 shown on diagram
    $6.49
  • 3

    Split Pin (05511-51615)

    • Part No. 05511-51615
    • DIA1.4XL15
    • 2 shown on diagram
    $0.56
  • 4

    HOLDER,BINNET

    • Part No. T2350-50612
    • Applied Dates Up to 2005-09-13
    • * multiple options for #4
    • 1 shown on diagram
    $23.99
  • 4

    HOLDER,BINNET dnr v

    • Part No. T2350-50613
    • Compatibility Interchngable
    • Applied Dates 2005-09-14 to 2007-10-05
    • Serial No. E19600361 to G19600060
    • * multiple options for #4
    • 1 shown on diagram
    $38.99
  • 5

    Bolt With Washer, M10 P1.50 x 20mm

    • Part No. 01123-51020
    • M10*P1.5
    • 2 shown on diagram
    $2.99
  • 6

    PUNCHING-MATAL-1

    • Part No. T2350-50752
    • Applied Dates Up to 2004-12-15
    • * multiple options for #6
    • 1 shown on diagram
    $82.99
  • 6

    PUNCHING METAL-1 LH

    • Part No. T2350-50753
    • Compatibility Interchngable
    • Applied Dates 2004-12-16 and up
    • Serial No. E19600001 and up
    • * multiple options for #6
    • 1 shown on diagram
    $134.99
  • 7

    PUNCHING-METAL-2

    • Part No. T2350-50762
    • Applied Dates Up to 2004-12-15
    • * multiple options for #7
    • 1 shown on diagram
    $79.99
  • 7

    PUNCHING METAL-2 RH

    • Part No. T2350-50763
    • Compatibility Interchngable
    • Applied Dates 2004-12-16 and up
    • Serial No. E19600001 and up
    • * multiple options for #7
    • 1 shown on diagram
    $114.99
  • 8

    PUNCHING METAL 3

    • Part No. T2350-50772
    • T0.8
    • 1 shown on diagram
    $49.99
  • 9

    Punching-Metal 4 (T2350-50782)

    • Part No. T2350-50782
    • T0.8
    • 1 shown on diagram
    $55.99
  • 10

    PUNCHING METAL 5 v

    • Part No. T2350-50792
    • Applied Dates Up to 2004-12-15
    • * multiple options for #10
    • 1 shown on diagram
    $69.99
  • 10

    PUNCHING METAL-5 v

    • Part No. T2350-50793
    • Compatibility Interchngable
    • Applied Dates 2004-12-16 and up
    • Serial No. E19600001 and up
    • * multiple options for #10
    • 1 shown on diagram
    $96.99
  • 11 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • 22 shown on diagram
    $1.39
  • 12

    MASCOT v

    • Part No. T2330-50471
    • Applied Dates Up to 2004-09-01
    • 1 shown on diagram
    $15.99
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 3 shown on diagram
    $0.61
  • 14

    NUT, Replaced by 02014-50060

    • Part No. 02114-50060
    • 3 shown on diagram
    $0.00
  • 15 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • Applied Dates 2004-09-02 and up
    • 2 shown on diagram
    $1.39
  • 16 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • Applied Dates 2004-10-13 and up
    • 2 shown on diagram
    $1.19
  • 17

    Screw

    • Part No. 03054-50516
    • 2 shown on diagram
    $0.56
  • 18

    Flat Washer M5

    • Part No. 04013-50050
    • 2 shown on diagram
    $0.67
  • 19 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • M5
    • 2 shown on diagram
    $0.55
  • 20

    NUT v

    • Part No. 02114-50050
    • 2 shown on diagram
    $0.50
