BONNET GROUP - CK20M-T770A

Kioti TRACTOR | CK Series | CK20HJ

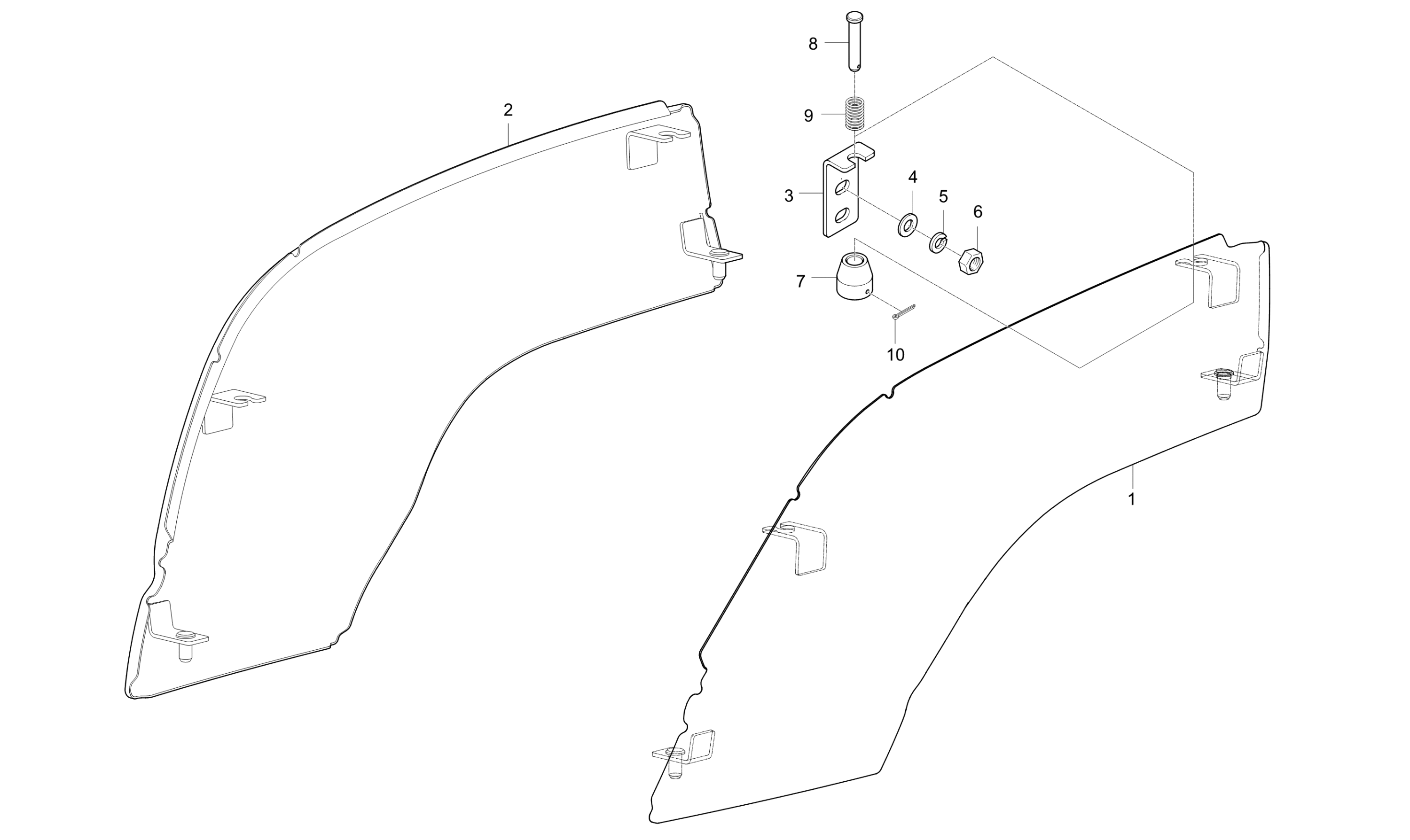

Diagram for BONNET GROUP - CK20M-T770A

1
COVER- SIDE LH v
- Part No. T2350-50821
- 1 shown on diagram
$314.99

COVER- SIDE LH v quantity
2
COVER SIDE RH V
- Part No. T2350-50831
- 1 shown on diagram
$264.99

COVER SIDE RH V quantity
3
PLATE,SIDE COVER
- Part No. T2350-50841
- 4 shown on diagram
$11.99

PLATE,SIDE COVER quantity
4
Flat Washer M8
- Part No. 04013-50080
- 8 shown on diagram
$0.79

Flat Washer M8 quantity
5
Spring Lock Washer M8
- Part No. 04512-50080
- M08
- 8 shown on diagram
$0.61

Spring Lock Washer M8 quantity
6
NUT
- Part No. 02114-50080
- M8*P1.25
- 8 shown on diagram
$0.67

NUT quantity
7
SPACER
- Part No. T2350-50851
- DIA14
- 4 shown on diagram
$5.49

SPACER quantity
8
Pin, Joint M6x35mm
- Part No. 05122-50635
- DIA6XL35
- 4 shown on diagram
$2.49

Pin, Joint M6x35mm quantity
9
SPRING
- Part No. T2350-50871
- DIA0.8
- 4 shown on diagram
$3.49

SPRING quantity
10
PIN,SPLIT
- Part No. 05511-51620
- DIA1.4XL20
- 4 shown on diagram
$0.50

PIN,SPLIT quantity
