MAIN SHIFT LEVER GROUP - CK20M-T280A

Kioti TRACTOR | CK Series | CK20S

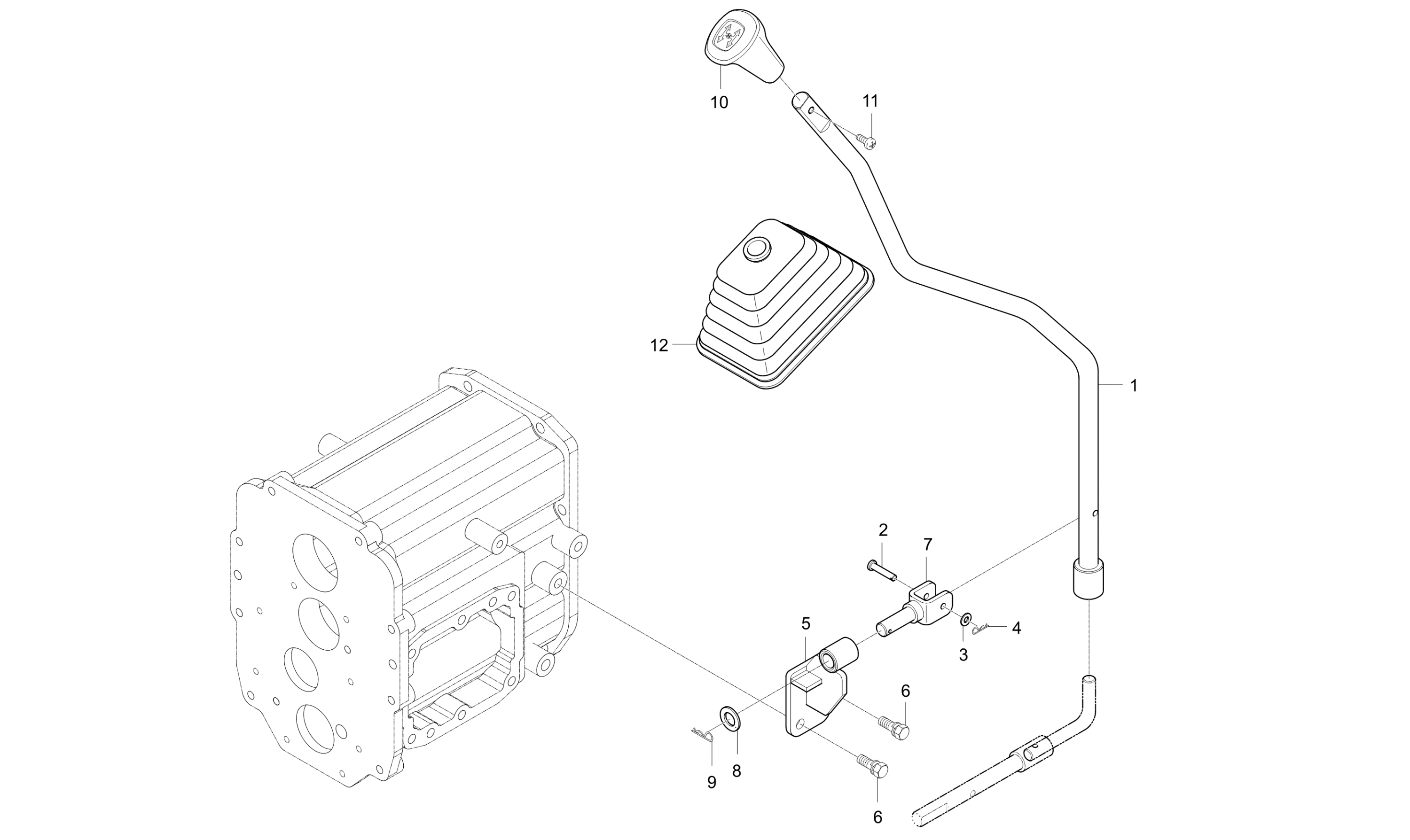

Diagram for MAIN SHIFT LEVER GROUP - CK20M-T280A

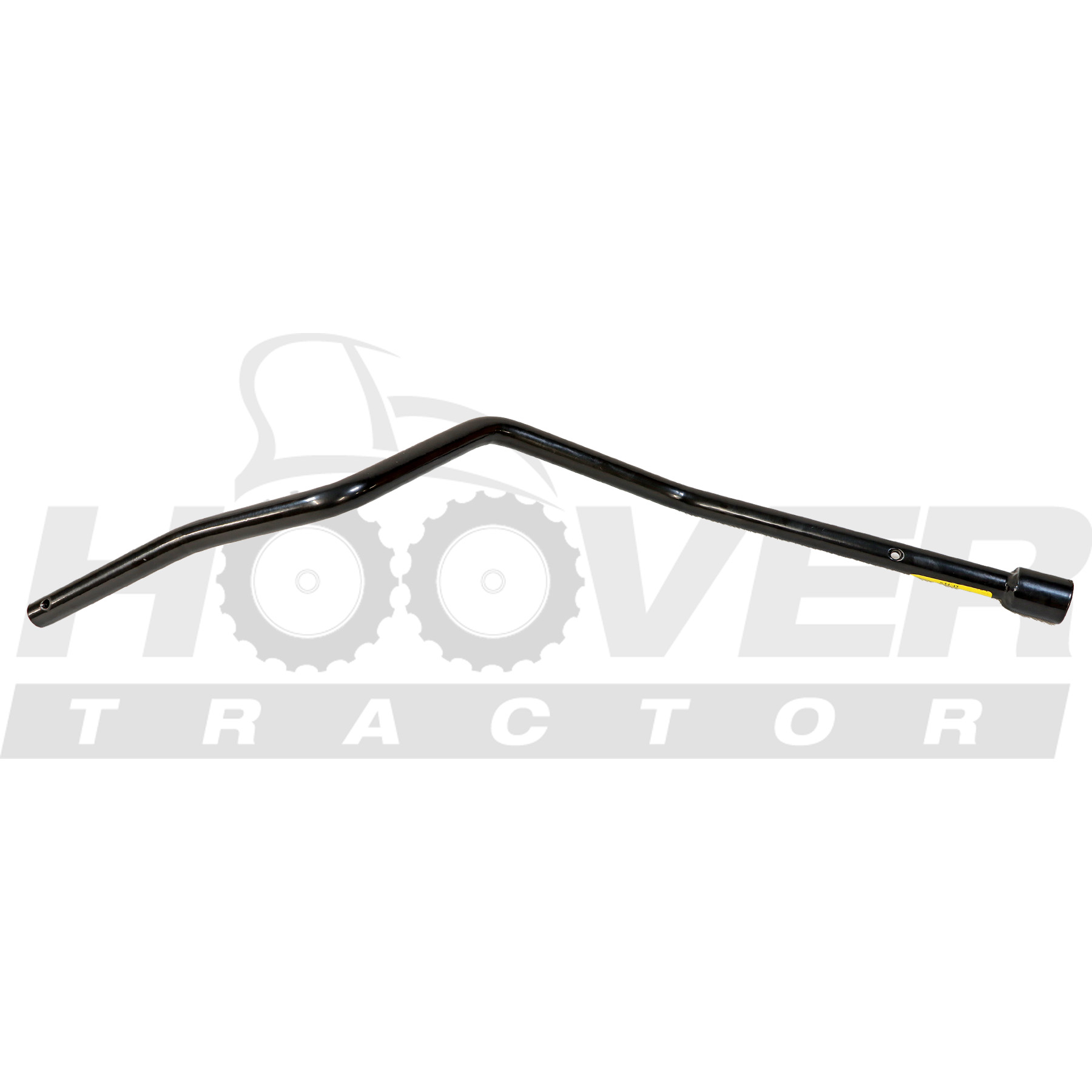

  • 1 LEVER MAIN CHANGE

    LEVER MAIN CHANGE

    • Part No. T2350-21312
    • 1 shown on diagram
    $75.99
  • 2 Pin, Joint M6x35mm

    Pin, Joint M6x35mm

    • Part No. 05122-50635
    • DIA6XL35
    • 1 shown on diagram
    $2.49
  • 3 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 4

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 5

    BRACKET, MAINS-CHANGE

    • Part No. T2350-21322
    • DIA24
    • 1 shown on diagram
    $64.99
  • 6

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 7

    Main Shift Pin (T2350-21332 )

    • Part No. T2350-21332
    • 1 shown on diagram
    $28.99
  • 8 Flat Washer M14

    Flat Washer M14

    • Part No. 04011-50140
    • M14
    • 1 shown on diagram
    $1.19
  • 9 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 1 shown on diagram
    $2.99
  • 10

    GRIP, MAIN SHIFT dnr v

    • Part No. T2350-21341
    • * multiple options for #10
    • 1 shown on diagram
    $26.99
  • 10

    GRIP, TRANSMISSION

    • Part No. T2350-21342
    • Compatibility New repl old
    • Applied Dates 2011-07-01 and up
    • Serial No. LS2900031 and up
    • * multiple options for #10
    • 1 shown on diagram
    $36.99
  • 11

    SCREW v

    • Part No. 03024-50516
    • Applied Dates Up to 2007-11-29
    • Serial No. Up to GS2900300
    • * multiple options for #11
    • 1 shown on diagram
    $0.79
  • 11

    SCREW

    • Part No. 03004-50616
    • Compatibility New repl old
    • Applied Dates 2007-11-30 to 2003-03-10
    • Serial No. GS2900301 and up
    • M6XP1.0
    • * multiple options for #11
    • 1 shown on diagram
    $0.73
  • 12

    BOOT (MAIN SHIFT)

    • Part No. T2350-60371
    • 1 shown on diagram
    $53.99
