BRAKE PEDAL GROUP - CK20M-T410A

Kioti TRACTOR | CK Series | CK20S

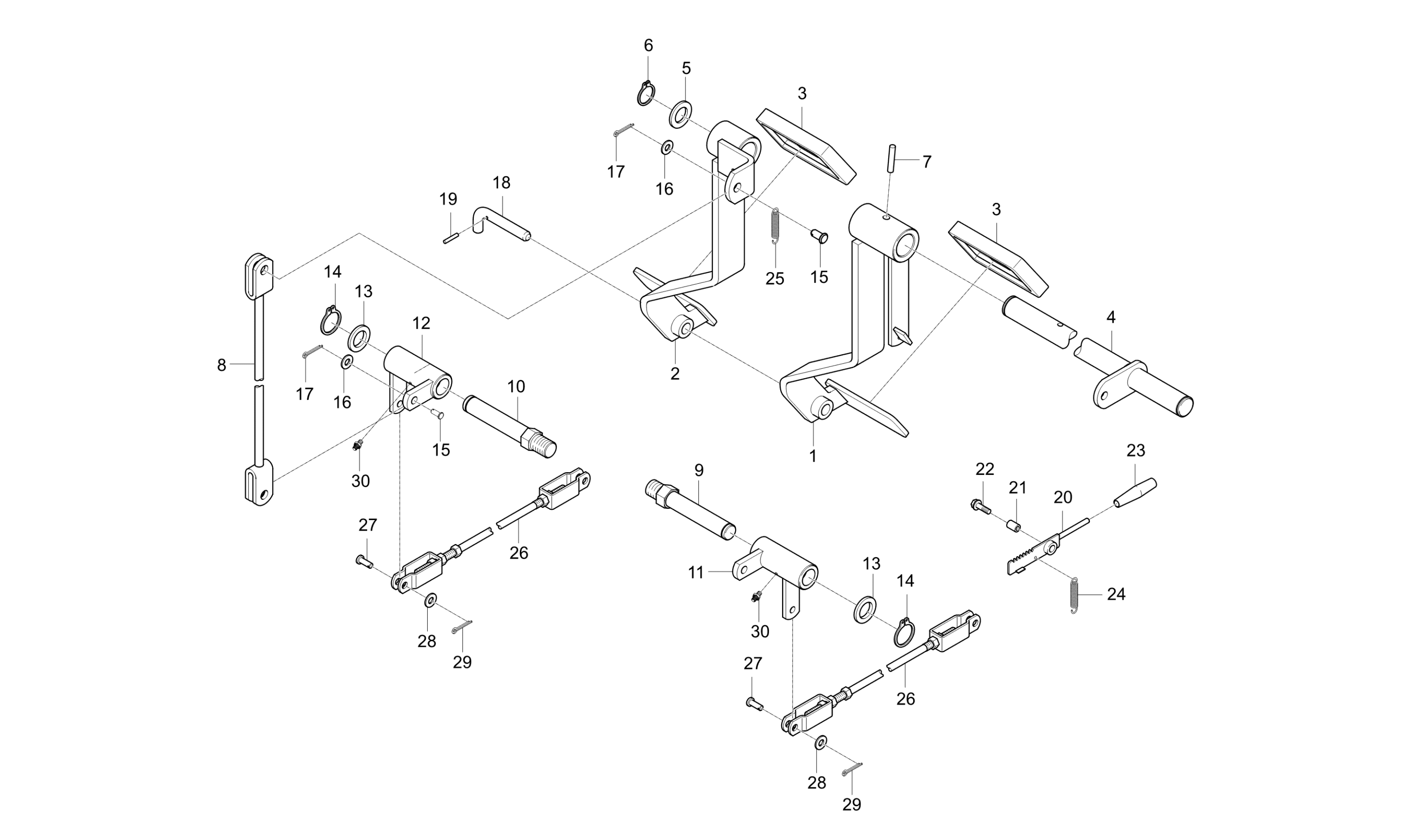

Diagram for BRAKE PEDAL GROUP - CK20M-T410A
  • 1

    PEDAL, BRAKE(LH)

    • Part No. T2350-55712
    • 1 shown on diagram
    $82.99
  • 2

    (RH) Brake Pedal (T2350-55722)

    • Part No. T2350-55722
    • * multiple options for #2
    • 1 shown on diagram
    $65.99
  • 2

    PEDAL BRAKE (RH)

    • Part No. T2350-55723
    • Compatibility New repl old
    • Applied Dates 2003-03-11 to 2007-12-24
    • Serial No. Up to GS2900060
    • * multiple options for #2
    • 1 shown on diagram
    $82.99
  • 3 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 2 shown on diagram
    $23.99
  • 4

    Pedal Shaft Replaced by T2350-55732

    • Part No. T2350-55731
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4

    Pedal Shaft (T2350-55732)

    • Part No. T2350-55732
    • Compatibility New repl old
    • Applied Dates 2003-03-11 to 2007-12-24
    • Serial No. Up to GS2900060
    • * multiple options for #4
    • 1 shown on diagram
    $44.99
  • 5

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 2 shown on diagram
    $1.09
  • 7 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 8

    ROD, BRAKE

    • Part No. T2350-55771
    • 2 shown on diagram
    $17.99
  • 9

    SHAFT, BRAKE(LH)

    • Part No. T2350-55802
    • 1 shown on diagram
    $19.99
  • 10

    (RH) Brake Shaft (T2350-55811)

    • Part No. T2350-55811
    • HEX27
    • 1 shown on diagram
    $26.99
  • 11

    LEVER, BRAKE(LH)

    • Part No. T2350-55781
    • Serial No. Up to GS2900220
    • 1 shown on diagram
    $39.99
  • 12

    LEVER, BRAKE(RH)

    • Part No. T2350-55792
    • Serial No. Up to GS2900220
    • 1 shown on diagram
    $47.99
  • 13

    Flat Washer M20

    • Part No. 04011-50200
    • Applied Dates Up to 2003-12-11
    • Serial No. Up to GS2900060
    • M20
    • * multiple options for #13
    • 2 shown on diagram
    $1.59
  • 13 Flat Washer M20

    Flat Washer M20

    • Part No. 04013-50200
    • Compatibility New repl old
    • Applied Dates 2003-12-16 and up
    • Serial No. Up to LS2900030
    • * multiple options for #13
    • 2 shown on diagram
    $1.29
  • 14 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
    $1.09
  • 15

    Pin, Joint M10x35mm

    • Part No. 05122-51035
    • 2 shown on diagram
    $2.99
  • 16 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 4 shown on diagram
    $0.73
  • 17

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 4 shown on diagram
    $0.40
  • 18

    Brake Pedal Pin (T2350-55941)

    • Part No. T2350-55941
    • DIA12
    • * multiple options for #18
    • 1 shown on diagram
    $5.99
  • 18

    PIN,BRAKE PEDAL

    • Part No. T2350-55942
    • Compatibility New repl old
    • Applied Dates 2003-07-03 to 2007-12-24
    • Serial No. Up to GS2900060
    • DIA12
    • * multiple options for #18
    • 1 shown on diagram
    $14.99
  • 19 PIN,SPRING

    PIN,SPRING

    • Part No. 05411-00325
    • DIA3.3XL25
    • 1 shown on diagram
    $0.62
  • 20

    LEVER, PARKING BRAKE v

    • Part No. T2350-55912
    • * multiple options for #20
    • 1 shown on diagram
    $18.99
  • 20

    Parking Brake Lever (T2350-55913)

    • Part No. T2350-55913
    • Compatibility Interchngable
    • Applied Dates 2003-03-11 to 2007-12-24
    • Serial No. Up to GS2900060
    • * multiple options for #20
    • 1 shown on diagram
    $32.99
  • 21

    SPACER

    • Part No. T2350-55951
    • 1 shown on diagram
    $5.49
  • 22

    Bolt With Washers, M8 P1.25 x 30mm

    • Part No. 01125-50830
    • M8*P1.25
    • 1 shown on diagram
    $2.99
  • 23

    GRIP

    • Part No. T2350-55922
    • 1 shown on diagram
    $5.49
  • 24

    Spring, Replaced by T4157-51211

    • Part No. T2670-55841
    • Applied Dates Up to 2003-05-06
    • DIA0.8
    • * multiple options for #24
    • 1 shown on diagram
    $0.00
  • 24

    FRICTION SPRING

    • Part No. 57781-5121-1
    • Compatibility Interchngable
    • Applied Dates 2003-04-14 to 2007-12-24
    • Serial No. Up to GS2900060
    • DIA1.2
    • * multiple options for #24
    • 1 shown on diagram
    $3.49
  • 25

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 26

    ROD 2, BRAKE

    • Part No. T2350-55821
    • 2 shown on diagram
    $43.99
  • 27

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 4 shown on diagram
    $2.99
  • 28 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 4 shown on diagram
    $0.73
  • 29

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 4 shown on diagram
    $0.40
  • 30 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • A-M6F
    • 2 shown on diagram
    $1.69
